Familiarizing Yourself with the Pen.................................................... 3

The Pen Buttons (keypad)............................................................. 4

Scanning ....................................................................................... 5

What is on the Pen........................................................................ 9

The Notes application................................................................ 9

The Scan to PC application ....................................................... 9

Scanning Languages................................................................. 9

Interface Languages.................................................................. 9

Set Up Product on PC..................................................................... 10

Tutorials........................................................................................ 11

Tutorial 1 – Notes ........................................................................ 11

Tutorial 2 – QuickLink.................................................................. 16

Tutorial 3 – Scan to PC ............................................................... 20

Product Specification....................................................................... 22

Worldwide Limited Warranty ........................................................... 23

WEEE ............................................................................................. 24

Registration.....................................................................................25

Copyrights and Trademarks

WizCom Technologies Ltd. uses the Ligature OCR-on-a-Chip copyright

WizCom InfoScan, QuickLink-Pen, Quicktionary, Reading Pen, WizCom

SuperPen, WizCom and Quicktionary pen shaped design are trademarks or

All other brands and product names appearing here are registered

trademarks or trademarks of their respective holders.

Familiarizing Yourself with the Pen

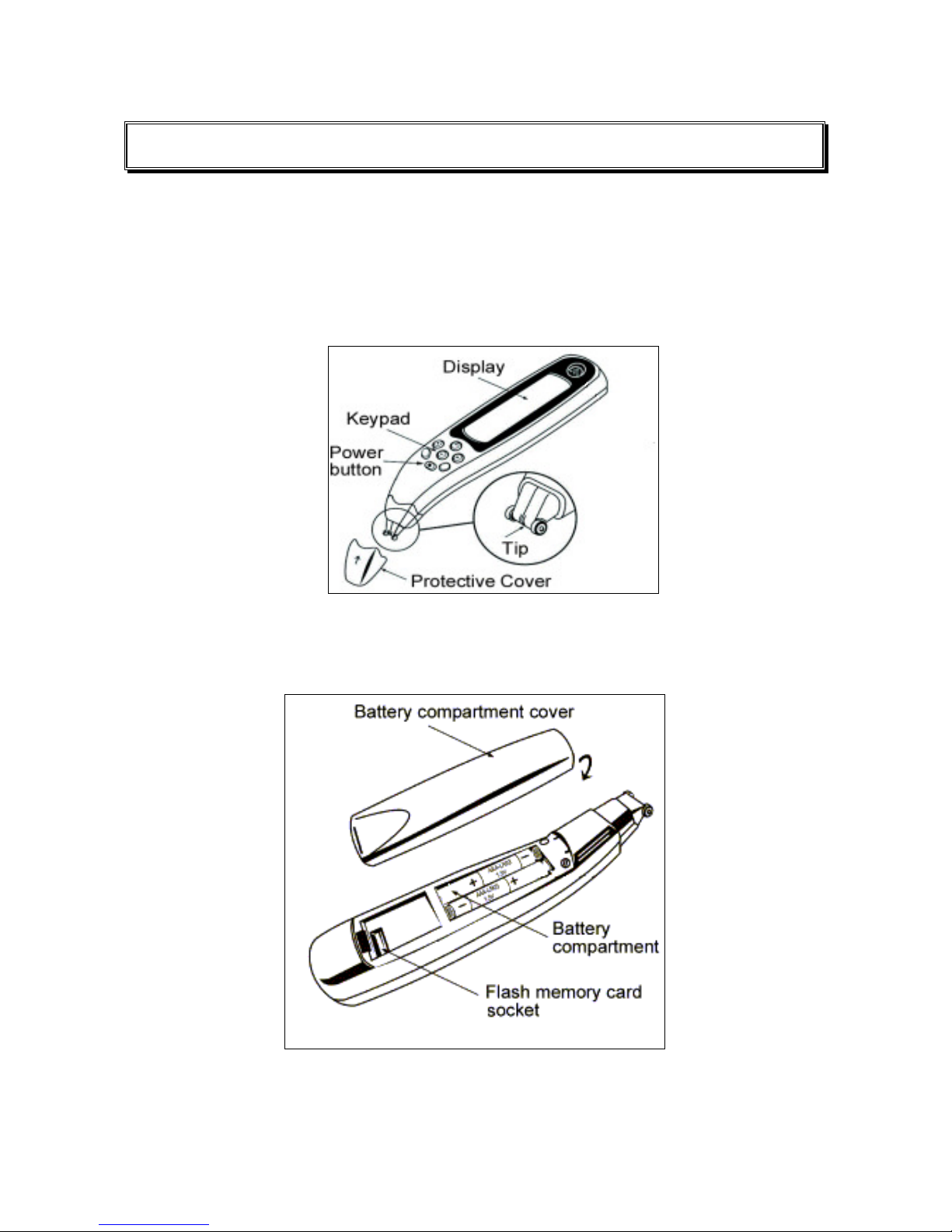

The scanning device (‘Pen’) contains the following parts:

• Pen Tip with optical scanning head

• Protective cover

• Power button

• Keypad

• Display

• Battery compartment cover

• Battery compartment

• Flash memory card socket

WizCom InfoScan™ 1.00 User Guide

• PC link connector (for connecting the plug of the USB cable used for

Pen-PC Communications).

The Pen Buttons (keypad)

The keypad contains seven buttons for operating your Pen:

• The Power button is used to turn the Pen on and off.

• The Enter button is used to enter a sub menu or screen, confirm a

selection or perform an operation. In addition, the button has special

functionalities on text in an open Notes file:

a. Long pressing will open the Hebrew translation for the current

English word.

b. Double-Click on will open the Character Bar.

• The Escape button is used to navigate backwards, close a screen,

or cancel an operation.

• The Arrow buttons , , and are used to scroll through a text,

menu items, etc.

Familiarizing Yourself with the Pen

Scanning

Scanning means to roll the Pen over printed text. When scanning, the optical

head of the Pen scans the surface and creates a bitmap copy of the scanned

text. In all applications the image is processed resulting in the actual letters

by using OCR (Optical Character Recognition).

How to Scan

Following are instructions on how to scan.

For a short movie, demonstrating scanning, please access

http://www.wizcomtech.com/presentations/main_18.html.

Always make sure that:

1. The Pen is on.

2. The Pen Cap has been removed.

3. The Pen is in scanning mode – denoted by the red blinking light at

the tip of the Pen.

If you are Left Handed:

The Pen default is set to right handed scanning. To change it to left handed

scanning:

1. In the Preferences menu, scroll using and until the option

Right-/Left-Handed appears on the screen and press .

2. Scroll to the mode you prefer by using or .

3. Press .

Scanning with the Trainer

The transparent trainer is used for the initial scan practice:

1. Slide the trainer on to the tip of the Pen (instead of the cap) and

press firmly into place.

WizCom InfoScan™ 1.00 User Guide

2. Place the trainer flat and steady to the right of the text you wish to

scan. Notice the 90˚angle that is created. This is the angle you

should preserve whenever scanning, even without the trainer.

3. The text should be positioned at the center of the opening of the

trainer.

4. Glide (‘scan’) the Pen from right to left in a straight line over the text.

The area you scan should start 1cm before the text, and end 1cm

after it. Make sure that the text always appears between the 2 arrows

on the trainer, as if being “fed” into the trainer.

Scanning without the Trainer

Once you get accustomed to scanning, you can scan without the trainer:

1. You can scan from right to left or from left to right.

2. Place the Pen rollers on the page, approx. 1 cm before the beginning of

the text, and roll the Pen over the text until 1 cm after the text.

3. Make sure that the white guidelines at the Pen’s tip pass exactly over the

middle of the scanned text.

Familiarizing Yourself with the Pen

4. Maintain the 90˚Pen angle you have learned when scanning with the

trainer.

5. When rolling over the text, do not press down too hard on the Pen.

6. Don’t scan too quickly.

Scanning Limitations

The Pen allows you to scan printed text (in all other applications, such as the

Notes) 6-22 point font size (up to 8mm) in a wide variety of fonts and in all

colors on contrasting backgrounds except:

• Red on white

• White on red

• Blue on black

• Black on blue

Tips for Good Scanning

If you scan text, but the scanning results on the Pen (i.e., the recognized

text) are not satisfactory, simply try scanning again.

To ensure optimum scanning results:

• When scanning text, always make sure the Scanning Language is set to

the language you are scanning.

o In Notes application: check the scanning language set in the Edit

Menu (to view the Edit Menu press from within an open Notes

file).

o In Scan to PC application: check the scanning language set in the

Settings menu.

• Make sure that the Scanning Options settings (Inverse, Numeric)

match the type of text you are scanning.

• Make sure you are holding the Pen in the correct 90˚angle.

WizCom InfoScan™ 1.00 User Guide

• Place the book/page on a flat surface.

• The page must be light while the text or image you scan must be dark.

• Make sure the printout is of good quality and the page is not creased.

Note that poorly photocopied materials may provide bad results.

• Do not scan too fast.

Editing Text (without Scanning)

In addition to scanning, the Character Bar can be used as input method –

that do not involve scanning.

They can be used to edit scanned text and are also useful to enter text

manually (when words or phrases cannot be scanned because letters are too

large, handwritten, or are on a type of background that the Pen does not

scan, see Scanning Limitations on page 7).

The Character Bar

The Character Bar enables you to enter text manually by overwriting or

inserting characters. The language of the Character Bar is the same as the

current Scanning Language set in the file you are editing.

Accessing the Character Bar

To access the Character Bar:

1. When inside an open Notes file, double click to access the

Character Bar.

The Latin Character Bar

The Hebrew Character Bar

2. The Character Bar opens and the string of text you are editing is

displayed above it. The first letter of the active character sequence is

highlighted on the Character Bar and appears in the string of text where

it will be entered if you select it.

Familiarizing Yourself with the Pen

3. Press or to scroll along the Character Bar. As you move from

character to character, each character is highlighted and appears in the

string of text.

4. Press to select the highlighted character. The character is entered

into the text string (the character is inserted – when in insert mode, or

the character overwrites the highlighted character – when in overwrite

mode).

5. If you are in Multiple Character mode ( ), you can add additional

characters. To do so, repeat steps 3 and 4. When you are done, press

to close the Character Bar. If you are in Single Character mode

( ), the Character Bar automatically closes.

What is on the Pen

The Pen is preloaded with the following:

The Notes application

Used for scanning printed text in various languages, and storing the text in

files on the Pen. Stored Notes files can be:

• Sent to your computer (using the QuickLink option)

• Sent to a PDA or Smartphone (using the Beaming options).

In addition, stored English text can be translated into Hebrew.

The Scan to PC application

Used for scanning text and sending it directly to applications on your

computer.

Scanning Languages

Printed text can be scanned in English, Hebrew, French, German or

Spanish according to the selected scanning language.

Interface Languages

The Interface Language is the language in which the menus and

messages appear. The Pen is provided with 2 interface languages –

English and Hebrew.

Important: If for some reason software has been erased from your Pen, use

the CD-ROM Restore Pen option to restore the Pen’s original software.

WizCom InfoScan™ 1.00 User Guide

Set Up Product on PC

To allow Pen-PC communications (for transferring data from the Pen to the

PC), you must set up your PC.

The set up procedure on the CD-ROM will install the USB driver, install the

WizCom InfoScan Desktop application and establish the Pen-PC

communications.

To run the set up procedure:

1. Insert the WizCom InfoScan CD-ROM into the CD-ROM drive of your

computer.

2. The Main Menu appears.

Note: If the Main Menu does not appear automatically, please do the

following:

a. Click the Windows Start button and select Run.

b. Type x: \setup.exe (where ‘x’ is your CD-ROM drive letter), then

click OK.

3. Click on the Set Up Product on PC button and follow the online

instructions of the 3 stage setup procedure provided.

Note: You will only have to do this setup once.
