Wiznet WIZ107SR Manuale utente

WIZ107SR User Manual (WIZnet Co., Ltd.)

WIZ107SR User Manual

( Version 1.1 )

☞ For more information, visit our website at http://www.wiznet.co.kr

WIZ107SR User Manual (WIZnet Co., Ltd)

Document Revision History

Date Revision Changes

2010-04-23 V1.0 Official Release

2010-04-28 V1.1 Modify the serial command list

WIZ107SR User Manual (WIZnet Co., Ltd)

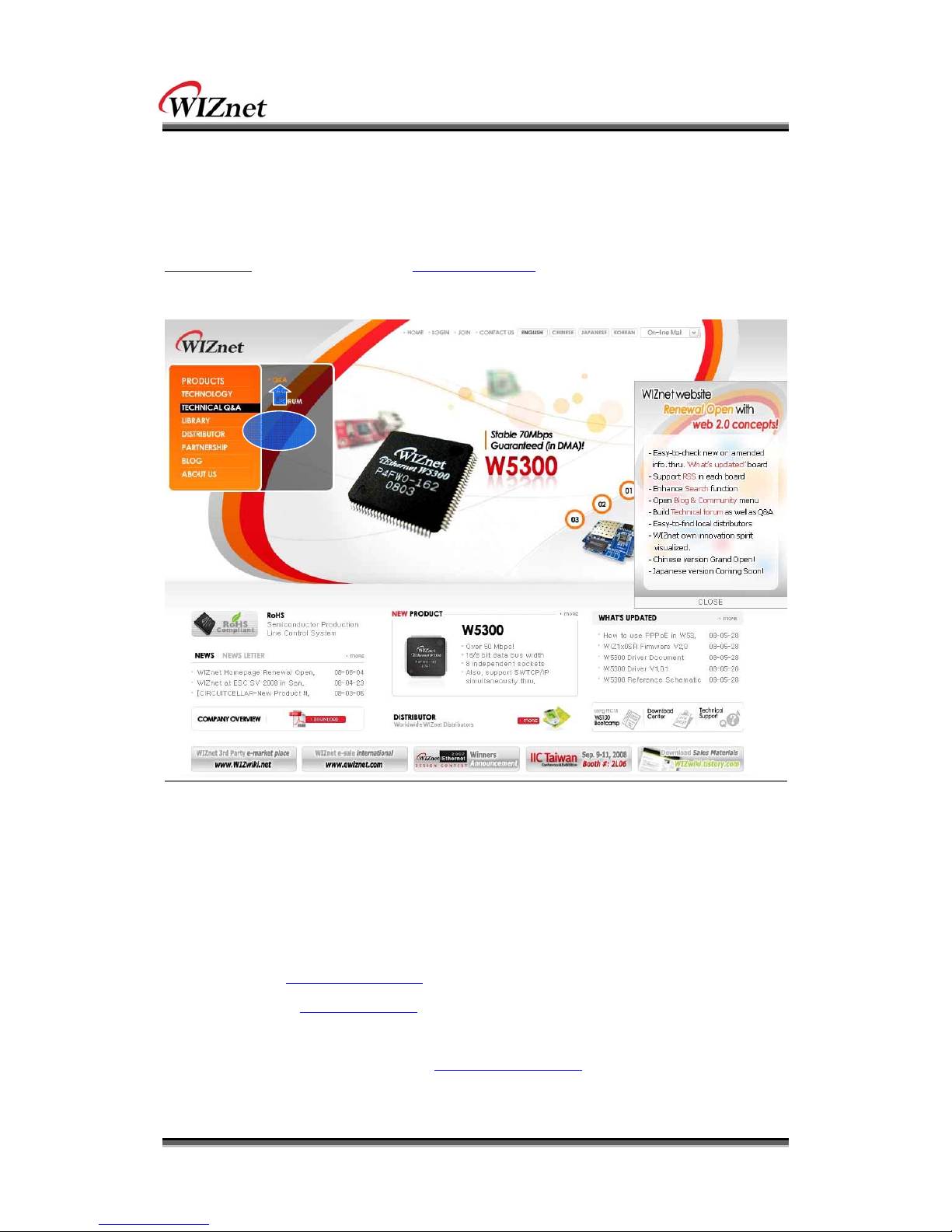

WIZnet’s Online Technical Support

If you have something to ask about WIZnet products, write down your question on

Q&A Board in WIZnet website (www.wiznet.co.kr). WIZnet will give an answer as

soon as possible.

Technical Support: suppor[email protected]

Sales & Distribution: [email protected]

For more information, visit our website at http://www.wiznet.co.kr

WIZ107SR User Manual (WIZnet Co., Ltd)

Table of Contents



1. Introduction ....................................................................................................................... 1

1.1 Key Features .............................................................................................................. 1

1.2 Product Contents ( WIZ107SR-EVB model ) ............................................................... 2

1.3 Product Specification ................................................................................................ 4

1.3.1 WIZ107SR Module Specification ...................................................................... 4

1.3.2 WIZ107SR Module Interface ............................................................................ 5

1.3.3 Pin Header Connector Pin-Assignment ............................................................ 6

2. Getting Started .................................................................................................................. 7

2.1 Configuration Tool .................................................................................................... 7

2.1.1 Network Configuration .................................................................................... 7

2.1.2 Serial Configuration ....................................................................................... 12

2.1.3 Option Configuration ..................................................................................... 14

2.2 Firmware Upload ..................................................................................................... 16

3. Serial Configuration ......................................................................................................... 18

3.1 Serial Command Format .......................................................................................... 18

3.2 Serial Command List ............................................................................................... 18

3.3 Serial Command Executing Example ........................................................................ 20

4. Hardware Specification .................................................................................................... 21

4.1 WIZ107SR Dimension .............................................................................................. 21

4.2 WIZ107SR Interface Board Schematic ...................................................................... 22

5. Warranty .......................................................................................................................... 23

WIZ107SR User Manual (WIZnet Co., Ltd)

Figures

FIGURE 1. WIZ107SR INTERFACE ..................................................................................................................5

FIGURE 2. WIZ107SR CONNECTOR PIN ASSIGNMENT...................................................................................6

FIGURE 3. WIZ107SR CONFIGURATION TOOL (NETWORK CONFIGURATION PAGE)........................................7

FIGURE 4. SEARCHING WITH UDP BROADCAST METHOD ................................................................................8

FIGURE 5. SEARCHING WITH TCP UNICAST METHOD.......................................................................................8

FIGURE 6. SIMPLE PING TEST PROGRAM.........................................................................................................9

FIGURE 7. WIZ107SR CONFIGURATION TOOL (SERIAL CONFIGURATION PAGE)............................................12

FIGURE 8. WIZ107SR CONFIGURATION TOOL (OPTION CONFIGURATION PAGE)..........................................14

FIGURE 9. FILE OPEN DIALOG BOX FOR FIRMWARE UPLOADING .....................................................................16

FIGURE 10. FIRMWARE UPLOADED SUCCESSFULLY .........................................................................................17

FIGURE 11. SERIAL COMMAND FORMAT........................................................................................................18

FIGURE 12. SERIAL COMMAND EXECUTING EXAMPLE.....................................................................................20

FIGURE 13. WIZ107SR DIMENSIONS (UNIT : MM)......................................................................................21

FIGURE 14. WIZ107SR INTERFACE BOARD SCHEMATIC ...............................................................................22



WIZ107SR User Manual (WIZnet Co., Ltd)

Tables

TABLE 1. PRODUCT CONTENTS .......................................................................................................................3

TABLE 2. WIZ107SR MODULE SPECIFICATION ...............................................................................................4

TABLE 3. PIN HEADER CONNECTOR PIN-ASSIGNMENT DESCRIPTION .............................................................6

TABLE 4. SERIAL COMMAND LIST ..................................................................................................................19

WIZ107SR User Manual (WIZnet Co., Ltd.) 1

1. Introduction

WIZ107SR is a gateway module between serial device and Ethernet. It can transmit serial

data to Ethernet and vice versa. With WIZ107SR, you can connect your serial device with

Ethernet via WIZ107SR provides interface quite easier and shorten your development

period to obtain more gains.

We also provide full functional configuration tools for WIZ107SR. You can set WIZ107SR

upon your needs by using serial configuration command when WIZ107SR is in serial

configuration mode or using provided configuration tool via Ethernet to make WIZ107SR

embedded in your products well.

1.1 Key Features

Compact Sized RS-232 to Ethernet

Quick and Simple Internet Connection to Serial Devices

Supporting Firmware Customization according to Customer’s Requirement

Guarantee Stable and Reliable Data Communication by using W7100 One chip

solution

Provide User-Friendly Configuration Tool Program

Support User Password for Security

Support Serial Command for Serial configuration

10/100 Mbps Ethernet & Max 230Kbp Serial Interface

Support IP Configuration - Static, DHCP

Support DNS

Compact design 48mm X 30mm X 18mm ( L x W x H )

RoHS Compliant

WIZ107SR User Manual (WIZnet Co., Ltd.) 2

1.2 Product Contents ( WIZ107SR-EVB model )

WIZ107SR

WIZ107SR Interface Board

12pin Cable

( Connect WIZ107SR with Interface Board )

Serial Cable

LAN Cable

WIZ107SR User Manual (WIZnet Co., Ltd.) 3

Power

( DC 5V / 2A Adaptor )

Data CD

( Manual, H/W & S/W materials inside )

Table 1. Product Contents

☞ If there is any missing item, contact to the shop where you purchased.

WIZ107SR User Manual (WIZnet Co., Ltd.) 4

1.3 Product Specification

1.3.1 WIZ107SR Module Specification

WIZ107SR feathers our fast hardwired TCP/IP stack and most of TCP/IP protocols such as

TCP, UDP, IP, ARP, ICMP, IGMP and Ethernet MAC are all supported. 10Mbps and 100Mbps

Ethernet are all supported and one standard Ethernet Jack is mounted in WIZ107SR. One

serial port is provided in WIZ107SR via 12-pin connector which feathers standard RS-232

specification. WIZ107SR can be powered by a DC 3.3V power supply with at least 250mA

current supply. The detailed specifications are listed in Table 2

Architecture

TCP / IP W7100

PHY Included in W7100

Auto negotiation (Full-duplex and Half-duplex)

Auto MDI/MDIX

Serial RS-232C

MCU Included in W7100

(Fully software compatible with industrial standard 8051)

Internal 2KBytes Boot ROM

Internal 64KBytes embedded program FLASH memory

Internal 256Bytes embedded data FLASH memory

Internal 64KBytes embedded SRAM

Internal 32KBytes memory for TCP/IP data communication

Serial

Interface Included RS-232C Transceiver,

Signals TXD, RXD, RTS, CTS, GND

Parameters Parity : None, Odd, Even

Data bits : 7, 8 bit

Flow control : None, RTS / CTS, XON / XOFF

Speed Up to 230Kbps

Dimensions 48mm x 30mm x 18mm ( Include connector size )

Connector type 2.54mm Pitch Pin-header, 12Pin (2*6)

Input voltage DC 3.3V

Power consumption Under 250mA

Temperature 0°C ~ 70°C (Operation), -40°C ~ 85°C (Storage)

Humidity 10 ~ 90%

Table 2. WIZ107SR Module Specification
