INTERNATIONAL DESIGN GUIDE
Contents
vens and Warming Drawers . . . . . . . . . . . . . . . . . . 3
Cooktops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ranges and Rangetops . . . . . . . . . . . . . . . . . . . . . . 42
Cooktop Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . 59
Pro Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Shipping Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.
Wolf Built- n Ovens 3
wolfappliance.com/specs
KEY FEATURES
•Dual convection: two fans for even heat distribution.
•Ten cooking modes, including the bake stone and
dehydration kits for precise, easy-to-use control.
•Self-cleaning ovens.
•Full-extension bottom rack for easier access to foods.
•Balanced door hinge system for smooth opening and
closing of the door.
E Series Ovens. The newest addition to the Wolf built-in oven family is a true partner, helping to create great meals
with ease, as well as adding a striking design feature to the kitchen. Smart technology gives the E series 10 cooking
modes, with Wolf’s innovative dual convection in single ovens and in the upper unit of double ovens. E series ovens can
be installed flush with cabinets for a contemporary, integrated look. New black glass models with tubular handles are
also available.
ICBS 30-2U/S-TH
UNFRAMED
TUBULAR HANDLE
ICBD 30-2U/S-TH
UNFRAMED
TUBULAR HANDLE
ICBS 30-2B/G-TH
BLACK GLASS
TUBULAR HANDLE
ICBD 30-2B/G-TH
BLACK GLASS
TUBULAR HANDLE
E SERIES VENS
Wolf Built- n Ovens 4

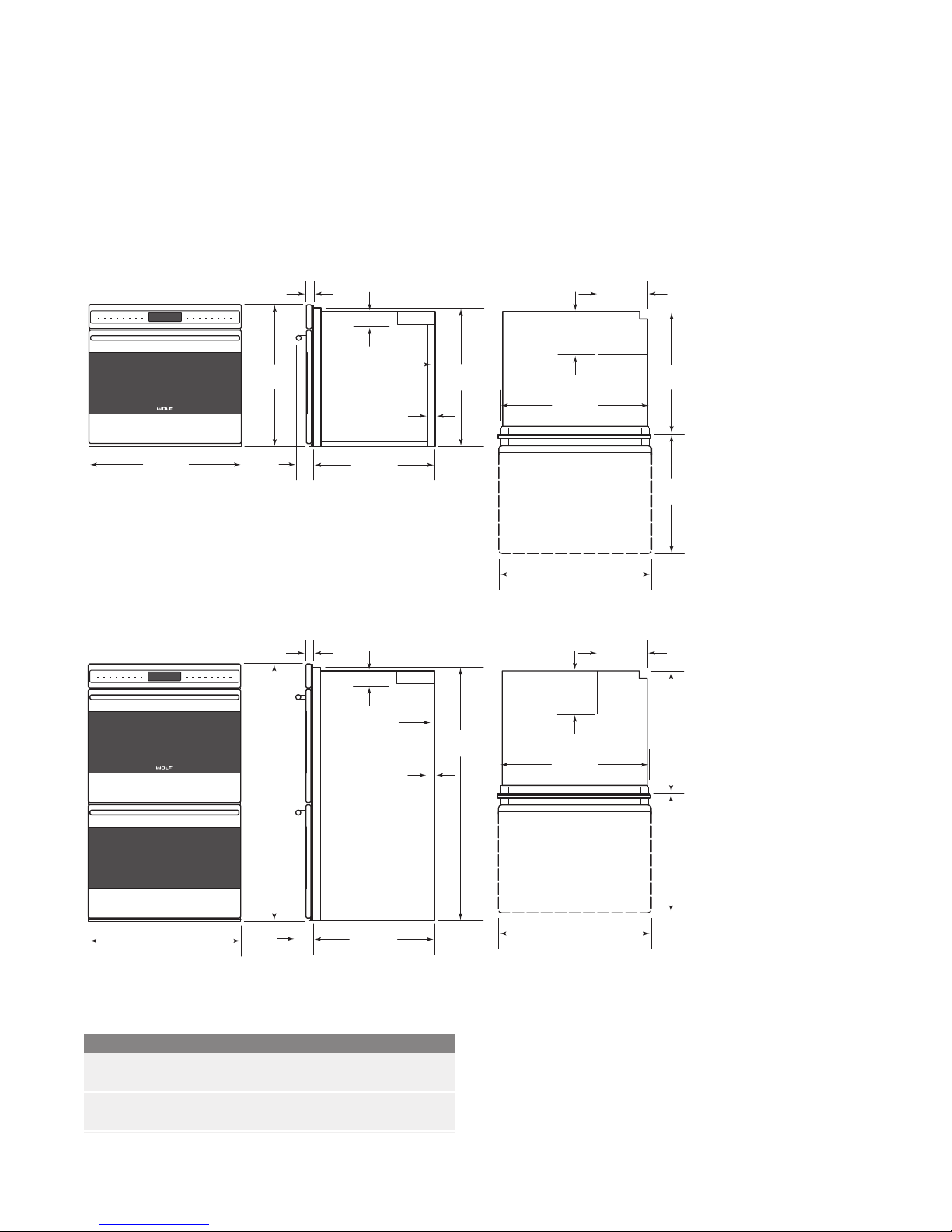

E Series Ovens
603 mm
BEHIND FRAME
708
mm
718 mm
759 mm
603
mm
CONDUIT
CHANNEL
OPEN OVEN DOOR
TOP VIEW
559
mm
25 mm*
48 mm
RIGHT SIDE VIEW
687
mm
759 mm
67
mm*
76 mm
244
mm
225
mm
*For black glass model, increase dimension by 6 mm.
762 mm SINGLE VENS
603 mm
BEHIND FRAME
1280
mm
1257
mm
718 mm
759 mm
603
mm
OPEN OVEN DOOR
TOP VIEW
67
mm*
559
mm
25 mm*
48 mm
RIGHT SIDE VIEW
759 mm
CONDUIT
CHANNEL
*For black glass model, increase dimension by 6 mm.
244
mm
225
mm
76 mm
762 mm D UBLE VENS
Interior Specifications
INTERI R CAPACITY L
762 mm Oven 127
INTERI R DIMENSI NS WHD
762 mm Oven 635 mm 419 mm 483 mm
Wolf Built- n Ovens 5
wolfappliance.com/specs
E SERIES SINGLE VENS
Required power supply:
Single phase: 220-240V AC; 50/60 Hz
3phase: 380-415V AC; 50/60 Hz
Maximum connected load:
Single phase: 4.4 kW
3phase: 4.4 kW
Total amps:
Single phase: 19 amps
3phase: 19 amps
E SERIES D UBLE VENS
Required power supply:
Single phase: 220-240V AC; 50/60 Hz
3phase: 380-415V AC; 50/60 Hz
Maximum connected load:
Single phase: 7.4 kW
3phase: 5.1 kW
Total amps:
Single phase: 32 amps
3phase: 22 amps
Refer to the wiring diagram showing the connections for
each lead to the terminal box on the unit.
Planning nformation
STANDARD INSTALLATI N
For ease of installation, Wolf recommends using 838 mm
wide cabinets with 762 mm ovens. You will need a
minimum 610 mm of usable cabinet depth. The cabinet
must be able to support 113 kg for a single oven and 181
kg for a double oven.
The oven has a face trim on all four sides and will overlap
stiles and rails. Refer to the chart for overlap dimensions.
ven Trim verlap
VEN TRIM E SERIES
Top Overlap 16 mm
Bottom Overlap 3 mm
Side Overlap 19 mm
N
L1
Single phase wiring diagram. 3phase wiring diagram.
N
L1
L2
L3
˜
FLUSH INSET INSTALLATI N
A flush inset installation requires the oven to be recessed
into the cabinet. A minimum 635 mm deep cabinet is
needed if you want the front of the oven to be flush with
surrounding cabinetry.
Electrical Requirements
IMP RTANT N TE: Be aware of local codes and ordi-
nances when installing your service.
The single and double ovens require a separate, grounded
220-240 V AC, 50/60 Hz power supply and uses the
power inlet box. Refer to the illustration below. Total amps
for single ovens is 21 and for double ovens, 37.
3N˜
Wolf Built- n Ovens 6
DIMENSION WILL VARY*
121 mm TYPICAL*
914 mm
FLOOR TO
COUNTERTOP
*Dimension must accommodate height of oven trim.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
E
724 mm
OPENING WIDTH

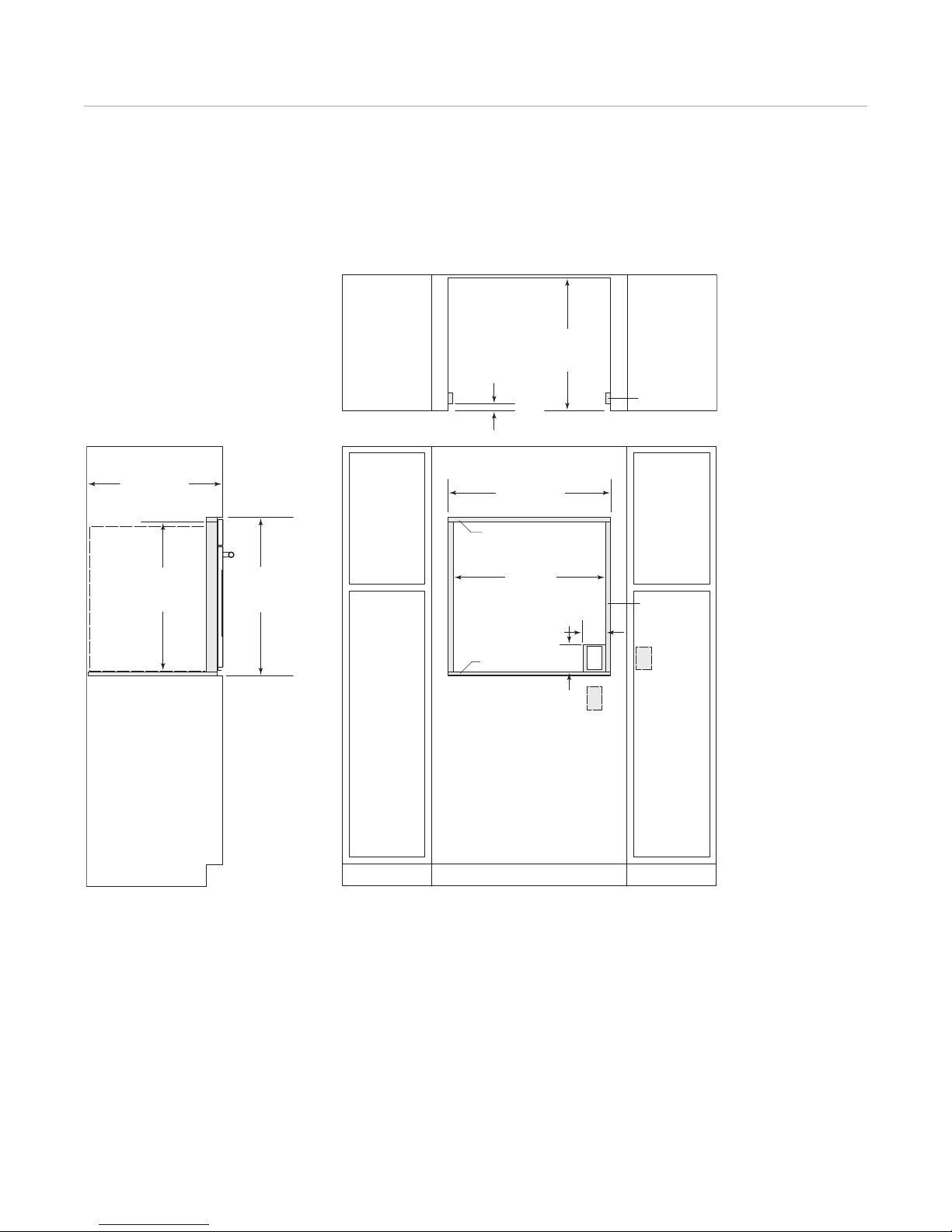

691 mm
OPENING
HEIGHT
610 mm min
OPENING DEPTH
E
127
mm
102
mm
FRONT VIEWSIDE VIEW
1702 mm
TYPICAL*
1260 mm
OPENING
HEIGHT
E
E
E
724 mm
OPENING WIDTH
E
127
mm
102
mm
610 mm min
OPENING DEPTH
*Dimension must accommodate height of oven trim.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
762 mm E Series Double Oven
STANDARD INSTALLATI N
762 mm E Series Single Oven
STANDARD INSTALLATI N
Wolf Built- n Ovens 7
wolfappliance.com/specs
691 mm
OPENING
HEIGHT
724 mm min
FLUSH INSET
HEIGHT
724 mm
OPENING WIDTH
635 mm min
CABINET DEPTH 772 mm min
FLUSH INSET WIDTH
22 mm TOP CLEAT
11 mm
PLATFORM
SIDE CLEATS
629 mm min*
FLUSH INSET
DEPTH
25 mm
*For black glass model, increase dimension by 6 mm.
NOTE: Platform must support 113 kg.
Location of electrical supply within opening may require additional cabinet depth.
Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
25 mm
SIDE CLEATS
127
mm
102
mm
EE
E
762 mm E Series Single Oven
FLUSH INSET INSTALLATI N
Wolf Built- n Ovens 8
1260 mm
OPENING
HEIGHT
1294 mm min
FLUSH INSET
HEIGHT
724 mm
OPENING WIDTH
635 mm min
CABINET DEPTH 772 mm min
FLUSH INSET WIDTH
22 mm TOP CLEAT
11 mm
PLATFORM
SIDE CLEATS
629 mm min*
FLUSH INSET
DEPTH
25 mm
*For black glass model, increase dimension by 6 mm.
NOTE: Platform must support 181 kg.
Location of electrical supply within opening may require additional cabinet depth.
Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
25 mm
SIDE CLEATS
127
mm
102
mm
EE
E
1702 mm
TYPICAL
762 mm E Series Double Oven
FLUSH INSET INSTALLATI N
Wolf Microwave Ovens 9
wolfappliance.com/specs
ICBMW30-230 ICBMW30-240
KEY FEATURES
•Built-in convection microwave oven with 40 L capacity
•230 V model output power—microwave 900W, grill
1300W and convection 1450W
•240 V model output power—microwave 900W, grill
1400W and convection 1400W
•762 mm trim allows microwave to be built in to fit
above a Wolf built-in oven
•Classic stainless steel trim
•5 auto-cook settings
•Multiple language settings
•Energy save mode
•10 convection temperature settings
•5 cook settings
•Removable 362 mm turntable and turntable support
•Removable low rack for broiling and removable high
rack for baking
•Oven door with window
•Multiple rack baking
•Safety door latches—oven will not operate unless the
door is closed
•Oven light comes on when oven is operating or door is
open
•Tight door seals
•Rear ventilation openings
Microwave Ovens. Taking the experience we’ve gained from our microwave ovens and combining that with the
expertise of convection, Wolf has brought the best of both cooking technologies together in one unit. Aside from looking
beautiful whether you use it in conjunction with an oven or not, the unit offers you all the performance you expect from
Wolf—a cooking company with a heritage of nearly 75 years in the kitchen.
C NVECTI N MICR WAVE WITH GRILL
Wolf Microwave Ovens 10
ELECTRICAL REQUIREMENTS
Connect the appliance to a single phase 230-240 V/50 Hz
alternating current via a correctly installed earth socket.
The socket must be fused with a 16 A fuse.
Planning nformation
Specifications on the following page provide overall
dimensions, rough openings and installation options for
the convection microwave oven. We have minimized the
information contained in the illustrations, concentrating on
the critical information you need to plan your installation.
Interior Specifications
INTERI R CAPACITY L
Convection Microwave with Grill 40
