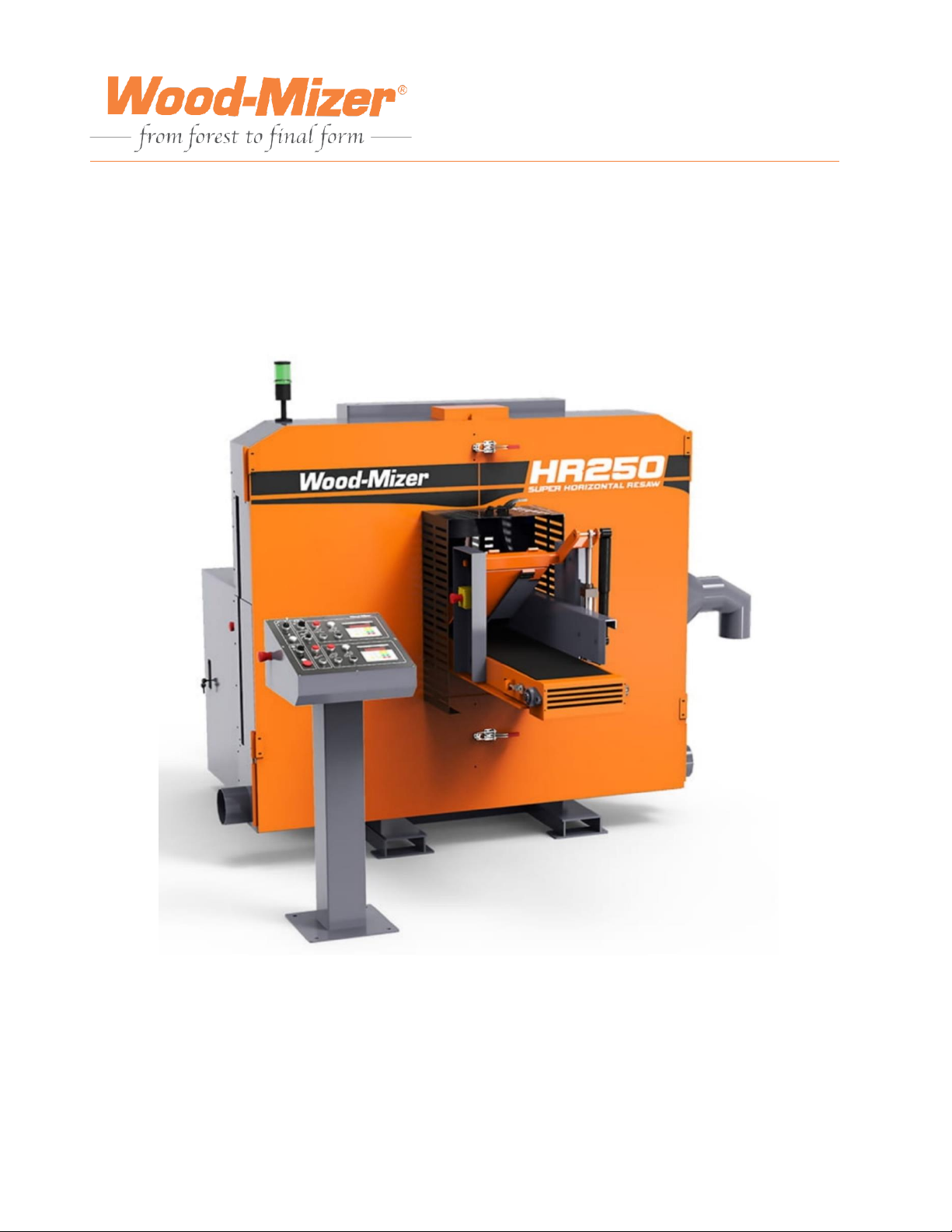

Woodmizer HR250 Manuale utente

HR250

TWIN HEAD HORIZONTAL

BAND

RESAW

OPERATIONS MANUAL

•

The operator must thoroughlyread this manual

before operation.

•

Keep this manual for future reference.

‘’ORIGINAL INSTRUCTION’’

Wood-Mizer Asia Manufacturing Co. Ltd

No.2, Gongyequ 40th Road, Xitun District

Taichung City, 40768

Taiwan R.O.C.

Contact Details:

Email: info@woodmizerasia.com

Tel: +886 4 2359 3022

Responsible for Technical Documentation: Tomasz Agaciński / Engineering Manager

Wood-Mizer Industries Sp. z o.o.

62-600 Koło, Nagórna 114, Poland

Tel. +48 63 26 26 000

Notified Body according to annex IV: TÜV Rheinland LGA Products GmbH

Authorized representative: Alister Ryan / Production Manager

Wood-Mizer Asia Manufacturing Co. Ltd

No.2, Gongyequ 40th Road, Xitun District

Taichung City, 40768

Taiwan R.O.C

Tel. +886 4 2359 3022

MANUFACTURER DETAILS

DETAILS

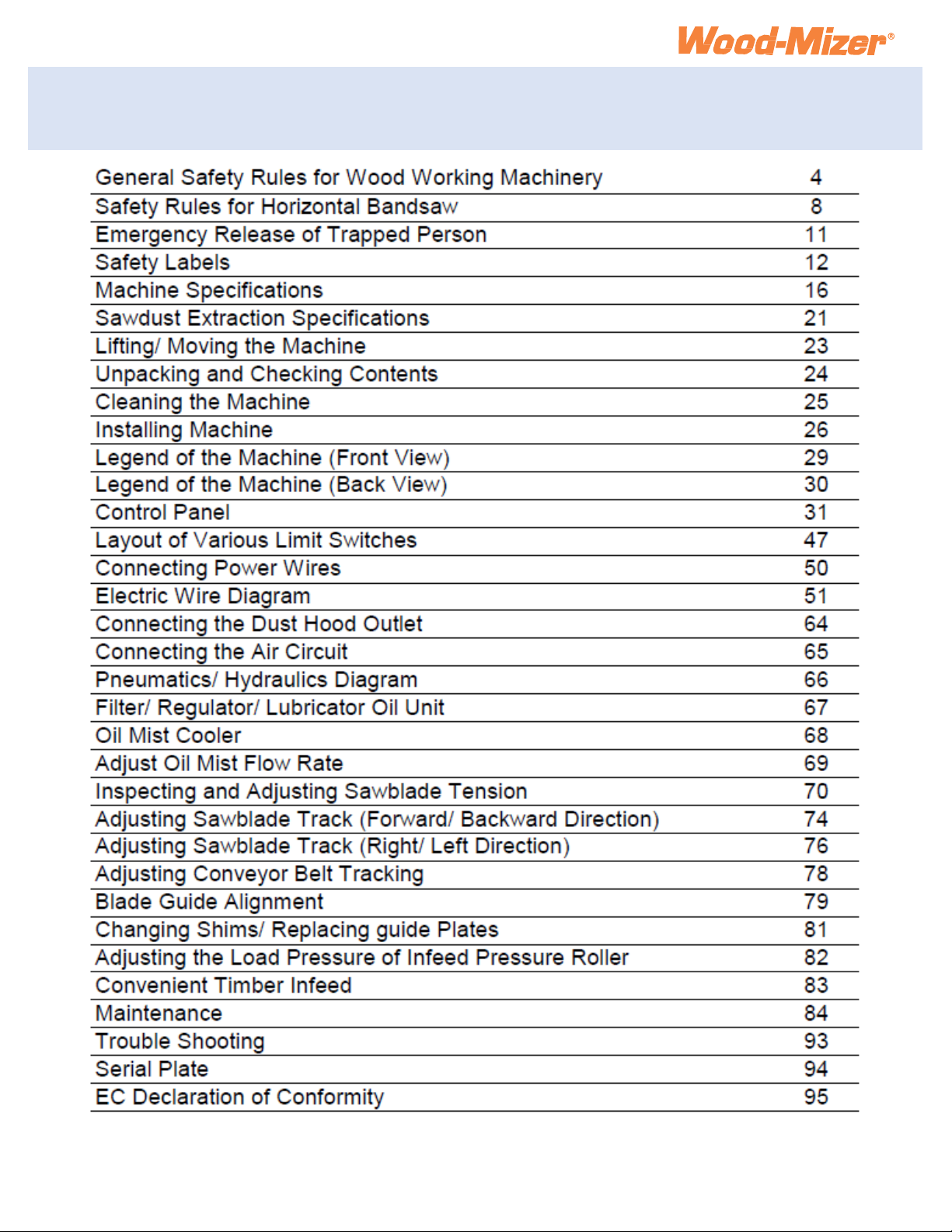

CONTENTS

WARNING

Do not attempt to operate until you have

read

thoroughly and understood

completely all instructions, rules etc.

contained in this manual.

Failure to

comply can result in accidents involving

fire, electric shock, or serious personal

injury. Keep

this operation manual and

review frequently for

continuous safe

operations.

Know your machine. For your own safety, read the

operation manual

careful

y. Learn its applications and

limitations, as well as specific

potential hazards pertinent to

this machine.

Make sure the machine is properly grounded.

Keep guards in place and in working order. If a guard must be

removed

for maintenance or cleaning, make sure it is properly

reattached before

using the machine again.

Remove adjusting keys and wrenches. Form the habit of

checking to

see that keys and adjusting wrenches are

removed from the machine

before turning it on.

Keep the work area clean. Cluttered areas and work benches

increase the likelihood of an accident.

Do not use in dangerous environments. Do not use the

machine in

damp or wet locations or exposure to rain.

Keep the work area well illuminated.

GENERAL SAFETY RULES FOR

WOODWORKING MACHINERY

Keep children away. All visitors should be kept at a safe

distance from

the work area.

Make workshop childproof. With padlocks, master

switches, or by

removing starter keys.

Do not force the machine. It will do the job better and be

safer at the rate for which it was designed.

10.

Use the right tools. Do not force the machine or attachments

to do a

job for which they were not designed for. Contact the

manufacturer or

distributor if there are any questions about

the machine's suitability for a job.

11.

Wear proper apparel. Avoid loose clothing, neckties, rings,

bracelets, or jewelry which could be caught in moving parts.

Nonslip

footwear is recommended. Wear protective hair

covering to contain

long hair.

GENERAL SAFETY RULES FOR

WOODWORKING MACHINERY

12.

Always use safety glasses. Use face or dust masks if the

operation area

has too much sawdust. Do not wear general

glasses, because they

not resist impact. They are not safety

glasses.

13.

Secure work.

14.

Always keep proper footing and balance.

15.

Maintain machine in top condition. Keep the machine clean

for the best and safest performance. Follow instructions for

lubricating and

changing accessories.

16.

Disconnect the machine from the power s

urce before

servicing and

when changing accessories, or when mounting

and remounting motor.

17.

Avoid accidental starting. Make sure the switch is in the

"off" position

before plugging in the power cord.

18.

Use recommended accessories. Consult the operating

manual for recommended accessories.

19.

Check for damaged parts. Before further use of the machine,

guard

s and

other

safety

part

should be carefully checked to

make sure that it will operate properly and perform

the

intended function. Check for alignment of moving parts,

binding of moving parts, b

roken

parts,

mounting,

any other

condition that may affect operation. Guards or

other parts that

are damaged should be properly repaired or replaced.

GENERAL SAFETY RULES FOR

WOODWORKING MACHINERY

20.

Never leave the machine running unattended. Turn the

power off. Do not leave the machine until it comes to a

complete stop.

21.

Do not use the machine while under the effects of drugs,

alcohol, or

any medication.

22.

Always wear a face or dust mask if machinery operation

produces a lot

of saw dust and or wood chips. Always operate

the machine in a well-ventilated area and provide for proper

dust removal. Use a wood dust

collection system whenever

possible.

23.

The HR250 Resaw is intended for sawing wood ONLY. The

machine must not be used for other purposes such as cutting

ice, metal or any other materials.

24.

The blade is very sharp. Always wear safety gloves when

handling the blade.

25.

Never clean the blade or blade wheels with a brush or a scraper

during sawmill operation.

26.

Always wear ear protection when operating this machine.

GENERAL SAFETY RULES FOR

WOODWORKING MACHINERY

Do not attempt to remove any object from the conveyor belt

when the machine is running.

The sawblade is very sharp. Care should be taken when

replacing the sawblade.

Turn the power off before performing maintenance or

servicing.

Keep all guards in place before starting the machine.

Always keep the sawblade sharp.

Before installation of the blade, inspect it for damage and cracks.

Use properly sharpened blades only. Always handle the blade with

extreme caution. Use suitable carrier equipment for transporting the

blades.

If sawblade breaks, turn the power off immediately. The

operator

should stand away from the machine until it comes

to a complete stop.

When turning the power on for checking blade tracking, the

operator

should stand to the one side. This will prevent the

danger of blade slip-

out or breakage.

Use the proper feed speed according to wood material.

10.

Make sure the sawblade is properly tensioned. Excessive

tension may

cause blade breakage.

SAFETY RULES FOR HORIZONTAL

BAND RESAW

11.

Make sure the machine is properly ground to avoid the

danger of

electric shock.

12.

Before feeding wood into the machine, check if it contains

nails or

metallic objects or not.

13.

Never clean the blade or blade wheels with a brush or a scraper

during sawmill operation.

14.

The blade tension should be released when the machine is not in

use (e.g.: after a shift). There should be information on the machine

that it is necessary to tension the blade before starting to use the

machine again.

15.

Before installation of the blade, inspect it for damage and cracks.

Use only properly sharpened blades. Always handle the blade with

extreme caution. Use suitable carrier equipment for transporting the

blades.

16.

This machine was designed for certain applications only. We strongly recommend that

this machine NOT be modified and/or used for any application other than for which it

was designed. If you have any questions relative to its application DO NOT use the

machine until you have had detail instruction from your dealer.

17.

SHUT OFF the power, remove the products and isolate the energy before leaving the

machine. Cut-off the power and carried out only when the machine is stationary before

inspection, maintenance, adjustment and cleaning.

18.

Repairs should be carried out by qualified-persons using original spare parts, otherwise

this may result in considerable danger to the user.

SAFETY RULES FOR HORIZONTAL

BAND RESAW

19.

Use recommended ancillary equipment. If ancillary equipment is removed the original

guards or safety devices shall be replaced. Wood-Mizer and our authorized agency are

responsible for a future connection of the machine with ancillary equipment only if we

ourselves have designed such connection.

20.

The training of the operator should be carried out by our authorized agent or service

engineer in an oral/practical in site of the ordered sawing machine, including

explanation of protective device, mechanism, adjustment and operation/use.

SAFETY RULES FOR HORIZONTAL

BAND RESAW
