Woodstock G4792 Manuale utente

PARTS

35 X1674035 MOTOR POWER CORD, 5 WIRE

36 X1674036 POWER CORD, 3 WIRE

37 X1674037 STRAIN RELIEF 16

38 XPN07 HEX NUT 10-24

39 XPHTEK1 SELF TAPPING SCREW

40 X1674040 SCALE

42 X1674042 GROMMET

44 X1674044 ADJUSTMENT BRACKET

45 X1674045 TOOTH WASHER

46 X1674046 MACHINE ID/WARNING

47 X1674047 SAFETY GLASSES WARNING

48 X1674048 UNPLUG MACHINE WARNING

49 X1674049 ELECTRICITY WARNING

50 X1674049A READ MANUAL WARNING

51 X1674051 CAST LOGO

52 X1674052 ADJUSTMENT TUBE

53 X1674053 PINION SHAFT

55 XPSB77 CAP SCREW

3⁄8"-24 X 1"

56 XPW02 FLAT WASHER 3⁄8"

57 XPSS02 SET SCREW 5⁄16"-18 X 3⁄8"

58 XPW06 FLAT WASHER 1⁄4"

59 X1674059 LOCKING HANDLE 5⁄16"-18

60 XPSB04 CAP SCREW 1⁄4"-20 X 1⁄2"

61 XPW06 FLAT WASHER 1⁄4"

62 X1674021A ADJUSTMENT KNOB

63 X1674020A LEFT SCALE

64 X1674020B RIGHT SCALE

65 XPS07 PHLP HD SCRW 1⁄4"-20 X 3⁄8"

66 XPSS03 SETSCREW 1⁄4"-20 x 3⁄8"

67 XPN05 HEX NUT 1⁄4"-20

68 XPSS07 SET SCREW 1⁄4"-20 X 1⁄2"

01 X1674001 STAND

02 X1674002 MOTOR COVER

03 XPS06 PHLP HD SCRW 10-24 x 3⁄8"

04 XPB21 HEX BOLT 3/8"-16 x 3⁄4"

05 XPLW04 LOCK WASHER 3⁄8"

06 XPW02 FLAT WASHER 3⁄8"

07 X1674007 TABLE

08 X1674008 TABLE INSERT

09 X1674009 TABLE INSERT

10 X1674010 BARREL SCREW

11 XPFH21 FLAT HD SCR 10-24 x 3⁄4"

12 X1674012 STARTING PIN

13 X1674013 LOCK HANDLE

14 XPW07 FLAT WASHER 5⁄16"

15 X1674015 FENCE MOUNT, RIGHT

16 X1674016 HOLD DOWN FENCE MOUNT

17 X1674017 POINTER

18 XPSB17 CAP SCREW 1⁄4"-20 x 3⁄8"

19 X1674019 MAIN FENCE HOUSING

20 X1674020 TUBE SCALE

21 X1674021 KNURLED KNOB

22 X1674022 T-SLOT NUT

24 X1674024 FENCE ADJ. SCREW

25 XPSS04 SETSCREW 1⁄4"-20 x 5⁄16"

26 X1674026 FENCE MOUNT, LEFT

29 X1674029 WOOD FACING

28 XPW06 FLAT WASHER 1⁄4"

30 XPFH04 FLAT HD SCR 1⁄4"-20 X 5⁄8"

31 X1674031 SWITCH BOX

32 XPSW03 FWD⁄REV SWITCH

33 X1674033 SWITCH BOX COVER

34 X1674034 MOUNT BRACKET

REF PART# DESCRIPTION

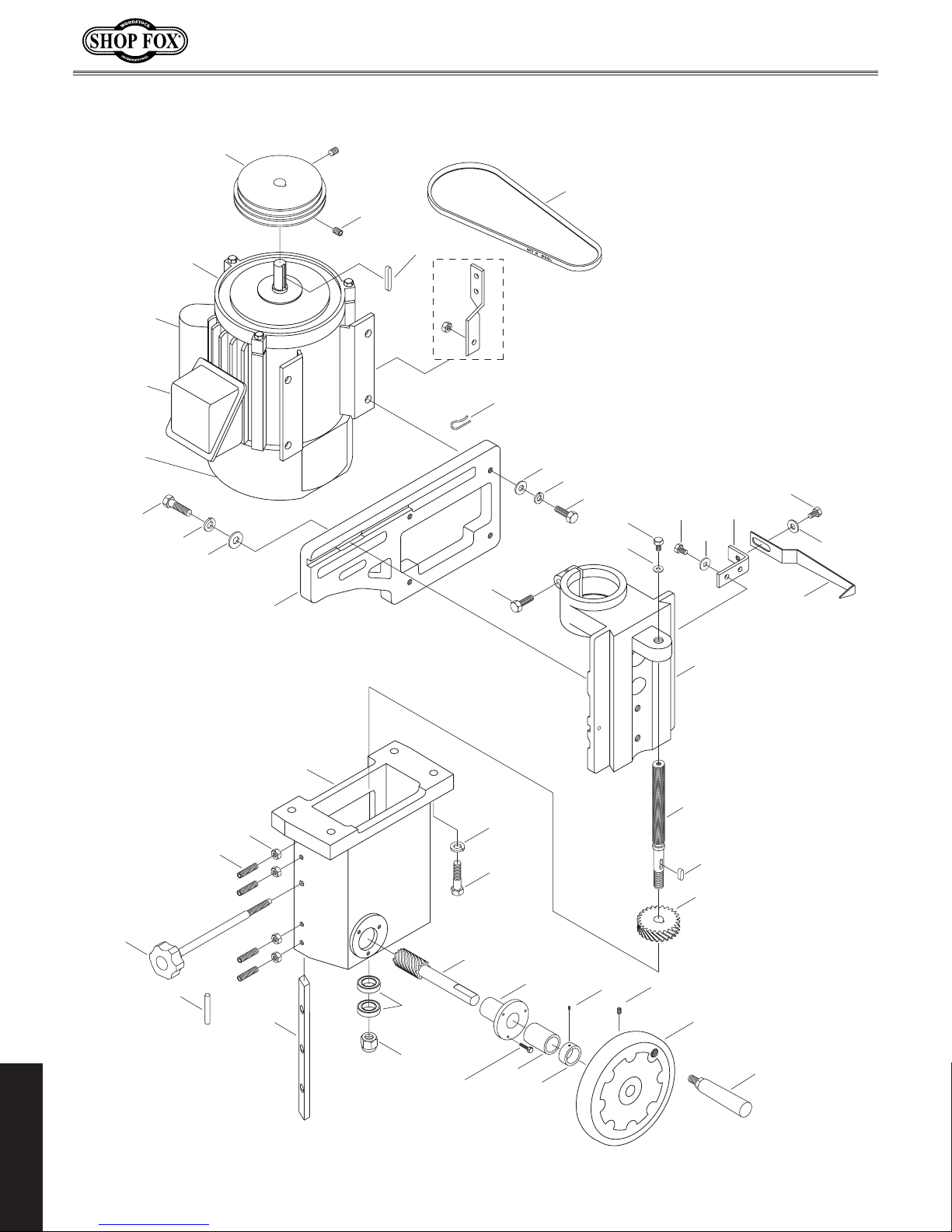

PARTS

REF PART # DESCRIPTION

129

128

126

131 133

134

135

136

141

147

148

117

119

118

146

145

139

150

140

144

123

122

121

111

114

110

103

101

104

116

115

127

143

142

149 132

113

120

108 105

107 109

106

112

137

152

151

153

155

154

(for shipping

purposes only)

PARTS

REF PART # DESCRIPTION

101 X1674101 HANDLE

103 X1674103 HANDWHEEL

104 XPSS02 SETSCREW 5⁄16"-18 x 3⁄8"

105 XPSS11 SETSCREW 1⁄4"-20 x 1⁄4"

106 X1674106 COLLAR

107 XPSB17 CAP SCREW 1⁄4"-20 x 3⁄8"

108 X1674108 SHAFT MOUNT

109 X1674109 BUSHING

110 X1674110 WORM SHAFT

111 X1674111 HAND KNOB

112 X1674112 SPRING PIN

113 X1674123A BEARING

114 X1674114 GIB

115 XPSS20 SETSCREW 5⁄16"-18 x 11⁄2"

116 XPN02 HEX NUT 5⁄16"-18

117 X1674117 ELEVATION HOUSING

118 XPB16 HEX BOLT 3⁄8"-16 x 11⁄2"

119 XPLW04 LOCK WASHER 3⁄8"

120 XPLN06 LOCK NUT 1⁄2"-13

121 X1674121 GEAR 25T

122 XPK20M KEY 5 x 5 x 15mm

123 X1674123 ELEVATION LEAD SCREW

126 X1674126 SPINDLE SLIDE

127 XPLW01 FLAT WASHER 5⁄16"

128 XPB15 HEX BOLT 5⁄16"-18 x 3⁄8"

129 XPB12 HEX BOLT 5⁄16"-18 x 11⁄4"

131 XPB19 HEX BOLT 1⁄4"-20 x 1⁄2"

132 XPW06 FLAT WASHER 1⁄4"

133 X1674133 “L” BRACKET

134 X1674134 POINTER

135 XPW07 FLAT WASHER 5⁄16"

136 XPB15 HEX BOLT 5⁄16"-18 x 3⁄8"

137 x1674137 CABLE CLAMPS

139 X1674139 V-BELT 7 x 600

140 X1674140 STEP PULLEY

141 XPB12 HEX BOLT 5⁄16"-18 x 11⁄4"

142 XPW07 FLAT WASHER 5⁄16"

143 XPLW01 LOCK WASHER 5⁄16"

144 XPK12M KEY 5 x 5 x 30

145 X1674145 MOTOR 2 HP

146 X1674146 MOTOR MOUNT PLATE

147 XPB16 HEX BOLT 3⁄8" - 16 x 11⁄2"

148 XPW02 FLAT WASHER 3⁄8"

149 XPLW04 LOCK WASHER 3⁄8"

150 XPSS02 SETSCREW 5⁄16"-18 x 3⁄8"

151 X1674145-1 START CAPACITOR

152 X1674145-2 CAPACITOR COVER

153 X1674145-3 WIRE BOX COVER

154 X1674145-4 MOTOR FAN

155 X1674145-5 MOTOR FAN COVER

REF PART # DESCRIPTION

PARTS

217

218

219

212

232

211

231

201

233

210

202

203

204

205

216

214

213

208

209

208

206

207

215

220

234

PARTS

201 X1674201A 1⁄2" SPINDLE

202 XPRI5M EXT RETAINING RING 30mm

203 X1674203 PIN

204 X1674204 SPINDLE CARTRIDGE

205 XPK14M KEY 5 x 5 x 18mm

206 X1674206 HOUSING CAP

207 XPS01 PHLP HD SCRW 10-24 x 1⁄2"

208 XP6204 BEARING 6204

209 X1674209 SPACER, LONG

210 X1674201B 3⁄4" SPINDLE

211 X1674201C 1⁄2" SPINDLE NUT SET

212 X1674201D 3⁄4" SPINDLE NUT SET

213 X1674213 SLEEVE

214 X1674214 BEARING HOUSING

215 X1674215 DRAW BAR

216 XPR13M EXT RETAINING RING 65mm

217 X1674217 STEP PULLEY

218 X1674218 TOOTHED WASHER 3⁄4"

219 X1674219 SPANNER NUT 3⁄4"

220 X1674220 DRAW BAR NUT

221 W1159 1⁄2" x 1" x 1⁄4" SPACER

222 W1160 1⁄2" x 1" x 3⁄8" SPACER

223 W1161 1⁄2" x 1" x 1⁄2" SPACER

224 W1162 1⁄2" x 1" x 3⁄4" SPACER

225 W1164 3⁄4" x 11⁄4" x 1⁄4" SPACER

226 W1165 3⁄4" x 11⁄4" x 3⁄8" SPACER

227 W1166 3⁄4" x 11⁄4" x 1⁄2" SPACER

228 W1167 3⁄4" x 11⁄4" x 3⁄4" SPACER

231 X1674231 1⁄2" SPINDLE WASHER

232 X1674232 3⁄4" SPINDLE WASHER

233 X1674233A SPINDLE WRENCH SET

234 X1674214A SPINDLE CARTRIDGE KIT

REF# PART # DESCRIPTION REF# PART # DESCRIPTION

PARTS

413 410

414

405

416

417

407

409

402

401

404

403

415

412

411

406

408

401 XPSS02 SETSCREW 5⁄16"-18 x 3⁄8"

402 X1674402 SHAFT MOUNT

403 XPLW04 LOCK WASHER 3⁄8"

404 XPB21 HEX BOLT 3⁄8"-16 x 3⁄4"

405 X1674405 EXTENSION BRACKET

406 X1674406 LOCK KNOB SHAFT

407 X1674407 KNURLED KNOB

408 X1674408 SPRING PIN

409 X1674409 SHAFT

410 X1674410 HANDLE PEG

411 X1674411 HANDLE SHAFT

412 X1674412 HANDLE SHAFT END

413 XPN05 HEX NUT 1⁄4"-20

414 X1674414 EXTENSION BAR

415 X1674415 GUARD

416 XPFH04 FLAT HD SCRW 1⁄4" - 20 x 5⁄8"

417 X1674417 SUPPORT

REF PART # DESCRIPTION REF PART # DESCRIPTION

PARTS

610

614

611

613

609

607

608

603

602

601

612

604

605

606

PARTS

601 X1674601 KNOB

602 XPW07 FLAT WASHER 5⁄16"

603 X1674603 MITER GAUGE BODY

604 X1674604 MITER BAR

605 X1674605 SPECIAL WASHER

606 XPFH19 FLAT HD SCREW 1⁄4"-20 X 3⁄8"

607 XPNO7 HEX NUT 10-24

608 XPSS32 SETSCREW 10-24 X 3⁄4"

609 XPSS29 SETSCREW 10-24 X 1⁄4"

610 X1674610 STOP

611 X1674611 POINTER

612 X1674612 SCALE

613 X1674613 GUIDE STUD

614 X1674614 SPRING PIN 3mm

REF PART# DESCRIPTION

PARTS
