WOPET FT70 Plus Guida utente

QUICK OPERATION GUIDE

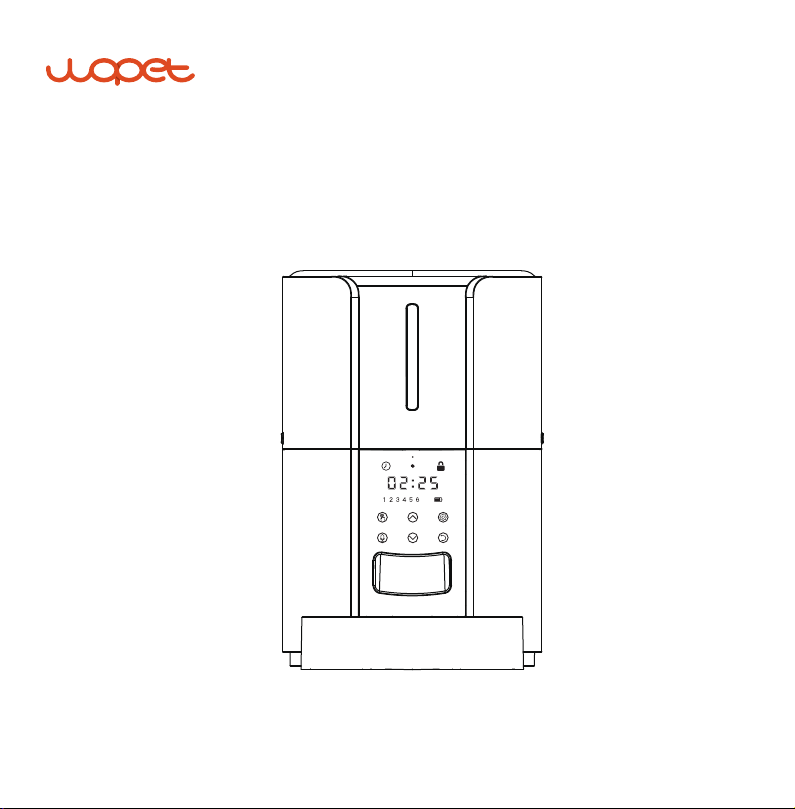

Castle Automatic Feeder

Model: FT70 & FT70 Plus

DISPLAY OVERVIEW:

Buzzer

Time Setting Icon

Indicator

Number Increase/ Decrease

Meal Number

Manual

Recording

Lock

Timing/Portions

Battery Level Icon

Setting/Save/Unlock

Return/Cancel

BUTTONS OVERVIEW:

NOTE: Will lock automatically after 2 min of inactivity. Hold for 2s to unlock.

Button Description

Set /Save

Unlock button

Return /

Cancel button

Number

Increase button

Number

Decrease button

Manual button

Recording button

Press to save and move to the next step.

Operable Mode Function

Press and hold for 2s to lock/unlock other buttons and screen.

Return to the previous step.

Return to interface after setting up.

Press to increase the value.

Press to decrease the value.

[Must be Unlocked] Press to feed 1 portion.

[Must be Unlocked] Hold for 3s and start recording after

a beep is heard {max 10s}.

Recoding saved after a double beep is heard.

SCREEN PANEL INTRODUCTION:

ICON Function of ICON

Lock Hold button for 2 seconds to unlock.

Locks automatically after 2 min of inactivity.

Clock indicator

Battery Level

Meal

Note: when flashing, press button to set up/ modify the

current time.

Flash Indicates:

Local time.

Timing

【24-hours format】

Number of meals.

Lights up when running on battery power.

Turns red to indicate low battery.

INSTRUCTION MANUAL:

Clock icon flashes when powered as shown in fig.(01).

[If Screen is Locked]

Press and hold for 2s to unlock screen as shown in fig.(02).

STEP 1 — Setting Current Time

Note:

00:00 00:03

fig.(01) fig.(02)

Example: 9:00AM = 9:00; 10:00PM = 22:00 More as below:

12-hour Clock 24-hour Clock Comparison Chart

00:00

(Midnight)

(noon)

(End of the day)

00:00

(Beginning of the day)

01:00AM

02:00AM

03:00AM

04:00AM

05:00AM

06:00AM

07:00AM

08:00AM

09:00AM

10:00AM

11:00AM

12:00AM

01:00

01:00PM

02:00PM

03:00PM

04:00PM

05:00PM

06:00PM

07:00PM

08:00PM

09:00PM

10:00PM

11:00PM

12:00PM

13:00

02:00

14:00

03:00

15:00

04:00

16:00

05:00

17:00

06:00

18:00

07:00

19:00

08:00

20:00

09:00

21:00

10:00

22:00

11:00

23:00

12:00

24:00

TIP: Please note the conversion between 24-hour format and 12-hour format.

After setting hour, press to move

to set the “minute” of the time. press

to set the “minute”. Press

to save.

[ Must be Unlocked ]

Press to set the “hour”of the time.

The two hour digits flash, press

to set the “hour”.

STEP 1.1— HOUR SETTING

Note:

Press to modify if needed.

08:00

[ Must be Unlocked ]

STEP 1.2— MINUTE SETTING

08:30

Press to set the “hour”

of the time, Press

to set the “hour”. Press

to move to set the“ minute”

of the time. Press to

save.

Press then "1" flashes

to set up the first meal.

Press to modify if needed.

Note:

Press to set up portion

then press button to save.

STEP 2 —Setting Meal

STEP 2.1 STEP 2.2 STEP 2.3

Press to move to set other meals.

Repeat above step to set up meal

time and portion.

STEP 2.4

00:00 10:00 P-:02

11:00

Press to modify local time,

feeding time and portion if needed.

Press to return to interface when setting

up as shown in fig.(01).

(Numbers NOT displayed when portion set to 0

as shown in fig.(02)).

Press to return to interface when

setting up, press for 2s to lock the

screen, the lock icon will display.

(Note: Locks automatically after 2 min

of inactivity).

Lock:

STEP 3 —Return to Interface

STEP 4 — Locking & Unlocking

STEP 3.1 STEP 3.2

08:45 08:45 09:00

Press and hold for 2s to unlock the

screen, the lock icon will disappear.

Unlock:

09:05

fig.(01) fig.(02)

09:05

Hold for 3s and start recording after

a beep is heard (max 10s).

Press to feed 1 portion.

[ Must be Unlocked ]

STEP 5 —Recording

[ Must be Unlocked ]

Double beep indicates recording is saved.

STEP 6 —Manual Feed

09:25

09:30

Press and hold and at the

same time for 3s until a beep is heard.

[ Must be Unlocked ]

STEP 7 —Reset to Factory Default

09:30
