WorkPro LS-Node Series Manuale utente
1
LS-Node
March 2019
LS-Node
2
LS-Node
LS-Node is the new range of network nodes from the lightShark family. Under the generic name LS-NODE,
the range includes three different models - LS-Node1, LS-Node2 and LS-Node4 - . These multiprotocol
RDM/DMX streaming devices are fully compatible with any lighting control or device that supports ArtNet or
sACN standards.
At WorkPro we hope it meets all your expectations.
Thank you very much for trusting us.
Introducción
LS-Node
3
LS-Node
LIghtShark series user manual
By WorkPro
Equipson S.A.
Copyright
© Equipson SA 2018, All rights reserved.
No part of this manual, including the products or software described herein, may be reproduced, transmitted,
or translated into any language in any form or by any means without the express prior written consent of
Equipson S.A.
The guarantee of the product or service will not be extended if: (1) the product is repaired, modied or
altered, unless the repair, modication or alteration is authorized in writing by Equipson SA; (2) the serial
number of the product cannot be clearly read or is not present.
EQUIPSON SA PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES, MARKET
CONDITIONS OR ADJUSTMENTS FOR ANY PURPOSE. IN NO EVENT SHALL EQUIPSON SA, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY DAMAGES, WHETHER
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL (INCLUDING DAMAGES FOR LOSS OF
PROFITS, BUSINESS, LOSS OF USE OR DATA, BUSINESS INTERRUPTION OR THE LIKE), EVEN IF
EQUIPSON SA HAS BEEN ADVISED THAT THE POSSIBILITY OF SUCH DAMAGES MAY ARISE FROM
ANY DEFECT OR ERROR IN ITS MANUALS OR PRODUCTS.
THE SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FOR INFORMATIONAL
PURPOSES ONLY AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE AND MAY NOT
BE USED AS A COMMITMENT BY EQUIPSON SA. EQUIPSON SA ASSUMES NO RESPONSIBILITY FOR
ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE
PRODUCTS AND/OR THE SOFTWARE DESCRIBED IN IT.
The products and corporate names appearing in this manual may (or may not) be trademarks or copyrights
of their respective companies, and are used herein only for identication or explanatory purposes and for the
benet of the owner, without intent to infringe such standards.
Policy
This equipment complies with EMC Directive 2004/108/EC and LVD 2006/95/EC.
This product is approved by the following safety standards: EN 60950~1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
AND EMC standards EN55022: 2010 EN61000-3-3: 2013 EN55020:2007+ A11 EN61000-4-2: 2009
EN61000-4-3: 2006 + A1+ A2
ATTENTION: Any modication or change made to this device, unless explicitly approved by Equipson SA,
will void the authorization to use this device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
For further details please contact: Equipson SA, AV El Saler nº14, Silla, Valencia, Spain. Telephone: +34
5
4
LS-Node
1-Introduction
1.1 Safety instructions . . . . . . . .
1.2 Product Description . . . . . . . .
1.3 Box content . . . . . . . . .
1.4 Product overview . . . . . . . .
2-Conguration and Operation
2.1 Accesing the WebServer . . . . . . .
2.2 Port conguration . . . . . . . .
2.3 Setting ports as output . . . . . . . .
2.4 Setting ports as input . . . . . . . .
3-Updating & Reset
3.1 Firmware Update . . . . . . . .
3.2 Device Reset . . . . . . . . .
4-Support
4.1 Support . . . . . . . . .
6
6
7
10
11
13
15
17
18
19
5
LS-Node
Sección 1: Introduction
1.1 Safety Instructions
Please read the following Safety Notes carefully before starting to work with the product.
These notes include important safety information about installation, use, and maintenance.
• Before using this product, carefully read the instruction manual and keep it for future
reference.
• You must use a power supply according to the voltage marked on the rear panel, you
will void the warranty in case of using an inadequate voltage.
• Before connecting the device to the electric outlet ensure that the power cord is not
damaged.
• Always connect the device to the power supply supplied in the box.
• Install the device in a at and stable location.
• This product is rated IP20 so do not install near water or wetness, it is for indoor use
only.
• Place the device away from heat sources such as radiators. Make sure there are no
ammable materials near the device when it is in operation.
• Never connect the device to an electrical regulator or rheostat.
• To prevent the risk of shock, do not open or disassemble the unit.
• Never pull the power cord to turn off the device.
• If you install the device at a high place, please make sure that the bracket is properly
xed and secured.
• Equipson SA will not accept any liability for damage caused by unauthorized
modications or improper use of the device.
• If the device needs repair, contact Equipson SA or an authorized distributor.
6
LS-Node
1.3 Box Content
The following items are included in the box:
LS-Node device: Depending on model: LS-Node1, LS-Node2, LS-Node4.
USB power cable ( 1m ): connect one end to the LS-Node and the other end to the
USB power adapter.
USB Power Adapter: To power the LS-Node, it includes different types of plugs for
worldwide use. Simply select the correct adapter to plug it in.
1.2 Product Description
This series of small devices are available in the same format as ¼ rackmount LS-Core and
are powered via USB-C or via PoE, which is useful when used in installations where they
can be racked using the optional LS-AR 19 accessory.
All LS-Node devices have an integrated two-port Ethernet switch and are multiprotocol,
supporting industry standards ArtNet and sACN.
LS-Node is fully compatible with LightShark consoles and can also be congured via a
internal webserver, allowing users to congure parameters such as frame rate (15 to 40 hz),
rmware updates, independent routing of DMX ports (any universe can be routed
to any of the DMX ports independently) and usage modes.
All models have several usage modes:
-Single mode: RDM/DMX to ArtNet/sACN converter, congurable via web.
-Merger mode: where the LS-Node can receive different universes (via ArtNet/sACN or
DMX) and merge them in the same output via HTP/LTP modes.
-Backup mode: when the LS-Node works in Backup mode with two connected consoles,
the device can detect a connection loss from the main console and switch automatically
to the Backup console, with a maximum latency of 3 seconds.
NOTE The Firmware version used to make this manual is v.0.19.
ArtNet/sACN TYPE-C:5v,2A
POE
POWER
RESET
7
LS-Node

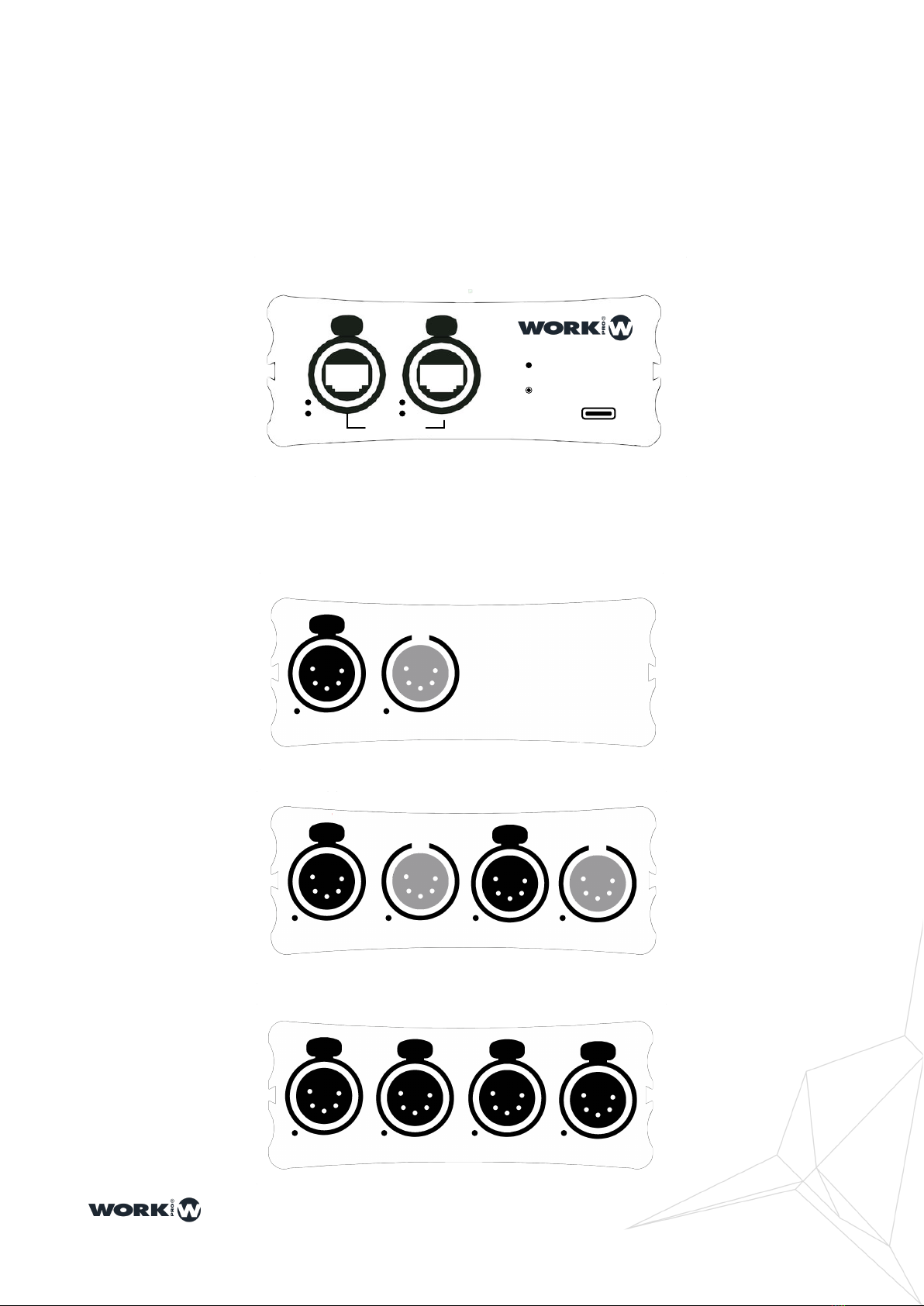

1.4 Product Overview
DMX OUT DMX IN
DMX-1 OUT DMX-1 IN DMX-2 OUT DMX-2 IN
DMX-1 IN/OUT DMX-2 IN/OUT DMX-3 IN/OUT DMX-4 IN/OUT
LS-Node 1.
Front view
Rear View
LS-Node 2.
LS-Node 4.
8
LS-Node
ArtNet/sACN TYPE-C:5v,2A
POE
POWER
RESET
1 2
3 4
5
6
7
1: Activity Led, if you receive Art-Net or sACN the led will ash quickly.
2: Link Led, indicates that the ethernet port is connected to the network.
3: Ethernet port A, which is a Neutrik etherCON connector with which to connect the
node to the network.
4: Ethernet port B, which is a Neutrik etherCON connector to connect the node to
the network. The B port (unlike the A port) allows you to power the Node through
P.o.E.
5: Power LED, which is illuminated when the Node is connected to the USB-C
power or to a P.o.E switch .
6: Reset switch, allows you to return to the original factory conguration of the
device.
7: USB Type-C port, to supply power to the Node. It is possible to power it from the
USB port of any computer or laptop, or a USB-C power supply. The device is
supplied with a USB power supply and a USB Type A-C cable.
8: Activity LED, the LED will illuminate Green when it is assigned an active universe.
DMX-1 IN/OUT DMX-2 IN/OUT DMX-3 IN/OUT DMX-4 IN/OUT
8
9
LS-Node
Product Dimensions
mm
mm
mm
mm
10
LS-Node
Sección 2: Conguration & Operation
2.1 Web Server Access
LS-Node devices are congured through WebServer. To access, connect your LS-Node
device to the LAN and from a laptop, tablet, or smartphone ... access the IP address 2.0.0.1
2.0.0.1
NOTE Note that the computer or tablet from which you want to connect must be in the same
subnet as the nodes.
NOTE The use of Safari, FireFox, or Chrome web browsers is recommended.
NOTE If you use iOS devices, the minimum software version required in iOS9
NOTE It is possible to congure LS-Node devices over the Internet, you only need to
redirect port 80 on your router to the IP address of the device.
From the DEVICE SETTINGS window it is possible to adjust the IP address of the devices
and their name.
2.0.0.1
