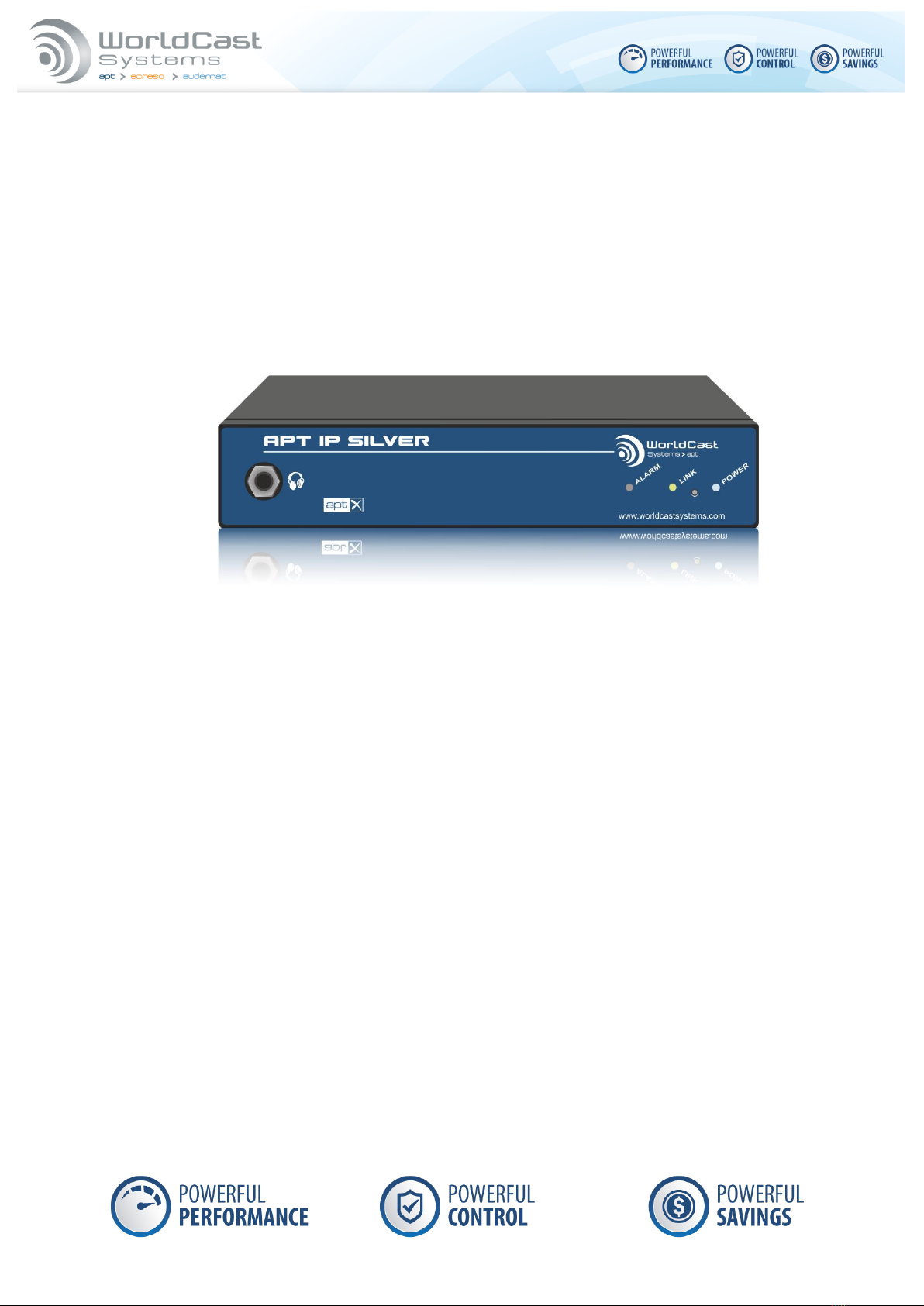

Worldcast Systems APT IP Silver Manuale utente

APT IP Silver –Encoder /Decoder

Quick start notice

Mise en route

Guía rápida

English ............................................................................................................................................. 3

Safety Precautions ................................................................................................................................. 3

APT IP Silver –Encoder / Decoder Quick start notice............................................................................ 4

Français ..........................................................................................................................................10

Consignes de sécurité .......................................................................................................................... 10

APT IP Silver –Encoder / Decoder Mise en route............................................................................... 11

Español...........................................................................................................................................17

Precauciones de seguridad .................................................................................................................. 17

APT IP Codec Guía rápida..................................................................................................................... 18

.......................................................................................................................................................24

DOC01001

03/2017

English

Safety Precautions

This equipment complies with international mechanical and electrical standards. To maintain this compliance,

as well as to ensure proper and safe working conditions and avoid electrical shocks and fire hazards, you must

comply with the following recommendations:

The device should only be utilized in the conditions described in the user manual.

The device is designed for industrial usage and must only be operated by qualified personnel.

The device may be heavy; it must be lifted and handled with care, specifically during unpacking

and set up.

Electrical precautions

Unplug from mains outlet before any intervention.

Any maintenance, adjustment or repair must be carried out by personnel specifically trained by

WorldCast Systems.

Before switching on the device, make sure the nominal voltage specified on the device matches

the mains nominal voltage.

The device should only be operated on a stable electrical network. If the electrical network is not

stable, a power conditioner, such as a UPS, must be used

The device must only be used with a plug that incorporates a protective ground contact.

To avoid any risk of electrocution, the protective earthing conductor must not be cut, intentionally

or accidentally, either on the device or on the power cord.

High quality shielded cables are mandatory.

Environmental precautions

It is necessary to verify that environmental conditions comply with those recommended in the

manual.

Nothing must obstruct the ventilation.

To avoid any electromagnetic interference, the device must only be used when it is closed,

installed in a cabinet and connected to the earth as per the instructions.

The device should not be exposed to dripping or splashing and no objects filled with liquids, such

as coffee cups, should be placed on the equipment.

Connectors may be hot on high power units.

Precautions regarding the lithium battery

This device includes a lithium battery.

If the battery is not correctly replaced, there is a risk of explosion.

Only replace it with a battery of the same type. Contact us before attempting to use another type

Do not puncture the battery

Do not throw the battery in fire

Do not immerse the battery in water

Do not throw away the used battery, recycle it instead. You may send it back to us if needed.

English version

APT IP Silver –Encoder / Decoder

Quick start notice

1. Before you start

Make sure the box you received contains:

1 external power supply

1 box including: Documentation and software CD, Quick Start Guide.

!This unit does not deal with network related security issues. It is up to the user to set it in a secured

environment such as a private network, VPN, behind a firewall…WorldCast Systems cannot be held

responsible for the consequences of a security breach on the operating network.

2. Configuring your NextGen product

1. Configure each unit separately as all units are shipped from APT with the same default IP address.

If two units are deployed on the same IP address, this will cause an IP addressing conflict.

Once you’ve followed the entire procedure for the first unit, you will need to start over for the second

one.

2. Ensure that you have both units configured properly (that you wish to make the connection with)

and connected to a switch and the PC first before deploying on live networks.

3. Connect your Silver unit to your switch/router/network via the LAN port (ETH0) on the back of the

unit with an Ethernet cable (see connection diagram on the last page of this quick start guide).

Note: all Codecs are set up with the same default address –make sure that you have changed

these, in order to avoid an address conflict.

4. Open a web browser and type the following IP address: 192.168.100.110. This may be changed if

required using the System/Network page of the web interface. Ensure that your PC’s IP address is

set for the same network (192.168.100.xxx / 255.255.255.0)

5. The Default login is: User: Admin Password: admin.

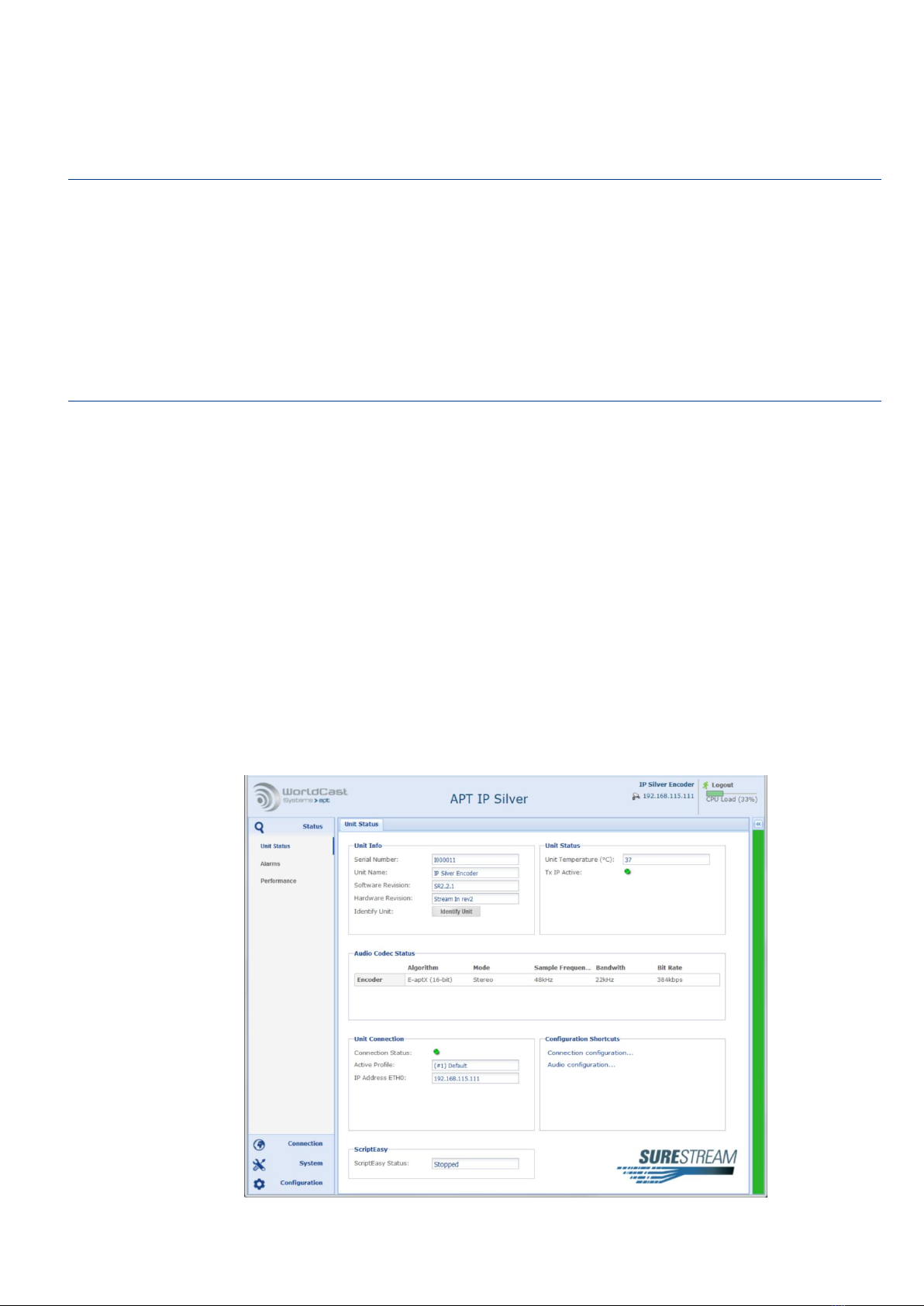

Figure 0-1: Shows the status page after you have logged in successfully

English version

3. Connect via DNS Hostname

Alternatively to an (unknown) IP address you can use the unit’s DNS name by using the syntax

below –this requires that you have an mDNS service installed on you PC (for details refer to the

user manual)

https://wcs-SerialNumber.local

Example for APT IP Silver Encoder (prefix ”I” or “K” ) Sn: I000011:

https://wcs-I000011.local

Example for APT IP Silver Decoder (prefix “P” or “R”) Sn: P000012:

https://wcs-P000012.local

4. SSL Certificate Installation

System release 2.x requests a secure connection to your browser. You must install the certificate in

accordance with your browser instructions. You can download the certificate from the Codec.

On the first connection, your browser will deny the connection and prompts you to confirm a security

exception. You must accept this security exception at this time.

How to download and to install the WorldCast certificate is described in the user manual.

With this release the certificate does not appear correctly if the Codec IP address mode is set to

DHCP (IP address assigned from the DHCP server in your network)

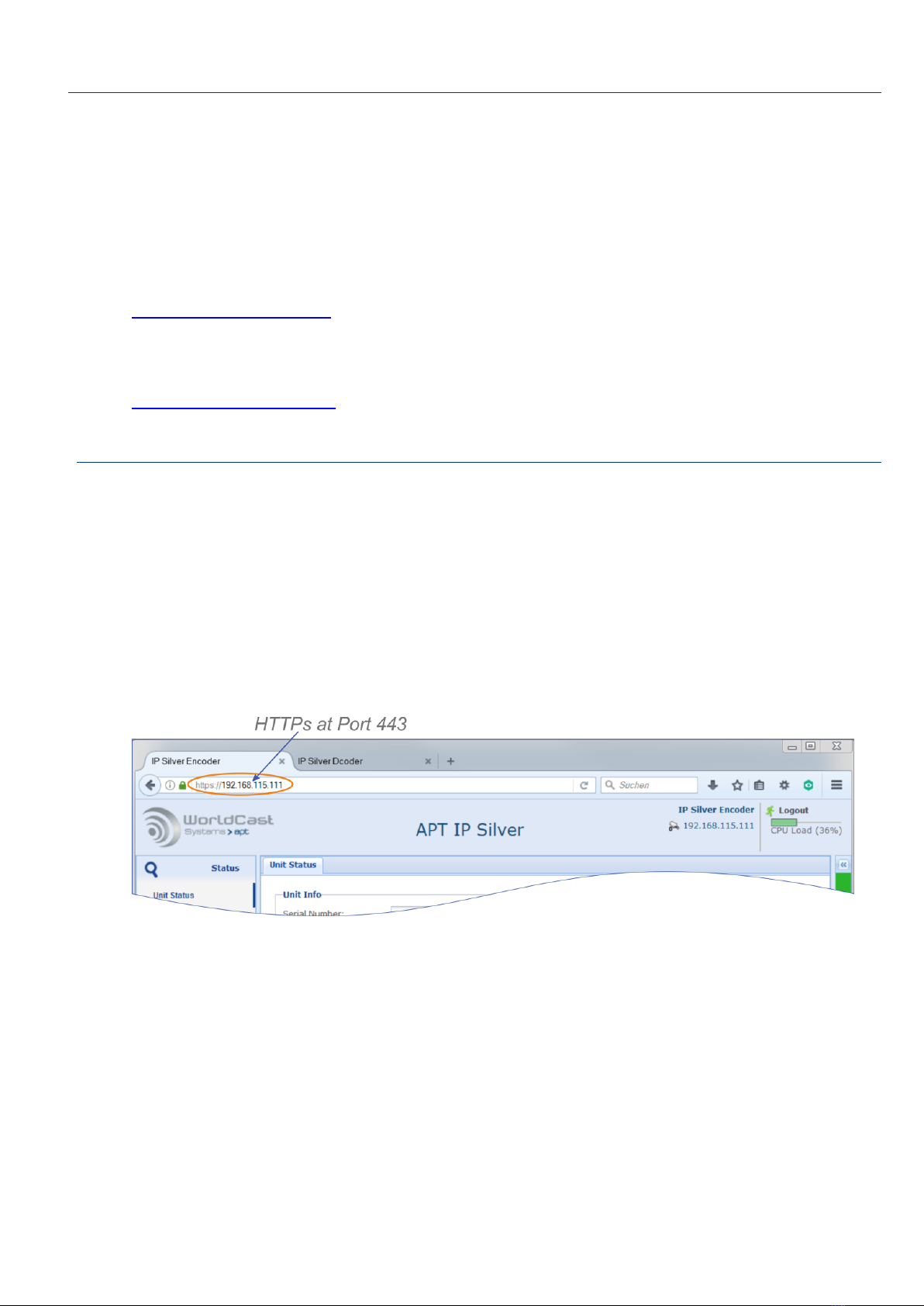

Figure 0-2: Shows the HTTPs connection after the certificate was successfully installed from your Codec

English version

5. Making a first Configuration (Encoder setup)

1. Navigate to “Connection” on the main menu and choose “Configuration Wizard”.

2. The Configuration Wizard lets you create a new configuration. It will take you through each step

individually as shown below. First enter a name for your new configuration. It is recommended

that meaningful names are used such as ‘Belfast to London News Report’, and then click the

“Next” button

3. You will then need to configure the Encoder algorithm, the bit rate and all algorithm specific

parameters. Some of them are computed automatically, and then click “Next”.

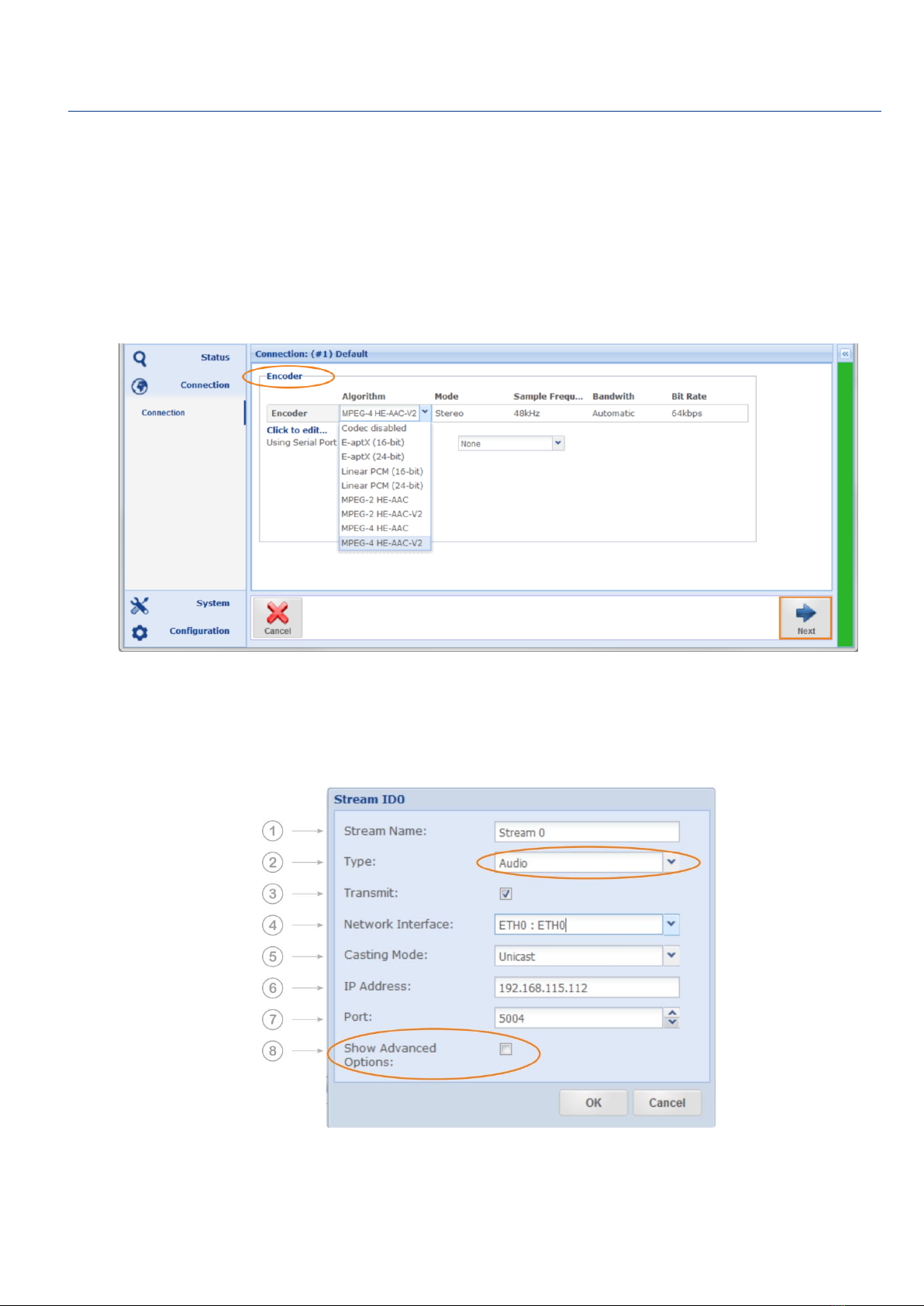

Figure 0-3: Shows the Encoder configuration page of the Configuration Wizard

4. Stream Table: You will now be presented with the Streams Table. Click on “Add” to enter your IP

connection information. The following window will appear:

English version

The Stream Configuration Window presents the standard view that is suitable for your first connection.

For configuring the “Advanced Options” refer to the user manual.

4.1. Apply a name to the Stream

4.2. Type can be Audio, AUX, GPIO and IP/Media Forward –select “Audio”

4.3. Enable “Transmit” on the Encoder.

4.4. Keep the default ETH interface “ETH0:ETH0” (:ETH0 defines a virtual interface – refer to the

user manual for more information)

4.5. Select what casting mode you wish, Unicast or Multicast. For a normal point to point

connection, this will be Unicast

4.6. Enter the destination IP address (Encoder only). This is the IP address of the receiving unit.

4.7. Enter the IP port –ensure the other side of the link has the same IP port configured.

Clicking on “OK” presents the stream in the streams table as shown below.

5. Click on “Create” on the bottom of the toolbar to create the configuration.

6. To apply this configuration click on “Apply”. This will immediately reconfigure the codec to these

settings.

6. Making a first Configuration (Encoder setup)

The configuration procedure for the Decoder is similar to the setup of the Encoder. On the Stream

Configuration window you do not have to enter a source IP address.

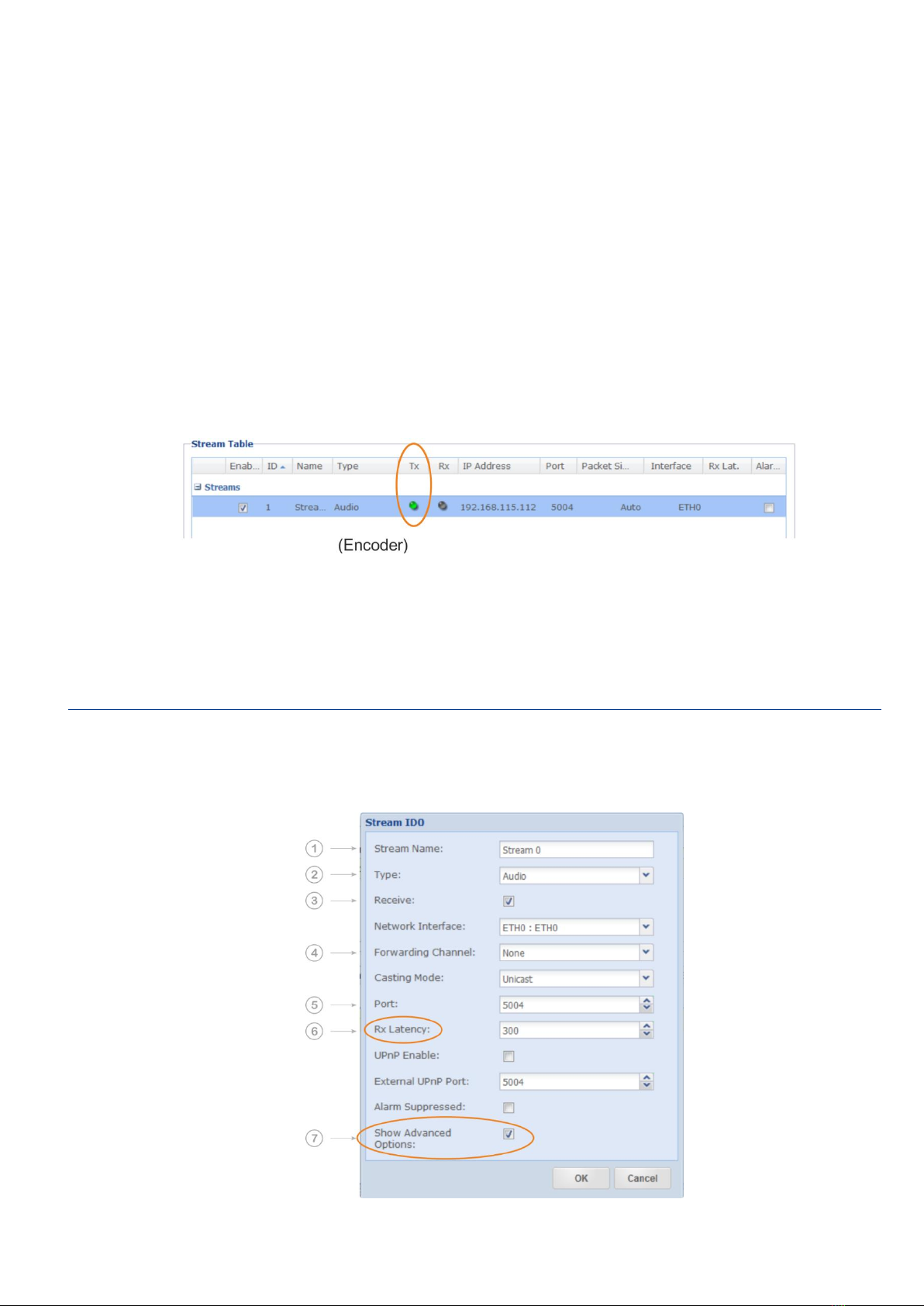

The following window will appear on the Decoder:

English version

1. Apply a name to the Stream.

2. Type can be Audio, AUX , “IP Forward” or “Media Forward” – select “Audio”

3. Enable “receive” on the Decoder

4. Ignore “Channel Number” at this stage – this is for stream type “IP Forward” only

5. Enter the IP port –ensure the other side of the link has the same IP port configured

6. Enable “Advanced Options” to enter the buffer size “Rx Latency”. For linear PCM or aptX Enhanced

you can keep the default value (150 ms). For HE-AAC in this example you need to increase the

buffer size as shown in the screen shot

7. Enabling this checkbox provides the advanced stream options

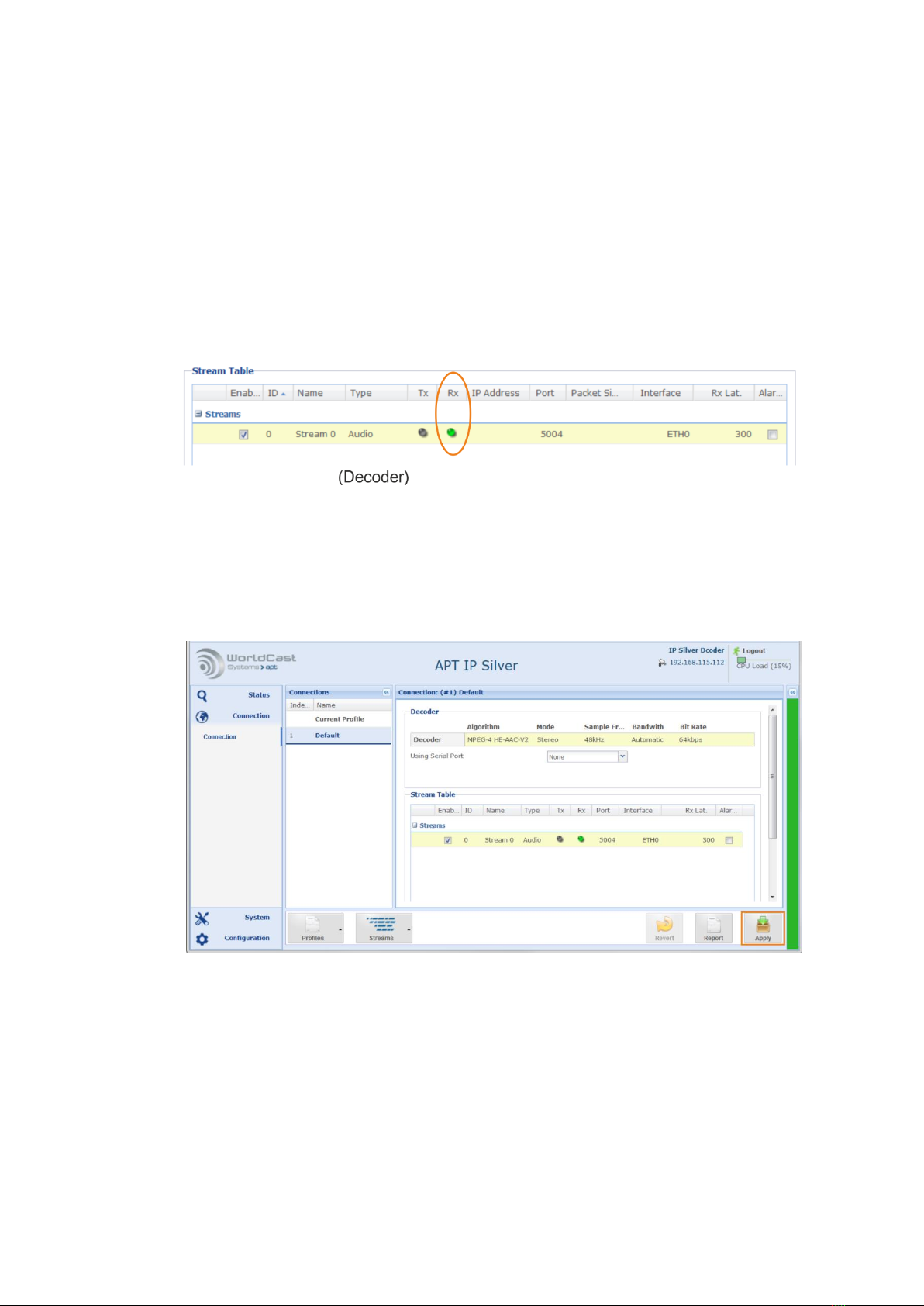

Clicking on “OK” presents the stream in the streams table as shown below.

8. Click on “Create” in the toolbar of the page to create the configuration (for Encoder and Decoder).

9. To apply this configuration click on “Apply”. This will immediately reconfigure the codec to these

settings (for Encoder and Decoder).

Figure 4 shows the completed profile configuration on the Decoder

For more details about the product please refer to the user manual.

English version

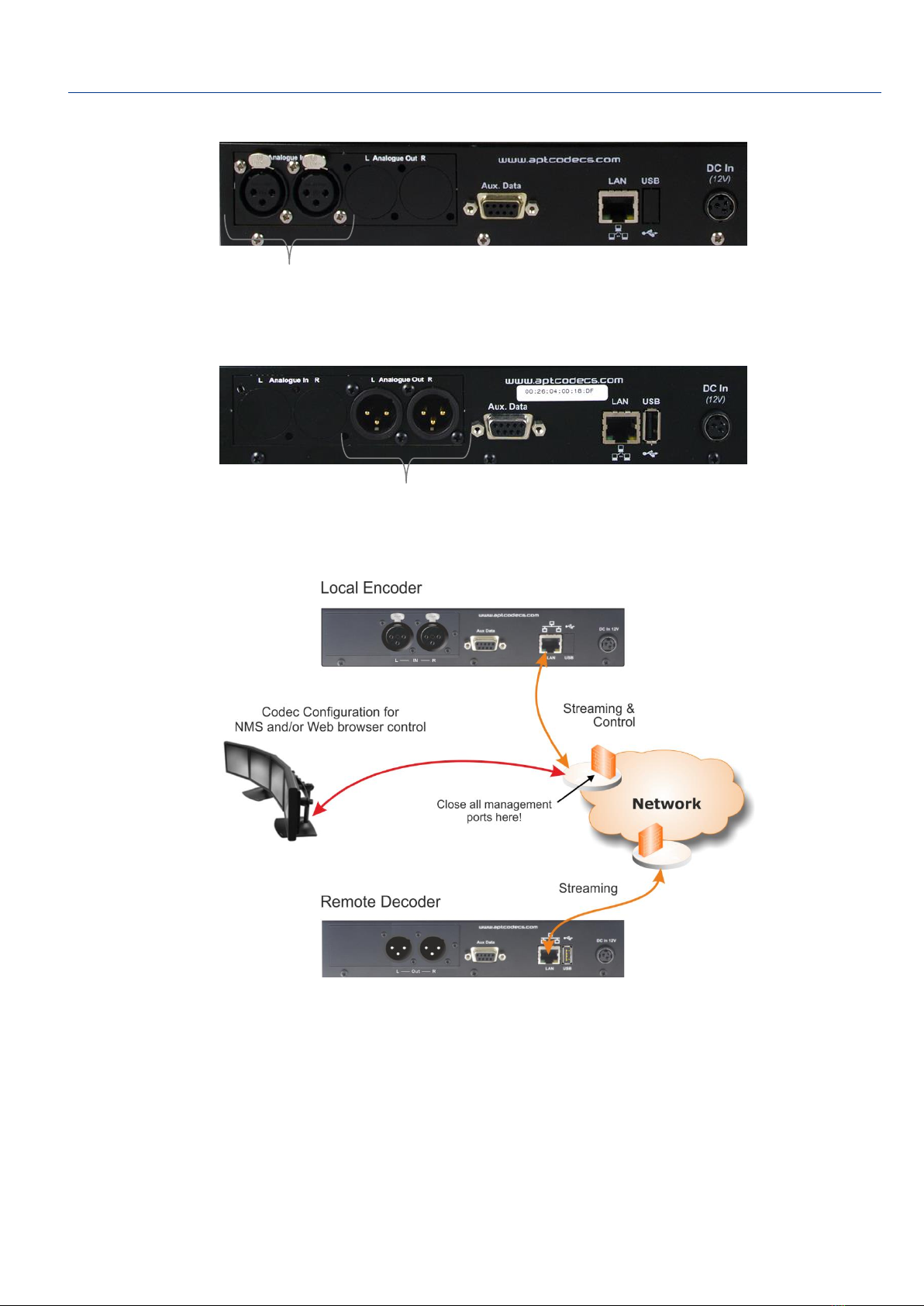

7. Connection diagram

APT IP Encoder

APT IP Decoder

Network Connection

Audio input

Audio output

Français

Consignes de sécurité

Cet équipement est conforme aux normes de sécurité électriques et mécaniques internationales. Afin

de respecter cette conformité ainsi que d’assurer un fonctionnement sans danger et de prévenir tout

choc électrique ou tout risque d’incendie, veillez à observer les recommandations suivantes :

L’appareil ne doit être exploité que dans les conditions décrites dans le manuel d’utilisation.

L’appareil est destiné à un usage industriel et ne doit être exploité que par un personnel qualifié.

L’appareil peut être lourd, il est impératif de le soulever et de le manier avec précaution en

particulier lors de son déballage et de sa mise en place.

Précautions électriques

Débrancher la prise secteur avant toute intervention.

Toute intervention de réglage de maintenance ou de dépannage doit être effectuée par un

personnel que nous avons préalablement formé.

Avant de mettre l'appareil sous tension, s'assurer que la tension nominale spécifiée sur l'appareil

correspond à celle de la tension nominale du secteur.

L’appareil ne doit être exploité que sur un réseau électrique stabilisé. Si le réseau électrique n’est

pas stabilisé, il est impératif d’utiliser un onduleur ou un régulateur adéquat.

L’appareil ne doit être exploité que sur une prise de courant pourvue d'un contact de protection

connecté à la terre.

Afin de ne pas exposer l'utilisateur à un risque d'électrocution, il est impératif de ne pas couper

intentionnellement ou non le conducteur de protection au niveau de l'appareil ou du cordon

secteur.

Il est impératif d’utiliser des câbles blindés de bonne qualité.

Précautions environnementales

Il est nécessaire de vérifier que les conditions environnementales sont conformes à celles

préconisées dans le manuel.

Il est impératif d'empêcher toute obstruction de la ventilation.

Pour éviter toute perturbation électromagnétique, l’appareil doit être utilisé uniquement lorsqu'il

est fermé, installé dans une baie et relié à la masse conformément aux instructions.

Ne pas exposer cet appareil aux éclaboussures ou aux gouttes de liquide. Ne pas poser d’objets

remplis de liquide, tels que des tasses de café, sur l’appareil.

Sur les équipements de forte puissance, les connecteurs peuvent être chauds.

Précautions liées à la pile au lithium

Cet appareil contient une pile au lithium.

Si la pile n’est pas correctement remplacée, il y a danger d’explosion.

Ne la remplacer qu’avec une pile du même type. Pour tout remplacement par un autre type, nous

contacter au préalable.

Ne pas percer la pile

Ne pas jeter la pile dans le feu

Ne pas plonger la pile dans l’eau

Ne pas jeter les piles usagées mais les recycler. Vous pouvez nous les renvoyer le cas échant.

Le non respect des consignes énumérées ci-dessus entraine l’annulation de la garantie.

Indice

Lingue:

Altri manuali Worldcast Systems Convertitore multimediale

Worldcast Systems

Worldcast Systems FMB50 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
