Electric Chain Saw EN
6

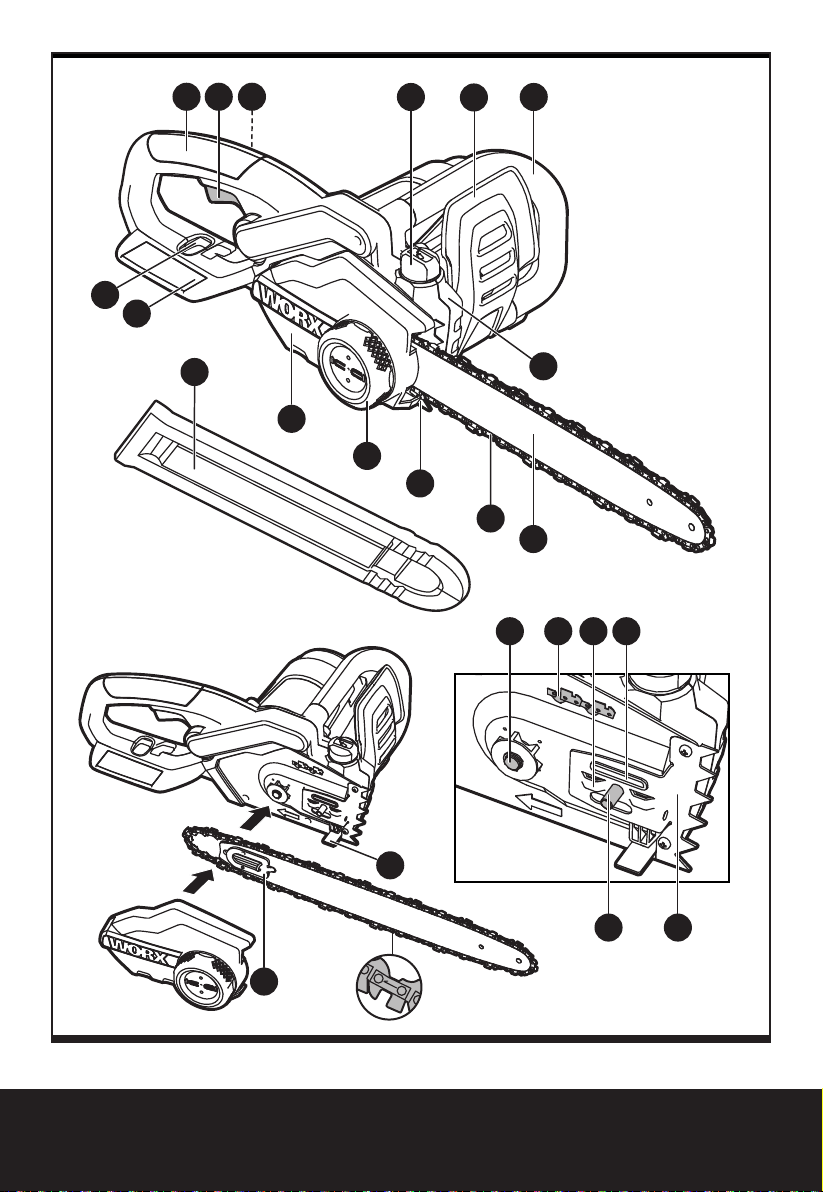

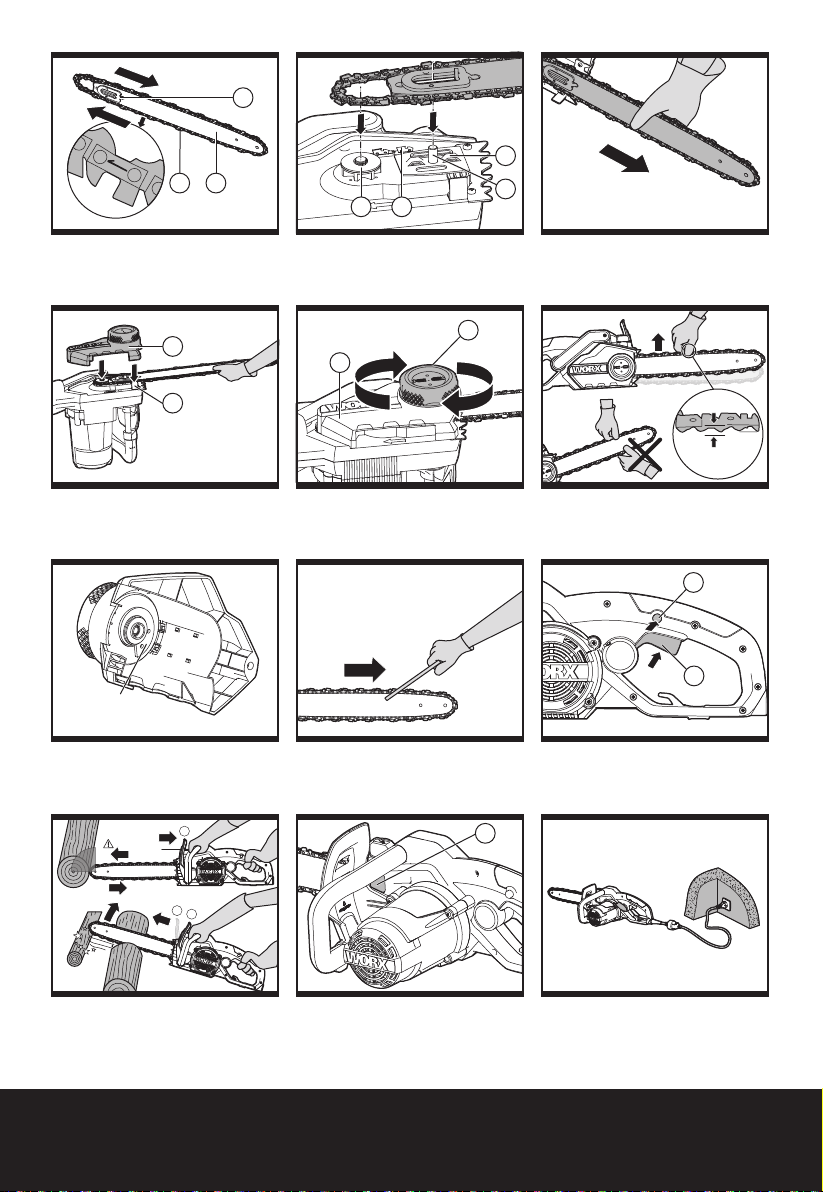

1. REAR HANDLE
2. ON/OFF SWITCH
3. LOCK-OFF BUTTON
4. OIL FILLER CAP
5. CHAIN STOP LEVER (HAND GUARD)
6. FRONT HANDLE
7. GUIDE BAR
8. CHAIN
9. GRIPPING TEETH
10. CHAIN TENSIONING KNOB
11. CHAIN COVER
12. BAR AND CHAIN STORAGE/TRANSPORTATION COVER
13. DRIVE SPROCKET
14. CHAIN DIRECTION SYMBOL
15. BAR LOCATING TABS
16. OIL OUTLET
17. FASTENING BAR BOLT
18. BAR TENSIONING PLATE
19. OIL LEVEL WINDOW
20. CHAIN CATCH
21. BAR CLAMP
22. EXTENSION CORD HOLDER
23. REAR HAND GUARD
Not all the accessories illustrated or described are included in standard delivery.
Electric Chain Saw EN
7
TECHNICAL DATA
WG300 WG303.1 WG304.1
Voltage 120V~60Hz
Amps 14A 14.5A 15A
Bar length 14 inch (345mm) 16 inch (385mm) 18 inch (440mm)
Chain speed 10m/s 12m/s
Oil tank capacity 6.76 ounces (200ml)
Chain pitch 3/8 inch (9.68mm)
Number of chain links 53 57 63
Chain gauge 0.05 inch (1.27mm)
Chain Oregon:91PX053X ES:91VG Oregon:91PX063X
Bar Oregon:140SDEA041 ES:160SDEA041
Oregon:180SDEA041
Weight(chain & bar included) 10.8 lbs (4.9kg) 11 lbs (5kg) 11.2 lbs (5.1kg)
Protection class /II
ACCESSORIES
Lubrication oil 3.38 ounces (100ml)
Blade protection cover 1
Chain 1
Bar 1
Only use the appropriate accessories intended for this tool. Accessory information can be found
on the product packaging, at a WORX dealer or on our website at www.worx.com.
Electric Chain Saw EN
8
WARNING: Some dust created by
power sanding, sawing, grinding,
drilling and other construction activities
contains chemicals known to the state of
California to cause cancer, birth defects or
other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement
and other masonry products and
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type
of work.To reduce your exposure to these
chemical:
• Work in a well ventilated area,
• And work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
WARNING: This product maybe
contains lead, phthalate or other
chemicals known to the State of
California to cause cancer, birth defects
and other reproductive harm. Please
wash your hands after use.
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING: Read all safety warnings
and instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
The term power tool in the warnings refer to
your electric (corded) power tool or battery-
operated (cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in
explosive atmospheres, such as in the
presence of flammable liquids, gases
or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the
outlet. Never modify the plug in
any way. Do not use any adapter
plugs with grounded power tools.
Unmodified plugs and matching outlets
will reduce risk of electric shock.
b) Avoid body contact with grounded
surfaces such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body
is grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep cord
away from heat, oil, sharp edges or
moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a ground
fault circuit interrupter (GFCI)
protected supply. Use of an GFCI
reduces the risk of electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use
a power tool while you are tired or
under the influence of drugs, alcohol
or medication. A moment of inattention
while operating power tools may result in
serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate conditions
Electric Chain Saw EN
9
will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying
the tool. Carrying power tools with your
finger on the switch or energizing power
tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from
moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of dust
collection can reduce dust-related hazards.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use
the correct power tool for your
application.The correct power tool will
do the job better and safer at the rate for
which it was designed.
b) Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be controlled
with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories,
or storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
d) Store idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate
the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tools operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
g) Use the power tool, accessories and
tool bits etc., in accordance with
these instructions and in the manner
intended for the particular type of
power tool, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
5. SERVICE
a) Have your power tool serviced by
a qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
CHAIN SAW SAFETY
WARNINGS
1. Keep all parts of the body away from
the saw chain when the chain saw is
operating. Before you start the chain
saw, make sure the saw chain is not
contacting anything. A moment of
inattention while operating chain saws may
cause entanglement of your clothing or
body with the saw chain.
2. Always hold the chain saw with your
right hand on the rear handle and your
left hand on the front handle. Holding
the chain saw with a reversed hand
configuration increases the risk of personal
injury and should never be done.
Electric Chain Saw EN
10
3. Hold the power tool by insulated
gripping surfaces only, because the
saw chain may contact hidden wiring
or its own cord. Saw chains contacting
a live wire may make exposed metal parts
of the power tool live and could give the
operator an electric shock.
4. Wear safety glasses and hearing
protection. Further protective
equipment for head, hands, legs
and feet is recommended. Adequate
protective clothing will reduce personal
injury by flying debris or accidental contact
with the saw chain.
5. Do not operate a chain saw in a tree.
Operation of a chain saw while up in a tree
may result in personal injury.
6. Always keep proper footing and
operate the chain saw only when
standing on fixed, secure and level
surface. Slippery or unstable surfaces
such as ladders may cause a loss of
balance or control of the chain saw.
7. When cutting a limb that is under
tension be alert for spring back. When
the tension in the wood fibers is released the
spring loaded limb may strike the operator
and/or throw the chain saw out of control.
8. Use extreme caution when cutting
brush and saplings. The slender material
may catch the saw chain and be whipped
toward you or pull you off balance.
9. Carry the chain saw by the front
handle with the chain saw switched
off and away from your body. When
transporting or storing the chain saw
always apply the guide bar cover.
Proper handling of the chain saw will
reduce the likelihood of accidental contact
with the moving saw chain.
10.Follow instructions for lubricating,
chain tensioning and changing
accessories. Improperly tensioned
or lubricated chain may either break or
increase the chance for kickback.
11.Keep handles dry, clean, and free from
oil and grease. Greasy, oily handles
are slippery causing loss of control.
12.
Cut wood only. Do not use chain
saw for purposes not intended. For
example: do not use chain saw for
cutting plastic, masonry or non-wood
building materials. Use of the chain saw
for operations different than intended could
result in a hazardous situation.
CAUSES AND OPERATOR PREVENTION
OF KICKBACK:
Kickback may occur when the nose or tip of the
guide bar touches an object, or when the wood
closes in and pinches the saw chain in the cut.
Tip contact in some cases may cause a
sudden reverse reaction, kicking the guide bar
up and back towards the operator.
Pinching the saw chain along the top of the
guide bar may push the guide bar rapidly back
towards the operator.
Either of these reactions may cause you to
lose control of the saw which could result in
serious personal injury. Do not rely exclusively
upon the safety devices built into your saw.
As a chain saw user, you should take several
steps to keep your cutting jobs free from
accident or injury.
Kickback is the result of tool misuse and/or
incorrect operating procedures or conditions
and can be avoided by taking proper
precautions as given below:
- Maintain a firm grip, with thumbs
and fingers encircling the chain saw
handles, with both hands on the saw
and position your body and arm to
allow you to resist kickback forces.
Kickback forces can be controlled by the
operator, if proper precautions are taken.
Do not let go of the chain saw.
- Do not overreach and do not cut
above shoulder height. This helps
prevent unintended tip contact and
enables better control of the chain saw in
unexpected situations.
- Only use replacement bars and
chains specified by the manufacturer.
Incorrect replacement bars and chains may
cause chain breakage and/or kickback.
- Follow the manufacturer’s sharpening
and maintenance instructions for the
saw chain. Decreasing the depth gauge
height can lead to increased kickback.
SAFETY RULES FOR EXTENSION CORD
Questo manuale è adatto per i seguenti modelli
2
Indice
Lingue:
Altri manuali Worx Motosega
Worx
Worx WG300 Manuale utente
Worx
Worx WG309 Manuale utente
Worx
Worx KG346 Series Manuale utente
Worx
Worx WG305 Manuale utente
Worx
Worx WG384E Manuale utente
Worx
Worx WG322E Manuale utente
Worx
Worx WG305.2 Manuale utente
Worx
Worx JawSaw WG329E Manuale utente
Worx
Worx WG322E Manuale utente
Worx
Worx WG384 Manuale utente
Worx
Worx WG322E Manuale utente
Worx
Worx WG381E Manuale utente
Worx
Worx JawSaw WG329E Manuale utente
Worx
Worx WG322E X Series Manuale utente
Worx
Worx Jawsaw WG307E Manuale utente
Worx
Worx WG305 Manuale utente
Worx
Worx JawSaw WG320 Manuale utente
Worx
Worx WG300 Manuale utente
Worx
Worx WG322E Manuale utente
Worx
Worx Jawsaw WG307E Manuale utente
