Woyo PDR007 Manuale utente
Paintless Dent Repair
PDR007(Iron)
Manual
Video
Scan QR code, to study how to use it quickly,
to help you earn more profits.
Company: WOYO SMART Co., LTD
02

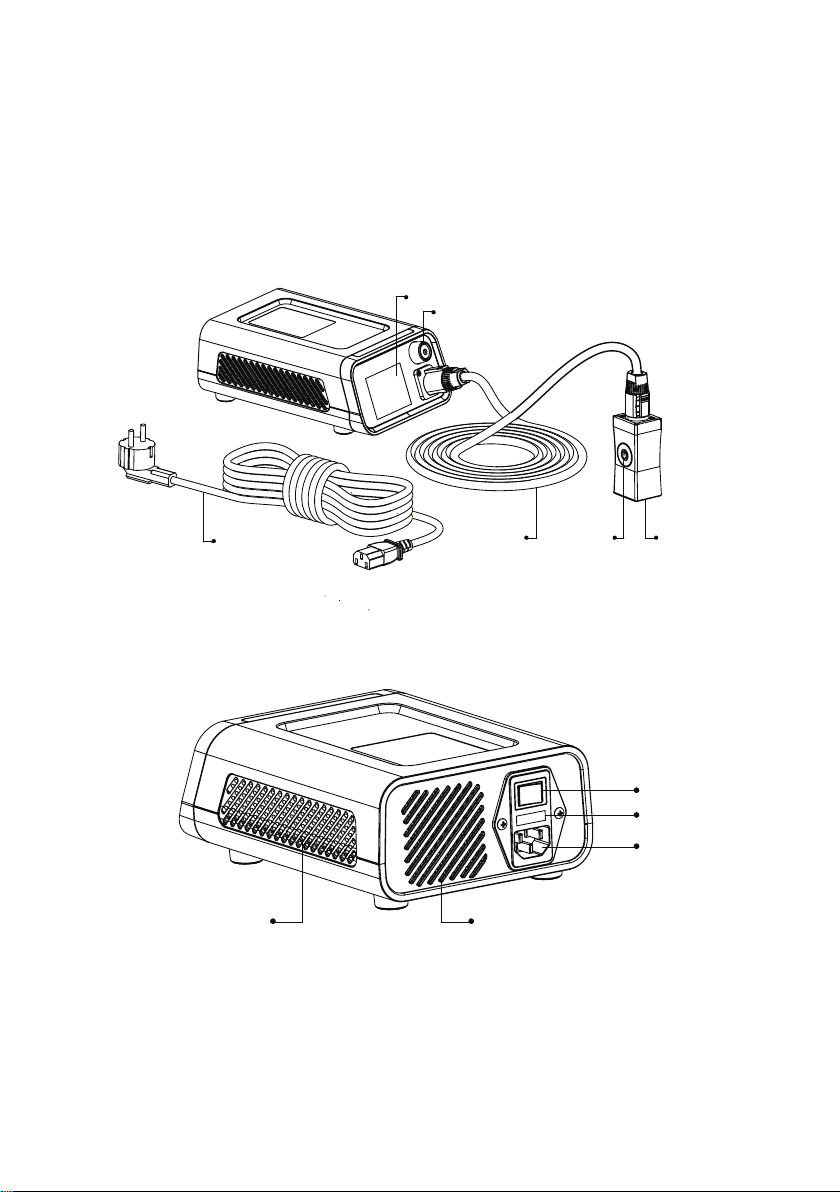

Paintless Dent Repair 007 Iron
Contact Surface
Switch buttonMain Cord
Rotany Knob
Display
Power Cord
Power ON/OFF
Power Input
10A Fuse
Exhaust Fan
Exhaust Port
03
Before using this device, you must read the instructions. If the instructions are not followed
carefully, the operator could suffer injury, the device could be damaged, or the car being
treated might be damaged.
Attention before use(Warning)
1.Not suitable for operation by those with pacemakers or articial limbs with metal parts.
2.Before using this device, you must wear a safety mask, safety gloves, and safety
clothing to avoid being burned during use.
3.Operators must not have any metal objects on their person during operation, including
but not limited to watches, cuff links, keys, belt buckles, coins, or zippers.
4.This device cannot be operated in areas with conductive particulate matter, areas used
for applying paint, areas housing or handling chemical fuels, areas of high temperature,
and areas of high humidity.
5.Once the device is powered on, ammable objects must be kept away from the device.
6.Before you power on the device, make sure that you have a re extinguisher on hand
in case any misoperation causes a re.
7.Do not use this device in the vicinity of safety airbags.
8.Once the device is powered, there must be personnel on site to watch over the device.
When the device is not in use, unplug the device's power cable.
9.This device should be stored at temperatures between 0 and 50 celsius. When
transporting the device, avoid vibrations or shocks.
Attention in using (Warning)
1.While the restoration head is restoring a damaged car body, the temperatures of
both the restoration head and the body will rapidly increase. Do not touch either the
restoration head or the car body before they have had time to cool down.
2.While the restoration head is in the process of restoration, the temperatures of both
the restoration head and the damaged area will rapidly increase. Using the restoration
head on one area for too long may increase temperatures to the point of damaging the
car's paint job (it is recommended that every 1-1.5 seconds, the operator wipes down
the damaged area with a wet rag in order to keep the temperature manageable).
3.During the restoration process, the temperatures of both the restoration head and the
damaged area will rapidly increase and the body of the car will immediately become
softer. During restoration, make sure the restoration head is not applying pressure to the
car, otherwise the restoration process itself might further dent the car.
Company: WOYO SMART Co., LTD
04
1.Installation
1.1 Connect the cord to the repair head and PDR009 main. Aim at the location socket and
insert one end of the cord, turn the end clockwise to tighten the cord securely.
1.2 Connect the power cord to the backside of the PDR009 main.
1.3 Make sure that all the cords are well connected before connect the machine to the power
socket. Switch on the backside of the PDR009 main.

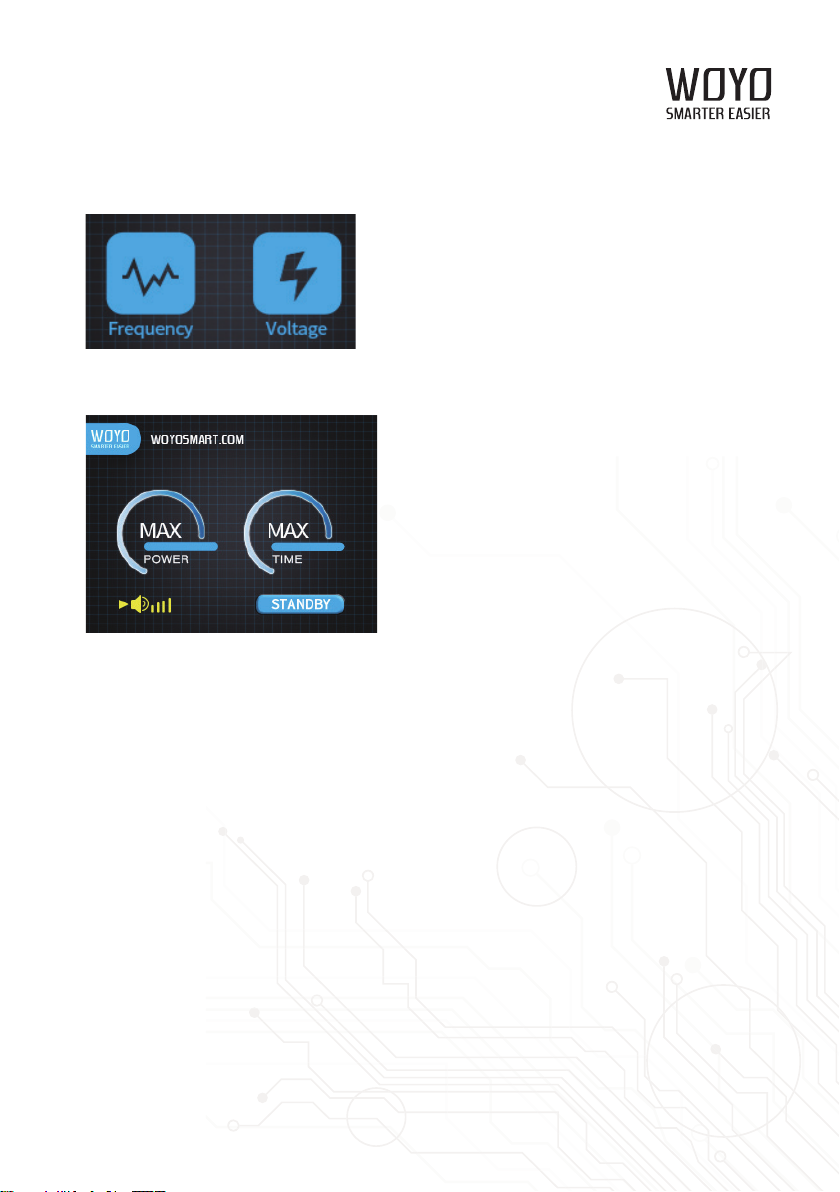

2.Self-check System
The machine is activated when turn on the power switch and then it get into the self-checking
state. The machine can automatically check if the input frequency and voltage are in accordance
with the applicable regulations or not before it is used. There will be an error warning accordingly if
something goes wrong.
2.1Frequency Error: Please stop using the machine and contact your reseller or WOYO SMART
CO.,LTD.
2.2Voltage Error: Please check if the input voltage are in accordance with the applicable
regulations. If yes, please contact your reseller or WOYO SMART CO.,LTD.
05
2.3 The machine is standby and ready to use when input frequency and voltage are applicable.
3.Standby
Turn the rotary knob to select your expected parameter sign. Press the rotary knob, there will
appear a triangle sign, indicates the current parameter is available to set when you turn the rotary
knob. Press the rotary knob again, the triangle sign disappeared indicates that the machine
recover to the parameter selection state again.
Parameter Range
3.1 Power: OFF, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, MAX
3.2 Time: 1.0S, 1.5S, 2.0S, 2.5S, 3.0S, 3.5S, 4.0S, 4.5S, 5.0S, MAX
3.3 Triangle sign: Indicates the current parameter is selected and available to preset when you
turn the rotary knob.
3.4 Volume: 0, 1, 2, 3, 4
Company: WOYO SMART Co., LTD
06
4.Working Status and Error Instruction
4.1Standby
4.2Operating
4.3Wrong operation. There is an air gap between the repair head and the work piece.
4.4The input voltage supplied is not stable. Please check the voltage is is normal or not.
4.5The operating temperature is overheat. Please stop use the machine and let it cool down
adequately before use again.
4.6Please contact your reseller or WOYO SMART CO.,LTD.
07
5.Suitable range of use
This device is designed specically to be used with dents on exible steel car bodies.
The diagrams below illustrate the types of dents that can be removed. Dents like the
kind caused by impact from hailstones, which leave smooth, rounded dents, can be
removed. (More active materials may call for different devices, like pull hooks or suction
cups. Consult with training personnel for specics)
6.Unsuitable range of use
6.1Sharp dents
6.2Body areas that have been damaged and reconstructed
6.3Crumpled/creased areas or dents along creased metal
6.4Aluminum bodies
7.Dent repair method
Car body dent diagram
Company: WOYO SMART Co., LTD
08
Paintless Dent Repair Manual
Diagrams
areaandclickontheswitch
(Settimefor1secondandclick1-2times).
Thedentwouldbenarrowed
furtherandyougetintonextstep.
Directionofironplatedistortion
Themarginofthedent Theparthasbeenrepaired
Directionofironplatedistortion
Themarginofthedent Theparthasbeenrepaired
Theplant
Ironplate
Theplant
Ironplate
Before
Repairing
After
Repairing
Before
Repairing
After
Repairing
Procedure
Procedure
