WUBEN E01 Manuale utente
User Manual V2.0
E
N
CONTENTS
(EN) English
(DE) Deutsch
(CN) 中文
(JP) 日本語
(KR) 한국어
(FR) Français
(ES) Español
(IT) Italia
(AR)
03
08
13
18
23
26
31
36
41
ﺔﯾﺑرﻌﻟا
E
N
WARNINGS
Please read user manual carefully before using the light.
Product will generate heat while working, please be
cautious with that to avoid any possible harm.
Please don’t shine into eyes directly to avoid harm to eyes.
Please keep the light away from children.
Please use WUBEN or WUBEN recommended batteries.
Please don’t disassemble the light or it will not be covered
by WUBEN warranty policy.
Please don't throw the product into fire.
This is not a diving product, please don't use it underwater
for a long time.
- 03 -
Before using this product, please check whether the contents
of the package are complete.
Package List
E01 × 1
1Key chain × 1
3
Spare O-ring × 2
4Manual, warranty card,
quality certificate × 1
5
AAA Battery × 1
2

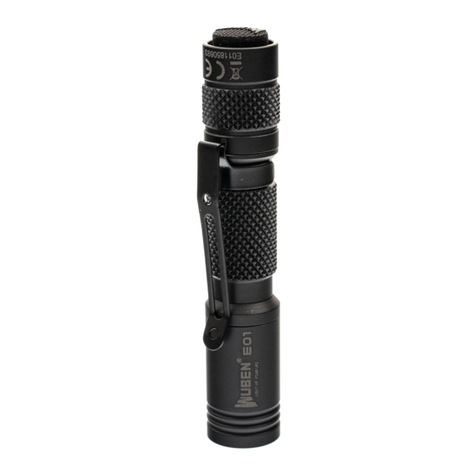

WUBEN E01 is a tiny portable EDC flashlight. E01 utilizes
1× CREE XP-G3 LED, powered by 1 pcs AAA battery,
emits 100 lumens max output.
1. About product
Product Operation
- 04 -
Clip
Light head
Body
Tail switch
2. Installation
Please remove the insulation plate before using.
- 05 -
E
N
4. Battery status indication
When the battery is low power, the flashlight will dim
automatically until battery totally runs out.
3. Operation
1
Output selections: When the light is on, tap on the tail
switch to cycle through Low-Med-High.
ON/OFF: Click on the tail switch to turn on the flashlight,
click again to turn off the flashlight.
2
SOS: When the light is on, double tap on the tail switch to
activate SOS, tap again to exit.
3
- 05 -
All data from experiments of WUBEN lab according to the ANSI/NEMA FL1 standard,
may vary because of different experiment equipment, experiment environment or
other factors. Experiments are based on Duracell AAA alkaline battery.
Parameters
The O-Ring may be damaged for a long time use, please
replace the O-Ring in time to ensure the waterproofness
of the product.
Please use WUBEN battery or WUBEN recommended
batteries.
Maintenance
/
FL1 Standard High Med Low SOS
40m
395cd
18g/0.63oz (without battery) 29g /1.02oz(with battery)
1.5m
IP68(2m underwater for 1h)
6.5h 50h
20LM
82.5mm × 15mm | 3.25in ×0.59in (L × D)
50mins
100LM 1LM 20LM
E
N
When the flashlight indicates low power, please charge or
replace the battery in time to avoid affecting the durability
of the battery.
Please use alcohol and rag to clean the conductive parts
of the flashlight in time.
When not in use for a long time, please remove the battery
to prevent the battery from leaking or exploding, store the
flashlight in a dry and ventilated place.
- 06 -
FAQs
If your problems still not solved yet, please contact your local dealer for
after-sales service.
Problems
Abnormal
flash or
failure
to turn on
Abnormal
noise
Check if the switch is
turned on correctly
Check if it is assembled
in place
Check if the battery is
no power
Check if the battery is
reversed
Check if the conductive
position is dirty
Check if foreign matter falls
in the tube
Part damage
Turn on the switch
Tighten the assembly parts
Use the charger to check
the battery
Remove the battery and
reassemble it correctly
Clean the surface with
alcohol
Pour out possible foreign
matterl
Return the light to local
distributor
Causes Solutions
15 days replacement: Within 15 days from the date of
purchase, if the product has quality problems, customers
can request free replacement.
1 year warranty: Within 1 year from the date of purchase,
1. Warranty coverage
Warranty policy
E
N
if the product has quality problems, WUBEN will offer free
repair.
5 years warranty: Within 5 years from the date of purchase,
if the product (accessories excluded) has quality problems,
WUBEN will offer free repair for WUBEN registered
customers.
Lifetime maintenance: From the date of purchase, if the
product has problem after 5 years, WUBEN will offer paid
repair for WUBEN registered customers .
If proof of purchase cannot be provided, it will be counted
on the date of manufacture.
If there is any dispute, the two parties will coordinate to
solve.
The final interpretation right is reserved by WUBEN.
Man-made damage.
Damage caused by not following the instructions.
Damage caused by improper use of the battery.
Abnormal wear and tear.
Damage caused by irresistible factors.
Gifts.
2. Beyond warranty
SHENZHEN SHENGQI LIGHTING TECHNOLOGY CO., LTD.
Add: 202#, Building A, Jihe E-Business Park,
No. 33 Yangmei Road, Bantian Street,
Longgang District, Shenzhen, China
E-mail: [email protected]
Web: www.wubenlight.com
FacebookWUBEN website
- 07 -
Bevor Sie dieses Produkt verwenden, überprüfen Sie bitte, ob
der Inhalt der Verpackung vollständig ist.
Paketliste
Warnhinweise
Bitte lesen Sie die Bedienungsanleitung sorgfältig durch, bevor Sie
das Licht verwenden.
Das Produkt erzeugt während der Arbeit Wärme, bitte seien Sie
vorsichtig, um mögliche Schäden zu vermeiden.
Scheinen Sie bitte nicht direkt in die Augen, um Augenschäden zu
vermeiden.
Bitte halten Sie das Licht von Kindern fern.
Bitte verwenden Sie WUBEN oder WUBEN empfohlene Batterien.
Bitte zerlegen Sie das Licht nicht, da dies nicht durch die WUBEN
Garantiebestimmungen abgedeckt ist.
Bitte werfen Sie das Produkt nicht ins Feuer.
Dies ist kein Tauchprodukt, bitte verwenden Sie es längere Zeit nicht
unter Wasser.
- 08 -
E01 × 1
1Key chain × 1
3
O-ring di ricambio × 2
4Manuale,Certificato di garanzia,
Certificato × 1
5
AAA Battery × 1
2
WUBEN E01 ist eine kleine tragbare EDC-Taschenlampe.
Verwendet 1 × CREE XP-G3 LED, E01 gibt max. 100 Lumen
Leistung aus, angetrieben durch AAA-Batterie, bequemer
zu bekommen.
1. Über das produkt
Produktbetrieb
- 09 -
3. Bedienung
EIN / AUS: Klicken Sie auf den Endschalter, um die
Taschenlampe einzuschalten. Klicken Sie erneut, um die
Taschenlampe auszuschalten.
1
D
E
Kopf
Clip
Gleitschutzkörper
Schalter
2. Installation
Bitte entfernen Sie die Isolierplatte vor dem Einsatz.
SOS: Wenn das Licht an ist, tippen Sie zweimal auf den
Heckschalter, um SOS zu aktivieren, und tippen Sie erneut,
um das Fenster zu verlassen.
Wenn der Akku schwach ist, wird die Helligkeit der
Taschenlampe automatisch verringert, bis der Akku
vollständig leer ist.
4. Niedrige Batteriestatusanzeige
3
- 10 -
Alle Daten aus Experimenten des WUBEN-Labors gemäß ANSI / NEMA
FL1-Standard können aufgrund unterschiedlicher Experimentiergeräte,
Experimentierumgebung oder anderer Faktoren variieren. Die Experimente
basieren auf dem AAA batterie.
Instandhaltung
Bitte verwenden Sie WUBEN-Batterien oder von WUBEN
empfohlene Batterien.
Der O-Ring kann für längere Zeit beschädigt werden.
Ersetzen Sie den O-Ring rechtzeitig, um die
Wasserdichtigkeit zu gewährleisten des Produkts.
Ausgabeauswahl: Wenn das Licht eingeschaltet ist,
tippen Sie auf den Endschalter, um zwischen Low-Med
-High zu wechseln.
2
IP68(2m unter Wasser für 1 Stunde)
Parameters
/
FL1 Standard High Med Low SOS
40m
395cd
18g/0.63oz (ohne Batterie) 29g /1.02oz(mit Batterie)
1.5m
6.5h 50h
20LM
82.5mm × 15mm | 3.25in ×0.59in (L × D)
50mins
100LM 1LM 20LM
