WURM CMD300 Manuale utente
Multi-communications gateway
CMD300_V1.5.0_PI_2019-05_EN 1
Subject to technical changes
CMD300
1 CMD300
Multi-communications gateway
1.1 Front view
Fig. 1: Front view
1.2 Features
• Data interface to plants with Wurm control
• Connection via LAN or optionally via analogue and digital modem
• Simultaneous access of several users possible via several routes
• Convenient visualisation and operation with FRIGODATA XP
• Support for the CAN-AP for the Bluetooth® Low Energy access with Frida App
• 2 separate Wurm CAN communication buses (C-BUS) each with 120 addresses and 3 trades
• Direct connection of a PC with FRIGODATA XP
• Various alarm targets and fault transmission routes per trade
• Trade-differentiated access management
• PLOT data and DOKUPLOT data stored for up to 2 years
• Saving of temperature data in accordance with HACCP standard
• Connection to the Wurm system by C-BUS and FRIGODATA XP
Software revision and validity of documentation
Any software versions not listed are special solutions for individual projects and are not described in detail in this
document. This document automatically ceases to be valid if a new technical description is issued.
Manufacturer: Wurm GmbH & Co. KG Elektronische Systeme, Morsbachtalstraße 30, D-42857 Remscheid
You can find more information on our website at www.wurm.de.
Software version
V1.5.0 - 2019-05 Documentation status
Multi-communications gateway
2CMD300_V1.5.0_PI_2019-05_EN
Subject to technical changes
CMD300
1.3 Safety instructions
Writing conventions
WARNING
• Avoid the described hazard: Otherwise there is danger from electric voltage that can lead to
death or serious bodily injury.
CAUTION
• Avoid the described hazard: Otherwise minor or medium bodily injury or property damage will
result.
For your safety
For safe operation and to avoid personal injury and equipment damage through operator error, always
read these instructions, become familiar with the device, and follow all safety instructions on the prod-
uct and in this document, as well as the safety guidelines of Wurm GmbH & Co. KG Elektronische
Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device
if the product is sold. Wurm GmbH & Co. KG Elektronische Systeme accepts no liability in case of
improper use or use for other than the intended purpose.
WARNING
DANGER TO LIFE FROM ELECTRIC SHOCK AND/OR FIRE!
• Switch off the power to the entire plant when carrying out installation, wiring or removal work.
Otherwise a mains voltage and/or external voltage may still be present even if the control voltage
is switched off.
• Only qualified electricians are permitted to wire the device.
• Use only the correct tools for all work.
• Check all wiring after connection.
• Take note of the maximum loads on all connections.
• Never expose the device to moisture, for example due to condensation or cleaning agents.
• Take the device out of operation if it is faulty or damaged and is therefore compromising safe
operation.
• Do not open the device.
• Do not repair the device yourself. If the device requires repairs, send it in with an exact descrip-
tion of the fault.
Target group This manual is intended for "service technician" personnel.
Intended use CMD300 provides remote data transmission. It automatically forwards
alarms to up to 5 destinations per trade.
Wurm Infocenter paperless info
Multi-communications gateway
CMD300_V1.5.0_PI_2019-05_EN 3
Subject to technical changes
CMD300

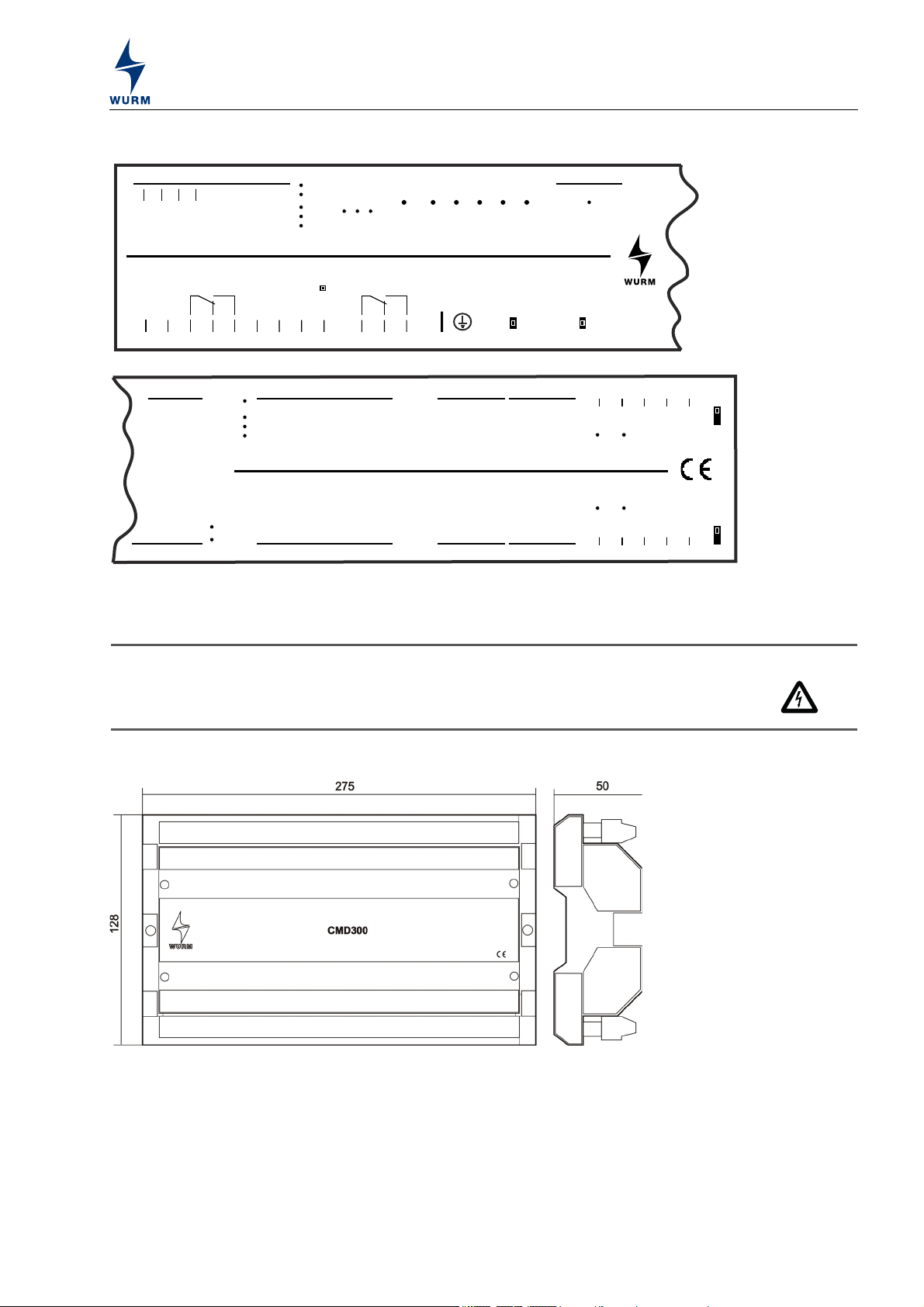

1.4 Connection diagram
Fig. 2: Connection diagram
1.5 Installing
WARNING
DANGER TO LIFE FROM ELECTRIC SHOCK AND/OR FIRE!
• Switch off the power to the entire plant before installing. Otherwise a mains voltage and/or exter-
nal voltage may still be present even if the control voltage is switched off.
The device is intended for top-hat rail installation and is suitable for operation in fuse boxes and dis-
tribution cabinets. The devices can be positioned immediately adjacent to one another without gaps.
Fig. 3: Dimensions
The entire plant must be free of voltage.
1. Use the cross-tip screwdriver to loosen the fastening screws on both sides of the device.
2. Place the device with the leading edge at an acute angle to the top-hat rail.
3. Press the device downwards onto the top-hat rail.
The device snaps into place on the top-hat rail.
4. Use the cross-tip screwdriver to tighten the fastening screws.
You can now connect the device.
LB1 2b
34
43
41
47
51
48
52
49
53
N
NO
L
NC
L’
CO
N
CO
NC
Day / Night
IN 230V
Ext. Mod.
Out 230V
50Hz 0,1A
Power IN
230V 50Hz
0,2A
NO
L
N
31
46
32
45
33
44
42
LB 1b
LA1 2a
LA 1a
Analog
Power
D/N-IN
CAN 2
RUN
ALARM
COM
Alarm 1
CAN 1
Alarm 2
ISDN
TXD
RXD
Service
Init CAN
DCD
Limit
USB Host
Telephone Network
Alarm 1
230V 4(2)A
Alarm 2
230V 4(2)A
125
0 V
0 V
224
CAN-L
CAN-L
323
Shield Shield
422
5
ON
ON
21
CAN-H
TERM TERM
CAN-H
CMD300
ON
TXD
10/100
CRX
CRX
RXD
LNK/ACT
CTX
CTX
DCD
CAN InEthernet
CAN In
RS232
Ext. Modem
CAN Out
CAN OutUSB Client
Multi-communications gateway
4CMD300_V1.5.0_PI_2019-05_EN
Subject to technical changes
CMD300
1.6 Power supply connection (screw terminals)
The power supply to the CMD300 is at 230V~, +10% / -15%, 9 VA approx. on terminals 48, 49.
WARNING
DANGER TO LIFE FROM ELECTRIC SHOCK AND/OR FIRE!
• Connect the protective earth (PE) to an earthing terminal using a short cable (at least 1.5mm2).
Place the earthing terminal on the CMD300 on the top-hat rail. The earthing is required in order
to guarantee failure-free and safe operation.
• Power must be supplied through a power circuit protected by a 6A max. circuit breaker which is
easily accessible.
NOTICE
• So that faults can still be transmitted when the main switch is off (e.g. for an emergency stop), we
recommend having an uninterrupted power supply (UPS) for the CMD300 and the modem, which
is independent of the entire system and separate from the sub-distribution box.
1.7 Technical data
Power supply 230V~, +10% / -15%, approx. 9VA
Inputs 1 x 230V~, day/night signal (light contact)
Output relay 2 x alarm relays, changeover contact, 230V~, 4(2), configurable
for collective alarm and RDT (alarm 1, alarm 2)
Communication • RS232 interface for external modem (ext. modem)
• Ethernet interface for network connection 10/100 Base-T with
RJ45 socket
• RS232 interface for FRIGODATA XP (direct interface)
• USB-B interface for FRIGODATA XP
• Telephone network connection for internal analogue modem
or ISDN modem (optional)
• 2 x C-BUS interface, 3-wire, shielded, galvanically isolated,
push-in terminals 2.5mm²
Connection option • 16 x universal FIO-type input/output module for detecting dig-
ital signals
• Power supply for connecting an external modem (ext.
modem) or UMTS router, 230V~, 1A
Display 1 x green LED Power
1 x yellow LED COM
2 x blue LED CAN 1, CAN 2
1 x red LED ALARM
1 x yellow LED RUN
1 x green LED D/N-IN
2 x red LED Alarm 1, Alarm 2
1 x green LED ON internal modem
2 x yellow LED Analog, ISDN
4 x green LED TXD,RXD
2 x yellow LED DCD
Keys •Service (alarm suppression)
•Init CAN (new device identification)
Housing Plastic
Dimensions (WxHxD) 275 x 128 x 50mm
Fastening Top-hat rail TH 35-15 or TH 35-7.5 (DIN EN 60715)
Ambient temperature Operation: 0...+55°C, storage: -25…+70°C
Weight About 640g
CE conformity - 2014/30/EU (EMC Directive)
- 2014/35/EU (Low Voltage Directive)
EAC conformity - TR CU 004/2011
- TR CU 020/2011
RoHS II
Valid from Version 1.5.0
