X-Micro XWL-11GPIG Manuale utente
WLAN 11g PCMCIA Card
User Manual
This product is in compliance with the essential requirements and other
relevant provisions of the R&TTE directive 1999/5/EC.
Product Name: X-Micro WLAN 11g PCMCIA Card
Model Name : XWL-11GPIG MAX. OUT POWER
COUNTRY CHANNELS INDOOR OUTDOOR
Spain 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
France 2400-2454 MHz 1-8 < 100 mW EIRP < 100 mW EIRP
France 2454-2483.5 MHz 9-13 < 100 mW EIRP < 10 mW EIRP
Italy 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
UK 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Netherlands 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Germany 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Austria 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Belgium 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Switzerland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Luxemburg 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Ireland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Portugal 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Norway 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Denmark 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Finland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Iceland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Greece 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Lichtenstein 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Sweden 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
FCC INFORMATION
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must
not be co-located or operating in conjunction with any other antenna or transmitter.
The equipment has been tested and found to comply with the limits for a Class
B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may cause
harmful interference to radio communication. However, there is no grantee that
interference will not occur in a particular installation. If this equipment dose cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Notice: The Part 15 radio device operates on a non-interference basis with other
devices operating at this frequency. Any changes or modification not expressly
approved by the party responsible could void the user’s authority to operate the
device.
REGULATORY INFORMATION
X-Micro WLAN 11g PCMCIA Card must be installed and used in strict accordance
with the instructions. This device complies with the following radio frequency and
safety standards.
USA - Federal Communications Commission (FCC)
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may cause undesired operation.
Copyright
Copyright 2004 by X-Micro Technology Corp., All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of X-Micro Technology Corp.
Disclaimer
X-Micro Technology Corp. makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically
disclaims any warranties, merchantability or fitness for any particular purpose.
Any software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not this
company, its distributor, or its dealer) assumes the entire cost of all necessary
servicing, repair, and any incidental or consequential damages resulting from any
defect in the software. Further, X-Micro Technology Corp., reserves the right to
revise this publication and to make changes from time to time in the contents
hereof without obligation to notify any person of such revision or change.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.
5
Contents
1. Introduction .......................................................................................................6
1.1 Product Features......................................................................................6
1.2 System Requirements..............................................................................6
2. Getting Started ..................................................................................................6
2.1 LED Indicators..........................................................................................6
2.2 Installation of the X-Micro WLAN 11g PCMCIA Card ...............................6
3. Configuration ...................................................................................................11
3.1 Link Information......................................................................................11
3.2 General ..................................................................................................12
3.3 Encryption ..............................................................................................13
3.4 Advanced ...............................................................................................14
3.5 Site Survey.............................................................................................15
3.6 About......................................................................................................16
4. Glossary ..........................................................................................................17
6
1. Introduction
1.1 Product Features
- Compliance with IEEE 802.11g and 802.11b standards.
- Highly efficient design mechanism to provide unbeatable performance.
- Achieving data rate up to 108Mbps for 802.11g and 11Mps for 802.11b with
wide range coverage.
- Strong network security with WEP and WPA support.
- Auto-switching between the two standards, IEEE 802.11b and 802.11g.
- Driver/Utility support most commonly used operating systems including
Windows 98SE/ME/2000/XP.
1.2 System Requirements
- Windows 98, 98SE, Millennium Edition (ME), 2000 or XP operating system.
- PC with Pentium III 600MHz system or above.
- At least one PC cardbus socket or PC cardbus adapter.
- CD-ROM drive.
2. Getting Started
2.1 LED Indicators
The Power LED will be on when the unit is powered up.
A blinking Link LED indicates a WLAN connection.
2.2 Installation of the X-Micro WLAN 11g PCMCIA Card
NOTE: All the screenshots of the installation pictured in this manual are based on
Windows XP. For other windows operating system, all procedures are the same
7
although the screens may look different.
2.2.1 Driver and utility Installation
1. Turn on your computer. Insert the X-Micro WLAN 11g PCMCIA Card in the
cardbus slot of your PC. The Find New Hardware Wizard will appear. Click
[Cancel].

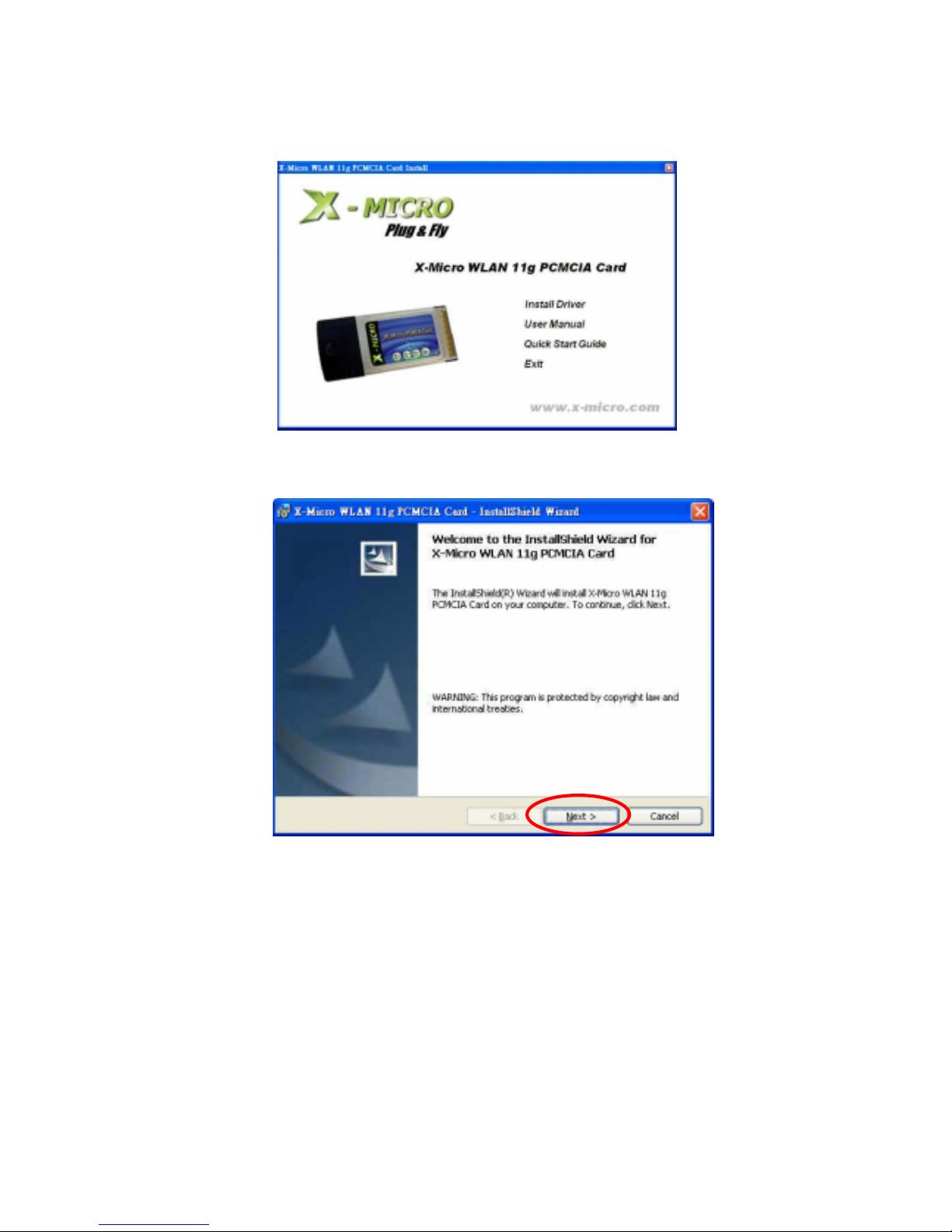

2. Insert the X-Micro WLAN 802.11g CD into the CD-ROM Drive. Select
PCMCIA Card, and in the next screen click [Install Driver].
8

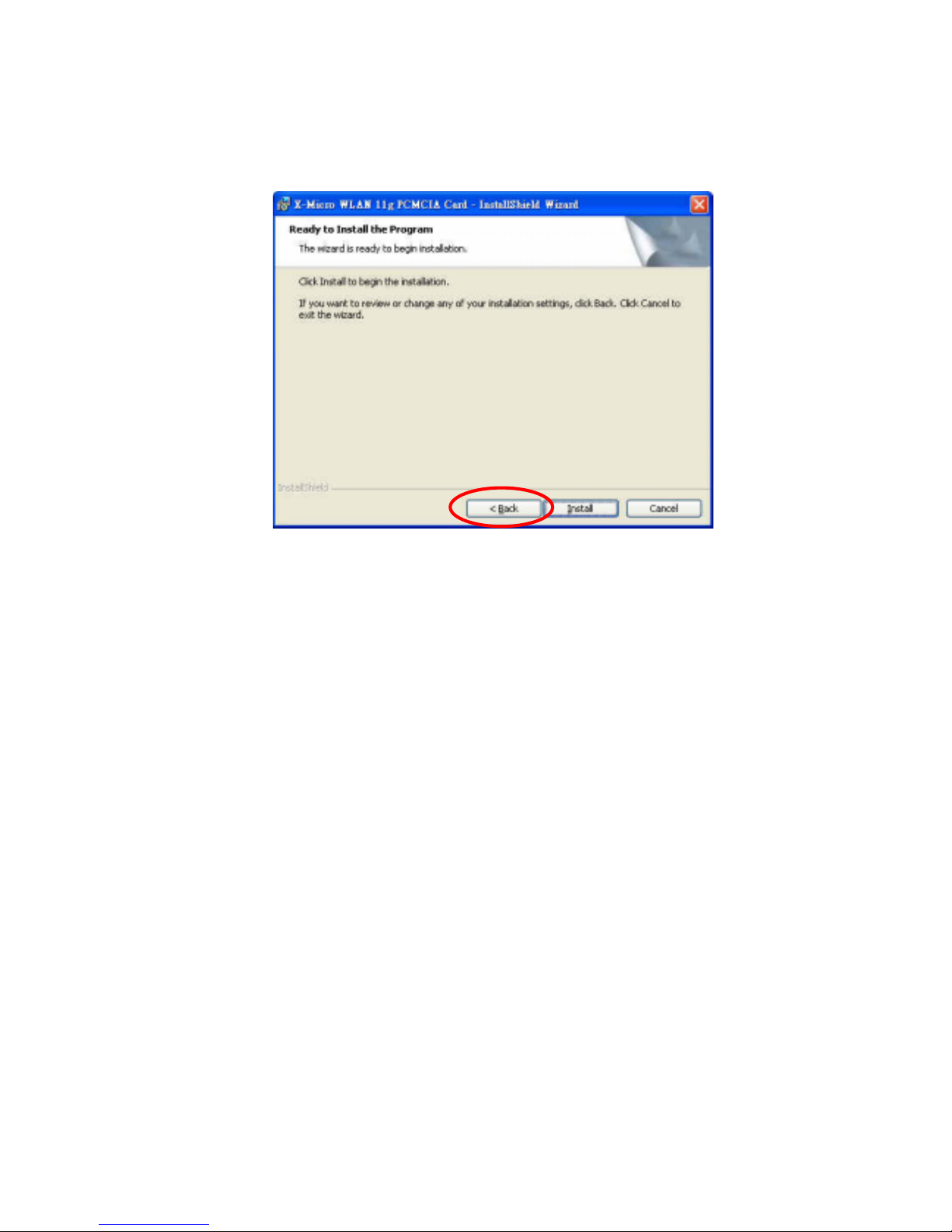

3. The Install Shield Wizard will automatically start. Click [Next] to continue.
4. In the next screen click [Install]
Note: in some configurations of Windows 2000 and XP a Microsoft Digital
Signature warning may appear on your screen. Click [Yes] or [Continue
anyway] to continue the installation.
5. The X-Micro WLAN 11g PCMCIA Card driver and utility will be installed on
your PC. After the install procedure is complete, the following screen will
appear. Click [Finish] to exit the Wizard. You can now proceed with the
configuration of the card
