X-Vision PC810 Manuale utente
P. 1
10/07/2006
COVERT PIR CAMERAS
CONTENTS
Page Page
1. Description ............................... 1
2. Installation ................................ 2
3. Wiring instructions ................... 3
4. Specifications ........................... 4
5. PIR Detector board installation
and descriptions........................ 5
1. Description
Thank you very much for purchasing our product.
This B/W (COLOR) HIDDEN CCD Camera uses high sensitive 1/3” (1/4”)
interline transfer CCD Image Sensor (CCD = Charge Coupled Device), and all
state circuitry which provides extremely long life and high reliability. This
Camera offers excellent image quality with low lag and high burn resistance,
and is not subject to distortions from magnetic fields. Highly resistance to
shock and vibration, and easy to install this Camera is a very good choice for
your B/W (COLOR) CCTV system.
INSTRUCTION
M A N U A L 19
P. 2
2. Installation
STEP 1: Secure the bracket to the wall with screws. ( included as shown in
Figure 1 )
STEP 2: Attach the Camera Case to the bracket as shown in Figure 2.
P. 3

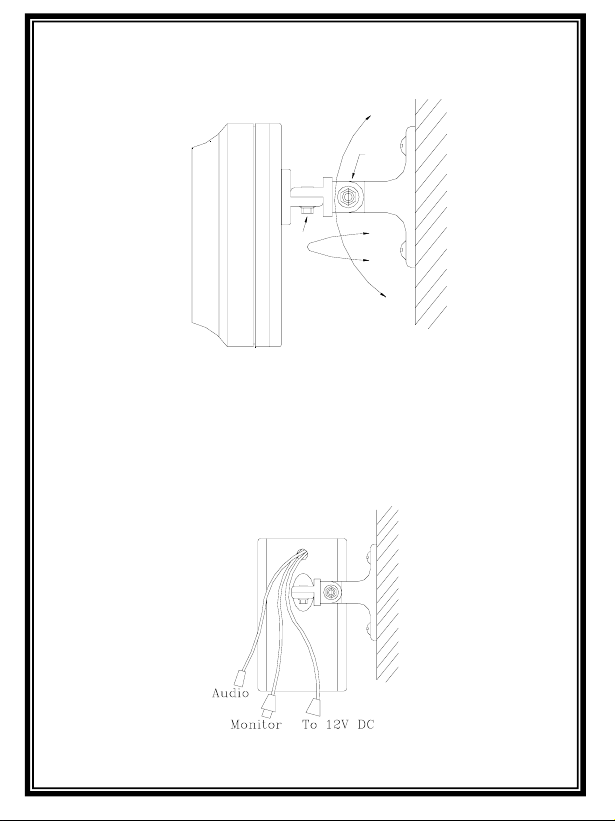

STEP 3: Adjust the vertical and horizontal angles by loosening screws
(A&B) as in Figure 3 and by turning the bracket vertically and
horizontally.
3. Wiring instructions
STEP 1:Connect the coaxial cable between the camera and the monitor
using a 75Ohm coaxial cable.
STEP 2: Insert the AC plug into the AC power socket and the DC plug to the DC
Jack.
Note: AC Adapter Sold separately.
A
B
P. 4
4. Specifications
Model B/W – PC810/PC810D Colour – PC811/PC811D
Image Pick-up
Device
SONY 1/3” Super HAD CCD
sensor
SONY 1/4” Super HAD CCD
sensor
Elements (HxV)
EIA/NTSC: 510x492
CCIR/PAL: 500x582
Horizontal
Resolution
480
TV lines
420
TV lines
Minimum
Illumination 0.3 LUX / F2.0 0.5 LUX / F2.0
Scanning
System Interlace 2 : 1
Auto Electronic
Shutter
EIA/NTSC: 1/60s~1/100,000s,
CCIR/PAL: 1/50s~1/110,000s.
S / N Ratio More than 48 dB
Gamma
Characteristic GAMMA = 0.45
Sync System Internal, Negative sync.
Video Output 1 Vp-p / 75 Ohms. BNC or F connector.
Audio(Optional) 2 Vp-p / 50 Ohms. RCA connector.
(for model “Audio” & “including PIR working sensor” only)
Power Supply DC 12V ±10％
Power
Consumption
(PIR Sensor not included)
1.32W 1.44W
Lens Furnished Corn Lens f 3.7mm / F2.0
Operating
Temp. -10 to 50℃( 14 to 122℉)
Built-in
PIR Sensor For model including PIR working sensor only.
Note: Design and specifications are subject to change without prior notice.
P. 5
5. PIR Detector board installation and
descriptions (for PCC810 & PC811 models
only)
Options Description
A. Top + Center w/black cap: Upon Walk-testing: Light
blinking (Disadvantages: Easy to identify as a security
system.)
1.LED Selector:
(3PINS: Top, Center, Bottom)
B. Center + Low w/black cap: No light blinking while
detecting. (Advantages: less obvious)
A. To raise sensitivity: Turn clockwise to detect longer
distance and wider pattern.
2.Sensitivity Adjustment:
B. To lower sensitivity: Turn counter clockwise for detection
in narrow areas.
For closure period of N.C/N.O relay connected to an alarm
panel, light control or recording control of time lapse VCR,
etc.
A. Max. time: Turn counter clockwise.
B. Min. time: Turn clockwise.
3.Dwell Time Adjustment:
Adjustable from 2 to 40 sec. Top + Center pins of “J4” must be selected to adjust the time
setting.
JP2
J1
VR1
J2
VR2 J4
N
.C.
6 Output Terminals
PULSE
1
Led Selector
2
Sensitivity
Adjustment
5
Pulse Count
4
Light Control
Recording Control
3
Time Adjustment
N
.O. -+
1
2
J1
“VR1”
High Low
“VR2”
Min. Max.
P. 6
Options Description
A. Top + Center w/black cap: Operate with “VR2” to adjust
time. (To set the relay output of the Light control or
Recording control, the time is selected by individual
preference or application.
B. Center + Bottom w/black jumper: Relay output can be set
for Security control panel for only 2 seconds.
4.Alarm control, Light control or
Recording control
(N.O or N.C)
(3PINS: Top, Center, Bottom)
Note: N.C./N.O. relay output current: 1A 125 VAC, 2A 30 VDC.
Position 1: Set to “ONCE” for instant reaction when PIR
detects someone: and either the “alarm or
Security control panel” or “Recording control”
will be triggered immediately.
5.Pulse Control:
Once or twice
4PINS: 2PAIRS w/jumper connector
Position 2: Set to “Twice” when PIR detects someone 2 times
within 15 seconds.
N.C.: Normally Closed
A. For connection to: Security panel or Light control CCTV
…etc.
B. With anti-tamper function for 24 hours.
6.Output Terminals:
24 Hour/Anti-Tamper
N.O.: Normally Open Contacts
※P.S.: Relay output current: 1A 125VAC, 2A 30V DC
7.Power: 12V DC
Standby Current: 3mA,
Working Current: 28mA
Caution:
The PIR is triggered by body movement, excluding fixed
objects, however, do not place in direct sunlight or reflected
sunlight.
● Wide angle lens up to 100°, coverage areas to 30x30 feet.
● Provide 64 beams in 3 layers.
J2
1
2
JP2
N.C. N.O. +
-
J4
10 20 30
100¢X TOP VIEW
302010
SIDE VIEW
feet feet
