CHIP AND PIN MOBILE PAYMENT DEVICE XCE-25-C

INSTALLATION GUIDE

1.

B

EFORE

S

TARTING

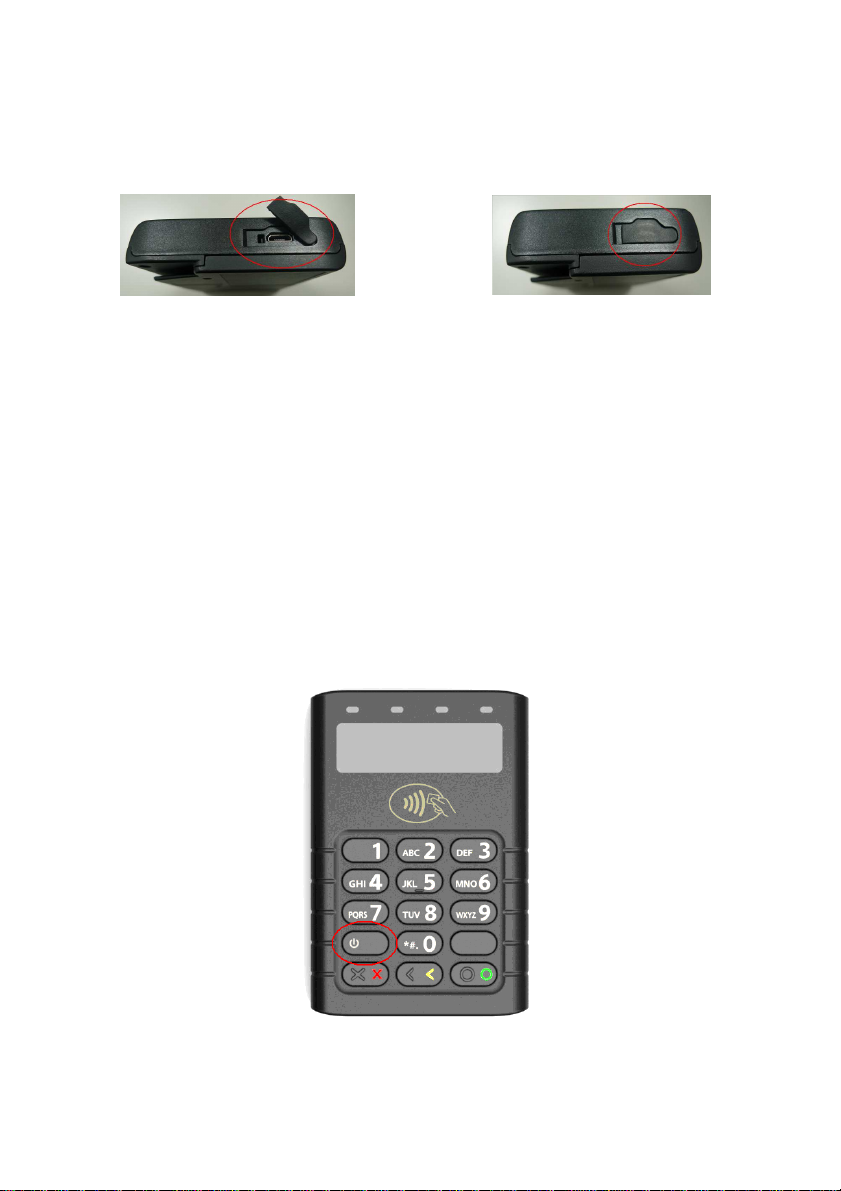

There is a micro USB port (Figure 1) covered under the protection cover (Figure 2); this port is

used for battery charging, debugging, firm are update and key injection.

NOTE: The battery of xCE-25-C is built-in and rechargeable.

Figure 1 Figure 2

Operating Temperature: 0

o

C to 40

o

C

Battery Pack: 3.7V, 1050mAh

Input: 5V, 500mA

2.

P

OWER

O

N

/O

FF THE

D

EVICE

To po er on the device, press and hold the Po er key for five seconds until the green LED

light flashes and the screen sho s ords. Once it is po ered on, the LED ill blink every five

seconds to indicate it is active.

To po er off the device, press and hold the Po er key for five seconds until the screen

become blank.

Figure 3

NOTE: xCE-25-C ill po er off itself automatically if unused for 5 minutes.

3.

C

ONNECTING TO

S

MART

D

EVICES

Once xCE-25-C is po ered on Bluetooth ill be searchable. From the smart device’s Bluetooth

settings, pair and connect to xCE-25-C.

4.

U

SING THE

M

AGNETIC

C

ARD

R

EADER

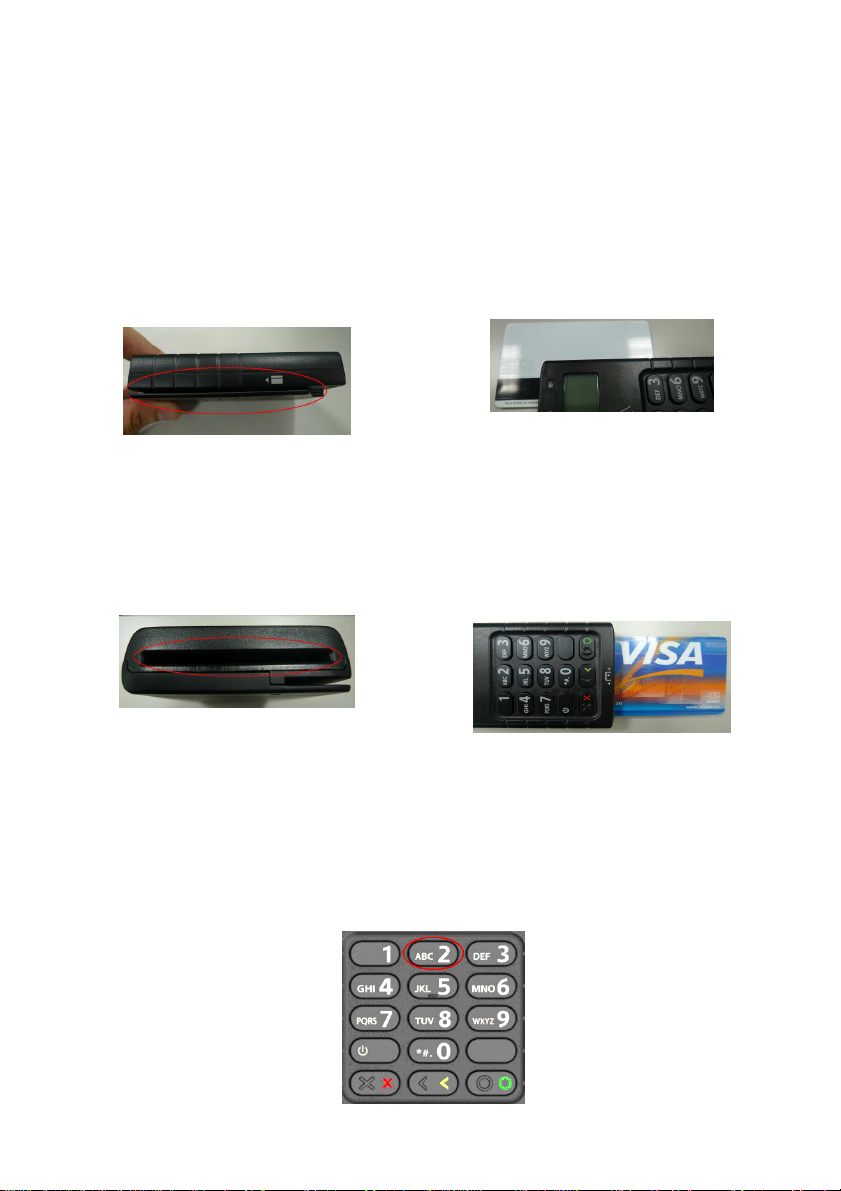

Find the magnetic card reader slot on the right side of the device (Figure 4). S ipe the card

through the slot ith magnetic stripe side facing the same direction as the keypad (Figure 5).

Figure 4 Figure 5

5.

U

SING THE

IC

C

ARD

R

EADER

Find the IC card reader slot on the bottom of the device (Figure 6). Insert an IC card into the

slot ith the chip side facing the same direction as the keypad (Figure 7).

Figure 6 Figure 7

6.

U

SING THE

K

EY

P

AD

Press Cancel(X) key to terminate any current function and press the Enter(O) key to confirm a

value or an option. Press the numeric key to enter the desirable numbers. Press the letter B

should press 2 number key t ice, then the screen displays “B” (Figure 8).

Figure 8

7.

U

SING THE

C

ONTACTLESS

C

ARD

R

EADER

Contactless reader antenna is around the display and PIN pad. It ill light up ith LED signal

hen terminal is po ered on and that means reader is orking normally. Put contactless card

to approach the antenna of card reader (Figure 9) for reading the card data during transaction.

Figure 9

Federal Communication Commission Interference Statement

This device complies ith Part 15 of the FCC Rules. Operation is subject

to the follo ing t o conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

This equipment has been tested and found to comply ith the limits for

a Class A digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance ith the instructions, may cause harmful interference to

radio communications. Ho ever, there is no guarantee that

interference ill not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, hich

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the follo ing

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation bet een the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to hich the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by

the party responsible for compliance could void the user's authority to

operate this equipment.

This transmitter must not be co-located or operating in conjunction ith

any other antenna or transmitter.

Radiation Exposure Statement:

The product comply ith the FCC portable RF exposure limit set forth for

an uncontrolled environment and are safe for intended operation as

described in this manual. The further RF exposure reduction can be

achieved if the product can be kept as far as possible from the user body

or set the device to lo er output po er if such function is available.

The above information is the exclusive intellectual property of XAC Automation Corporation and shall not be disclosed,

distributed or reproduced without permission of XAC Automation Corporation.

XAC AUTOMATION CORP. shall not be held liable for technical and editorial omissions or errors made herein; nor for

incidental or consequential damages resulting from the furnishing, performance or use of his material.

XAC Automation Corporation

886-3-577-2738

www.xac.com.tw
