5 Telephone Operation

Introduction

The XBLUE telephone is a high quality, full featured, speakerphone with programmable feature

buttons, which allows the user to customize the operation of their telephone.

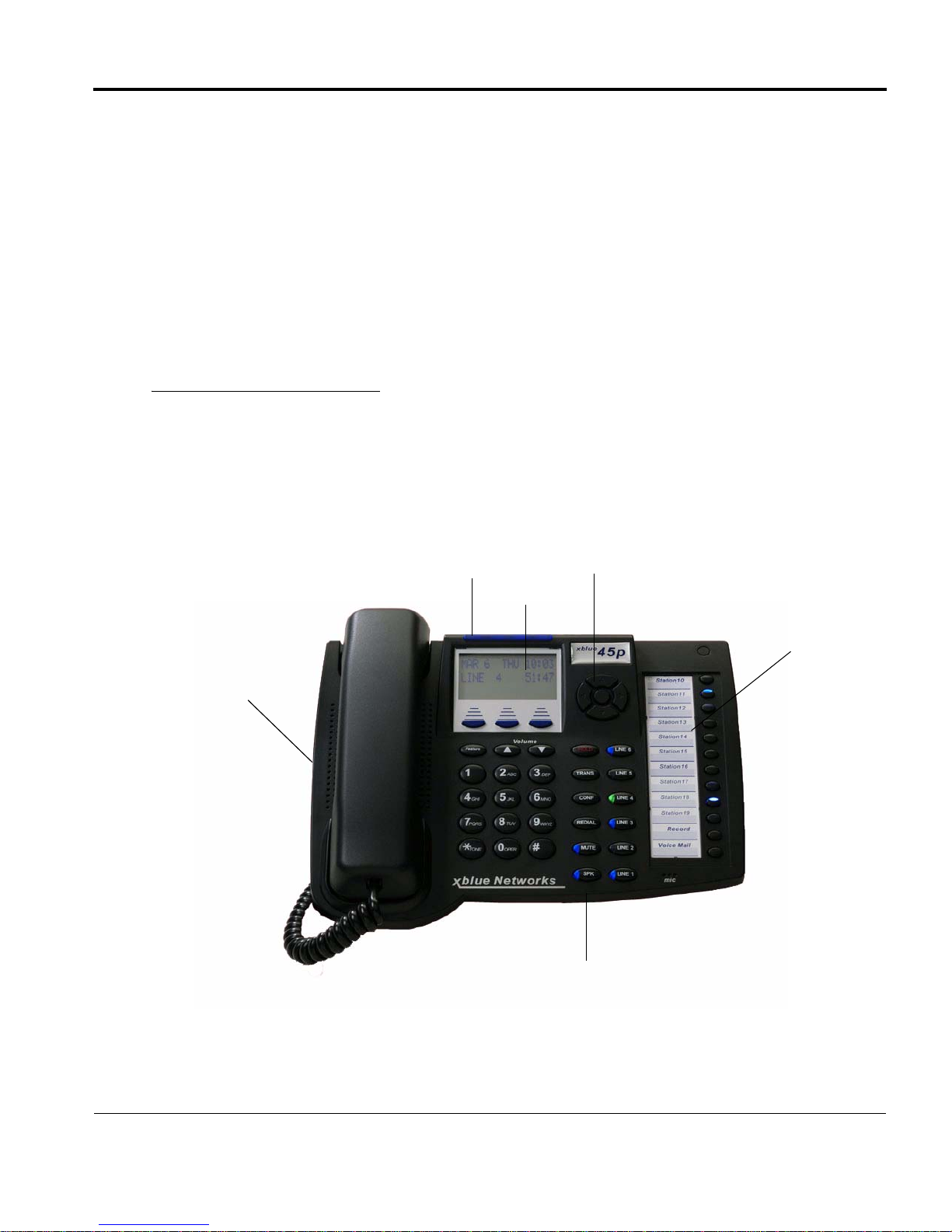

Telephone Basics

AUX Lamp

3x16 Display

Navigation Keys

Programmable

Feature Buttons

Speaker Button

Headset Jack

Telephone Operation

XBLUE Networks

Navigation Keys 5

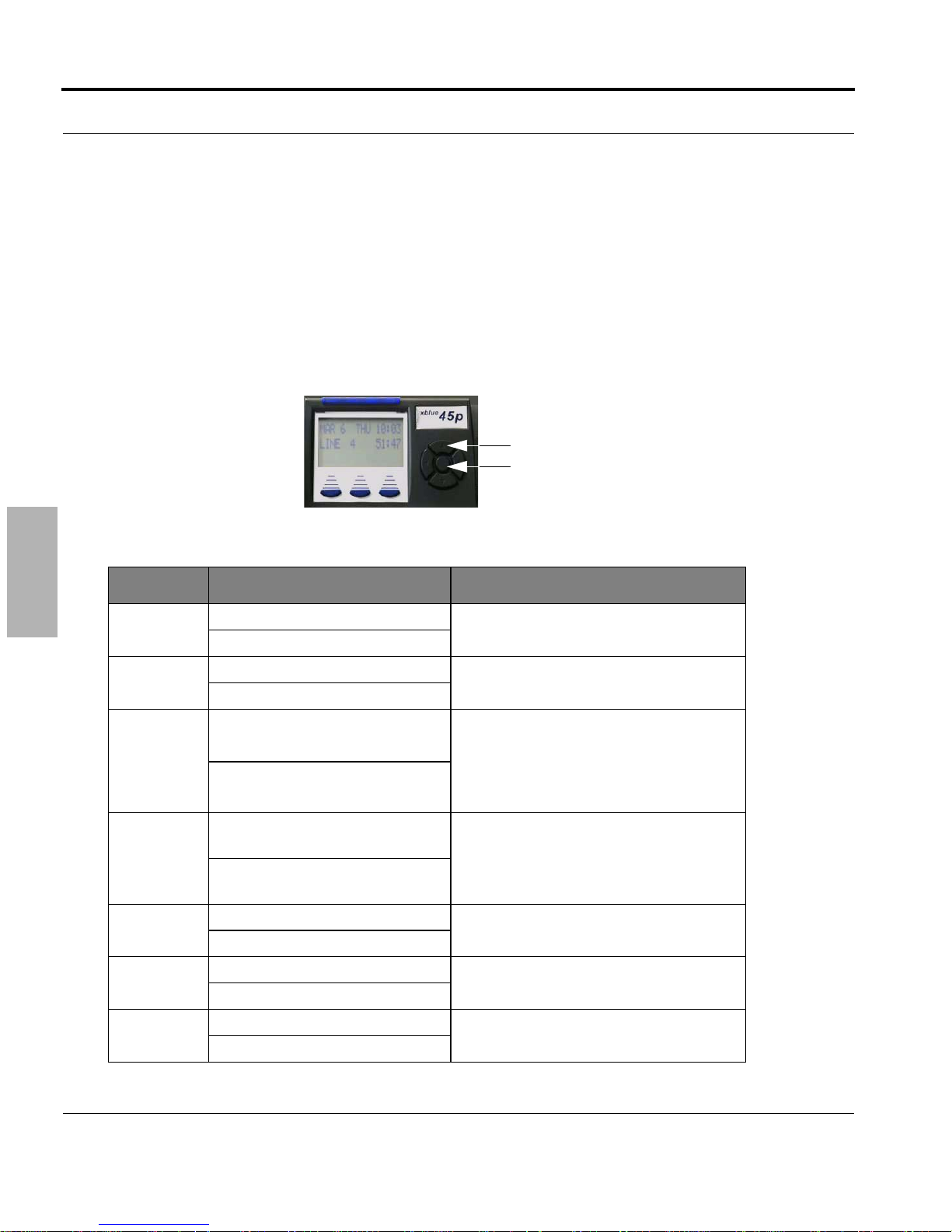

NavigationKeys

The Navigation Keys, located at the right of the Display, allows quick access to commonly

used features. There are 4 navigation keys which circle the activation key. For example, to

use the Navigation keys, begin by pressing the Right navigation key, to access Call Log,

and then press the down navigation key to view incoming and the up navigation key to

view outgoing calls. Press the center activation key to dial the displayed telephone number.

Press the left navigation key to scroll forward, and the right to scroll backwards through

the navigation feature list.

TABLE 5.1 Navigation Buttons

Feature Navigation Key Result

Call Log Up - Outgoing Numbers Press the Select Key to dial the dis-

played telephone number.

Down - Incoming Numbers

System

Speed Dial Up - Access Bins 99 - 20 Press the Select Key to dial the dis-

played telephone number.

Down - Access Bins 20 - 99

Feature

Code List Up - Directory List Press the Select Key to select between

Directory and Feature. Press down but-

ton to scroll forward, and the up button

to scroll backwards through the selected

list.

Down - Feature List

Call

Extension UP - Scroll from highest to low-

est extension number Press the Select Key to dial the dis-

played telephone number.

Down - Scroll from lowest to

highest extension number

Page Up - All Call Page Press the Select Key to page the dis-

played Page Group or All Call Page.

Down - Page Groups 1 - 6

Music UP - N/A Press the Select Key to enable or Dis-

able Background Music

Down - N/A

Door Phone Up - Answer Door Phone 1 The Door Phone must be connected and

active to access

Down - Answer Door Phone 2

Navigation Keys

Select Key

XBLUE Networks

Telephone Operation

Feature Codes

FeatureCodes

Feature codes may be dialed at the time of operation or they may be stored on a program-

mable feature button. Once stored, the feature can be easily accessed by pressing the but-

ton. If applicable, the associated LED will light, indicating that the feature is currently

operational. For example, Program Do Not Disturb on a feature button, when pressed the

associated LED will illuminate, indicating that the extension is in DND mode.

TABLE 5.2 Telephone Feature Codes

Feature Digital Telephone Single Line telephone

Access Specific CO Line F 0(x) (x=line 1-9) # 0(x)

Account Code 4 4

Answering Machine Emulation F 64

Attendant 0 0

Attendant Administration F#0

Authority Code F 55 # 55

Automatic Hold Allow F 94

Automatic Selection F 95

Background Music F 52

Busy Ring Allow/Deny F #2

Call Back F 91 #91

Call Forward F 2 #2(y) Y =

0 - Idle Forward

1 - Busy/ No Answer

2 - Direct Forward

3 - Follow Me

4 - No Answer

5 - Busy/No Answer

6 - External

Call Park F 73

Call Pickup Directed F 54 #54

Call Pickup Group F 53 #53

Caller ID (CID) Press CID (Center Interactive

Button)

Telephone Operation

XBLUE Networks

Feature Codes 5

Call Wait Allow/Deny F 99

Camp On (Busy Extension) Ext + 2

Camp On (Busy CO Line) #

CO Line Group Access 9 9

Conference F 60

Data Rate F 75

Day/Night Mode F 63 + PPPP

PPPP=Attendant Password

Default Flexible Buttons F 58

Default Setting F 69

Directed Call Pick Up F 53 # 53

Distinctive Ring F #7

Do Not Disturb (DND) F 4 # 4

Extension Feature Status F #8

Extension Password - Phone

Lock F97 #97

Extension Reminder F 92 #92

Extension Reminder Delete F*92 #*92

Flash (PBX/CO) F 3 # 3

Flexible Feature button Pro-

gramming F #3

Group Call Pickup F 54 # 54

Headset Enable/Disable F 9#

Hot Dial F #6

Hold Retrieve (SLT) Same

Extension * 6

Hold Retrieve (SLT) Different

Extension * 7 EE EE=Extension

Hot Line # #4

Intercom Call Back F 91

Last Number Redial F 8 #8

Least Cost Routing F 68

TABLE 5.2 Telephone Feature Codes

Feature Digital Telephone Single Line telephone

XBLUE Networks

Telephone Operation

Feature Codes

Message Waiting F 96 # 96 Send

#*96 Cancel

Monitor - Extension F 7*

Multiple Mailbox Button F66 + 0 or F66 + 70~79

Mute F 76

Night Mode (Attendant) F 63

Page F 50 # 50(Z) Z=

0 - All Call

1 - External Page Only

2 - System All Call

3 + g - Group All Call

g = 1 - 9

Page Allow/Deny F #9

Page Answer (Meet Me) F 59 # 59

Pause F 70

Phone Lock F 97 # 97

Pulse to Tone * *

Relay Control F 61

Save Dialed Number F 51

Security Control F 62

Speed Dialing (Abbr Dialing) F 1

Speed Dialing (SLT) # 1 to store

* 1 to Dial

Status Message F 90

Touch Tone on/off F #1

Transfer Beep F 79

Voice Call Allow/Deny F 98

Voice Mail F 64 #64

Voice Recording F 67

TABLE 5.2 Telephone Feature Codes

Feature Digital Telephone Single Line telephone

MBC Code RANGE Default

1.EXTENSION 1

SHOW EXT 1-SN-(10~37)

DAY CLASS 1-SN-01 0~7 0

NIGHT CLASS 1-SN-02 0~7 0

MONITOR COS 1-SN-03 0~9 5

LINE ASSIGNMENT 1-SN-04-

LINE 1~9 1-SN-04-(01~09) Y/N Y

RECEIVE ASSIGNM 1-SN-05-

LINE 1~9 1-SN-05-(01~09) Y/N Y

RING ASSIGNMENT 1-SN-06-

DAY ALLOWED 1-SN-06-1

LINE 1~9 1-SN-06-1-(01~09) Y/N Y

NIGHT ALLOWED 1-SN-06-2

LINE 1~9 1-SN-06-2-(01~09) Y/N N

EXT GROUP 1-SN-07 1

WARNING TONE 1-SN-08 Y/N N

OUTGOING DROP 1-SN-09 Y/N N

INCOMING DROP 1-SN-10 Y/N N

LOCATION 1-SN-11

EXT POSITION 1-SN-12

FTR KEY ALLOW 1-SN-13 Y/N

SYS ABBR CHECK 1-SN-14 Y/N

ICM MODE 1-SN-15 PAGE/RING PAGE

RECORD ALLOW 1-SN-16 Y/N

CFW AUXI LAMP 1-SN-17 Y/N

DEFAULT SETTING 1-SN-18

DND FUNC ALLOW 1-SN-19 Y/N

BEEP 2 ALLOW 1-SN-20 Y/N

PRE-CFW 1-SN-21 NULL, 10~37, 82~89 87 (VM)

PRE-FWD TIMER 1-SN-22 06~30 12

ECF ALLOW 1-SN-23 Y/N N

IVR PROMPT 1-SN-24 Y/N

FORCED LCR 1-SN-25 Y/N N

2.CO LINE 2

SHOW LINE 2-LN-(01~09)

DAY CLASS 2-LN-01 0~7 0

NIGHT CLASS 2-LN-02 0~7 0

HUNT GROUP ANS 2-LN-03

DAY POSITION 2-LN-03-1 0~8 0

NIGHT POSITION 2-LN-03-2 0~8 0

DIALING 2-LN-04 TONE/PULSE TONE

LINE TYPE 2-LN-05 CO/PBX/HOTLINE/PAGE/EMPT

LOUD BELL 2-LN-06 Y/N N

LINE GROUP 2-LN-07 1~6 1

PRIVATE TO 2-LN-08 NULL, 10~37, 82~89 NULL

DISTINCT TONE 2-LN-09 0~8 0

FAX TRANSFER TO 2-LN-10 NULL, 34~37 NULL

GAIN (RX): 2-LN-11 -00db, -03db, -06db, -09db, -12db -06db

GAIN (TX): 2-LN-12 -00db, -03db, -06db, -09db, -12db -03db

DTMF DISABLE 2-LN-13 00, 05, 10,15, 20, 30, ... 90 00

CID MODE 2-LN-14 FSK/DTMF FSK

PRESET CALL FORWARD 2-LN-15

DAY POSITION 2-LN-15-1 NULL, 10~37, 82~89 87

NIGHT POSITION 2-LN-15-2 NULL, 10~37, 82~89 87

PRE-FWD TIMER 2-LN-15-3 06~30 18

RING ABANDON 2-LN-16 3.0, 3.5, 4.0, 5.0, 6.0 4.0

PRIVACY RELEASE 2-LN-17 Y/N N

VM GREET ID 2-LN-18 0 - 9 0

MENU / DATA FIELD

B - 1 Appendix B

MBC Code RANGE Default

3.CALL HANDLING 3

INTRUSION 3-01 Y/N

INTRUS. TONE 3-02 Y/N

EX_HOLD TIME 3-03 1~8 MINUTES 1

PBX FLASH 3-04 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9,

1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 2.0,2.5, 3.0 0.7

CO FLASH 3-05 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9,

1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 2.0,2.5, 3.0 0.7

REMIND TIME 3-06 0, 10, 30, 60, 90 60

PAUSE TIME 3-07 1.5, 2, 3.5, 5 1.5

PBX CODE 3-08 0~9, 00~99 9

PBX AUTO PAUSE 3-09 1~9 2

TONE TIME 3-10 70, 90, 120, 150, 200 70

VM DIALING RATIO 3-11

TONE TIME 3-11-1 60, 90, 120, 150 90

INT_DGT TIME 3-11-2 60, 90, 120, 150 90

WARNING TIME 3-12

OUTGOING 3-12-1 01, 02, 03, 04, 05, 06, 07, 08, 09, 10,

15, 20, 25, 30 05

INCOMING 3-12-2 01, 02, 03, 04, 05, 06, 07, 08, 09, 10,

15, 20, 25, 30 05

RECALL TIME 3-13 10, 16, 30, 60, 90, 120 30

ALT RING TIME 3-14 10, 20, 30, 40, 50, 60 30

TONE SENDER 3-15 Y/N

SLT HOOK_FLASH 3-16

START 3-16-1 60, 100~1400 200

END 3-16-2 300~1500 1500

OPERATOR CODE 3-17 0, 9 0

SMDR TIME 3-18 01~25 10

SMDR OUTPUT 3-19 38795

OUTGOING CALL 3-19-1 Y/N

INCOMING CALL 3-19-2 Y/N N

HUNT METHOD 3-20 SEQL, RAN, SEQF SEQUENCIAL

LAST

(

SEQL

)

BB CALL PAUSE 3-21 0~9 0

VM MON TIME 3-22 0, 10, 20, 30, 40, 50, 60 20

VM RESRV PORT 3-23 0, 01~48 0

DTMF TONE 3-24 Y/N

WAIT CID_T 3-25 0, 0.5, 1~8 0.5

INTER. PREFIX 3-26

3-26-1 0000~9999 NULL

COUNTRY CODE 3-27

3-27-1 0000~9999 NULL

LONG DIST PREFIX 3-28

MENU / DATA FIELD

B - 2 Appendix B

MBC Code RANGE Default

3.CALL HANDLING (cont,) 3

LOCAL AREA CODE 3-29

AREA CODE 1 3-29-01 00000~99999 NULL

AREA PREFIX 1 3-29-02 00000~99999 NULL

AREA CODE 2 3-29-03 00000~99999 NULL

AREA PREFIX 2 3-29-04 00000~99999 NULL

AREA CODE 3 3-19-05 00000~99999 NULL

AREA PREFIX 3 3-29-06 00000~99999 NULL

AREA CODE 4 3-29-07 00000~99999 NULL

AREA PREFIX 4 3-29-08 00000~99999 NULL

AREA CODE 5 3-29-09 00000~99999 NULL

AREA PREFIX 5 3-29-10 00000~99999 NULL

AREA CODE 6 3-29-11 00000~99999 NULL

AREA PREFIX 6 3-29-12 00000~99999 NULL

AREA CODE 7 3-29-13 00000~99999 NULL

AREA PREFIX 7 3-29-14 00000~99999 NULL

AREA CODE 8 3-29-15 00000~99999 NULL

AREA PREFIX 8 3-29-16 00000~99999 NULL

EXTERNAL CFW (Uses System speed bin 99) 3-30

ACTIVE LINE 3-30-1 NULL, 01~09 NULL

SERVICE 3-30-2 ALWAYS,NEVER, DAY, NIGH

ALWAYS

TALK TIME 3-30-3 00~99 05

TALK ABANDON 3-31

IVR SENSITIVITY 3-32

VOICE 3-32-01 01~15 3

DTMF 3-32-02 01~15 7

LCR TIME 3-33 1.0, 1.5, …8.0 3.0

4.RESOURCE 4

RING SCHEME 4-01 0~9 3

LETTER TYPE 4-02 0~5 0

ATTENDANT 4-03 10~37 10

ALTERNATE 4-04 NULL, 10~37 NULL

MODEM NO. 4-05 NULL, 10~37 55

SYSTEM REMINDER (ALARM) 4-06

ALARM (1~8) 4-06-(1~8) NULL, 00:00~23:59 NULL

TIME SWITCHING 4-07

MONDAY 4-07-1 NULL, 00:00~23:59

NOON START 4-07-1-1 NULL, 00:00~23:59 NULL

NOON END 4-07-1-2 NULL, 00:00~23:59 NULL

NIGHT START 4-07-1-3 NULL, 00:00~23:59 17:00

NIGHT END 4-07-1-4 NULL, 00:00~23:59 08:00

TUESDAY 4-07-2-x

WEDNESDAY 4-07-3-x

THURSDAY 4-07-4-x

FRIDAY 4-07-5-x

SATURDAY 4-07-6-

NIGHT START 4-07-6-1 NULL, 00:00~23:59 NULL

NIGHT END 4-07-6-2 NULL, 00:00~23:59 NULL

SUNDAY 4-07-7-

NIGHT START 4-07-7-1 NULL, 00:00~23:59 NULL

NIGHT END 4-07-7-2 NULL, 00:00~23:59 NULL

DB PASSWORD 4-08 000000 ~ 999999 000000

USER PASSWORD 4-09

EXTENSION 4-09-SN 0000~9999 0000

ATTENDANT 4-09-Attendant ext # 0000~9999 9999

USER NAMES 4-10

EXTENSION 4-10-SN NULL, Aa~Zz, 0~9 NULL

MENU / DATA FIELD

Same as above for Noon Start, Noon End,

Night Start and Night End

B - 3 Appendix B

MBC Code RANGE Default

4.RESOURCE (cont.) 4

PREPROG MESSAGE 4-11

OUTGOING MESSAGE 4-11-1-1 NULL, Aa~Zz, 0~9 HAVE A GOOD DA

4-11-1-2 NULL, Aa~Zz, 0~9 CALL OPERATOR

4-11-1-3 NULL, Aa~Zz, 0~9 CALL HOME

4-11-1-4 NULL, Aa~Zz, 0~9 CALL BACK

4-11-1-5 NULL, Aa~Zz, 0~9 FRIEND VISITING

4-11-1-6 NULL, Aa~Zz, 0~9 URGENT

PREMISES MESSAGE 4-11-2-1 NULL, Aa~Zz, 0~9 OUT FOR LUNCH

4-11-2-2 NULL, Aa~Zz, 0~9 BE BACK SOON

4-11-2-3 NULL, Aa~Zz, 0~9 LEFT FOR THE DA

4-11-2-4 NULL, Aa~Zz, 0~9 IN A MEETING

4-11-2-5 NULL, Aa~Zz, 0~9 OUT OF OFFICE

4-11-2-6 NULL, Aa~Zz, 0~9 ON VACATION

SYSTEM ABBR. NO 4-12-(20~99) EMPTY, 0~9 (20 DIGITS MAX.

)

NULL

LINE COPY 4-13

EXTENSION COPY 4-14

SYSTEM TIME 4-15

YEAR 4-15-1 00~99 2005

MONTH 4-15-2 JAN~DEC JAN

DAY 4-15-3 01~31 01

WEEKDAY 4-15-4 MON~SUN MON

HOUR 4-15-5 00~23 01

MINUTE 4-15-6 00~59 01

RMT X_RATE 4-16 9600, 19200, 38400 9600

SMDR RATE 4-17 9600, 19200, 38400 9600

HOUR MODE 4-18 12/24 12

DIAL TONE DET. 4-19 Y/N N

DIAL WAIT TIME 4-20 1~8 1

MUSIC SOURCE 4-21 EXT EXT/TON

KSU REVISION 4-22

FEATURE KEY COPY 4-23

UART TYPE 4-24 RMP/DEBUG/SMDR RMP

CID RPT MODE 4-25 FSK/DTMF FSK

VOLUME LIMIT 4-26

PAGE LEVEL 4-26-1 1~8 6

SPEAKER LIMIT 4-26-2 1~8 8

HANDSET LIMIT 4-26-3 1~8 8

SERVICE MODE 4-27 DAY, LUNCH, NIGHT, TIME, TEMP DA

OPTION PORT FUNCTION 4-28-

OPTION PORT # (1~2) 4-28-(1~2)

UTILITY 4-28-x-1 SLT/DOOR SLT

RING TYPE 4-28-x-2 RING RING

RING POS(DAY) 4-28-x-3 10~37, 82~89 88

RING POS(NIGHT) 4-28-x-4 10~37, 82~89 88

MAX RING T 4-28-x-5 10, 16, 30, 60, 90, 120 16

UNLOCK CODE 4-28-x-6 1~9, *, # #

OPEN ANNOUNCE 4-28-x-7 00-60 00

DOOR RELAY (1~4) 4-28-x-8 (show 1~4) Y/N N

MENU / DATA FIELD

B - 4 Appendix B

Altri manuali per 45P

Indice

Altri manuali Xblue Networks Telefono IP

Xblue Networks

Xblue Networks SP2014 Manuale utente

Xblue Networks

Xblue Networks IP9g Manuale utente

Xblue Networks

Xblue Networks X-44 Manuale operativo

Xblue Networks

Xblue Networks IP7g Manuale utente

Xblue Networks

Xblue Networks IP5g Manuale utente

Xblue Networks

Xblue Networks X2020 Guida di riferimento

Xblue Networks

Xblue Networks X2020 Guida di riferimento

Xblue Networks

Xblue Networks X2020 Manuale utente

Xblue Networks

Xblue Networks X-3030 Manuale utente

Manuali Telefono IP popolari di altre marche

Alcatel

Alcatel 4028 Manuale utente

Polycom

Polycom Polycom VVX 600 Manuale utente

Polycom

Polycom SoundPoint IP 450 Manuale utente

Cisco

Cisco SPA-500 Series Manuale utente

Polycom

Polycom SoundPoint IP 650 Manuale utente

Proximus

Proximus Maestro 3016 IP Manuale utente

Fanvil

Fanvil X4 Manuale utente

Cisco

Cisco 7962 Manuale utente

Snom

Snom 320 Manuale utente

Yealink

Yealink Yealink SIP-T46G Manuale utente

Avaya

Avaya 4625SW Manuale utente

Yealink

Yealink SIP-T52S Manuale utente

Nortel

Nortel 1140E Manuale utente

Nexotek

Nexotek NT-P500 Manuale utente

Avaya

Avaya Integral 5 R3.0 Manuale utente

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuale utente

Avaya

Avaya 4600 Series Manuale di servizio

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuale utente
