XD COLLECTION P301.15 Series Manuale utente

RCS certiﬁed recycled

plastic and FSC bamboo

aroma diuser

Content

English p. 3

Nederlands p. 8

Deutsch p. 13

Español p. 23

Français p. 18

Italiano p. 32

Svenska p. 28

Polski p. 37

2 3

ENGLISH

TECHNICAL INFORMATION

Input: 5V 1A

Water capacity: 200ml

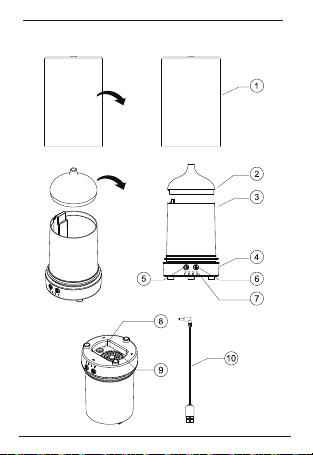

HOW TO USE AND STEPS

1. Gently remove product from packaging to locate the diuser unit,

USB power cord

2. Invert the main base (4) and locate the 3.5 mm power port (8), then

plug in the USB power cord (10) into the 3.5 mm power port (8) in the

main base (4).

3. Place the diuser on a secure table with a ﬂat and level surface.

4. To prevent damage or eect function of product, do not use if anything is

blocking the main base (4) or bottom electric fan air inlet hole (9).

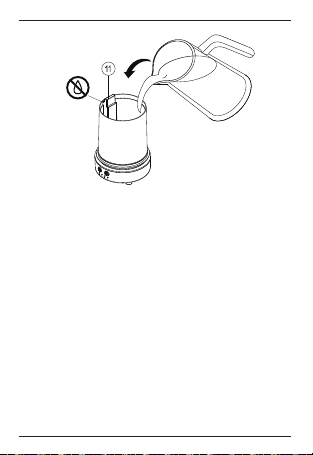

5. Using a measuring cup, ﬁll water tank (3) located on the main base (4)with

1 cup (200ml) of distilled water to the maximum water line mark. Never pour

water into the air vent hole (11).

6. Add a few drops of fragrance oil (not included) into the main base (4)

along with the 1 cup of distilled water(200 ml) to achieve your desired scent.

4 5

7. Replace the mist control inner cover (2) and outer bamboo cover (1) before

powering on the diuser.

8. Powered by DC 5V USB cable:

Connect to the power adaptor (not included) using the USB power cord (10).

9. Press and hold the power button (5) to turn on the diuser and mist eect.

To turn o the unit, press and hold the power button for 2 seconds.

10. Press the timer mode button (6) to select the desired timer. To turn o

the timer, press and hold the timer mode button for 2 seconds.

• For one-hour timer, press the timer mode button (6) once to turn on the

diuser. The red LED indicator light(7) will turn on. Device will automatically

turn o when it reaches the desired time, the water is exhausted or is below

the water level sensor.

• For two-hour timer, press the timer mode button (6) twice to turn on the

diuser. The red LED indicator light (7) will turn on. Device will automatically

turn o when it reaches the desired time, the water is exhausted or is below

the water level sensor.

• For three-hour timer, press the timer mode button (6) three times to turn

on the diuser. The red LED indicator light (7) will turn on. Device will auto-

matically turn o when it reaches the desired time, the water is exhausted or

is below the water level sensor.

• For four-hour timer, press the timer button (6) four times to turn on the

diuser. The red LED indicator light (7) will turn on. Device will automatically

turn o when it reaches the desired time, the water is exhausted or is below

the water level sensor.

11. To save power and extend the product life, always turn the unit “OFF”

when not in use.

HOW TO CLEAN

Remove the residual fragrance oil after each use. Always use a new, soft, dry/

damp cloth to wipe the water tank clean. Do not use alcohol or any other

solvents to clean the product. Allow to air dry before storage.

WARNING

• Do not use for any purpose other than its intended use.

• Do not put the diuser near or close to any electrical power sockets or

devices, as the diuser creates a mist when on.

• The appliance is not to be used by persons (including children) with

reduces physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instructions.

• Children being supervised not to play with the appliance.

• The appliance is only to be used with the unit provided.

• Unplug the appliance during ﬁlling and cleaning.

• To extend the product life, empty the water tank completely and unplug the

USB power cord if not using for a long period of time.

• Do not mount or place the product near gas, electric heaters, ﬁreplaces,

candles or any ﬂammable sources.

• Never place the product, power port, USB power cord or power adaptor in

or near wet locations.

• Do not submerge any part of the main base in water.

• Remove all the water inside unit before inverting the product to remove

the USB power plug.

• Use distilled water to keep the product clean and let air dry completely

before storing.

• Store the USB power cord, power adaptor and product in the same dry

environment.

• Keep the product well ventilated.

• Do not cover vent openings on the product with a cloth, paper or any other

material not part of the product when in use.

6 7

• Do not use if the product, power cable or power adaptor is damaged, as it

should be replaced.

• Do not attempt to repair the diuser yourself, as repairs should be handled

by a professional.

NEDERLANDS

8 9

TECHNISCHE INFORMATIE

Ingang: 5V 1A

Watercapaciteit: 200ml

HOE TE GEBRUIKEN EN STAPPEN

1. Haal het product voorzichtig uit de verpakking om de diusor en het

USB-netsnoer te lokaliseren.

2. Keer de basisunit (4) om en zoek de 3,5 mm voedingspoort (8), steek

vervolgens het USB-netsnoer (10) in de 3,5 mm voedingspoort (8) in de

basisunit (4).

3. Plaats de diuser op een veilige tafel met een vlak en waterpas oppervlak.

4. Gebruik het product niet als iets de basisunit (4) of de onderste luchtin-

laatopening van de elektrische ventilator (9) blokkeert, om schade of een

nadelige werking van het product te voorkomen.

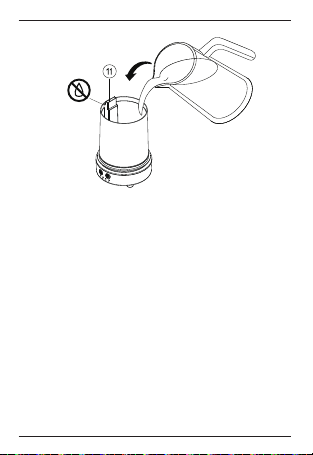

5. Vul de watertank (3) op de basisunit (4) met behulp van een maatbeker

met 1 kop (200 ml) gedestilleerd water tot aan de maximale waterlijnmarker-

ing. Giet nooit water in het ontluchtingsgat (11).

6. Voeg een paar druppels geurolie (niet inbegrepen) toe aan de basisunit

(4) samen met 1 kopje gedestilleerd water (200 ml) om de gewenste geur

te bereiken.

7. Plaats de binnenkap (2) en de bamboe buitenkap (1) terug voordat u de

diuser inschakelt.

8. Werkt door middel van DC 5V USB-kabel:

Maak verbinding met de voedingsadapter (niet meegeleverd) met behulp

van de USB-voedingskabel (10).

9. Houd de aan/uit-knop (5) ingedrukt om de diusor en het neveleect

in te schakelen.

Om het apparaat uit te schakelen, houdt u de aan/uit-knop 2 seconden

ingedrukt.

10. Druk op de timermodusknop (6) om de gewenste timer te selecteren. Om

de timer uit te schakelen, houdt u de timermodusknop 2 seconden ingedrukt.

• Druk voor een timer van één uur één keer op de timermodusknop (6) om

de diuser in te schakelen. Het rode LED-indicatielampje (7) gaat branden.

Het apparaat schakelt automatisch uit, wanneer de gewenste tijd is bereikt,

het water op is of onder de waterniveausensor is.

• For two-hour timer, press the timer mode button (6) twice to turn on the

diuser. The red LED indicator light (7) will turn on. Device will automatically

turn o when it reaches the desired time, the water is exhausted or is below

the water level sensor.

• For three-hour timer, press the timer mode button (6) three times to turn

on the diuser. The red LED indicator light (7) will turn on. Device will auto-

matically turn o when it reaches the desired time, the water is exhausted or

is below the water level sensor.

• For four-hour timer, press the timer button (6) four times to turn on the

diuser. The red LED indicator light (7) will turn on. Device will automatically

turn o when it reaches the desired time, the water is exhausted or is below

the water level sensor.
