Xenarc 700IDT Manuale utente

700IDT In-dash Touchscreen VGA LCD Monitor

Owner’s Records

The model and serial numbers are located on the rear of the unit. Please record these

numbers in the spaces provided below, as well as the dealer name, address, and

telephone number. Please refer to these records whenever speaking to your dealer

regarding this product.

Model # _______________________ Serial # ______________________

Dealer Name _________________________________________________

Street Address ________________________________________________

City ___________________ State _______________ Zip ____________

Phone # ( ) _________________Purchase Date ____/____/____

www.xenarc.com

NOTE

NOTE 1: If you are trying to connect the monitor to a laptop computer, please make

sure to enable the 15-Pin D-SUB external monitor output located at the back of your

laptop computer. Some laptop computers have three modes: Laptop Display Only,

Laptop Display plus External Monitor, and External Monitor Only. If this is the case,

please switch to the External Monitor Only mode.

NOTE 2: Touch Screen device driver must be installed onto your computer in order for

the Touch Screen to become functional. Xenarc Technologies uses 4-Wire Resistive

Touch Screen panels in the 700IDT monitor. Touch Screen drivers and software for

different operating systems can be found in the included CD-ROM disc. You can refer

to this manual for a walkthrough of Touch Screen Driver installation under Microsoft

Windows XP. You can find other instruction manuals inside the folder named “Doc”

on the CD.

NOTE 3: The maximum voltage supported by the monitor is 24V DC. Feeding the

monitor with higher voltage will damage the monitor and void the warranty. Please use

a fused power source if you decide to wire the monitor directly to your car’s electrical

system. It is also crucial that you check the polarity of the connection.

NOTE 4: If the monitor is not displaying the VGA signal properly, the VGA signal

might be out of range. Try changing your display refresh rate to 60, 70, 72, or 75Hz.

NOTE 5: Please note that the LCD screen is made with high-precision technology.

However, black points or bright points of light (red, blue, or green) may appear

constantly on the LCD screen, and irregular colored stripes or brightness may appear on

the LCD screen. This is not malfunction. (Effective dots: more than 99.999%)

NOTE 6: Make sure your monitor has a Xenarc Laser Hologram sticker to validate the

authenticity of your monitor.

For Technical Support, please contact us at:

Xenarc Technologies Corp.

2770 S. Harbor Blvd., Unit A

Santa Ana, CA 92704

TEL: 714-546-1018

Toll Free: 888-656-6536

E-mail: [email protected]

URL: www.xenarc.com

8. Click Finish to finish the installation. You will be asked to restart your

computer.

9. Remove the CD and Restart your computer. After Windows XP is finished

loading, connect the 700TS or 700TSV USB cable to one of your computer’s

USB Ports.

10. Windows XP will start “Found New Hardware Wizard” automatically upon

detection of the USB Touch Controller. Click on Next to continue.

11. Click on Next to continue.

12. Click Finish to finish Setup. Your Touchscreen is ready to use now. You can

click on the icon Touchkit located on your desktop to launch the Touchscreen

program for various settings and adjustments.

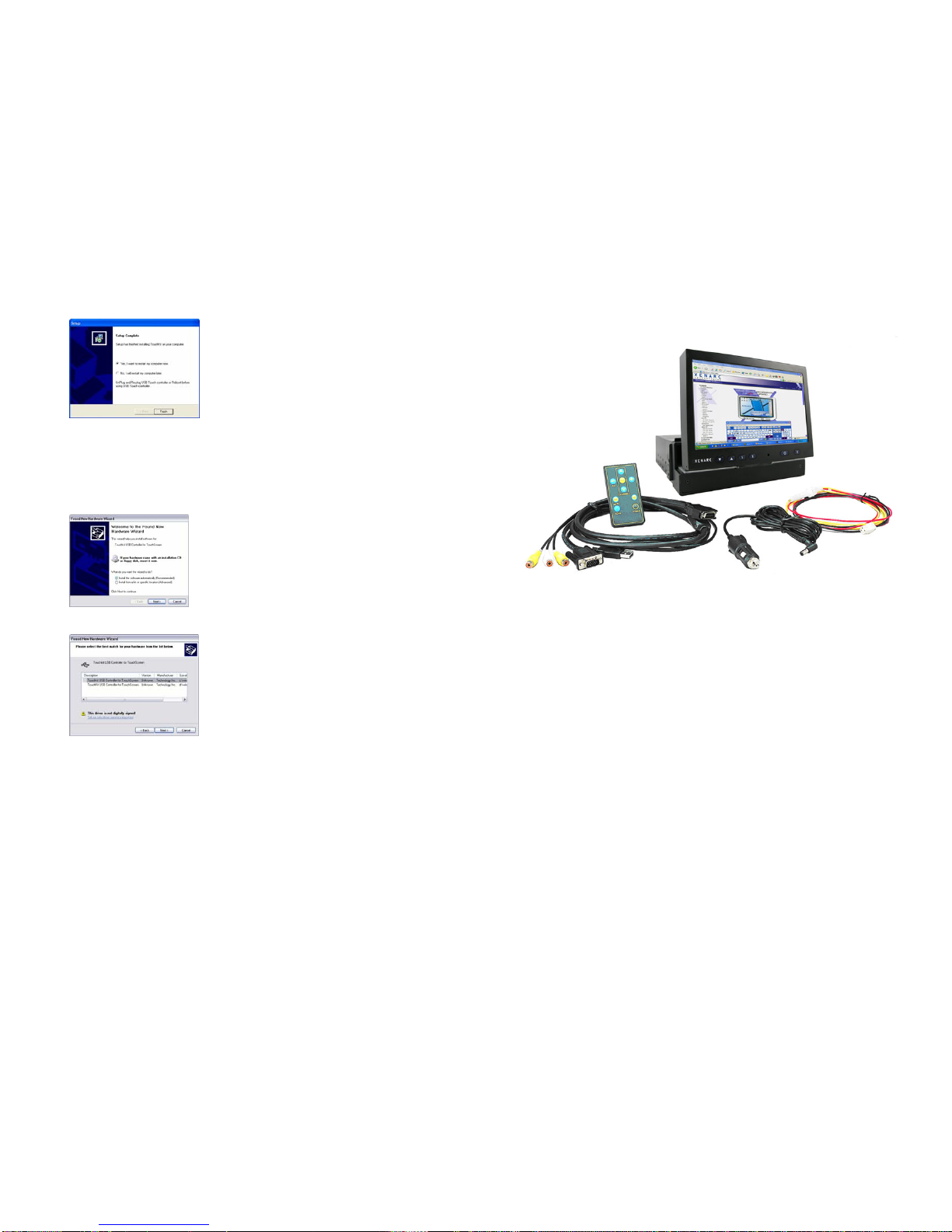

Package contents

1. 7” In-Dash Touch Screen monitor

2. Monitor cable - monitor to VGA (15 pin) and 2 x Composite

Video

3. Power cable

4. Cigarette lighter car adaptor

5. Remote control

* User Manual and Touch Screen Driver CD are included

7” In-Dash Touch Screen Monitor package contents

1. 7” In-Dash Touch Screen Monitor Main Unit

2. Trim Plate

3. Sleeve

700IDT Overview

1. Front View

4. Select the Rotating Monitor Utility and/or the Shutdown Utility if you want to

install them and click on Next to continue. The Rotating Monitor Utility

allows you to rotate your display while the Shutdown Utility provides you

with one-click shutdown.

5. Click Next to accept the Destination Directory default, shown below. Click on

Browse to change Destination Directory.

6. Click Next to accept the Program Folder default, shown below. Files will then

start to be copied to your computer.

7. When the warning that says this software has not passed Windows Logo test,

please click on Continue Anyway to continue the installation. File will

continue to be copied to your computer.

Connect signal source

1. Connect the 20-PIN connector on the black monitor cable to the back of the

700IDT. Route the cable through the dash to your PC.

2. Connect the D-Sub15 15-PIN VGA connector to your computer’s monitor output.

3. Connect the Yellow RCA plug labeled 1 and 2 to your composite video sources if

required (e.g. Video Game console, Camera, DVD-Player, etc.) The white RCA

plug labeled 3 is non-functional.

4. Connect the USB connector to your computer’s USB port after you have installed

the Touch Screen driver.

Install the Touch Screen Driver for Microsoft Windows XP:

Here is a simple walk through of Windows XP Touch Driver Installation for 800TSV.

You can skip this step if you have the 800YV.

1. Click on Start, Run, and Enter D:\Win2000_XP \Setup.exe (Please change the

drive letter corresponding to the drive containing the installation CD). Click

OK.

2. The Install Wizard window appears. Click Next.

3. Click Next to continue. Please leave the check box next to “PS2 Touchscreen

Driver” unchecked.

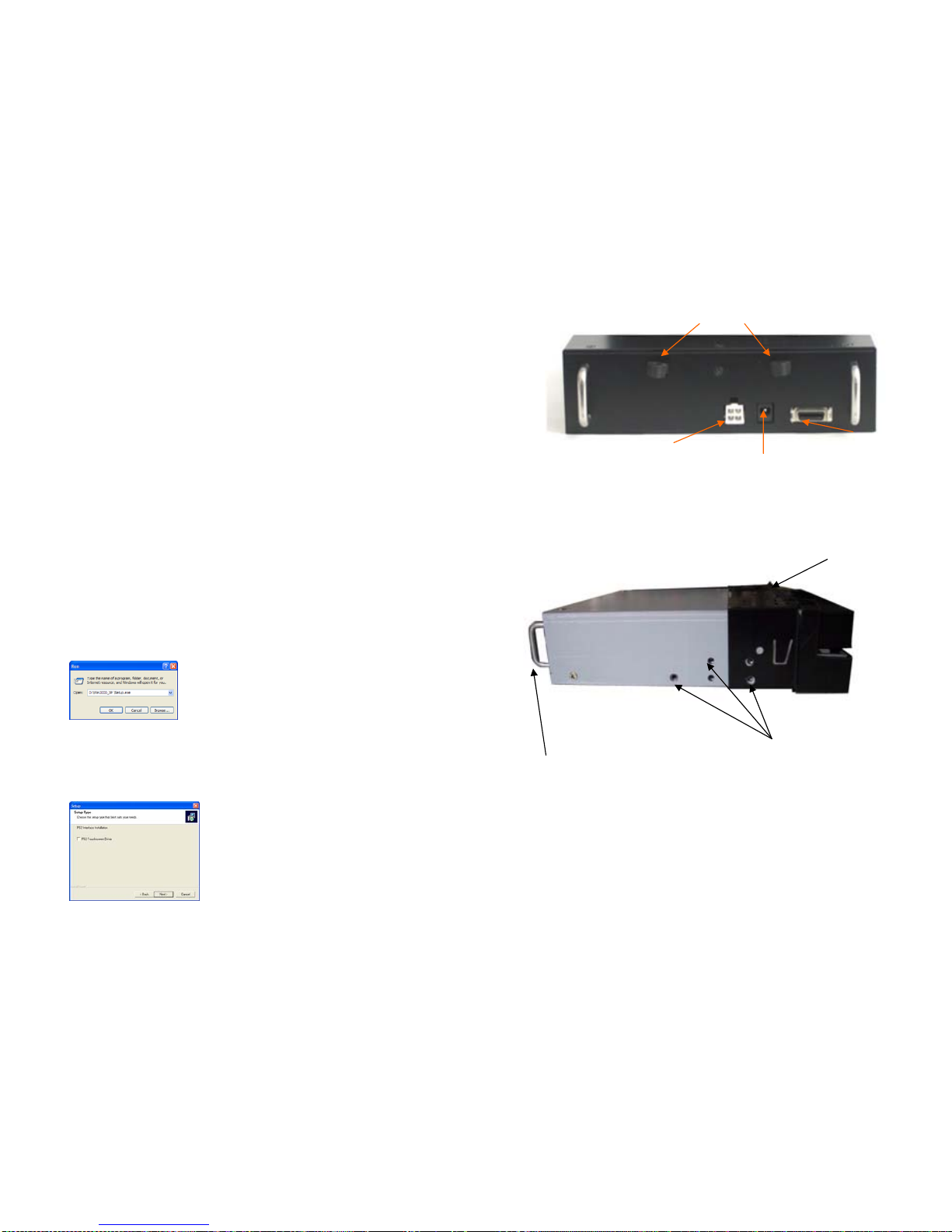

2. Rear View

3. Side View

Signal Cable socket

Mounting Bracket

Screw holes for

Mounting Sleeve

Sleeve

Power

cable

socket

12V DC in

Cable holder

4. Swivel Left/Right 150

Swivel Left 150 Swivel right 150

- Hold the top of the

monitor with both

hands

- Push and pull as

illustrated

- Hold the top of the

monitor with both

hands

- Push and pull as

illustrated

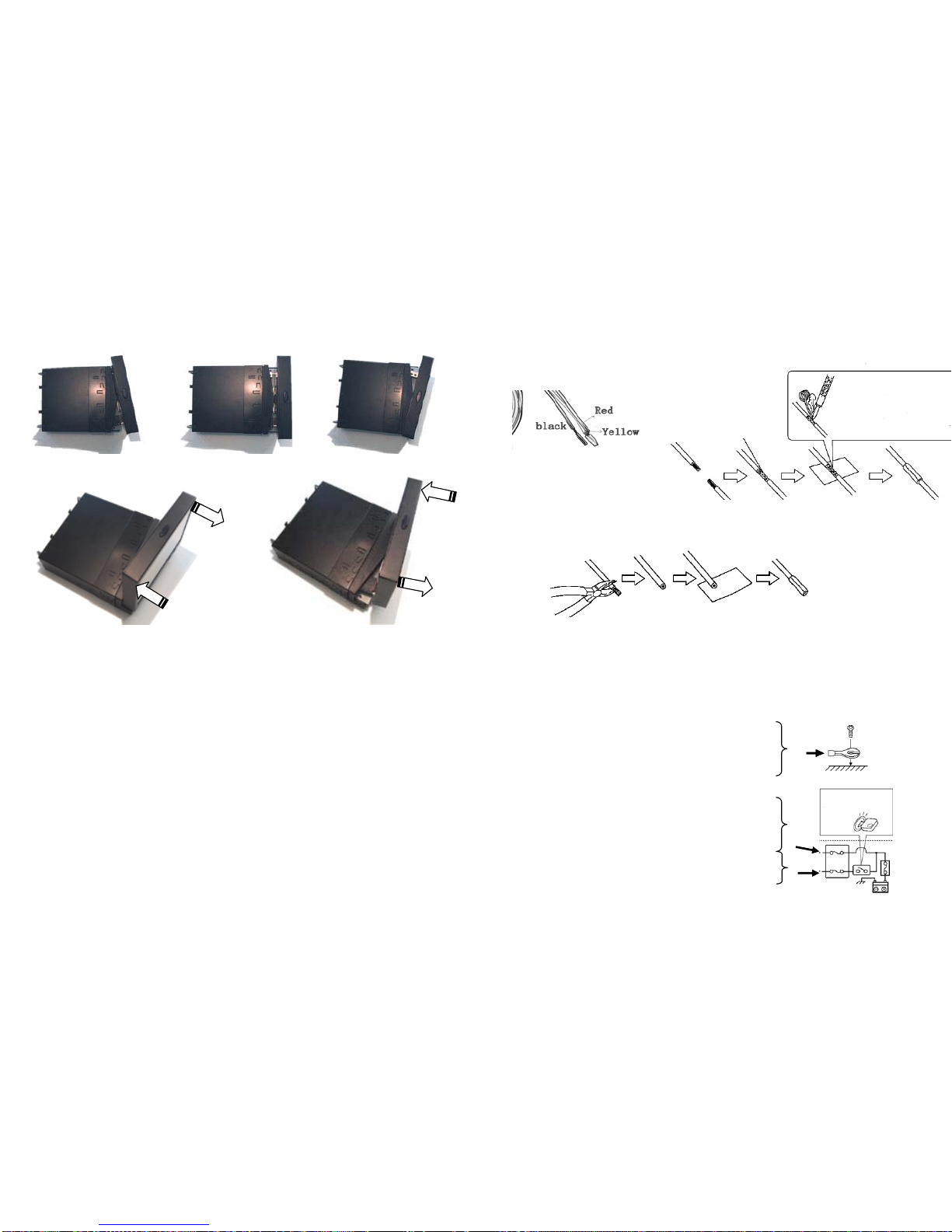

Method one: Power the unit through Cigarette lighter:

- Connect the power cable with one yellow wire, one red wire, and one black

wire to the back of the 700IDT. Connect the Red and Yellow wires together

and plug the cigarette lighter adaptor into your car’s cigarette lighter socket.

Method two: Power the unit through your car’s electrical system:

- Connect the power cable with one yellow wire, one red wire, and one black

wire to the back of the 700IDT.

Connect the Power Cable:

Connecting the leads

– Twist the Core

wires when

connecting

Solder the

core wires to

connect them

Caution:

To prevent short – circuit, cover

the terminals of the UNUSED

leads with insulating tape

* Screw and

connector Not

uded

Ignition

Switch

Fig.1

Fuse Block

Connect Black wire (Ground) to metallic

body or chassis

Connect Yellow wire (+) to a live terminal

in the fuse block (Constant 12V DC)

Connect Red wire (VCC) to an

accessory terminal in the fuse block

(

Switched 12V DC

)

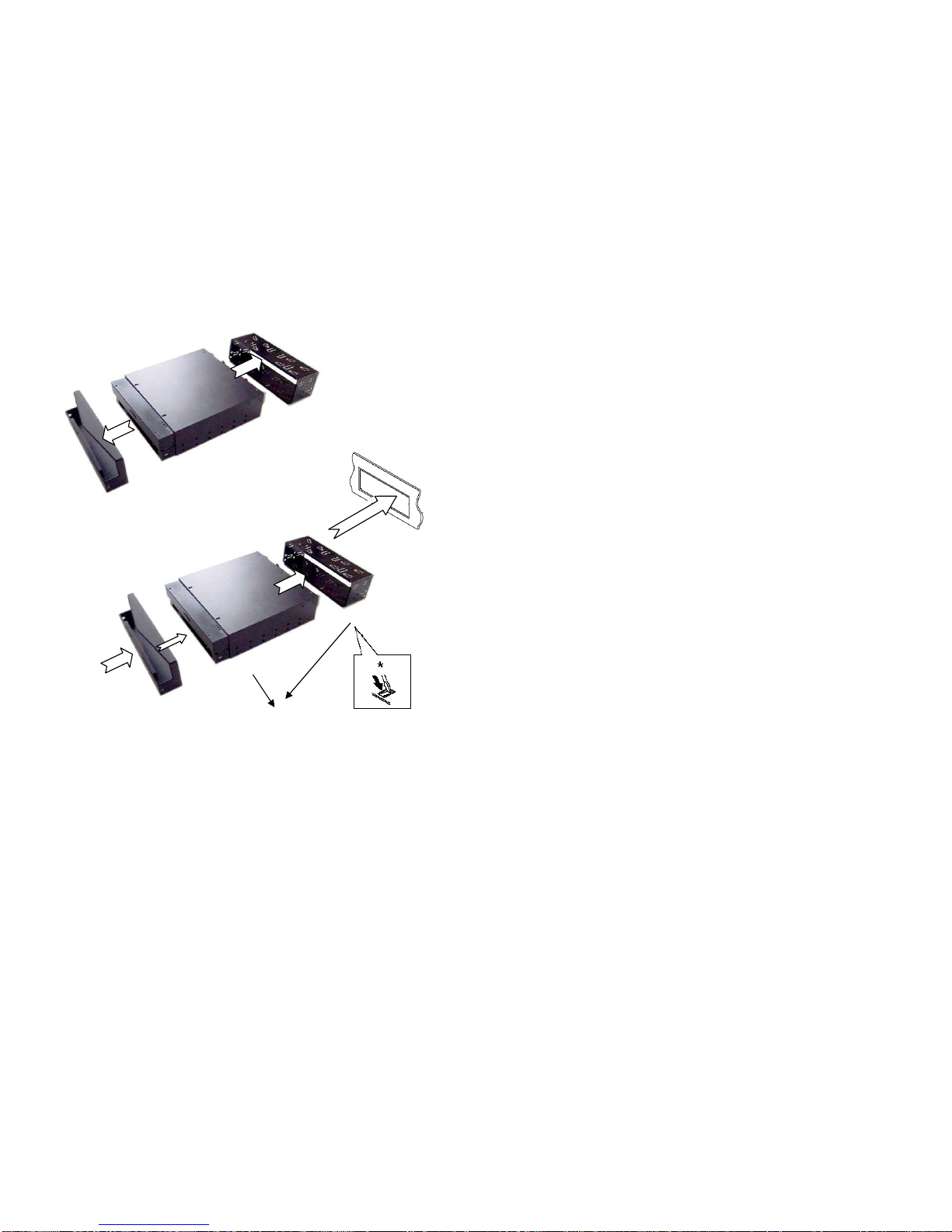

In-dash Monitor installation:

1. Remove the trim plate and sleeve

2. Install the sleeve into the dashboard

3. After the sleeve is correctly installed into the dashboard, bend the

appropriate tabs to hold the sleeve firmly in place

4. Slide the main unit into the sleeve

5. Apply screws (not included) to secure the unit

6. Re-attach the Trim Plate

7. To slide out the In-Dash Monitor, press the front panel firmly towards

dashboard (as the direction illustrated) and release.

6 7

Dashboar

External Buttons, Hot keys description:

Note1: The OSD Menu is only available when a video source is present.

Note2: The Hot keys are only available while the OSD menu is off.

“M”– Stands for Menu. This button is for OSD menu on/off toggling.

“S” – Stands for Select. Use this button for selection while OSD menu is on. Use

this button as a hot key to switch video channel directly when OSD menu is

off, following this rotation: VGA ->Video1 -> Video2 ->VGA.

“/\” – Stands for Increase. Use this button to increase value while OSD menu is

on.

“\/” – Stands for Decrease. Use this button to decrease value while OSD menu is

on.

Primary On Screen Display functions description:

The Primary OSD can be turn on by pressing the button “M”.

Bright

- Adjust brightness by pressing the Increase/Decrease buttons. Increase the

number for higher brightness. Decrease the number for lower brightness.

Contrast

- Adjust contrast by pressing the Increase/Decrease buttons. Increase the

number for higher contrast. Decrease the number for lower contrast.

Horz Pos

- Adjust Horizontal position by pressing the Increase/Decrease buttons.

Vert Pos

- Adjust Vertical position by pressing the Increase/Decrease buttons.

Phase

- Adjust CLK phase alignment by pressing the Increase/Decrease buttons.

(Image flicker can by avoided by CLK phase adjustment. This function is valid

on the VGA mode only)

Auto Detect

- Adjust display automatically. (Valid on the VGA mode only)

Secondary On Screen Display functions description:

The Secondary OSD can be turn on by pressing “M” twice.

Backlight

- Adjust the CCFL backlight output level.

Default

- Load default setting.

AV2 First

-Set whether to have monitor switch to Video Input 2 automatically if a signal

is present. Good for car reverse monitoring system.

Scaler

-Set the display mode to 16:9 or 4:3. Set it to 4:3 if your video signal is in 4:3

aspect ratio and you don’t want the display to be stretched out. Default is

16:9.

External Specifications:

Video Source Input

•RGB analog male connector (15-Pin D-SUB) x 1

•RCA composite video female connector x 2

Audio Source Input

•RCA audio female connector x 1 is of no function

Touch Panel I/O

•USB connector x 1

Power Source Input

•Single 12V DC_IN (Supports 11V ~ 24V)

External Buttons Input

•OSD buttons for Menu/Select/Increase/Decrease

•PWR button for power switch

Internal Specifications:

LCD Module : 7” Digital TFT LCD

LCD Native resolution : 800 x 480 (2400 x 480 dots)

Pixel Pitch : 0.1905 x 0.1905 mm

LCD Panel Brightness : 400 NIT

Contrast : 150 : 1

Response Time : 56ms

Viewing Angle : Vertical: 90 / Horizontal: 120

Supported display resolution : 640 x 480 ~ 1600 x 1200

Supported refresh rate : 60 ~ 75 Hertz

Video Format : NTSC/PAL Auto-detect

Colors : 18-bit (262,144 Colors)

Inverter Inside : Adjustable output w/ Power Mgmt

Electrical Characteristics: Absolute Maximum Ratings:

Parameter Symbol Min Max Unit

Analog Signal Input Level Signal 0 1.4 Vp-p

Power Supply DC IN 11 24 V

Digital Signal Input Level - - 5+0.3 V

Operation Temperature - -14 176 ºF

Recommended Operating Conditions:

Parameter

Symbol

Min

Typical

Max

Unit

Signal 0.5 0.7 1.2 Vp-pAnalog Signal Input Level

RGB/Composite AV DC GND - 0.3 V

DC IN 11 12 24 V

Power Supply Current 0.59 0.72 0.74 A

Power Consumption:

Standby mode < 0.3W

Suspend mode < 3W

Continue mode < 4W (w/o inverter), <9W (w/ inverter)

Inverter output specifications:

Power supply: +12V

Lamp frequency: 50KHz

Max output open voltage: 1300Vrms

Power consumption: < 5W

Indice

Altri manuali Xenarc Sistema video per auto

Xenarc

Xenarc 702 Series Manuale utente

Manuali Sistema video per auto popolari di altre marche

Stinger

Stinger HEIGH10 RB10RAM13B Manuale utente

Eonon

Eonon E1057 Manuale utente

Milion

Milion D2223 Manuale utente

Metra Electronics

Metra Electronics 99-8153 Manuale utente

Voxx Electronics

Voxx Electronics HR8MA1 Manuale utente

Axxera

Axxera AV604Bi Manuale utente

Clarion

Clarion NX706E Manuale utente

Pyle view

Pyle view PLDN74BTi Manuale utente

Clarion

Clarion NX602 Manuale utente

PowerAcoustik

PowerAcoustik PTID-5850N Manuale utente

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guida utente

Lanzar

Lanzar SVDVD5 Manuale utente

Kia

Kia MTXM100YPPE Manuale utente

Eonon

Eonon E1060 Manuale utente

Macrom

Macrom M-AN900 Manuale utente

Hyundai

Hyundai BAPE-L3000N Manuale utente

r.LiNK

r.LiNK RL2-UCON8-SM Manuale utente

Blaupunkt

Blaupunkt DVP 01C Manuale utente
