Xerox DocuColor 2240 Manuale utente

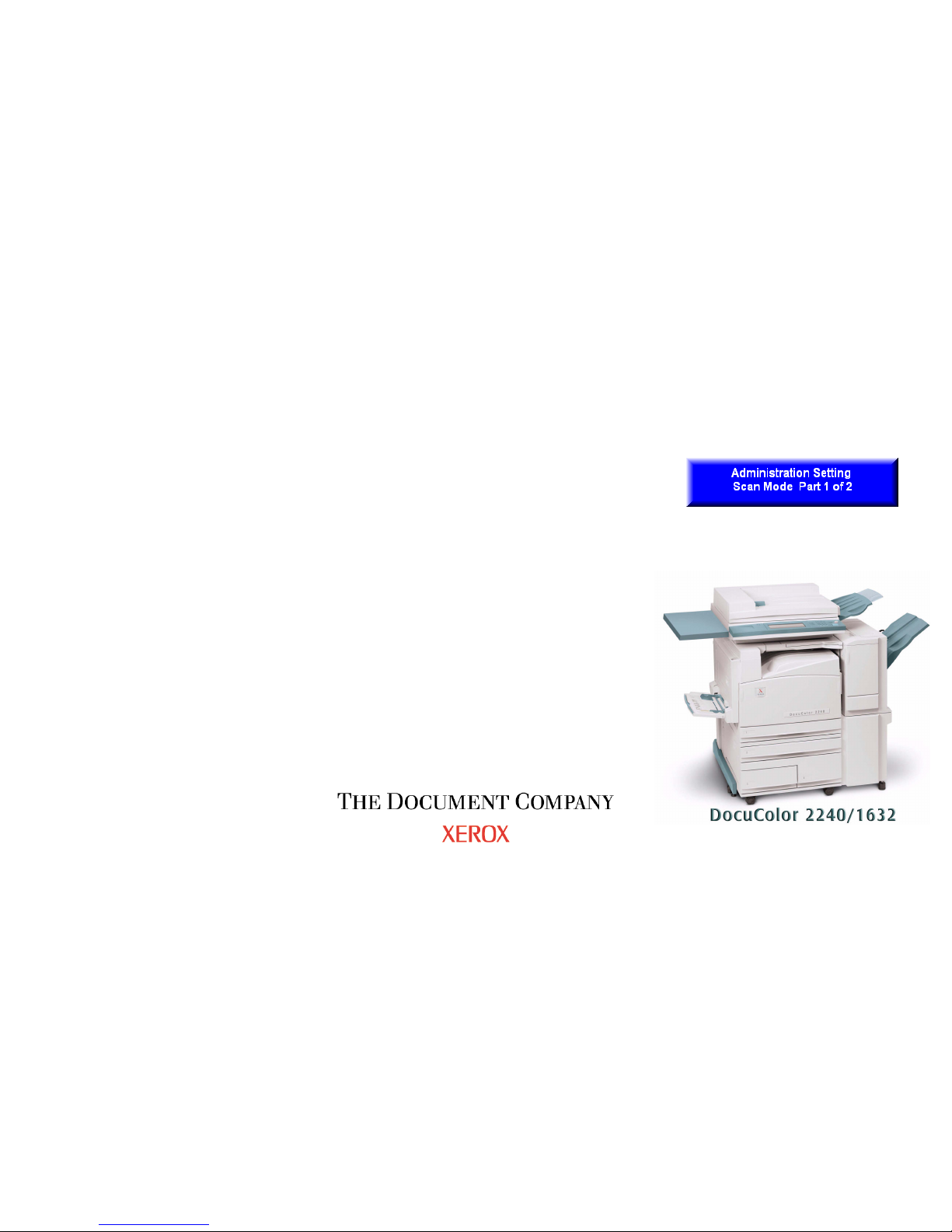

Administration Setting Scan Mode - 1 of 4

Fig. 1

Select Access.

Fig. 2

Enter the System Administrator Password from the Numeric Keypad and

then press Confirm. (See Machine Administration User Guide for

default password)

Fig. 3

Select System Settings.

Fig. 4

Select System Settings.

Fig. 5

Select Scan Mode Settings.

Fig. 6

Select the appropriate settings button to make changes as needed. After

changes are completed or if no changes are needed continue to Fig. 7

*Refer to the charts of the Administration Settings- Scan Mode Part

2 of 2 pamphlet for settings value.

Fig. 7

Select Close.

Fig. 8

Select Exit.

Fig. 9

Changes are completed.

Administration Setting Scan Mode - 2 of 4

Quick Start Guide

Administration Setting Scan Mode - 3 of 4

Basic Scanning Presets

1. to 3. reduce/Enlarge 2nd to 4th button (The defaults are as

follows: 2 for the 2nd tray from the top, 4 for the 3rd tray, and 7

for the 4th tray)

Setting Value Description

1 Ratio currently set to R/E Preset 1

2 Ratio currently set to R/E Preset 2

3 Ratio currently set to R/E Preset 3

4 Ratio currently set to R/E Preset 4

5 Ratio currently set to R/E Preset 5

6 Ratio currently set to R/E Preset 6

7 Ratio currently set to R/E Preset 7

Scan Defaults

4. Border Erase- Top & Bottom (The default setting is 2 mm)

5. 5. Border Erase- Left & Right (The default setting is 2 mm)

6. Center E ult setting is 0)rase (The defa

Setting Description

0 None

1 to 50 Set the left, right, top, bottom edge and center erase

dimensions in 1 mm increments.

7. Original he default setting is 1)Orientation (T

Setting Description

0 Head to Top

1 Head to Left

Scan Defaults

9. Lighter/Darker (The default setting is 3)

Setting Description

0 Lighter (+3)

1 Lighter (+2)

2 Lighter (+1)

3 Normal

4 Darker (-1)

5 Darker (-2)

6 D erark (-3)

10. Contrast (The default setting is 2)

Setting Description

0 Higher

1 High

2 Normal

3 Low

wer4 Lo

11. Auto Exposure (The default setting is 0)

Setting Descripti no

0 Off

1 On

Output Size Defaults

Output Size 1 to 8 (The default settings are as follows in order

from the Output Size button 1, 35 or A3 landscape, 21 or A4

landscape, 85 or A4 portrait, 10 or A5 landscape, 30 or B4

landscape, 13 or B5 landscape, 34 or 11 by 17 landscape, 20 or 8.5

by 11 landscape)

Setting Description Setting Description

4 A6 SEF 9 5.5 x 8.5” SEF

68 A6 LEF 73 5.5 x 8.5” LEF

7 B6 SEF 20 8.5 x 11” SEF

71 B6 LEF 84 8.5 x 11” LEF

10 A5 SEF 28 8.5 x 13”

74 A5 LEF 29 8.5 x 14”

13 B5 SEF 33 11 x 15”

77 B5 LEF 34 11 x 17”

21 A4 SEF 31 8k

85 A4 FEF 52 16k SEF

30 B4 116 16k LEF

35 A3 54 Photo L

(3.5 x 5”)

6 Photo 2L

(5 by 7”)

Reduce/Enlarge Presets

R/E Presets 1 to 7 (The default settings are as follows in order

from the R/E Presets button, 1, 50.0% in 3, 70.7% in 7, 81.6% in

8, 86.6% in 9, 115.4% in 10, 122.4% in 11, 141.4% in 13)

Setting Description Setting Description

1 25.0% 10 115.4%

2 35.3% 11 122.5%

3 50.0% 12 129.4%

4 57.7% 13 141.4%

5 61.2% 14 163.2%

6 64.7% 15 173.2%

7 70.7% 16 200.0%

8 81.6% 17 282.8%

.6 400.9 86 % 18 0%

3. Mixed Size Originals (The default setting is 0)

Setting Description

0 Off

1 On

2. Scan Resolution (The default setting is 0)

Setting Description

0 200 dpi

1 300 dpi

2 400 dpi

dpi3 600

8. Original Type (The default setting is 0)

Setting Descripti no

0 Text

1 Text & Photo

ot2 Ph o

Administration Setting Scan Mode - 4 of 4

Others

3. Memory Full Procedure (The default setting is 0)

Setting Description

0 Disabled (Discard stored documents)

ble stored data1 Ena

4. Maximum Stored Pages (The default setting is 999)

Setting Description

1 to 999 The maximum number of stored pages for

scanning.

5. Maximum E-mail Size (The default setting is 0)

Setting Description

0 Free Access

1 to 999 Set the maximum data size in 1MB

increments.

8. Color Space (The default setting is 0)

Setting Description

0 Output by sRGB.

1 Output by device RGB.

Quick Start Guide
