Xerox Phaser 6115 MFP Manuale operativo

Phaser® 6115MFP

-English- Rev A

Quick

Use Guide

www.xerox.com/office/6115support

multifunction product

More Information

www.xerox.com/office/6115support

www.colorconnection.xerox.com

Visit the Support website for:

Print and Scan drivers and utilities

User manuals and instructions

Online Support Assitant

Safety specifications (in User Guide)

Material Safety Data Sheets

Visit the Color Connection website

for templates, tips, and tutorials.

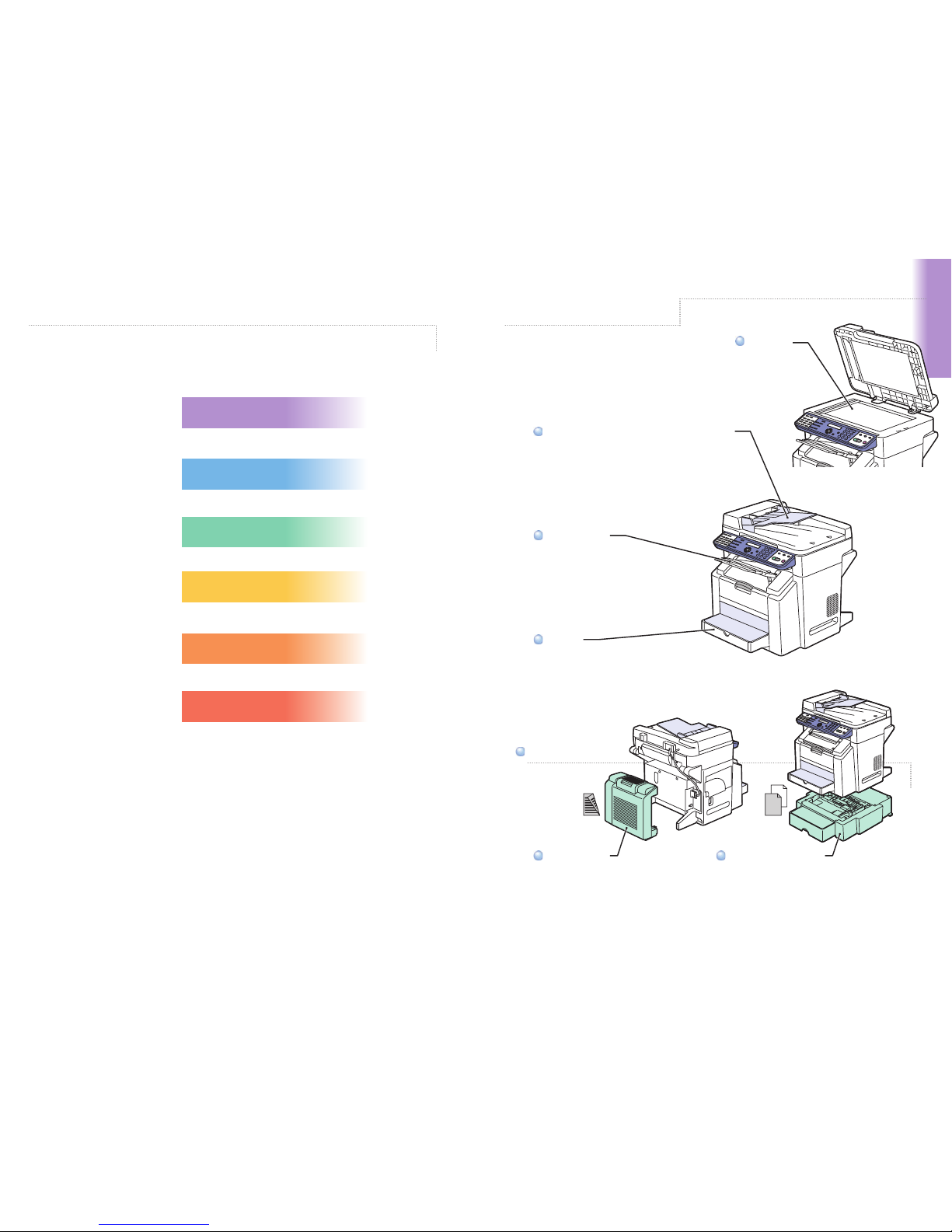

Product Features

Product TourContents

OptionsOptions

Duplex UnitDuplex Unit 500-Sheet Feeder500-Sheet Feeder

Automatic Document Feeder (ADF)Automatic Document Feeder (ADF)

ScannerScanner

Output TrayOutput Tray

Tray 1Tray 1

Product Features 2

Printing 5

Copying 8

Scanning 10

Faxing 13

Troubleshooting 16

www.xerox.com/office/6115support 3

Product Features

www.xerox.com/office/6115supplies

For ordering supplies, contact your local reseller,

or visit the Xerox Supplies website.

Transfer BeltTransfer Belt

Imaging UnitImaging Unit

FuserFuser

Toner CartridgesToner Cartridges

Select toner from the control panel to

rotate into position for replacement.

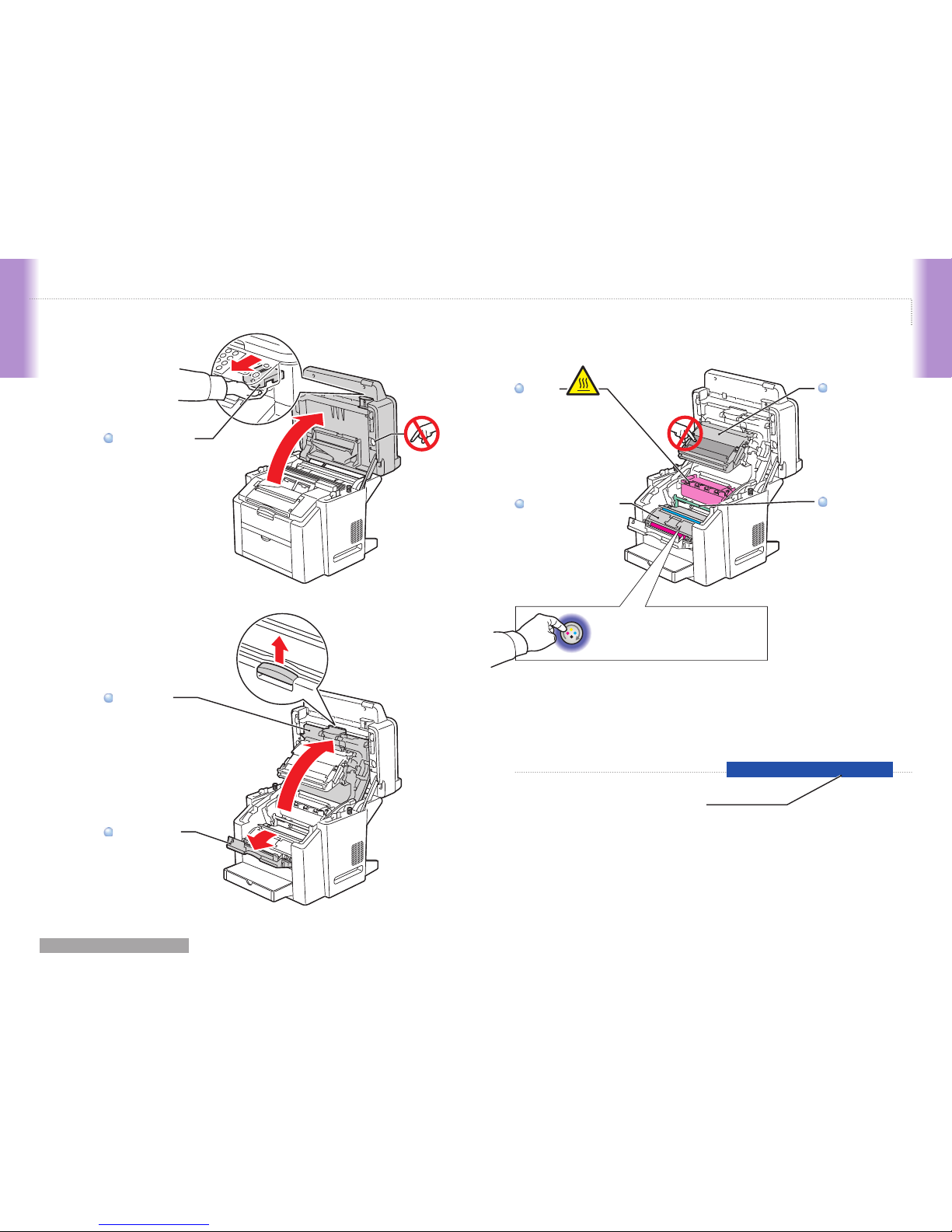

Top Cover

Scanner Latch

Front CoverFront Cover

www.xerox.com/office/6115support 4

Product Features

.@_- ABC

DEF

GHI

JKL

MNO

PQRS

Keypad Mode

[1] / [A]

TUV

WXYZ

0 #

Error Display

QualityFunction

2 in 1

Collate Light / Dark

Reduce / Enlarge Stop / Reset

Copy

Fax Scan

Start

Redial / Pause Speed Dial

Auto Receive Resolution

On Hook

01 02 03

04 05 06

07 08 09

Phaser 6115MFP

1A4

MIX x1.00 1

Y M C K

Select

Display

Quality

Select

Phaser 6115MFP

TONER REMAINING

Y M C K

Reduce / Enlarge

Display

Quality

Select

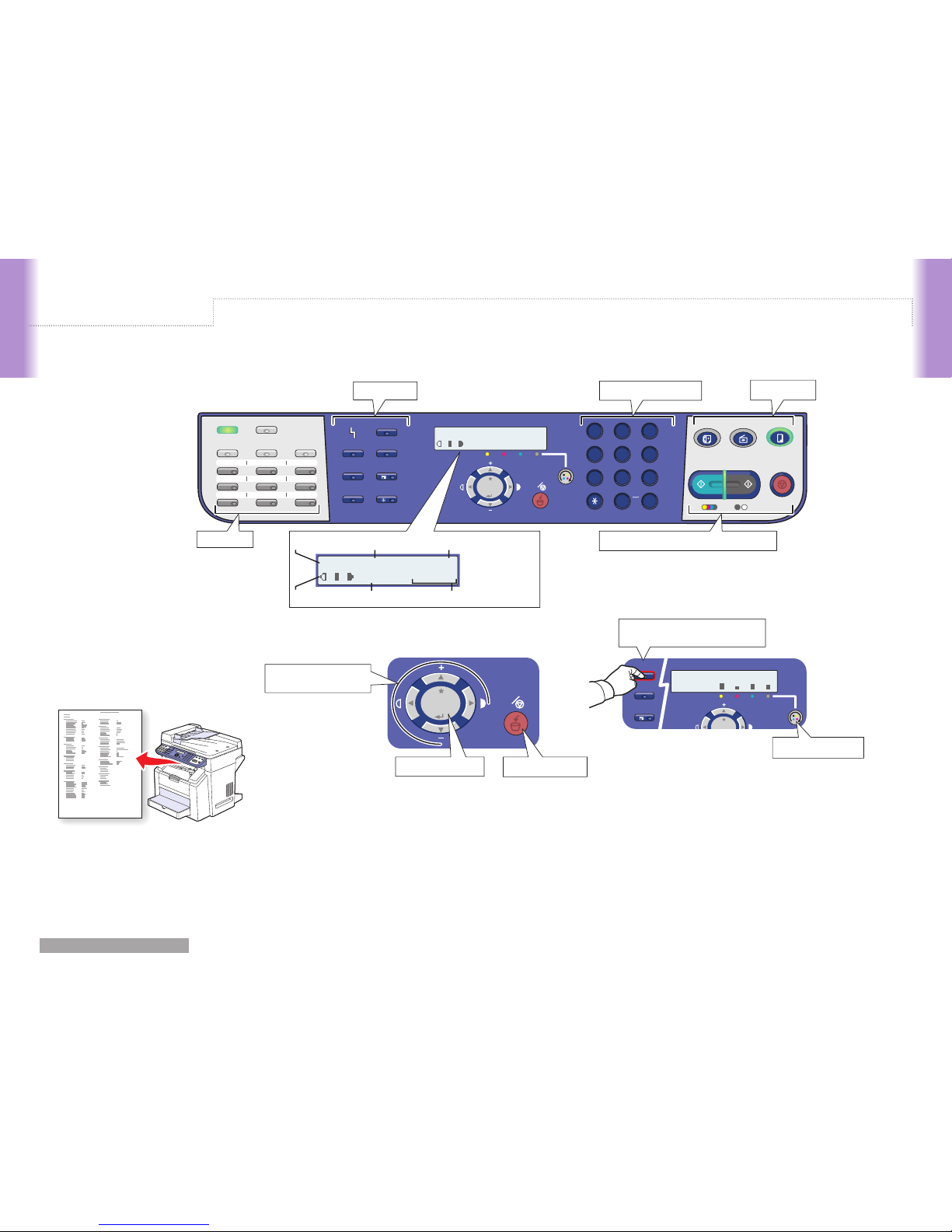

Control Panel

To print a Menu Map, press the

Display button, and then scroll

down to select Menu Map.

To print a Menu Map, press the

Display button, and then scroll

down to select Menu Map.

Alphanumeric keypad Mode buttons

Copy Settings

Color or B/W Start and Stop/Reset buttonsFax controls

Press Display to view toner levels

and print report pages.

Toner Change button

Navigate/Adjust buttons

Menu/Select button Cancel/Back button

1A4

MIX x1.00 1

1. Document type 2. Zoom ratio 3. Number of copies

4. Output density 5. Media tray/size 6. Status/warnings

www.xerox.com/office/6115support 5

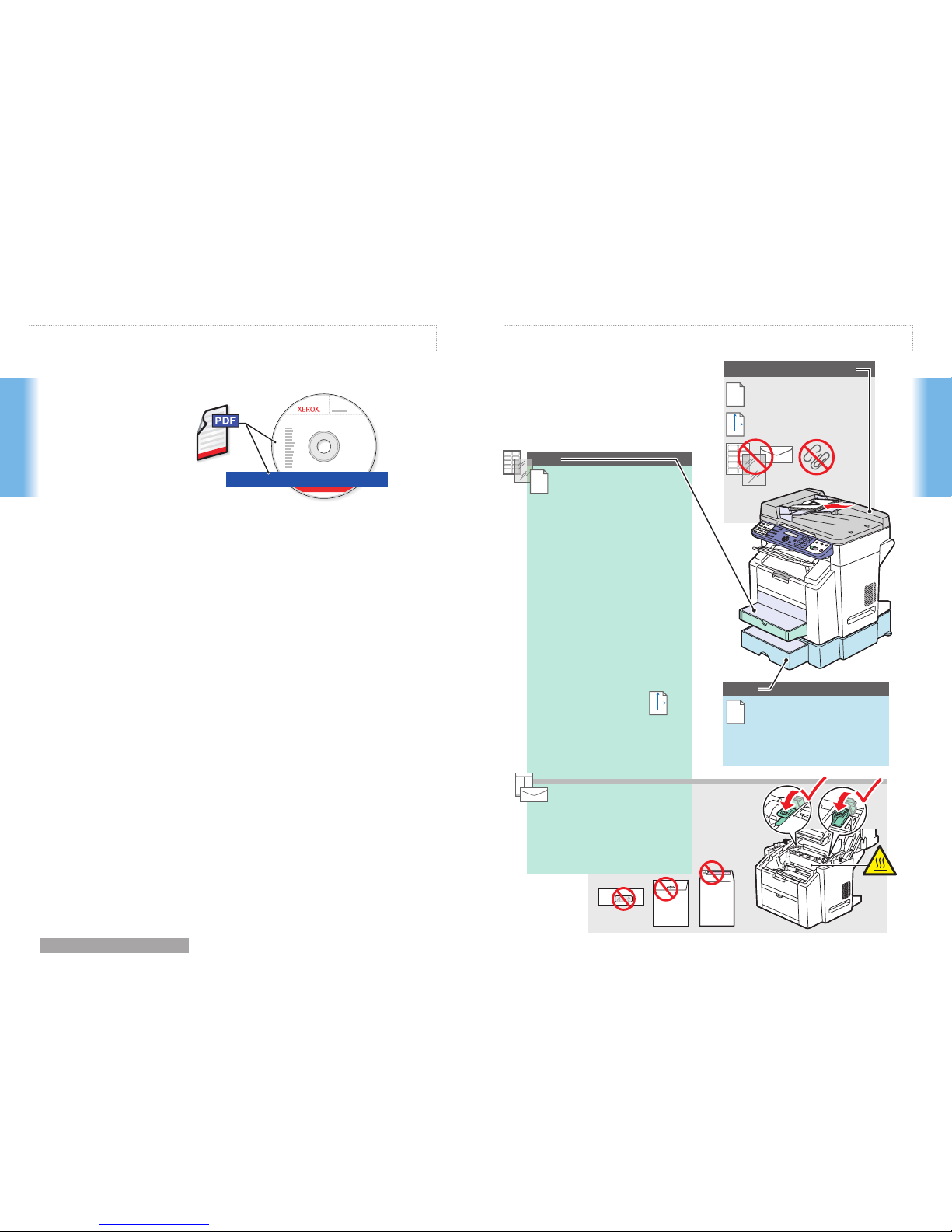

Printing

Automatic Document Feeder

60 – 90 g/m2

(16 – 24 lb. Bond)

WW: 140– 216 mm (5.5 – 8.5 in.)

H: 148 – 356 mm (5.83 – 14 in.)

Tray 1

Photo Size 4 x 6....... 4.0 x 6.0 in. 4X6

Statement................ 5.5 x 8.5 in. ST

Executive................. 7.25 x 10.5 in. EX

UK Quatro................ 8.0 x 10.0 in. UKQ

Gov. Letter.............. 8.0 x 10.5 in. GLT

Foolscap................. 8.0 x 13.0 in. FLS

Letter....................... 8.5 x 11.0 in. LT

Letter Plus............... 8.5 x 12.69 in. LTP

Gov. Legal............... 8.5 x 13.0 in. GLG

Legal....................... 8.5 x 14.0 in. LG

Photo Size 10 x 15... 102 x 152 mm PHO

A5............................ 148 x 210 mm A5

B5 ISO..................... 176 x 250 mm B5

A4............................ 210 x 297 mm A4

SP Folio................... 210 x 330 mm FOL

Custom.................... (W) x (H)

Monarch.................. 3.87 x 7.5 in.

MON

Com# 10.................. 4.12 x 9.5 in. #10

DL............................ 110 x 220 mm DL

C6............................ 114 x 162 mm C6

C5............................ 162 x 229 mm C5

Tray 2

W: 3.6 – 8.5 in

92 – 216 mm

H: 5.8 – 14.0 in.

148 – 356 mm

Letter....................... 8.5 x 11.0 in. LT

A4............................ 210 x 297 mm A4

Phaser 6115MFP Software and

Documentation CD-ROM

Print and Scan

Drivers and Utilities

Installation Video

User guide

Windows,

Mac OS

www.xerox.com/office/6115support

Supported PapersPrinting

60 – 200 g/m2

(16 – 53 lb. Bond/

50 – 75 lb. Cover)

60 – 90 g/m2

(16 – 24 lb. Bond)

To learn about advanced printing techniques,

see the Printing Basics chapter in the User Guide.

Click the Recommended Media List link for a

complete list of media for your product.

To learn about advanced printing techniques,

see the Printing Basics chapter in the User Guide.

Click the Recommended Media List link for a

complete list of media for your product.

www.xerox.com/office/6115support 6

Printing

1 2 34 5

1 2 3 4

Mac

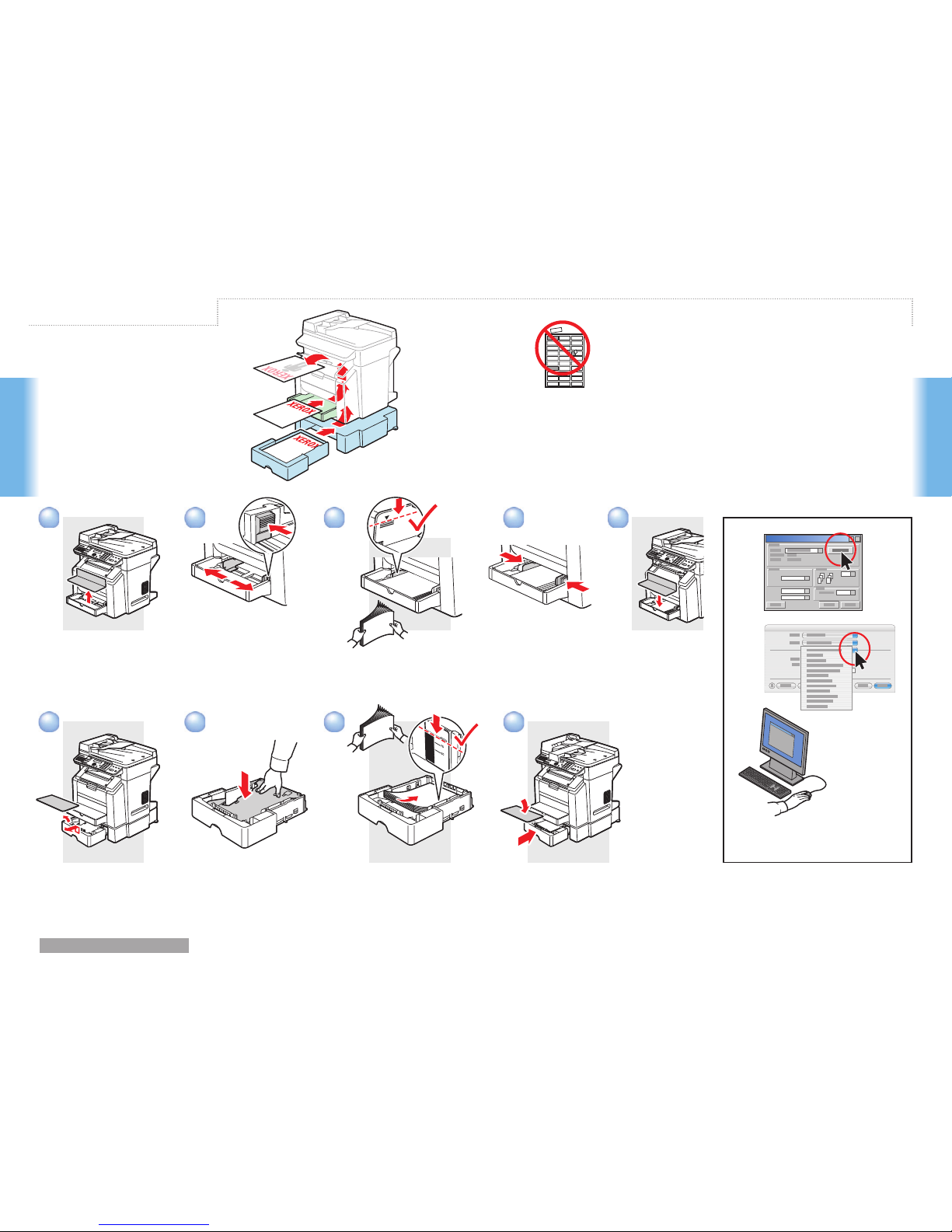

Basic Printing

Select special features

in the Xerox printer driver.

www.xerox.com/office/6115support 7

Printing

234

Monarch... 3.87 x 7.5 in.

# 10.......... 4.12 x 9.5 in.

DL.............110 x 220 mm

C6............. 114 x 162 mm

C5............. 162 x 229 mm

PC Mac

1–10

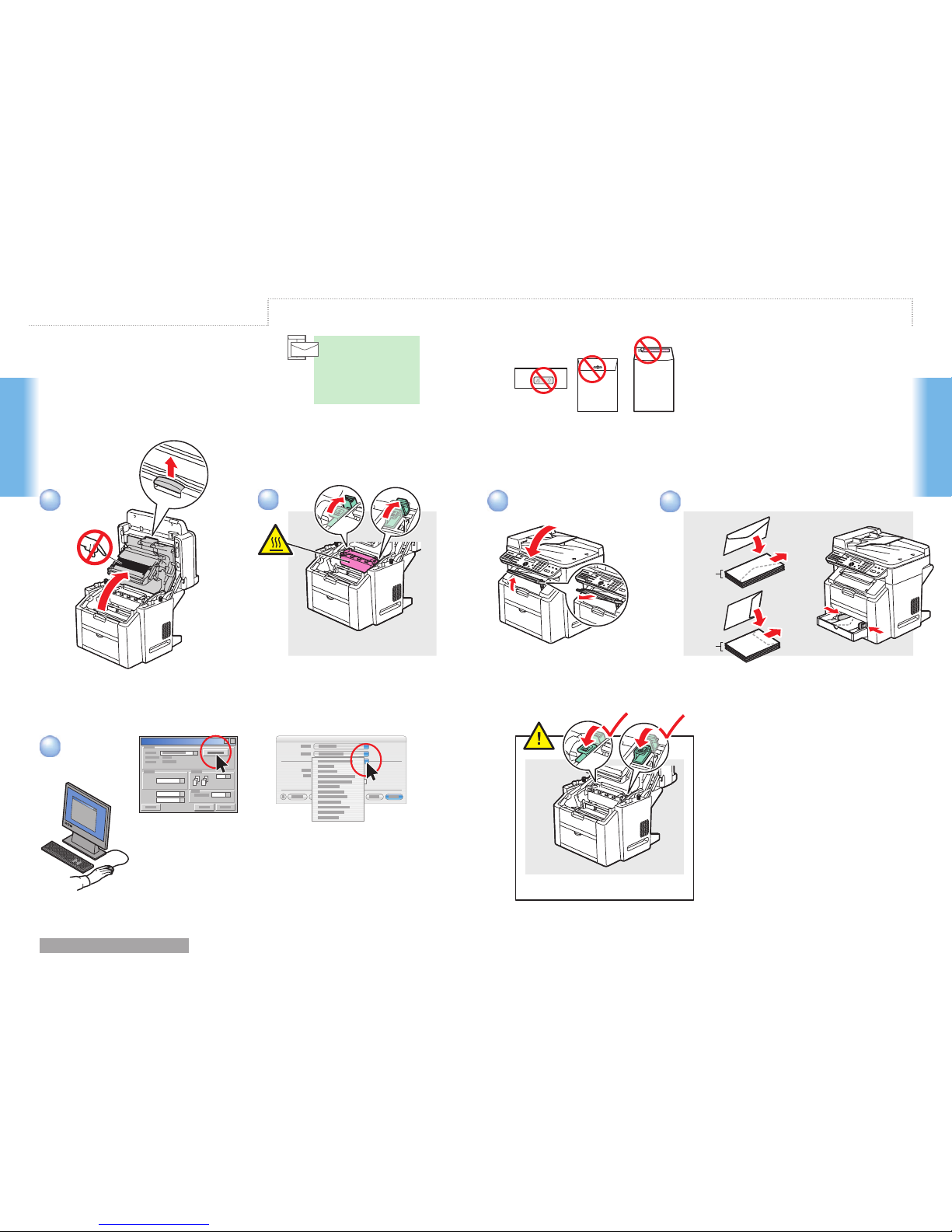

Printing Envelopes

Select envelope size in the Xerox printer driver.

After printing: Lower both fuser levers.

www.xerox.com/office/6115support 8

Copying

60 – 90 g/m2

(16 – 24 lb. Bond)

WW: 140– 216 mm (5.5 – 8.5 in.)

H: 148 – 356 mm (5.83 – 14 in.)

CopyFax Scan

Phaser 6115MFP Software and

Documentation CD-ROM

Print and Scan

Drivers and Utilities

Installation Video

User guide

Windows,

Mac OS

www.xerox.com/office/6115support

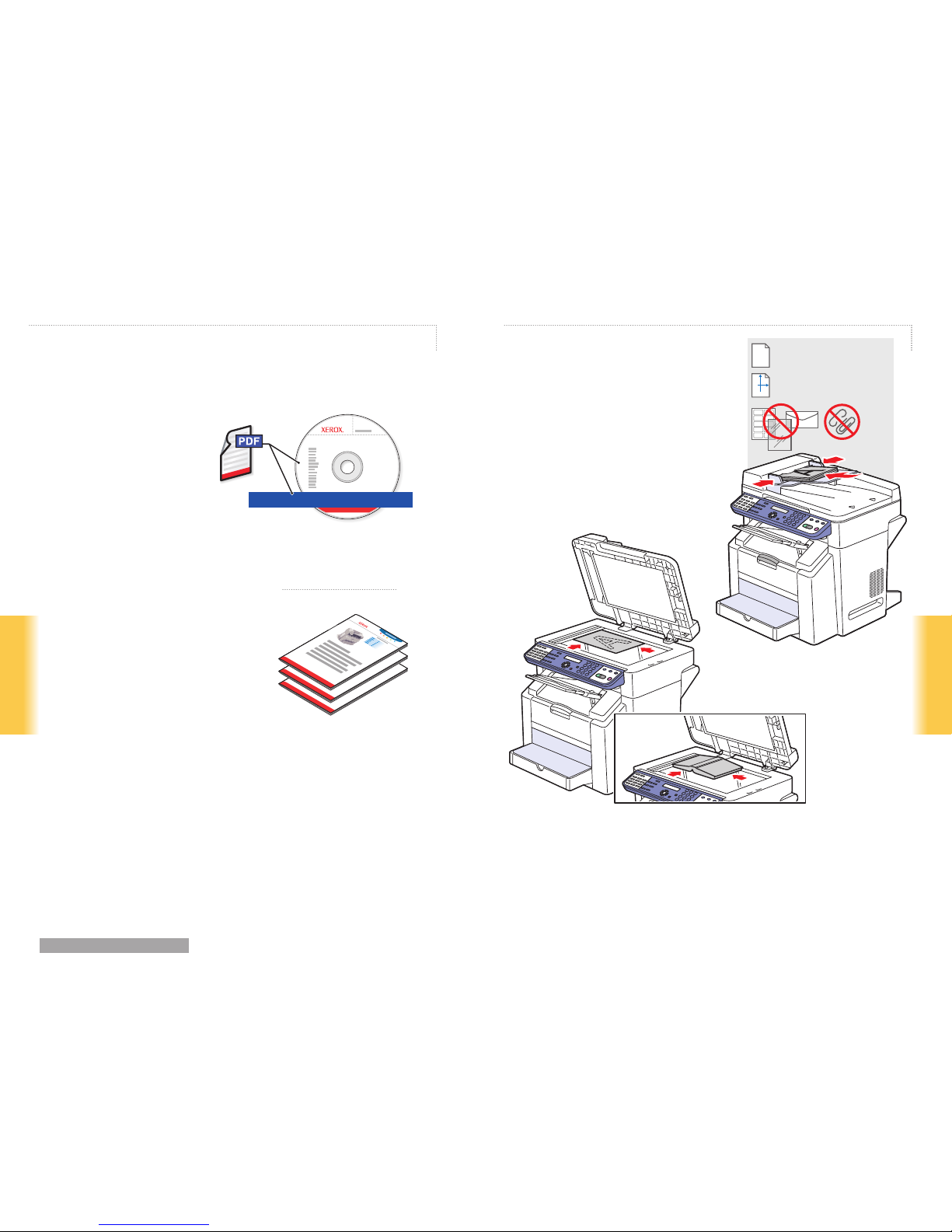

Basic CopyingCopying

Load original.Load original.

See the Copying chapter in the User Guide

to learn about advanced copying techniques:

Adjusting image quality

Reducing or enlarging

Copying 2 sides to 1 side (2 in 1)

Making 2-sided copies (duplex option)

Making booklets

See the Copying chapter in the User Guide

to learn about advanced copying techniques:

Adjusting image quality

Reducing or enlarging

Copying 2 sides to 1 side (2 in 1)

Making 2-sided copies (duplex option)

Making booklets

www.xerox.com/office/6115support 9

Copying

Error Display

QualityFunction

2 in 1

Collate Light / Dark

Reduce / Enlarge

Select

x:±0.01

.@_- ABC DEF

GHI JKL MNO

PQRS

Keypad Mode

[1] / [A]

TUV WXYZ

Stop / Reset Start

x0.50

x2.00

x1.00

1 2 3

4 5 6

7 8 9

0 #

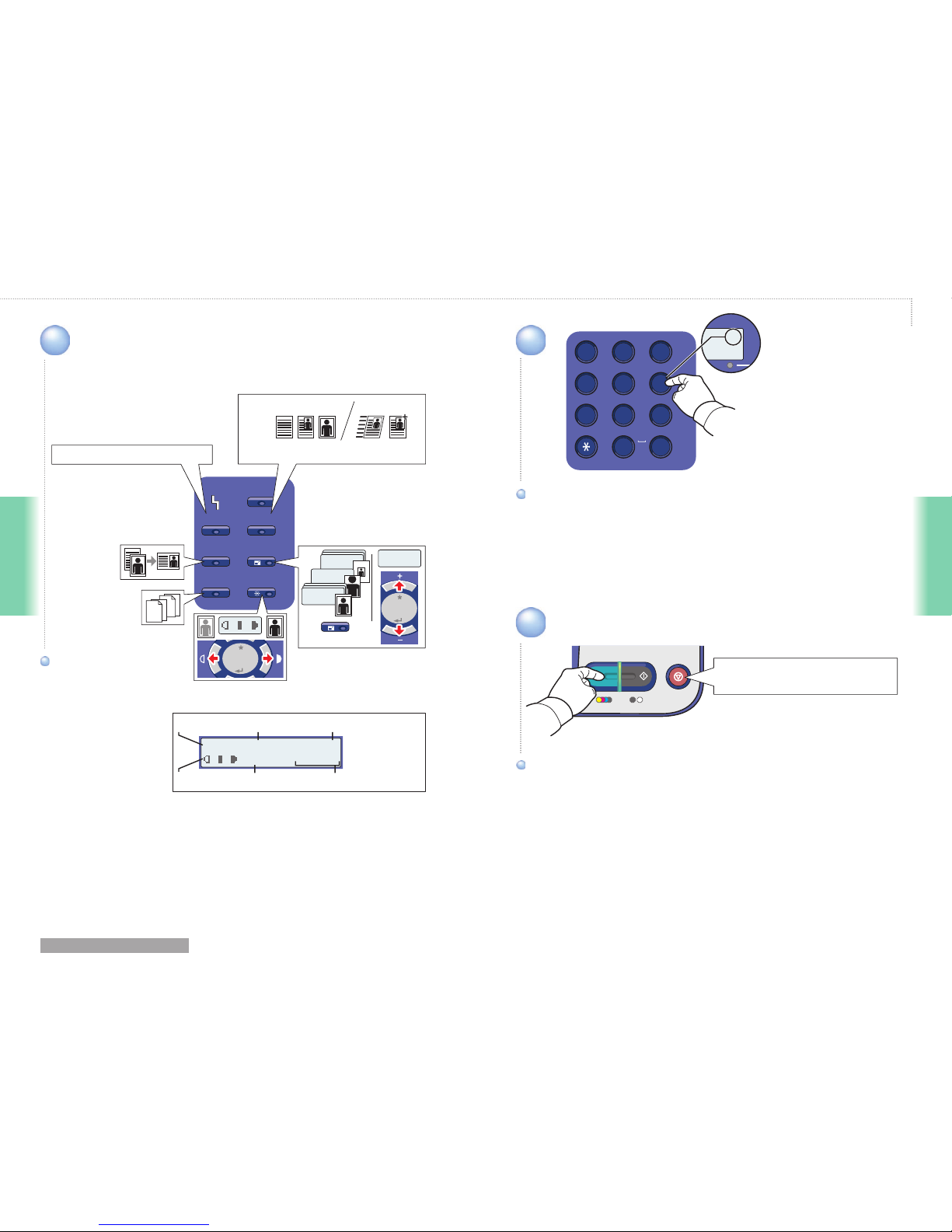

Select settings.Select settings.

Select number of copies.Select number of copies.

Press Color or B/W Start button.Press Color or B/W Start button.

Quality: Document type (1x)/Resolution (2x)

Use the Stop/Reset button to stop copying

or restore default settings.

1A4

MIX x1.00 1

1. Document type 2. Zoom ratio 3. Number of copies

4. Output density 5. Media tray/size 6. Status/warnings

Function: Access to optional features

1x 2x

www.xerox.com/office/6115support 10

Scanning

Phaser 6115MFP Software and

Documentation CD-ROM

Print and Scan

Drivers and Utilities

Installation Video

User guide

Windows,

Mac OS

www.xerox.com/office/6115support

60 – 90 g/m2

(16 – 24 lb. Bond)

WW: 140– 216 mm (5.5 – 8.5 in.)

H: 148 – 356 mm (5.83 – 14 in.)

Scanning

To learn about advanced scanning techniques,

see the Scanning chapter in the User Guide.

To learn about advanced scanning techniques,

see the Scanning chapter in the User Guide.

USB (TWAIN/WIA) and Network (email) scanning function

differently. To setup scanning for your connection, see the

Features Setup Guide (printed booklet or PDF online).

USB (TWAIN/WIA) and Network (email) scanning function

differently. To setup scanning for your connection, see the

Features Setup Guide (printed booklet or PDF online).

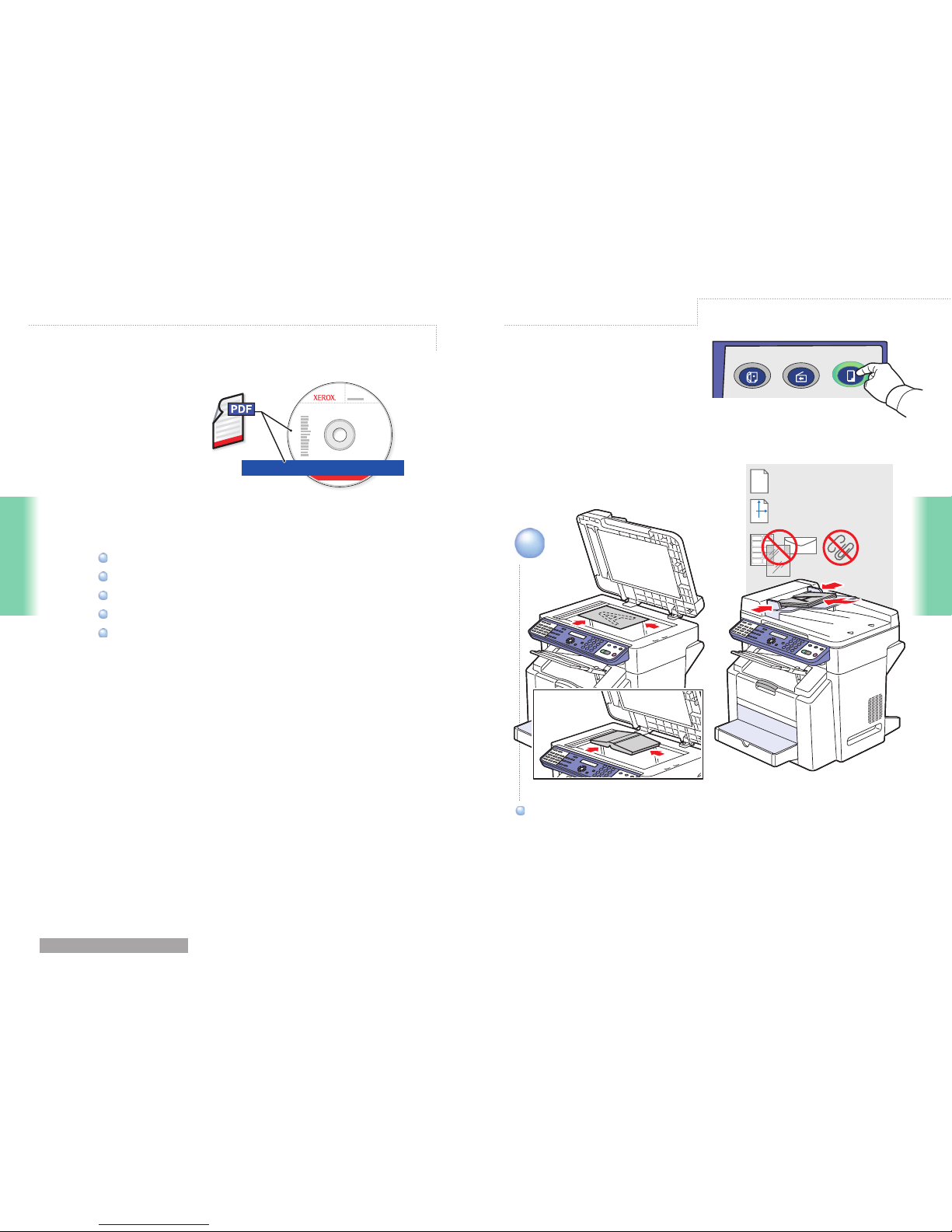

Loading Original
