Maintenance
This section includes:
■"Adding Ink" on page 7-32
■"Emptying the Waste Tray" on page 7-36
■"Replacing the Maintenance Kit" on page 7-39
■"Cleaning the Paper Release Blade" on page 7-41
■"Cleaning the Maintenance Kit Wiper Blade" on page 7-45
■"Cleaning the Outside of the System" on page 7-47
■"Cleaning the Document Glass and Document Feeder" on page 7-47
For safety information, see Appendix A of this guide.
Your system needs little maintenance to keep it producing quality prints. Besides adding ink,
you will eventually need to replace the maintenance kit. Order an extra maintenance kit
(standard capacity or extended capacity) when the control panel displays a warning that the
maintenance kit is nearing the end of its life. You must replace the kit when the control panel
displays an error message to replace the maintenance kit.
To view the life remaining and installation date of the maintenance kit:
1. On the control panel, press the System Setup button.
2. In the menu, select Information, then press the Enter button.
3. Select Supplies Info, then press the Enter button.
4. Select Maintenance Kit Life, then press the Enter button.
For information about supplies, go to www.xerox.com/office/c2424supplies. Each supply
includes installation instructions with the packaging.
Maintenance
WorkCentre® C2424 Copier-Printer
7-32
Adding Ink
You can load ink any time the system is idle, or when the control panel displays the Ink low or
Add Ink message.
Note
To minimize waste ink and optimize performance, leave the printer on all the time.
■Keep ink in its packaging until you are ready to use it.
■Identify ink by shape, not color.
■To avoid ink jams, never insert broken ink sticks into the ink-loading bins.
Caution
Use of other than Genuine Xerox WorkCentre C2424 Solid Ink may affect print quality
and system reliability. It is the only ink designed and manufactured under strict quality
controls by Xerox for specific use with this system. The Xerox Warranty, Service
Agreements, and Total Satisfaction Guarantee do not cover damage, malfunction, or
degradation of performance caused by use of non-Xerox supplies, or the use of Xerox
supplies not specified for this system.
Note
The Total Satisfaction Guarantee is available in the United States and Canada.
Coverage may vary outside these areas; please contact your local representative for
details.
Videos are available with instructions for adding ink. Videos are located on the
User Documentation CD-ROM and at www.xerox.com/office/c2424support.
Maintenance
WorkCentre® C2424 Copier-Printer
7-33
Follow these steps to load ink.

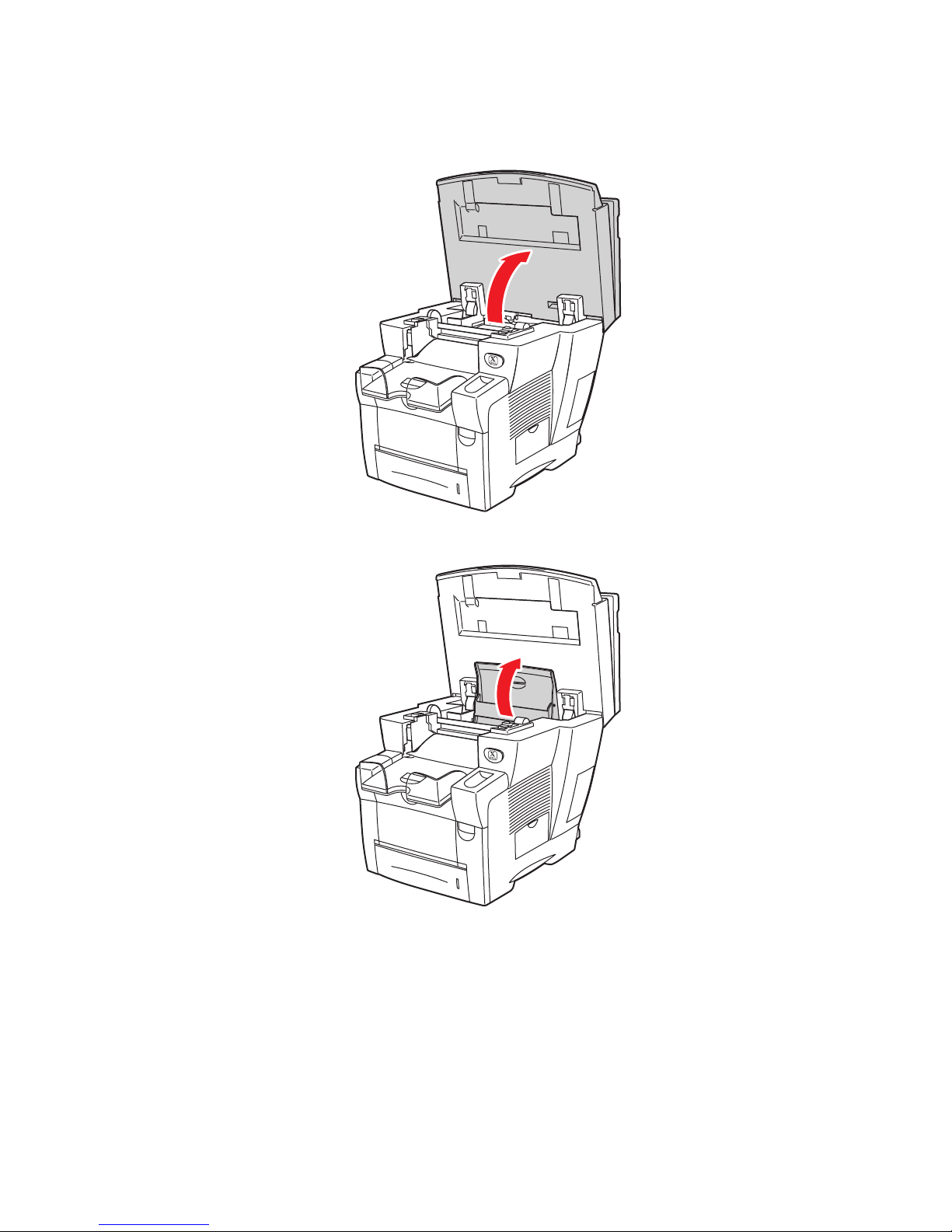

1. Lift the control panel.
2. Open the ink cover.
3. Determine which ink-loading bin appears low. A label above each bin indicates the color
of ink in that bin.
4. Remove the ink stick from its packaging.
2424-01
2
2424-013
Maintenance
WorkCentre® C2424 Copier-Printer
7-34
5. Place the ink stick into the opening of the appropriate ink-loading bin. Each ink stick is
uniquely shaped to fit into the correct ink-loading bin. Do not force the ink stick into the
ink-loading bin.
6. Close the ink cover.
2424-014
12
3
4
2424-015
Maintenance
WorkCentre® C2424 Copier-Printer
7-35
7. Close the control panel.
To order ink, contact your local reseller or visit the Xerox web site at
www.xerox.com/office/c2424supplies. Instructions are included on the package.
2424-01
6
Maintenance
WorkCentre® C2424 Copier-Printer
7-36
Emptying the Waste Tray
Empty the green waste tray (labeled B) when the control panel displays a message stating that
the waste tray is full.
Caution
The system’s interior may be hot. Do not touch the hot surfaces!
1. Open the side door.
Videos are available with instructions for emptying the waste tray. Videos are
located on the User Documentation CD-ROM and at www.xerox.com/office/
c2424support.
2424-035
Maintenance
WorkCentre® C2424 Copier-Printer
7-37
2. Pull the green waste tray (labeled B) completely out of the system.
Caution
The waste tray may be hot; handle it carefully!
3. Empty the waste tray into a waste container. Waste ink can be discarded as normal office
waste.
2424-036
2424-037
Maintenance
WorkCentre® C2424 Copier-Printer
7-38
4. Insert the waste tray and push it completely into the system.
Note
The waste tray must be out of the system for more than 5 seconds or you will continue
to receive a Empty Waste Tray message on the control panel.
5. Close the side door.
Caution
Do not attempt to reuse the waste ink in the printer; it may damage the printer. This
damage is not covered under the printer warranty.
2424-038
2424-039
Maintenance
WorkCentre® C2424 Copier-Printer
7-39
Replacing the Maintenance Kit
The orange maintenance kit (labeled A) contains a maintenance roller that keeps the surface of
the imagining drum clean and oiled.
Note
Order a new maintenance kit when the control panel displays a message telling you that
the maintenance kit is nearing the end of its life. To order a new maintenance kit, contact
your local reseller or visit the Xerox web site at www.xerox.com/office/c2424supplies.
Instructions are included with the new maintenance kit.
Caution
The system’s interior may be hot. Do not touch the hot surfaces!
The system stops printing and displays an error message when the maintenance kit needs
replacement.
To replace the maintenance kit:
1. Open the side door.
Videos are available with instructions for replacing the maintenance kit. Videos
are located on the User Documentation CD-ROM and at www.xerox.com/office/
c2424support.
2424-035
Maintenance
WorkCentre® C2424 Copier-Printer
7-40

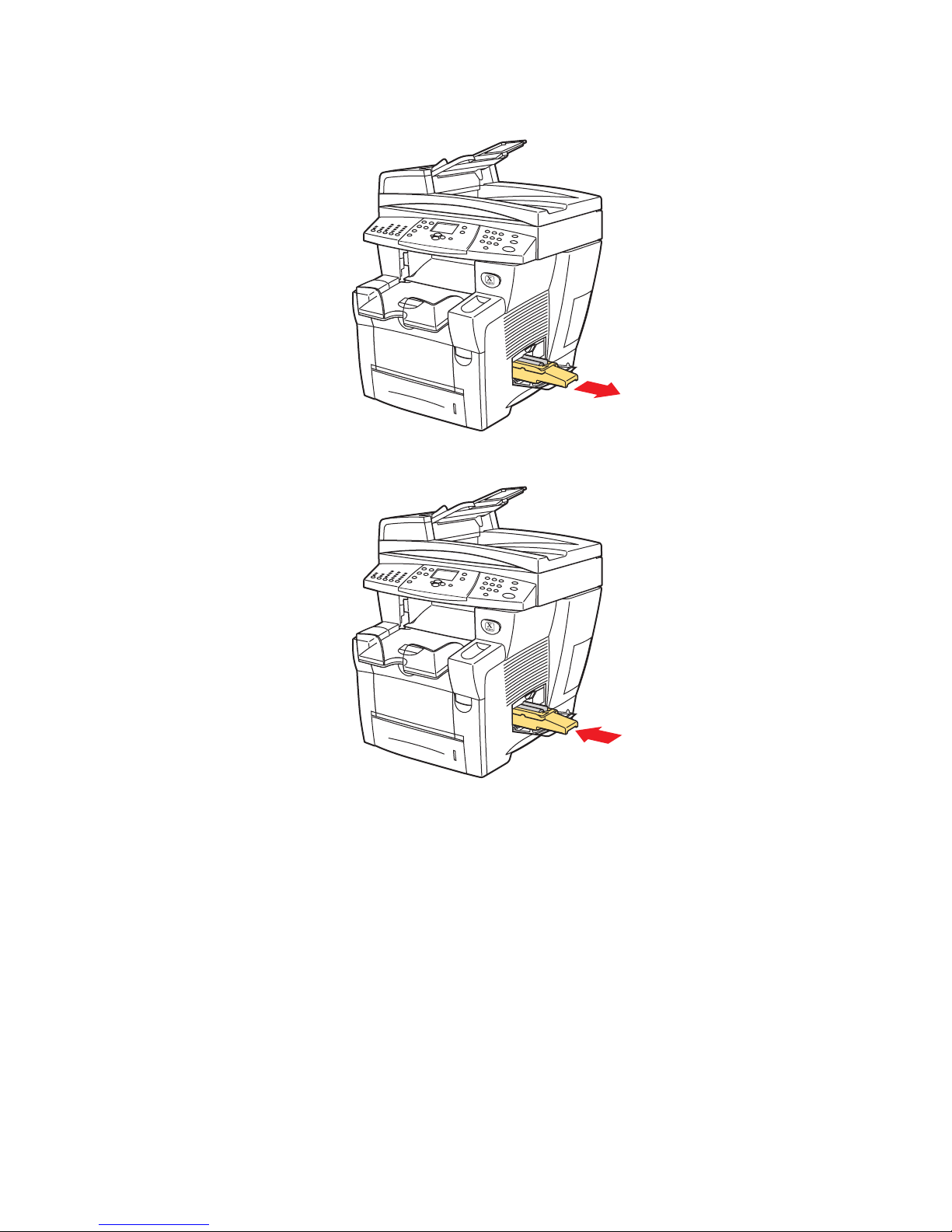

2. Pull the orange maintenance kit (labeled A) completely out of the system.
3. Insert a new maintenance kit.
2424-033
2424-034
