Xerox WORKCENTRE C2424 Manuale utente

WorkCentre® C2424 Copier-Printer

1-1

This chapter includes:

■"System Tour" on page 1-2

■"The Control Panel" on page 1-7

■"Managing Your System" on page 1-12

■"System Settings" on page 1-14

Features

System Tour

WorkCentre® C2424 Copier-Printer

1-2

System Tour

This section includes:

■"System Features" on page 1-2

■"Front View" on page 1-3

■"Side View" on page 1-3

■"Back View" on page 1-4

■"Open View" on page 1-4

■"System Options and Accessories" on page 1-5

■"Printer and Scanner Drivers" on page 1-5

■"Additional Resources" on page 1-6

System Features

The WorkCentre C2424 Copier-Printer embodies many features to meet your office needs:

■Great performance and superior print quality

■24 pages per minute (ppm) with consistent, vibrant, artifact-free color prints and

copies

■6 second first page out color prints

■256 MB of RAM standard; optional up to 1 GB of RAM

■Job pipelining

■Fast and easy copying and scanning

■Duplex automatic document feeder for 1- and 2-sided originals

■First page out color copies under 15 seconds, with subsequent copies at printer speed

■Preset copy adjustments for bound originals, enlargements/reductions, and 4x4 posters

■Scan resolutions up to 600 dpi

■Flexible paper handling

■Tray 1: 100-sheet capacity

■Tray 2: 525-sheet capacity

■Tray 3: optional 525-sheet capacity

■Tray 4: optional 525-sheet capacity

■Accommodates a wide range of media types and custom size paper

■Wide variety of productivity features

■High quality color

■Easy to replace ink sticks

■PhaserSMART online troubleshooting

■CentreWare IS provides an embedded web server to help manage, configure, and

troubleshoot the system from your computer.

■Usage Analysis Tool provides cost tracking that logs each job and the cost for each

page.

■PrintingScout provides on-screen notification and guidance if the system needs help.

■MaiLinX email notifies a specific person when supplies or maintenance are needed.

■MaiLinX allows printing to your network system from anywhere you have email.

System Tour

WorkCentre® C2424 Copier-Printer

1-3

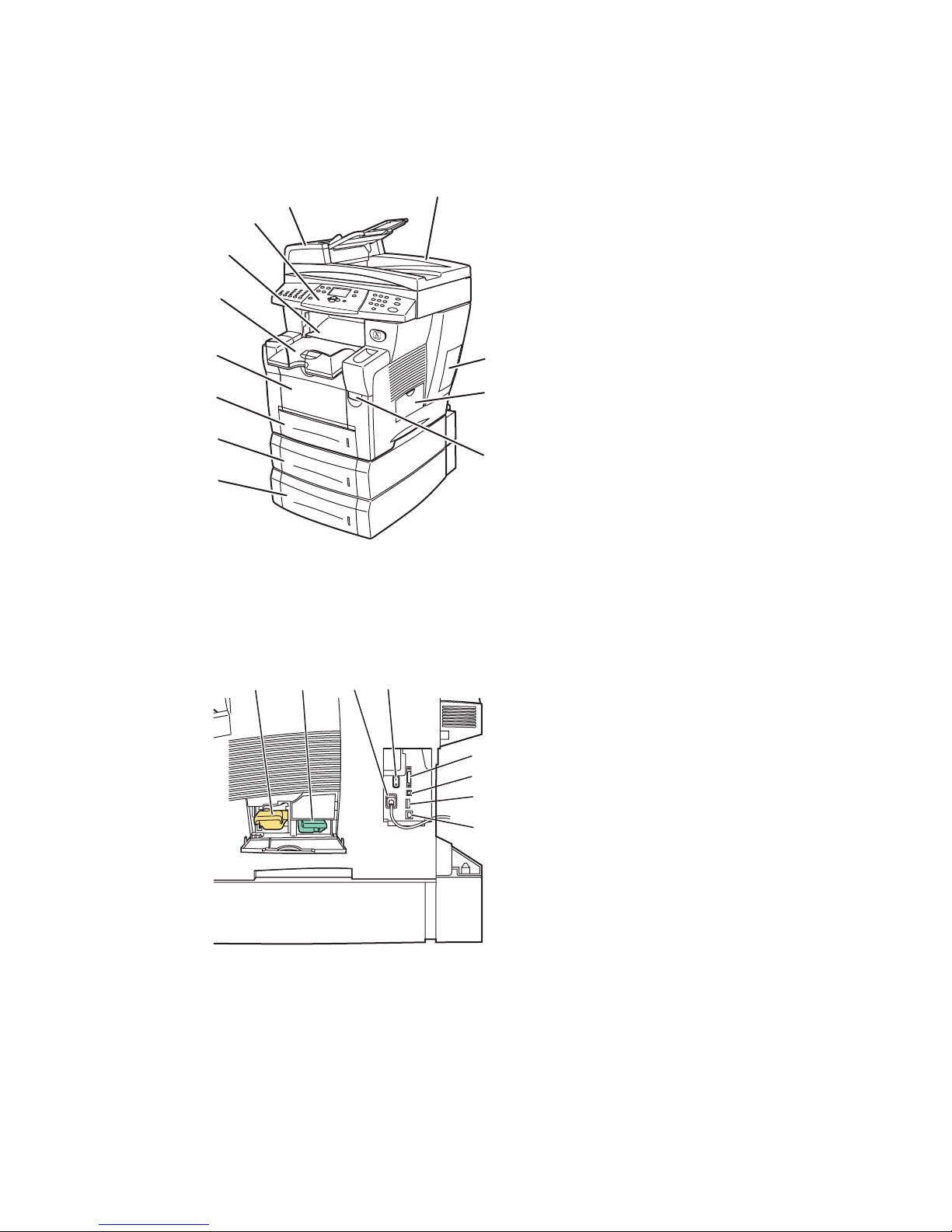

Front View

Side View

1. Tray 4 (optional)

2. Tray 3 (optional)

3. Tray 2

4. Tray 1

5. Output tray

6. Exit cover

7. Control panel

8. Document feeder access cover

9. Duplex automatic document feeder

10. Interface cover

11. Side door

12. Front cover release (product serial

number is behind the front cover)

1. Maintenance kit

2. Waste tray

3. Power cord connection

4. Power switch

5. Scanner cable connection

6. USB connection

7. Configuration card

8. Ethernet 10/100 Base-T connection

2424-080

2424-081

1234

System Tour

WorkCentre® C2424 Copier-Printer

1-4

Back View

Open View

1. Hard drive

2. RAM slots

3. Stabilizer

1. Short paper stop

2. Exit cover

3. Ink cover

2424-082

2424-171

System Tour

WorkCentre® C2424 Copier-Printer

1-5

System Options and Accessories

Options

■Two RAM slots, supporting 128, 256, and 512 MB memory cards (maximum 1 GB)

■Two 525-Sheet Feeders

Accessory

■System Cart

For more information on options and accessories, go to www.xerox.com/office/c2424supplies.

Printer and Scanner Drivers

In order to access the full features of your system, install the printer and scanner drivers from

the WorkCentre C2424 Software CD-ROM or the driver web site at:

www.xerox.com/office/drivers.

Printer drivers enable your computer and printer to communicate and provide access to your

printer features. Xerox makes driver installation easy with its Walk-Up Technology. For more

information about printer drivers, see the video at www.xerox.com/office/drivers.

For more information about using the printer driver to access special features, see the Printing

chapter of this guide.

Scanner drivers enable you to:

■Scan images directly to your personal computer

■Acquire scanned images directly into an application

For more information about installing and using the scanner driver, see the Scanning chapter

of this guide.

System Tour

WorkCentre® C2424 Copier-Printer

1-6

Additional Resources

You can obtain information regarding your system and its capabilities from the following

sources:

Information Source

Setup Guide*

Quick Reference Guide*

Supplies and Services Guide

Packaged with system

User Guide and videos* Packaged with system

(User Documentation CD-ROM)

Printer Management Tools www.xerox.com/office/pmtools

infoSMART Knowledge Base www.xerox.com/office/c2424infoSMART

PhaserSMART www.phaserSMART.com

Technical Support www.xerox.com/office/c2424support

Information about menu selection or error

messages on control panel

Control panel Help (?) button

Information pages Control panel menu

* Also available on the Technical Support web site.

The Control Panel

WorkCentre® C2424 Copier-Printer

1-7

The Control Panel

This section includes:

■"Control Panel Features" on page 1-7

■"Control Panel Layout" on page 1-7

■"Menu Map" on page 1-10

■"Information Pages and Sample Pages" on page 1-11

Control Panel Features

The control panel:

■Displays the system’s operating status or errors and warnings.

■Prompts you to load paper, replace supplies, and clear jams.

■Enables you to select settings for your print, copy, and scan jobs.

■Displays menus that enable you to change system settings and access tools to help resolve

problems.

See "System Settings" on page 1-14 for details about changing system settings.

Control Panel Layout

The control panel is divided into three major areas.

Left side

Copying and scanning function

buttons and LEDs

Middle

Graphic display screen, mode

buttons, menu navigation

buttons, shortcut buttons, and

status LEDs

Right side

Numeric keypad, Clear/Clear

All, Stop, and Start buttons

2424-172

The Control Panel

WorkCentre® C2424 Copier-Printer

1-8

Left Side of the Control Panel

The left side of the control panel contains the

following copy and scan function buttons and

LEDs. A green LED shows the current selection.

More details about using these buttons are

provided in the Copying and Scanning chapters of

this guide.

1. Output button and LEDs (copy only)

Press to select Uncollated or Collated for your

copies.

2. Color Mode button and LEDs

Press to select B/W (black and white) or Color

for your copy or scan job.

3. 2-Sided button and LEDs

Press to select whether the original is 2-

sided and whether you want the output 2-

sided.

4. Output Quality button and LEDs (copy only)

Press to select the output quality for the

copy job.

5. Original Type button and LEDs

Press to select the type of original for your

copy or scan job.

2424-17

12345

The Control Panel

WorkCentre® C2424 Copier-Printer

1-9

Middle of the Control Panel

1. Original Size button

Press to jump to Original Size option on the

menu.

2. Lighten/Darken button

Press to jump to the Lighten/Darken option on

the menu.

3. Reduce/Enlarge button

Press to jump to Reduce/Enlarge option on

the menu.

4. Paper Supply button

Press to jump to the Paper Supply option on

the menu.

5. Copy button

Press to display the Copy menu on the graphic

display.

6. Scan button

Press to display the Scan menu on the graphic

display.

7. Graphic display shows status messages and

menus.

8. Up Arrow button

Scrolls upward.

9. Enter button

Accepts the setting selected.

10. Status Indicator LED:

Blinking green = System is busy or in

Standby or PowerSaver mode

Steady green = Ready

11. Down Arrow button

Scrolls downward.

12. Status Indicator LED:

Blinking red = Error condition, stops job

Yellow = Warning, continues job

13. Back button

Returns to the previous menu item.

14. Print button

Press to display the Print menu on the

graphic display.

15. System Setup button

Press to display the System Setup menu on

the graphic display.

16. Help (?) button

Press to display a help message explaining

the menu or message shown on the graphic

display.

2424-174

11 10

1213

The Control Panel

WorkCentre® C2424 Copier-Printer

1-10

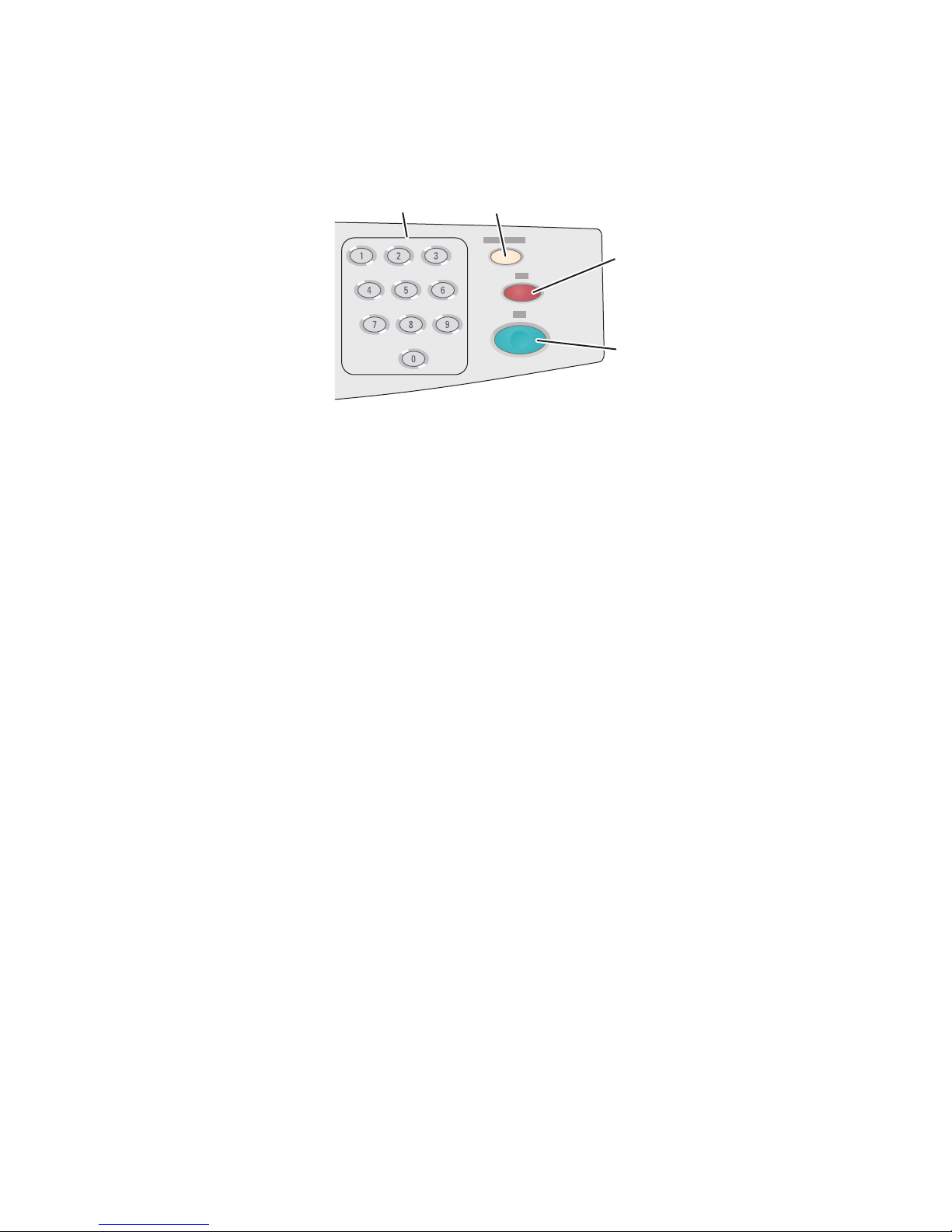

Right Side of the Control Panel

Menu Map

The Menu Map is a visual representation of the control panel menu structure. You can use it to

see how to access the system settings and information pages. To print the Menu Map:

1. On the control panel, press the System Setup button.

2. In the menu, select Information, then press the Enter button.

3. Select Menu Map, then press the Enter button to print.

1. Number keys

Press to enter a number, such as for the

number of copies or a numeric password.

2. Clear/Clear All button

Press once to reset the current menu selection;

press twice to reset the system.

3. Stop button

Press to pause the printing of the current

copy or print job. To then cancel the job,

follow the instructions shown on the graphic

display.

4. Start button

Press to start a copy or scan job.

2424-17
