Xerox WorkCentre M15 Manuale utente

Xerox WorkCentre M15/M15i

Quick Start Guide

604P13312

Control Panel

Automatic Document

Feeder

USB Connector

Side

Cover

Front Cover

Bypass

Tray

Parallel

Connector

Telephone

Connections:

EXT.

LINE

Document

Cover

Document

Guides

ADF Connector

Document

Input Tray

On/Off

Switch

Scanner Module

Paper Cassette

Release

Latch

Document

Collate Tray

Document

Glass

AC Power Cord

Connector

Output Tray

Page 2

Welcome to Your WorkCentre M15/M15i

Thank you for choosing the Xerox WorkCentre M15/M15i.

To support the delivery of your new machine please refer to the following:

ØQuick Start Guide

ØInstallation Sheet

ØUser Guide

The following pages contain an overview of the main features to help you get

started. If you require more detailed information about any of the features

available on your WorkCentre M15/M15i, please refer to the User Guide.

The Document Company Xerox

GKLS European Operations

Bessemer Road

Welwyn Garden City

Hertfordshire

AL7 1HE

ENGLAND

information now allowed by statutory or judicial law or hereinafter granted, including without

limitations, material generated from the software programs which are displayed on the screen,

such as icons, screen displays, looks etc.

Xerox®, The Document Company®, the digital X® and all Xerox products mentioned in this

publication are trademarks of Xerox Corporation. Product names and trademarks of other

companies are hereby acknowledged.

Page 3

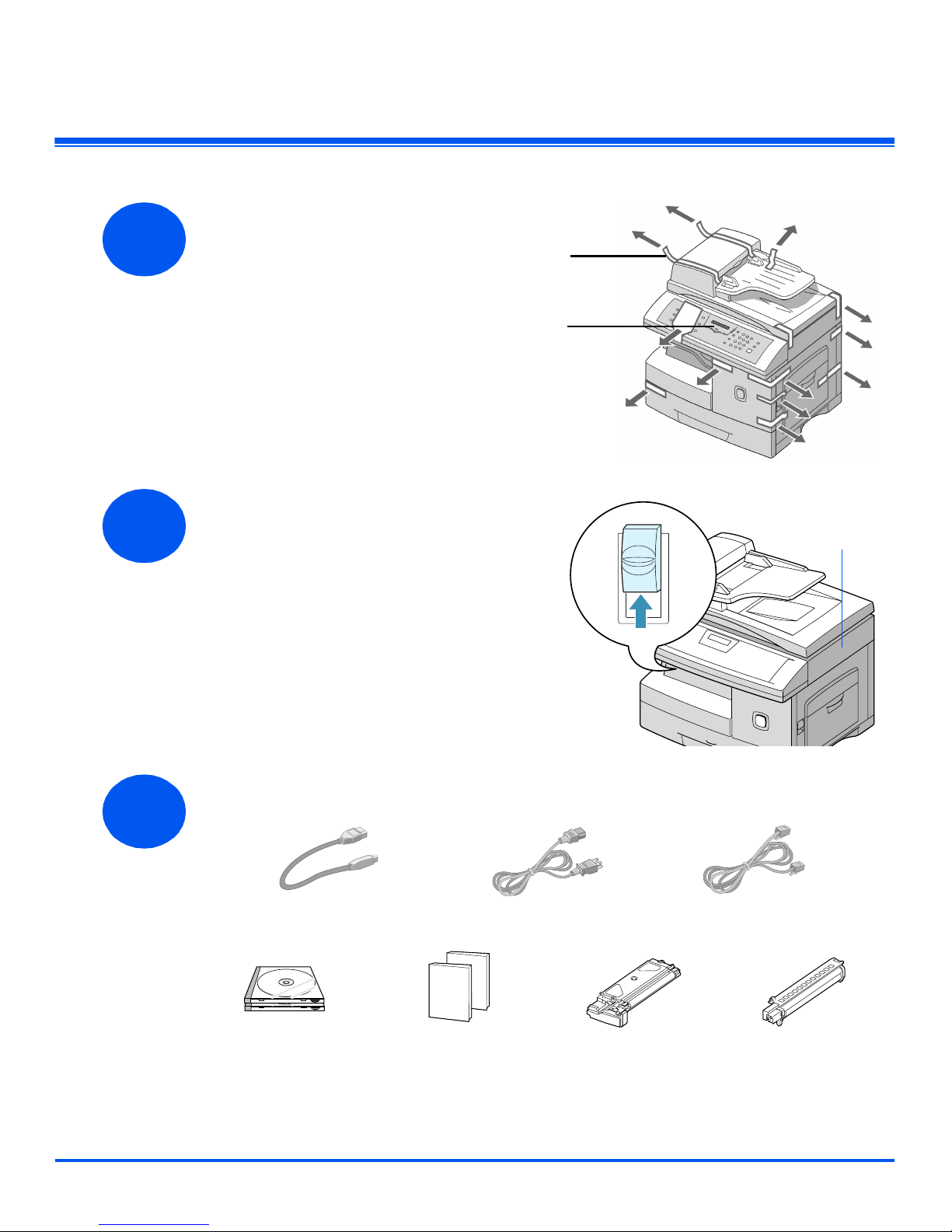

Unpacking

1ØRemove the plastic film from the

LCD.

ØRemove all tapes and packing

materials.

Tape

LCD

2ØPull the Scan Unlock Switch

located on the bottom of the

scanner module to unlock the

scanner.

ØPull open the paper cassette

and remove the packing

material.

Scanner

module

3ØEnsure the following components are available:

USB Cable AC Power Cord Telephone Line Cord

(M15i only)

Software User

Documentation

Starter Toner

Cartridge

Drum

Cartridge

Page 4

Control Panel Overview

WorkCentre M15i

WorkCentre M15

Feature

Keys

Redial/

Pause

Speed

Dial

Manual

Group

Manual

Dial

Numeric

Keypad

Start

Stop

Clear/

Clear All

Error

Display

Pause PC

Printing

Navigation

Keys

Copy/Fax/

Scan

Enter

Menu/

Exit

Job

Status

Liquid Crystal

Display (LCD)

Feature

Keys

Numeric

Keypad

Start

Stop

Clear/

Clear All

Error

Display

Pause PC

Printing

Navigation

Keys

Menu/Exit

Enter

Liquid Crystal

Display (LCD)

Page 5

Making Connections

Use the following instructions to make the necessary connections required to

install the WorkCentre M15/M15i.

Automatic Document Feeder (ADF)

Telephone Line (M15i only)

1ØConnect the Automatic

Document Feeder Cable to the

port shown and fasten the side

screws.

Note: The ADF is an option on the M15

2ØConnect the Telephone Line

Cord from the wall jack to the

LINE jack.

ØIf required, connect an

answering machine and/or

telephone to the EXT jack.

Page 6

USB or Parallel Port Cable

Power

USB Cable

IEEE1284 (Parallel Port)

Cable

CAUTION: Shut down the computer

before connecting the cable.

ØConnect the USB Cable directly

to the PC.

ØConnect an IEEE1284 Parallel

Port Cable (sold separately).

4ØConnect the AC Power Cord to

the machine and a power outlet.

ØPress the ON/OFF switch to the

ON ( I) position.

The machine displays

’WARMING UP PLEASE

WAIT...’

Page 7

Installing Cartridges

1ØPull the release latch to open

the side cover.

2ØOpen the front cover.

3ØUnpack the new drum cartridge.

Be careful not to touch the

surface of the drum.

ØSlide the drum cartridge into the

slot on right side of the opening.

Page 8

4ØRemove the starter toner

cartridge from its packaging.

ØGently shake the cartridge to

loosen the toner.

Shaking the cartridge will

ensure maximum copies per

cartridge.

5ØTurn the toner locking lever

upwards.

ØSlide the new toner cartridge in

until it locks in place.

6ØTurn the toner locking lever

downwards until it locks in

place.

ØClose the front cover and the

side cover.

The product returns to Standby

mode.

Page 9

Loading Paper

1ØPull open the paper cassette.

ØPush down on the pressure

plate until it locks into position.

2ØAdjust the rear paper guide to

the required paper length.

It is preset to A4 or 8.5 x 11"

size depending on country.

ØTo load another size, lift the rear

guide out of the current position

and into the required position.

LGL FOLIO A4 LTR

Rear

Guide

3ØFan the paper and insert it into

the cassette.

iThe paper cassette can hold a maximum

of 550 sheets of 80 g/m2(20 lb) plain

paper.

Page 10

4ØEnsure that the paper is

positioned under the snubber.

Do not fill above the maximum

fill line.

Max Fill

Line

Snubber

5ØPosition the side guide by

squeezing the lever and sliding

it toward the stack of paper, until

it gently touches the side of the

stack.

Do not allow the guide to press

against the edge of the paper

tightly.

ØClose the paper cassette.
