Xomax XM-R280 Manuale utente

MODEL: XM-R280

Instruction Manual

1-Din Car MP3 Player & Stereo Radio

AM/FM 2 Band, USB, Bluetooth

Installation

Installation Procedures

First complete the electrical connections and then check for correctness.

Installation Opening

This unit can be installed in any dashboard Having an opening as shown

below.

To Install the Car Radio

Be sure you test all connections first, and then follow these steps to install this

unit.

1. Make sure the ignition is turned off, and then disconnect the cable from the

vehicle battery’s negative (-) terminal.

2. Disconnect the wire harness and the antenna.

3. Insert the two bracket keys into the left and right side of the chassis, as

shown the below figure to separate the chassis from the housing.

53 mm

182 mm

Bracket key

5. Insert mounting sleeve into the dashboard and bend the mounting tabs out

with a screwdriver. Make sure that the lock lever is flush with the mounting

sleeve and is not projecting beyond.

6. Insert car radio into the mounting sleeve.

7. Make wiring connections, as illustrated in the “Wiring Diagram.”

8. Install the plastic outer trim ring.

Installation

Connect all wiring harness and slide the head unit into the mounting

collar until it clicks into place.

- Only use speakers with 4 ohms impedance.

- +12V DC Negative Ground.

- The maximum current of the Amp remote trigger is 200mA.

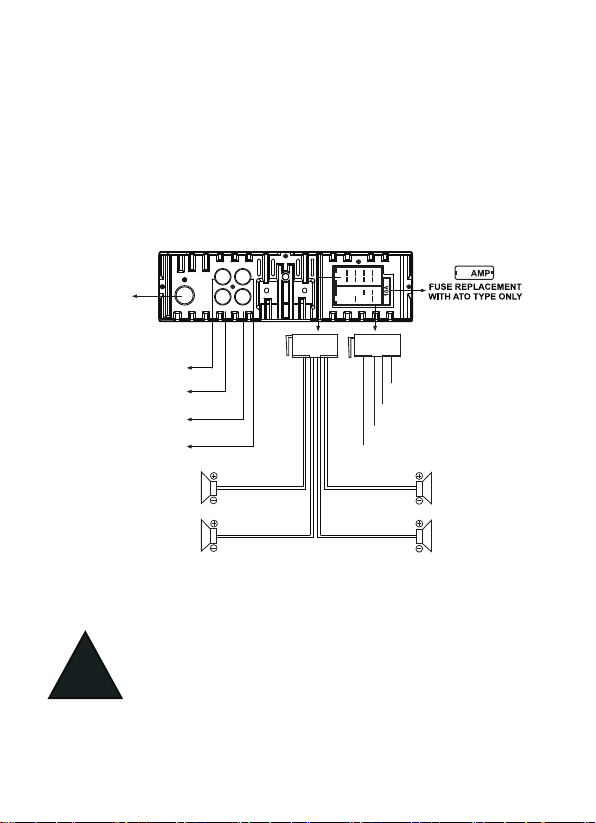

Wiring Connections

Red: Front Right PRE-AMP Output

White: Front Left PRE-AMP Output

White: Rear Left PRE-AMP Output

Red: Rear Right PRE-AMP Output

Radio Antenna

ACC + (Red)

GND - (Black)

ANT + (Blue)

Power B + (Yellow)

Purple

Rear Right Speaker

Front Right Speaker

Rear Left Speaker

Front Left Speaker

Purple/Black Green/Black

White

White/Black

Gray

Gray/Black

Green

ANT F-R R-R

F-L R-L

Overview of the Controls

1. POWER(power on/off) button,

VOL(volume) knob,

MODE (Mode selector) button,

(end call) button

2. LED Display

3. IR remote sensor

4. BAND button,

Tuning knob,

Preset memory station selector

AMS (auto store / preset station scan, auto music search) button

(Answer call) button

5. 5V/2.1A USB charge port for most smartphone

6. AUX IN (auxiliary input) jack

7. USB Player Port for music playback

8. Reset button

9. Hands-free Microphone

Using this socket, it is possible to hear the sound of other playback devices

such as MP3 players, CD players etc. through the car loudspeaker.

1. Please connect the external device with a 3.5 mm stereo jack plug to the

AUX socket.

2. Press the MODE button repeatedly until “AUX IN” appears in the display.

3. You hear the playback from the external device via the loudspeakers.

You can adjust the volume of the external device to a comfortable level with

the volume control of this device.

Auxiliarly Operation

Remote Control

LOC

113

1. (Power on/off) button

2. SEL(Audio/Menu) button

3/15. (Tune down, seek down /

Track down, Fast reverse) button

(Tune up, seek up/ Track up,

Fast forward) button

4/14. VOL+(volume increase) button,

VOL-(volume decrease) button

5. MUTE button, DEL(Delete) button

6. INT (intro), Preset station 2, Keypad 2

7. (pause/play), Preset station 1, Keypad 1

8. -10(previous 10 tracks), previous folder,

Preset station 5, Keypad 5

9. RDM (random), Preset station 4, Keypad 4

10. LOUD(Loudness), Keypad 8

11. STEREO/MONO, Keypad 7

12. MODE button, Keypad *

13. Band button, (answer call) button

16. CLK(Clock setting), (end call) button

17. RPT (repeat), Preset station 3, Keypad 3

18. +10(next 10 tracks), next folder, Preset station 6, Keypad 6

19. AMS (auto store / preset station scan, auto music search), Keypad 9

20. EQ(Equalizer Preset) , Keypad #0

21. LOC(Local)/DX(Distant) Reception, Keypad #

Note: When using the remote control for the first time, you must pull out the

portective plastic tab from the battery compartment found on the back of the

remote control.

- BASS/TREBLE: -7, -6, ~, 1, 0, +1,~, +6, +7

- BALANCE: L7, L6,~, L1, 0, R1,~,R6, R7

- FADER: R7, R6, ~, R1, 0, F1, ~ ,F6, F7

- EQ(Equalizer) Setting: OFF, CLASS, ROCK, POP, FLAT

- Loudness: LOUD ON/OFF

- DX/LOCAL: Enables or disables the local broadcast mode (LOCAL).

- Stereo/Mono: Switches between MONO and STEREO reception mode

for radio frequencies.

- CLOCK 12/24: Select between 12 hours and 24 hours display.

Note: If 12 hour display is selected , AM= Morning; PM= Afternoon

• Rotate the VOL knob to adjust the selected item.

General Operation

Turn Unit on/off, Change the Source

• Press the Power on/off button (volume knob) to turun on the unit.

Press and hold the Power on/off button to turn off the unit.

Change Modes(Source)

• Press the MODE button to select the different modes: Radio, USB(with USB

device inserted), AUX IN(auxiliary input) and BT(Bluetooth) modes.

Adjust the volume (VOL)

Rotate the VOL knob to increase or decrease the volume level.

Adjust Menu Options (SEL)

• Short press the SEL button on the remote control to enter the settings mode,

then press the SEL button repeatedly to cycle button repeatedly to cycle

General Operation

Auxiliary Input Jack

USB Charge for smartphone

The blue USB port is designed for charging for iPhone / android mobile

phone. The charging current consumption is 2.1 ampere.

Play Songs from USB flash memory device

The black USB port is designed for music playback from ﬂash memory

devices. If you would like to play MP3/WMA songs contained in a USB ﬂash

memory device, please insert the USB ﬂash memory device into this USB

port. The unit will play automatically MP3/WMA songs.

IR remote sensor

Reset

Push the RESET button with a thin object with a pointed end to reset all

parameters to factory default settings.This function may be used when the

LCD does not display normally or sound is distorted, or when any of controls

are disabled.

Radio Operation

Change Bands

In radio mode, short press the BAND NQRE to switch between the FM1(F1),

FM2(F2), FM3(F3) and AM1(A1), AM2(A2) bands.

Seek Tuning

In radio mode, quick rotate the tuning knob to seek previous or next strong

signal radio station within the cuttent band. The seek tuning will stop until

find a station or press the tuning knob again.

Auto Store Preset station (AMS)

In radio mode, press and hold the AMS button (tuning knob) to store 18 FM

and 12 AM preset stations automatically.

To Recall Preset Stations

Slowly rotate tuning knob to change recalling preset station.

USB Operation

The black USB port is designed for music playback from ﬂash memory

devices. If you would like to play MP3/WMA songs contained in a USB ﬂash

memory device, please insert the USB ﬂash memory device into this USB

port. The unit will play automatically MP3/WMA songs.

Select Next Track or Previous Track

In the USB mode, rotate the tuning knob ( / ) to play the the next or

previous track.

Select the track or file for playback in MP3 format

a) Press the AMS button (tuning knob) to enter track search mode.

First “TRK0000“ will appear on the LCD display.

b) Rotate the volume knob select the number of your favorite track wtih high

speed.

c) When the desired track number appears, confirm your selection by

pressing SEL button (Volume knob).

If no any operation in 5 seconds, it will play the current track.

LOCAL/DX

Press the LOC button on the remote control to choose local or distant

reception mode.

STEREO/MONO

Press the ST button on the remote control to choose FM STEREO or MONO

audio effect.

Bluetooth Operation

Pair and Connect

Before using a Bluetooth device for the first time, it must be paired and

connected.

1. This head unit broadcasts the pairing signal constantly when no devices

are connected. User can complete the pairing steps from your Bluetooth

device. Refer to owner’s manual for your device for more details.

2. When the phone finds the car audio system, the “XOMAX” name will be

displayed. Choose the “XOMAX” from the device list to pair and connect

with the car audio system. Upon confirming, the BT logo will stop flashing.

Making a Call

• To make a call, dial the call directly from the paired mobile phone.

• To make a call with this bluetooth handsfree system:

a) When linking up the Bluetooth enabled mobile phone to this bluetooth

handsfree system, press the button on the remote control to access

the dial telephone number mode.

then press the“0~9”, *and # button on remote control to input the tele-

phone number, the entered number will be shown on the LCD display.

b) If a number has been incorrectly inputted, press the button or press

the DEL button on the remote cotnrol to delete it.

c) Press the button to make outgoing call.

Answer a Call

When the mobile phone is called, the incoming telephone number displays

on the LCD display. press the button on front panel or the button

on the remote control to answer the incoming phones.

Redial Last Dialed Number

Press and hold the button on the front panel or button on the remote

control to redial the last dialed phone number.

Reject or End a Call

Press the button on the front panel or button on the remote control

to reject or end the call.

Switch Audio Between Car Audio and mobile Phone

During a call, press the button on the front panel or SELECT buuton on

the remote control to switch the audio source from the car audio system back

to your mobile phone.

Bluetooth Operation

Adjust Call Volume

During a talk, use VOL knob or VOL+ /VOL- button to adjust the call

volume level.

Audio Streaming (A2DP)

This head unit supports A2DP (advanced audio distribution profile) wireless

streaming audio from a Bluetooth mobile device directly to your head unit.

The following functions can be used to control the music playback.

A2DP Music Playback

• Rotate the tuning knob ( / ) on front panel to play the the next or

previous track.

• Press the tuning knob ( ) on front panel to pause or restore the music

playback.

• Skip to Next music

Press the button on the remote control to play the next music in the

mobile phone.

• Skip to Previous music

Press the button on the remote control to previous music in the mobile

phone.

• PLAY/PAUSE

Press the button on the remote control to pause or restore the music

playback.

Indice

Altri manuali Xomax Ricevitore per auto

Xomax

Xomax XM-RSU262BT Manuale utente

Xomax

Xomax XM-DTSBN918 Istruzioni operative

Xomax

Xomax XM-2RSU417 Manuale utente

Xomax

Xomax XM-2DA702 Manuale utente

Xomax

Xomax XM-RSU228 Manuale utente

Xomax

Xomax XM-R278 Manuale utente

Xomax

Xomax XM-DTSB928 V2 Manuale utente

Xomax

Xomax XM-2DTSBN6214 Manuale utente

Xomax

Xomax XM-RD263 Manuale utente

Xomax

Xomax XM-2R422 Manuale utente

Xomax

Xomax XM-RSU221BT Manuale utente

Xomax

Xomax XM-RSU225BT Manuale utente

Xomax

Xomax XM-2RSU418BT Manuale utente

Xomax

Xomax XM-CDB624 Manuale utente

Xomax

Xomax XM-RSU235BT Manuale utente

Xomax

Xomax XM-R266 Manuale utente

Xomax

Xomax XM-CDB619 Manuale utente

Xomax

Xomax XM-V746 Manuale utente

Xomax

Xomax XM-2VRSUA744 Manuale utente

Xomax

Xomax XM-VRSU4309BT v2 Manuale utente

Xomax

Xomax XM-RSU25 Series Manuale utente

Xomax

Xomax XM-RD263 Manuale utente

Xomax

Xomax XM-DVB3007 Manuale utente

Xomax

Xomax XM-CDB624 Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
