XPAND Edux 3 3D Glasses
DLP®-Link™ 3D Glasses
User Guide
XPAND Edux 3 3D Glasses
DLP®-Link™ 3D Glasses
User Guide
© XPAND, All Rights Reserved. 5 www.xpand.me
Getting Started
What’s Included
»One (1) pair of XPAND Edux 3 3D Glasses
»Three (3) Nosepieces
Compatibility
A 3D Enabled DLP-Link™ TV or DLP-Link™ 3D projector.
3D devices with IR or RF synchronization are NOT supported.
Warranty
1-year limited product repair / replacement warranty. For
detailed warranty statement visit
www.xpand.me
© XPAND, All Rights Reserved. 6 www.xpand.me
Functionality
Glasses Overview
(1) Button (ON, OFF)
(2) LED light
Turning On/Off Your Glasses
»Step 1: ON: Press button (1) once
»Step 2: LED light (2) will ramp from off to bright
»Step 3: OFF: Press button (1) once
»Step 4: LED light (2) will ramp from bright to off
The glasses also automatically turn off if no valid 3D sync is
detected for 5 minutes.
© XPAND, All Rights Reserved. 7 www.xpand.me
Set Your Glasses to Operate in 3D Mode
Set your 3D device to 3D DLP-Link™ mode and turn on the
glasses. When the glasses are in range of your 3D device,
they will automatically start to operate in 3D mode.
Battery low indication
If LED light (2) and shutters flash at power on, battery level
is low. Glasses will continue to operate normally until the
battery is completely discharged.

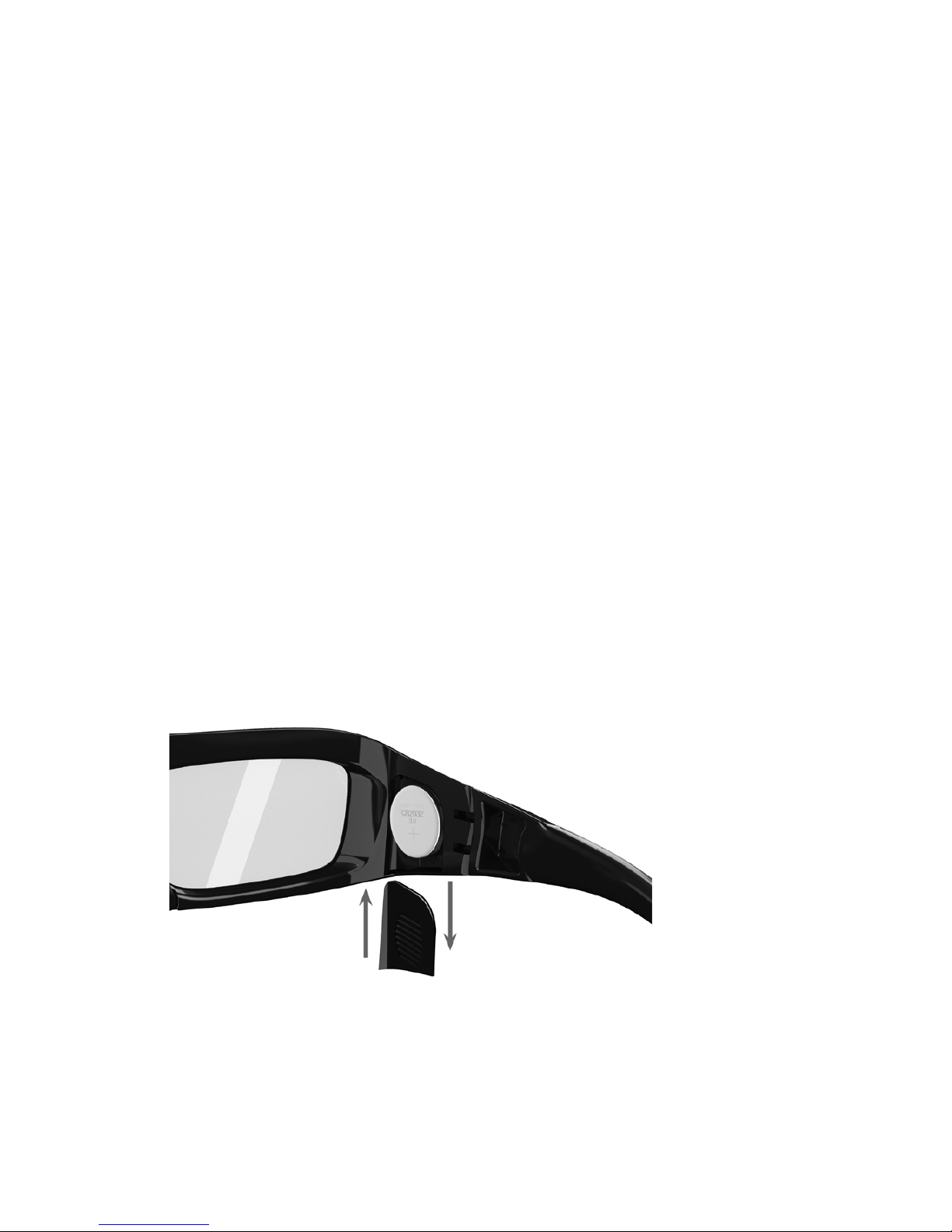

Battery Replacement
»Step 1: Open battery compartment
»Step 2: Take out the battery
»Step 3: Insert new battery
»Step 4: Close the battery compartment
© XPAND, All Rights Reserved. 8 www.xpand.me
Troubleshooting
The glasses don’t work: Make sure that the glasses are
turned on. If problems persist try to turn the ambient lights
off or shade the windows if intensive sunlight is present.
Make sure that your 3D device is set to 3D DLP-Link™
mode. Get closer to the screen. Range of the glasses
strongly depends on the used 3D device and/or projection
screen.
Attention – Consult Accompanying
Documentation
Important Safety Instructions
!Read these instructions.
!Keep these instructions.
!Heed all warnings.
!Follow all instructions.
!Do not use this apparatus near water.
!Clean only with dry cloth.
!Only use the attachments/accessories included
Battery
Replace Battery With Type CR2032 Only. Use of Another
Battery May Present A Risk Of Fire Or Explosion.
© XPAND, All Rights Reserved. 9 www.xpand.me
WARNING, Battery May Explode If Mistreated. Do Not
Recharge, Disassemble, Or Dispose of In Fire.
Dispose Of Used Battery Promptly. Keep Away From
Children.
Viewers need to refer to the recommendations
described below
»Stop watching moving images, if you have any
symptoms of: headache, dizziness, nausea, malaise
and any uncomfortable feelings that might be caused
by the images. It is advisable to take a break for 5 to
15 minutes every hour, even if the symptoms are not
experienced.
»Make the viewing conditions comfortable by:
»Adjusting the illumination, sound and air conditioning.
»Adjusting the height of the chair and desk to suit your
physique.
»Adjusting the brightness, focus or any other
parameters of your display terminal or operating
devices.
»Guardians are encouraged to protect their children’s
health by controlling viewing conditions.
»Avoid unnecessary fatigue caused by overwork or lack
of sleep, before watching visual products.
»When watching stereoscopic images, do not incline your
head relative to the horizontal direction of the images.
»Stop watching stereoscopic images if you notice double
images. It is important that display devices be adjusted
appropriately.
»The recommendations described in this list may apply to
some visual products more than others.
© XPAND, All Rights Reserved. 10 www.xpand.me
Specifications
3D Technology: Active Shutter Glasses
Lens type: LC
Sync Method: DLP-Link™
Refresh: 96 Hz, 100 Hz, 120 Hz, 124 Hz, 144 Hz.
Battery Life: up to 100 hours
Battery Type: CR2032 battery, 220mAh
Temperature: 5 - 45° C
Weight (3D Glasses): 1.9 oz (56g)
Lens size: 2.2” diagonal (57mm)
Dimensions (W x H x D): 6.6” x 1.8” x 6.4”
For further information go to the XPAND web site at www.
xpand.me
