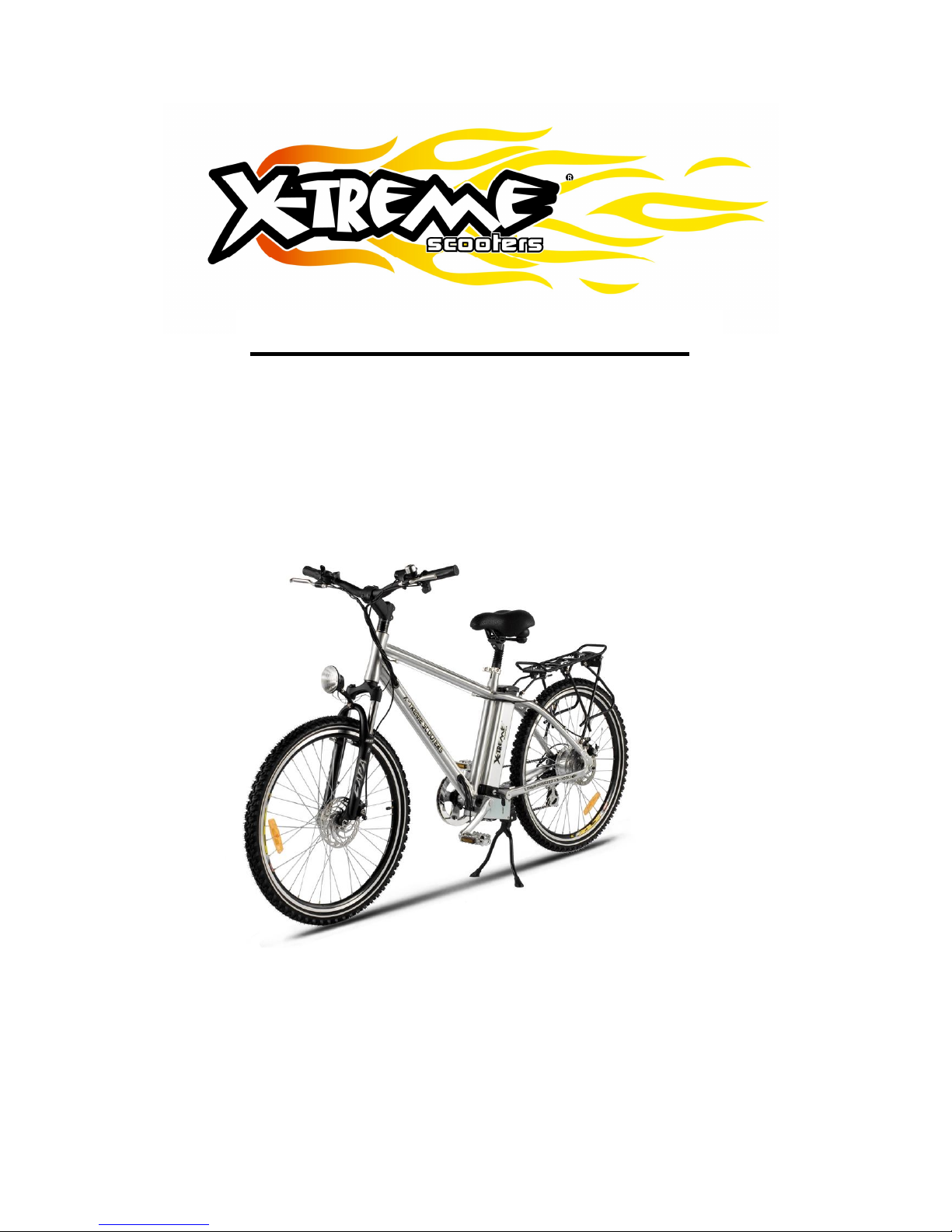

1
XB-300Li/XB-305LI
Electric Mountain bike
Owner’s Manual
Read this manual completely before riding your mountain bike.
X-Treme
TM
Electric Scooters
2
Contents
Riding Safety ………………………………………….. 4
· Safety Basics …………………………………………. 5
· Operating Reminders and Suggestions …….. 6
· Wet Weather Riding …………………………….. 7
· Night Riding …………………………………………. 8
· Other Reminders …………………………………… 9
Specifications …………………………………………. 10
Assembly and Setup ……………………………….. 11
Routine Operation ………………………………….. 13
Pre-Ride Check ………………………………………… 13
Steps to Startup ……………………………………… 13
Battery Care and Maintenance…………………. 15
Battery Charging …………………………………… 18
Other Maintenance …………………………………. 21
· Brakes and Tires …………………………………… 21
· Scheduled Maintenance …………………………. 23
DO NOT RETURN TO STORE!
Do not use this vehicle for the first time until you have inflated the
tires to the correct PSI and completely charged the battery.
Failure to follow these instructions may damage your vehicle and
void your warranty.
CALL TOLL FREE OR GO ONLINE
1-800-772-3852 www.x-tremescooters.com/support/
For General Information or Parts Visit www.x-tremescooters.com
3
X-TREME has introduced a new and specially
developed range of electrically assisted
mountain bicycles, called XB-300Li. The XB-
300Li offers a comfortable and affordable
alternative when normal cycling becomes too
strenuous or the daily trip too long.
A XB-300 Li Electric Mountain Bike provides
extra energy without much effort. The
removable battery is hardly noticeable.
Cycling is a sport that fits easily into anyone’s
daily routine. With ease, you can cycle to
work, cycle with the children to school, to the
mall, to visit friends for coffee or just to enjoy
the fresh air and nature. All this you can do
relaxed with a XB-300 Li electric bike!
4
RIDING SAFETY
Like any sport, electric bike carries the risk of injury and
damage. By choosing to ride the XB-300Li, you assume
all responsibility for these risks. Thus, you need to
know and practice the rules of safe and responsible
riding.
YOUR INSURANCE POLICIES MAY NOT PROVIDE
COVERAGE FOR ACCIDENTS INVOLVING THE USE OF
THIS BICYCLE. TO DETERMINE IF COVERAGE IS
PROVIDED YOU SHOULD CONTACT YOUR INSURANCE
COMPANY OR AGENT.
5
Safety Basics: Do’s and Don’ts
The Do’s
oAlways conduct a Safety Check before you ride your
XB-300Li. Be thoroughly familiar with the controls of
your XB-300Li.
oAlways wear an approved helmet when riding your XB-
300Li. Follow the helmet manufacturer’s instructions
for fit, use and care of your helmet.
oAlways keep body parts and other objects away from
the spinning wheels of your XB-300Li.
oAlways wear shoes that will stay on your feet and will
stay on the floorboard.
oWear bright, visible clothing that is not so loose that it
can catch on moving parts of the XB-300Li or objects
at the side of the road or trail.
oThink about your speed, and keep your speed
consistent with safe operating conditions.
The Don’ts
oNever ride with headphones. They mask traffic
sounds, distract you from concentrating on your
surroundings, and their wires can tangle in the moving
parts of the XB-300Li, causing you to lose control.
oNever carry a passenger. The maximum carrying
capacity is 350 Lbs.
oNever ride barefoot or wearing sandals.
6
oDon’t jump with your XB-300Li. It puts great stress on
everything from frame and forks to drive train. Riders
who insist on jumping their XB-300Li risk serious
damage to their XB-300Li as well as to themselves.
oNever carry anything which obstructs your vision or
your complete control of the XB-300Li or which could
become entangled in the moving parts of the XB-
300Li.
oNever hitch a ride by holding on to another vehicle.
oNever ride your XB-300Li while under the influence of
alcohol or other drugs.
oIf possible, avoid riding in bad weather, when visibility
is obscured, at dusk or in the dark, or when you are
very tired. Each of these conditions increases the risk
of accident.
oNever allow children to ride. Never allow others to ride
without reading and understanding these instructions.
Operating Reminders and Suggestions
oReview all instructions carefully before riding the XB-
300Li.
oFollow all rules and regulations in your area for
operating a motorized bicycle. Obey the same road
laws as all other road vehicles, including yielding the
right-of-way to pedestrians, and stopping at red lights
and stop signs.
oRide predictably and in a straight line. Never ride
against traffic.
oRide defensively. To other road users, you may be
hard to see.
7
oConcentrate on the path ahead. Avoid potholes,
gravel, dirt, wet road, oil, curbs, speed bumps, drain
grates and other obstacles.
oBe alert for unexpected events, such as opening car
doors or cars backing out of concealed driveways.
oBe extra careful at intersections and when preparing
to pass other vehicles.
oDon't carry packages or passengers that will interfere
with your visibility or control of the bike. Don't use
items that may restrict your hearing.
oMaintain a comfortable stopping distance from all
other riders, vehicles and objects. Safe braking
distance and forces are subject to the prevailing
weather and road conditions.
Wet Weather Riding
Wet weather impairs traction, braking and visibility,
both for the rider and for other vehicles sharing the
road. The risk of accident is dramatically increased in
wet conditions. In wet weather you need to take extra
care. In wet conditions, the stopping power of your
brakes (as well as the brakes of other vehicles sharing
the road) is dramatically reduced. This makes it harder
to control speed and easier to lose control. To make
sure that you can slow down and stop safely in wet
conditions, apply your brakes earlier and more
gradually than you would under normal, dry conditions.
Decrease your riding speed, avoid sudden braking, and
take corners with additional caution. Keep in mind that
there is a direct, but inverse, relationship between
speed and controllability.
8
Be more visible on the road. Wear reflective clothing
and use safety lights.
Potholes and slippery surfaces such as lane markings
and train tracks all become more hazardous when wet.
Night Riding
A rider is very difficult for motorists to see at dusk, at
night, or at other times of poor visibility. If you must ride
under these conditions, check and be sure you comply
with all local laws about night riding; follow the Rules of
the Road, and take the following precautions:
Make sure that your XB-300Li is equipped with correctly
positioned and securely mounted reflectors. Make sure
your clothing or cargo does not obstruct a reflector or
light.
Wear light colored, reflective clothing and accessories,
any reflective device or light source that moves will help
you get the attention of approaching motorists,
pedestrians and other traffic.
Ride slowly. Avoid hazards, such as potholes and curbs.
Avoid areas of heavy traffic, dark areas, and roads with
speed limit over 35 MPH. If possible, ride on routes
already familiar to you.
Ride at night only if necessary. Slow down and use
familiar roads with street lighting, if possible.
9
Other Reminder
The battery does NOT require deep discharging. If your
XB-300Li is put into storage, re-charge its battery at least
once every 90 days.
Do not store your XB-300Li in direct sunlight for an
extended time.
Store your XB-300Li in a dry place. Exposing your XB-
300Li to rain, snow, or other precipitation may result in
damage.
SPECIFICATIONS
Frame: alloy 6061-T6, TIG welded
Front Fork: alloy suspension front fork
Handlebar: Alloy, with adjustable alloy handlebar stem
with scale
Cranks and Chain wheel: forged alloy cranks and single
steel chain wheel
Brake: F/R disc brakes, full alloy brake lever, with power-
off control
F/Hub: Alloy front hub,
R/Hub: 300W high-speed wheel hub motor
Saddle: super soft, with double rubber spring
Seat Post: alloy suspension,
Rim: alloy, double wall,
Tire: 26"x1.95, black, with reflex strap
Gears: SHIMANO 7-speed, TX-31 rear derailleur, gearbox
Accessories: alloy adjustable rack, strong double-leg
centre stand
Battery: 24V/8AH Lithium battery
10
Model of Pedal Electric Assisted System:
1st gear: Biking without electric assistance, 2nd gear,
Standard Pedalling with electric assistance at rate of 1:1
ASSEMBLY AND SETUP
If your XB-300Li was removed from its carton and “set
up” by retail store personnel, there is no guarantee it was
properly set up. Please observe and follow this checklist,
even if your XB-300Li was out of its carton when you
purchased it. This will ensure its safe and reliable
operation.
1) Remove your XB-300Li from its shipping carton. Cut
away any residual packing materials with a sharp knife or
scissors. Tools needed for setup are included in the XB-
300Li tool kit.
2) Inflate the front and rear tires to 35 PSI.
3) Your XB-300Li has been in transit and storage. You
must charge the batteries before riding it. Charge the
battery by plugging in the included charger into the XB-
300Li Charger socket.
