Xtreme X-140 Manuale utente

Page1

X-140

Electric Scooter

Owner’s Manual

PLEASE BE SAFE WHEN RIDING

ALWAYS WEAR A HELMET AND OBEY ALL LAWS!

X-Treme TM Electric Scooters

Page2

BATTERY MAINTENANCE and

CHARGING INSTRUCTIONS

1. You MUST charge completely prior to initial use. (Follow

charging instructions in your Product Handbook)

2. Charge immediately after each use.

3. Charge before storage. You must charge every 30 days if not

in use.

4. Charge the unit for 6-8 hours after the light on the charger turns

green.

5. DO NOT allow this unit to deep discharge the battery.

6. For safety purposes, DO NOT charge for over 8 hours.

7. Turn the unit OFF when not in use.

This PRODUCT IS NOT INTENDED FOR EXTREME or

OFF-ROAD Use! Please take care of your X-140!

DO NOT JUMP or ABUSE THIS PRODUCT!

DO NOT RIDE IN WET/ICY CONDITIONS!

Failure to follow these instructions will

VOID YOUR WARRANTY!

IMPORTANT

Failure to follow these INSTRUCTIONS will

VOID YOUR WARRANTY!

Page3

WARNING

This product does not conform to Federal Motor Vehicle Standards and is not

intended for operation on public streets, roads or highways. Serious injury can

result from the unsafe operations of this product. Operator can minimize these

risks by using certain safety equipment such as: safety helmet, goggles, gloves,

elbow and kneepads and appropriate footwear.

DO NOT operate this product in traffic, on wet, frozen, oily or unpaved surfaces or

under the influence of drugs and/or alcohol. Avoid uneven surfaces, potholes,

surface cracks and obstacles.

DO NOT use a water hose to clean this product. See Product Handbook for more

information.

This product is recommended for riders 14 YEARS OF AGE and older.

SAFETY

Persons without excellent vision, balance, coordination, reflex, muscle and

bone strength and good decision-making capabilities should not use this

product.

Minors without adult supervision should not use this product.

Persons unwilling or unable to take responsibility for their own actions should

not use this product.

The user of this product assumes ALL risks associated with its use. To

minimize these RISKS, the user must wear safety helmet, goggles, gloves,

elbow and kneepads and appropriate footwear.

This product is ELECTRIC! DO NOT ride this product in wet conditions,

puddles or rainy weather.

IMPORTANT

PLEASE READ THIS BEFORE USING THIS PRODUCT

READ THIS FIRST!

Page4

SAFETY GUIDE

The recommended age for riding this scooter is 14 years & older.

To avoid damage to the motor and footplate, do not overload the scooter.

Never ride with more than one person.

Inspect your scooter thoroughly before each use for loose or missing parts.

Avoid unintentional starts by turning the scooter off while not in use.

To avoid the risk of a short circuit in the electrical parts, do not use your

X-Treme Electric scooter in the rain and never spray or wash off your scooter

with water.

Do not place the battery near fire or heat.

To avoid damage to the battery, do not use the charger if it has been damaged

in any way.

Keep hands, face, feet and hair away from all moving parts.

Do not touch the motor or wheels while they are rotating.

Brakes are designed to control speed as well as stop the scooter. Practice

braking for proper slowing down and smooth stops.

Maintain your X-Treme X-140 as recommended in this Product Handbook.

Use only quality replacement parts as recommended by the manufacturer.

Inspect the entire scooter prior to each use. Replace any part that is cracked,

chipped or damaged before use.

*NEVER ALLOW CHILDREN TO OPERATE THE SCOOTER WITHOUT ADULT

SUPERVISION.

*NEVER ATTEMPT TO OPERATE THE SCOOTER WHILE UNDER THE

INFLUENCE OF ALCOHOL.

If a situation arises that is not covered in the manual,

proceed with caution and use good judgment.

Contact your dealer or X-Treme (www.x-tremescooters.com/support/)

if you need further assistance

QUICK REFERENCE

SAFETY GUIDE

Page5

TABLE OF CONTENTS

IMPORTANT INFORMATION…………………………………….…………...……………………………… 2-3

QUICK REFERENCE……………………………………………………………………………………. …… 4

TABLE OF CONTENTS……………………………….…………….………………………………………… 5-6

GETTING TO KNOW YOUR X-TREME X-140………………….………………………………………….. 8

PACKAGE CONTENTS…………………………………………….…………………………………………. 9

GETTING STARTED………………..……………………………...…………………………………………..9

ASSEMBLY……………………………………………………………………......................................9

FUSE INSTALLATION……………………………………………………………………………………10

CHARGING……………………………………………………………………......................................10

RIDING, STOPPING & BRAKING…………………………..………………………………………………... 11

FOLDING/STORAGE & BRAKING……………………………………………….......................................11

ADJUSTING THE BRAKES...…………..………………………….………………………………………… 12

TIRES AND WHEELS…………………..…………………………………………………………………….. 12

MAINTENANCE & ADJUSTMENTS..……………………………….………………………………………..13

MAINTENANCE SCHEDULE & OTHER QUESTIONS…………..……………………………………….. 13

GENERAL INFORMATION/TECH SUPPORT……………………..……………………………………….. 14

TROUBLESHOOTING…………………………………………………………………………………........ 16-20

TROUBLESHOOTING: NO POWER…………………………………………………………………. 16

TROUBLESHOOTING:AFTER FULLY CHARGING, POWERS ONLY FOR SHORT

DISTANCE USE………………………………………………………………..16-17

TROUBLESHOOTING: SCOOTER TAKES OFF, WILL NOT STOP………………………………. 17

TRBOULESHOOTING: HOW TO CHECK CHARGER, BATTERY & CONTROLLER TO SEE

IF THEY ARE FUNCTIONAING PROPERLY……………………………….. 18

TROUBLESHOOTING: COULD IT BE A BAD CONNECTION TO TERMINAL………………….. 19

TROUBLESHOOTING: SCOOTER IS ON BUT NOT RUNNING…………………………………. 19

TROUBLESHOOTING: SCOOTER WILL NOT TURN OFF………………………………………... 19

Page6

TROUBLESHOOTING: LOOSE WIRE?........................................................................................20

TROUBLESHOOTING: SCOOTER WON’T RUN, CHARGER LIGHT STAYS GREEN………… 20

TROUBLESHOOTING: SCOOTER WON’T RUN, CHARGER LIGHT STAYS RED & GREEN…20

HOW TO GUIDE………………………………………………………………………………………………21-27

HOW TO START SCOOTER………………………………………………………………………….. 21

HOW TO REPLACE/INSTALL BELT…………………………………………………………………. 21

HOW TO ADJUST CHAIN DRIVE BELT TENSION…………………………………………………21-22

HOW TO ADJUST DRUM BRAKES………………………………………………………………….. 22

HOW TO CHANGE CHARGER SOCKET……………………………………………………………22-23

HOW TO CHECK CHARGER LIGHT STATUS & UNDERSTAND LIGHT SEQUENCE……….. 23

HOW TO REPLACE/INSTALL FUSE…………………………………………………………………23-24

HOW TO CHECK CHARGER OUTPUT……………………………………………………………… 24

HOW TO INSTALL BEARINGS………………………………………………………………………… 24

HOW TO REMOVE & INSERT PIN CONNECTORS……………………………………………….24-25

HOW TO REPLACE A CONTROLLER……………………………………………………………….. 25

HOW TO TEST MOTOR DIRECT TO BATTERY……………………………………………………25-26

HOW TO TEST THROTTLE VOLTAGE………………………………………………………………26-27

HOW TO INSTALL SEAT POST……………………………………………………………………….. 27

HOW TO REPLACE/INSTALL THROTTLE…………………………………………………………… 27

DIAGRAMS……………………………………………………………………………………………………28-29

BATTERY WIRING DIAGRAM…………………………………………………………………………. 28

WIRING DIAGRAM……………………………………………………………………………………….29

Page7

GETTING TO KNOW YOUR X-TREME X-140

DO NOT RETURN TO STORE!

Do not use this vehicle for the first time until you have inflated the tires to the correct PSI

and completely charged the battery. Failure to follow these instructions may damage your

vehicle and void your warranty.

CALL TOLL FREE OR GO ONLINE

1-253-777-0690 www.x-tremescooters.com/support/

For General Information or Parts Visit www.x-tremescooters.com

Page8

Getting To Know Your X-140 Scooter

(Photo’s may vary)

Page9

PACKAGE CONTENTS

Your X-Treme X-140 comes with the following items in the box. Please locate

all of the following:

1. The X-Treme X-140 Scooter

2. 24V Battery Charger

3. Tool Kit

4. Product Handbook

GETTING STARTED

Please read and understand these instructions and the OPERATING

PROCEDURES section, prior to starting or riding your X-140

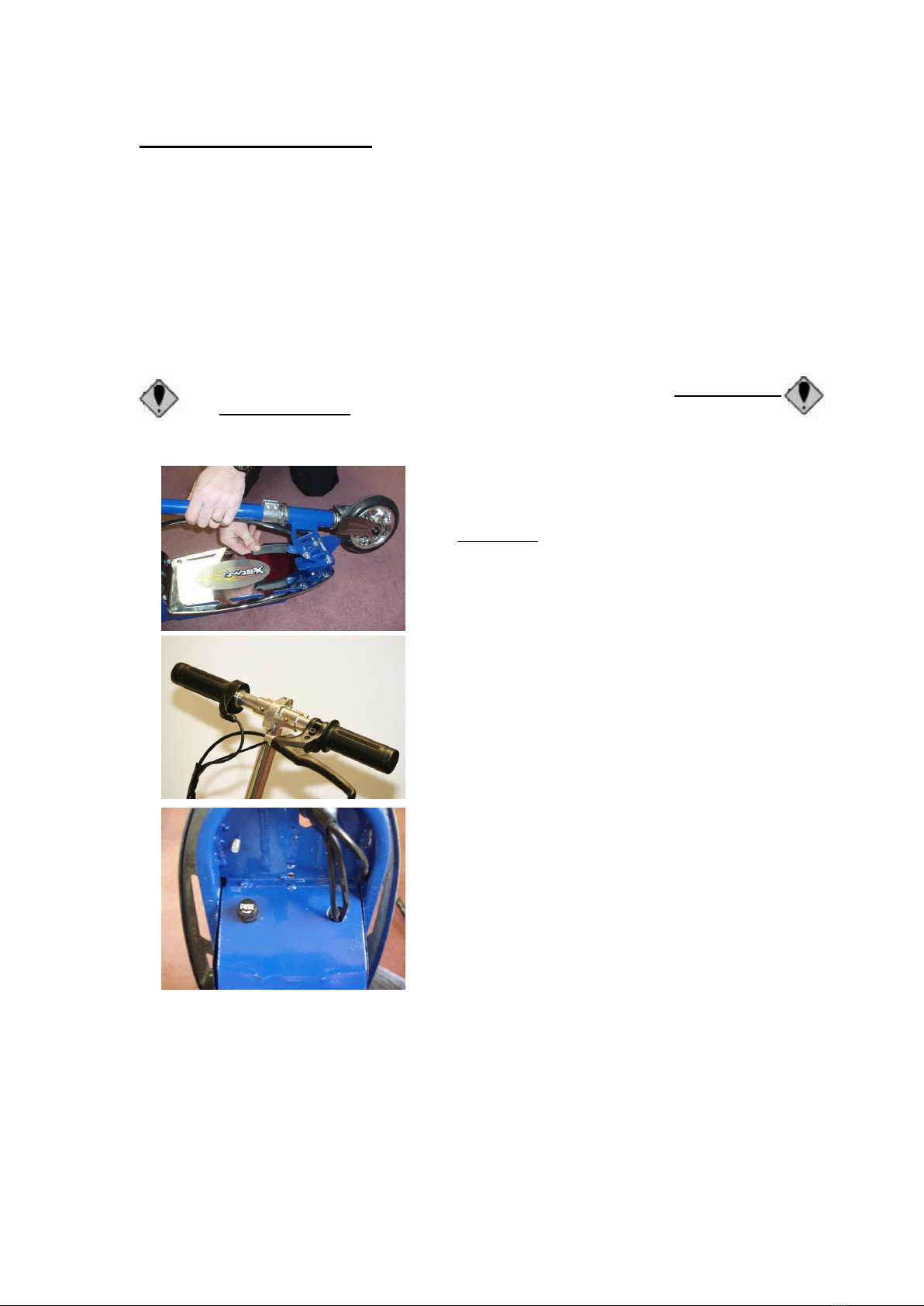

Assembly

1. Carefully remove the X-140 from the box.

2. To unfold the X-140, begin by pressing

down on the FOLDING HANDLE with one

hand, while gently pulling up on the

handlebars with the other. The handlebar

will snap into place and will not move when

secured properly.

3. Loosen the handlebar clamp, and raise the

handlebar to the desired height, being sure

the pole snaps into place. Then tighten

clamp securely.

4. To attach the handlebars to each side of the

t-bar, first loosen the top handlebar clamp

then slide each handlebar into the t-bar

being sure they snap into place and are in

the correct orientation for riding. Finish by

clamping down the clamp lever securely.

Page10

Fuse Installation

Your scooter comes with a 20amp fuse that may need installed if not done so already at

the factory.

Follow the instructions below to properly install the fuse before attempting to use your

scooter.

1. Locate the 20amp glass fuse that came with your scooter.

2. Locate the fuse holder on the front of the scooter frame under the footplate.

(photo above)

3. Remove the fuse holder cap and insert the fuse into the cap first.

4. Then insert fuse/cap into fuse holder and gently tighten. DO NOT OVER

TIGHTEN THE CAP.

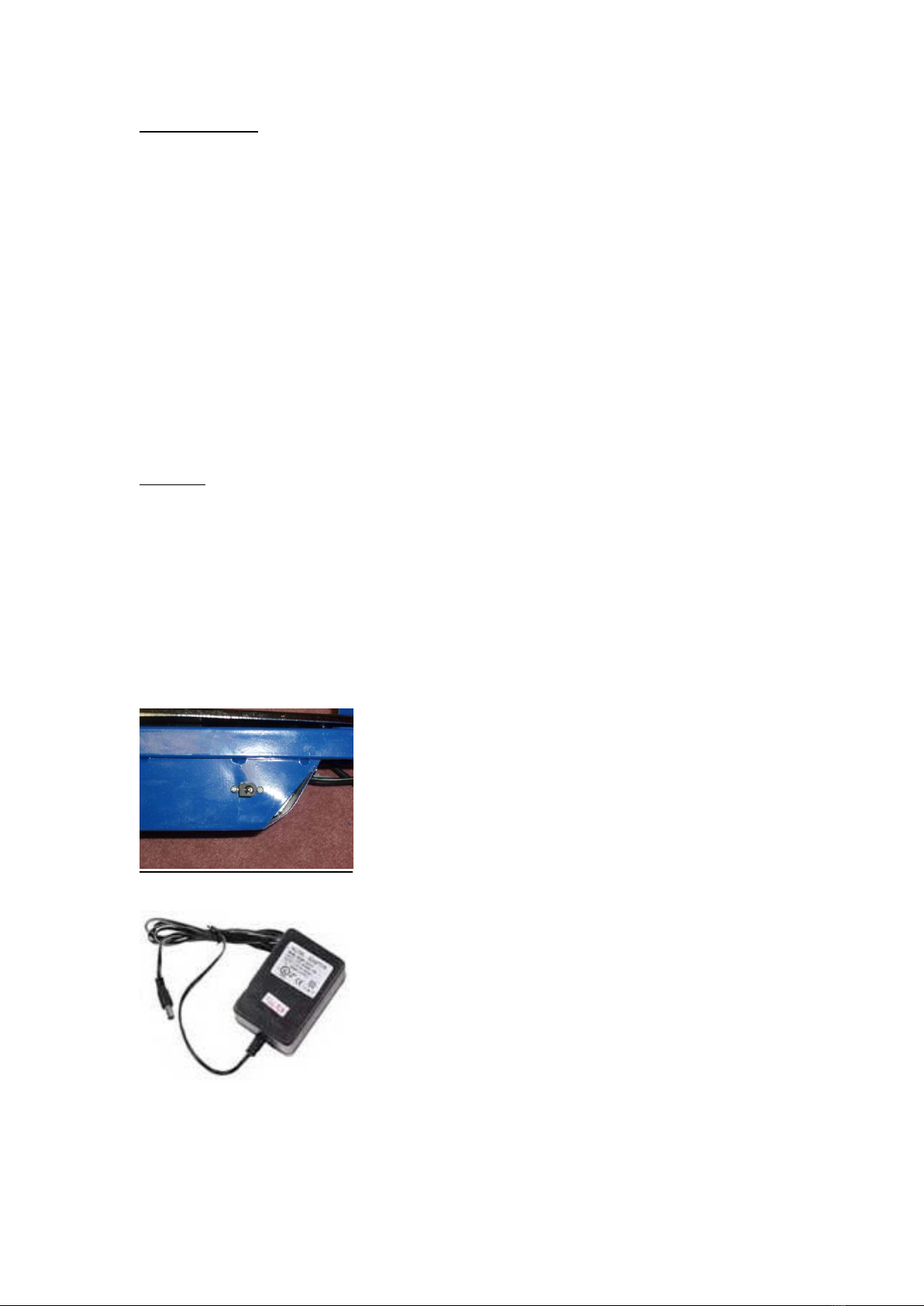

Charging

Your scooter comes charged out of the carton. We still recommend charging the unit for

6-8 hours prior to it’s first use. We also recommend charging your scooter after each use

and prior to storage.

WARNING: Do not allow your scooter to go into deep discharge, as this will damage the

batteries.

1. Make sure unit is turned off.

2. Open the charging socket located

on the right side of the scooter

frame, under the footplate.

3. Locate your Battery Charger. Find

the charger socket end that has a

single-prong socket and plug it into

the scooter.

4. Next, plug the AC plug into a wall

outlet.

When first plugged in, the charger will have

one red light that will illuminate, indicating

that the charging process has started.

Once the green light on the charger is

illuminated, you may remove the charger

and close the safety cap.
