XtremepowerUS 71094 Manuale di istruzioni originale
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
VACUUM REFRIGERATION PUMP
ITEM # 71094 (1/3HP), 71095 (1/2HP), 71096 (1/4HP)
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.0880
SAFETY INFORMATION
1
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in
injury and/or property damage. Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all
possible conditions and situations that may occur. It must be understood by the operator that common
sense and caution are factors which cannot be built into this product, but must be supplied by the
operator.
BEFORE USING YOUR PUMP
• In all cases, motors are designed for operating voltages + or - 10% of the normal rating. Singles voltage motors
are supplied fully connected and ready to operate.
• Conrm the votage and frequency at the outlet match the specications on the pump motor decal.
• Check the On/O switch to be sure it is in the OFF position before plugging it into the outlet.
• The pump is shipped without oil in the reservoir. Before starting the pump, ll it with oil. .
WARNING
Risk of improper wiring, piping, moving, lifting and handling can cause injury and equipment damage. Installation
and service of this equipment should be done only by a qualied technician.
• CAUTION: Risk of contact with sharp edges and exposed fasteners can cause injury. Only properly trained
and qualied personnel wearing appropriate OSHA - approved PPE should attampt to move, lift or remove
packaging from or prepare the unit for installation.
• CAUTION: Risk of contact with hot surfaces, The refrigerant discharge lines, motor and some electrical
components are extremely hot during operation Allow sucient time for the unit to cool down.
• CAUTION: Risk of electric shock and short circuits. These can casue injury and/or equipment damage.
• Wear safety goggles when working with refrigerants. Contact with refrigerants may cause eye injury.
• Incorrect use or electrical connections may cause electrical shock. Read and follow instructions carefully, and
take precautions to avoid electrical shock hazards. All associated devices must be correctly grounded before
energizing circuits.
Normal operating temperatures will cause certain external portions of the pump to be hot to the touch. Do not
touch the pump housing or motor during operation.
SAVE THESE WARNINGS.
SAFETY INFORMATION PARTS INFORMATION
1 2
SAVE THESE WARNINGS.

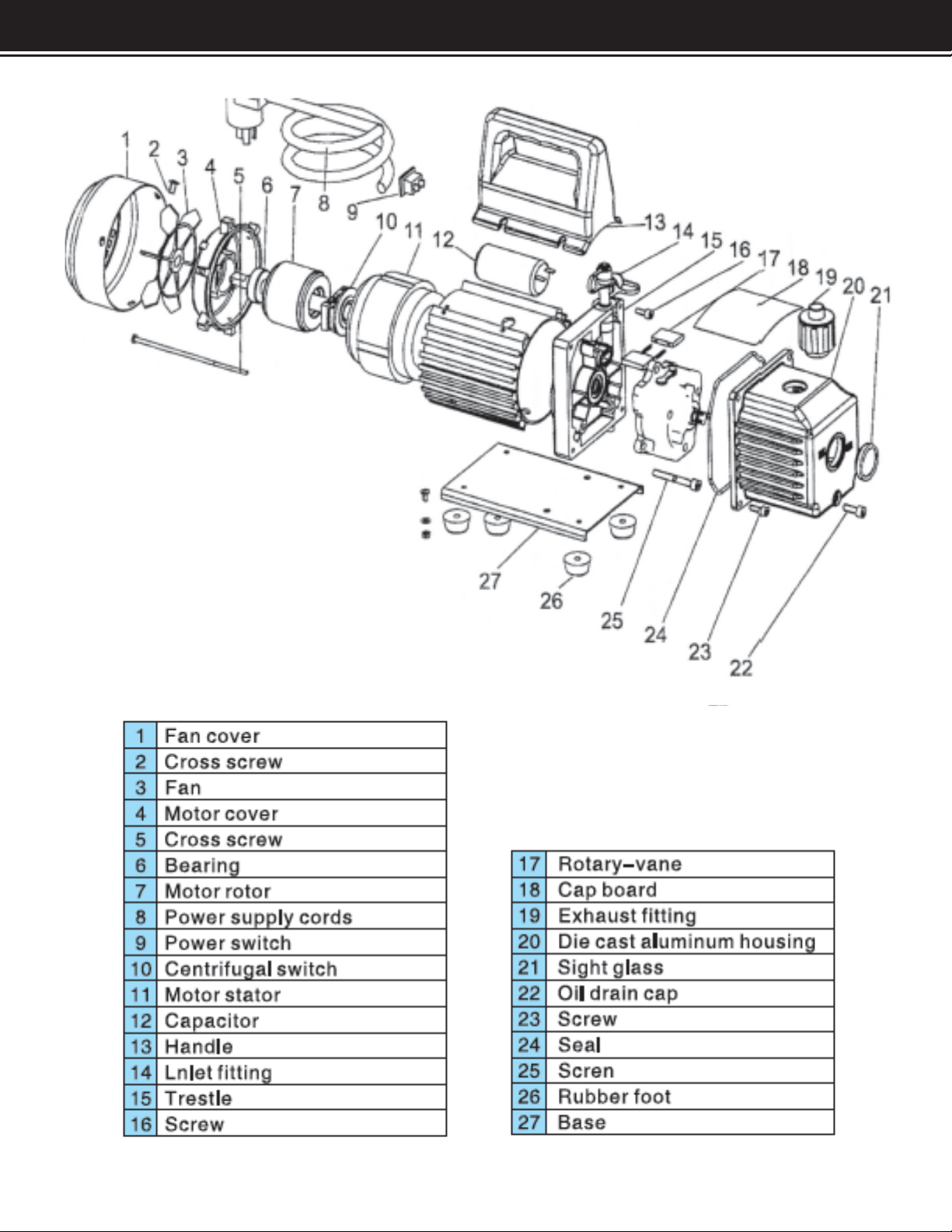

PARTS INFORMATION
3 4

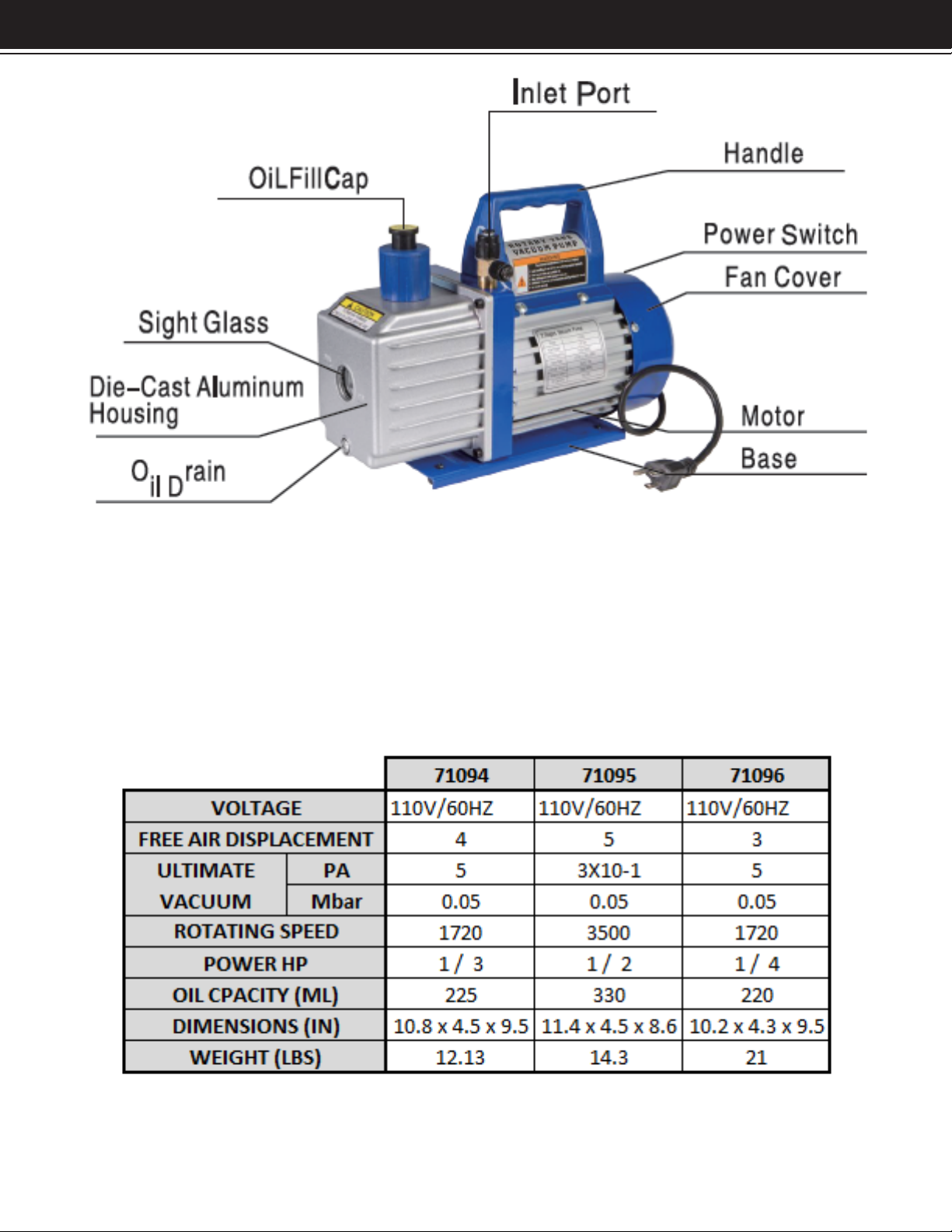

TECHNICAL PARAMETERS
OPERATION / MAINTENANCE
4
The single stage series of the single-stroke-oil rotating vane vacuum pumps and 2-stage series of the double-
stroke oil, rotating vane vacuum pumps are equipment for obtaining vacuum by pumping by pumping gases from
sealed containers. Especially suitable for pumping work for cold producing maintenance, medical appliances,
printing machinery, vacuum packing and gas analysis.
1. When using the pump, it should be in horizontal and put it in dry and clean ventilation. The distance to periphery
should be over 2 cm and the space distance between the front and back should be at least 5 cm. When installing
it onto the equipment,make sure of the normal air entering at the side of the vane shell.
2. The gas-entering mouth can be connected according to the screw thread of it,and it can also be plugged with
a leather pipe.
3. Installation onto a complete set:remove the rubber base from the bottom base.Connect with ST4.2 screw nail.
If you have special equipment of installation.welcome to connect with our company.
4. If the pumped gases are harmful to one’ s health or have bad eect on the environment,ou can extend pipes
from you can extend the exhaust mouth to the outside or deal with it in a way of environmental protection.
NOTE: If needed.an electromagnetic valve can be installed at the gas-entering mouth. (Not included)
CAUTION: Don’t pump gases which can corrode metals and can exert chemical changes with the pump oil.
CAUTION: Don’t pump gases containing plenty dust and gases with plenty of steam.
CAUTION: The temperature of the pumped gas shouldn’t be over ao’C,and the environment temperature
should be-5’C - 60’C.
CAUTION: Don’ t use it as a compression pump or a conveyer pump.
CAUTION: Don’ t put heavy weights on the wire to avoid being extruded.
CAUTION: Do not use a damaged plug or outlet.
CAUTION: Do not pull out or plug in the machine with wet hands.
INSTALLATION
5
• Keep the pump clean and prevent foreign matter from entering it.
• Keep an eye on the oil level. Don’t let it run without oil.
• Keep the oil clean. If it becomes dity, muddy or has water or other volatile substances, which will aect the
ultimate vacuum. The oil should be replaced.
• Before replacing the oil, start the pump and have it run about 30 minutes to make the oil thin abd then stop it
and let out the oil from the oil outing mouth. Let it run 1-2 minutes with the gas entering the mouth open. At this
time, add a small quantity of clean oil from the gas entering mouth so as to replace the remaining oil in the pump.
Do this repeatedly. After conrming the pump is clean, pun on the oil outing screw plug and then ll clean pump
oil to the oil level line from the oiling mouth.
• If the pump is not in use for an extended period of time, cover the oiling cap and ehhuast cap and put it in a
clean dry area out of direct sunclight. Consider covering the pump to avoid it collecting dust a debris.
• Before replacing the oil, start the pump and have it run about 30 minutes to make the oil thin abd then stop it
and let out the oil from the oil outing mouth. Let it run 1-2 minutes with the gas entering the mouth open. At this
time, add a small quantity of clean oil from the gas entering mouth so as to replace the remaining oil in the pump.
Do this repeatedly. After conrming the pump is clean, pun on the oil outing screw plug and then ll clean pump
oil to the oil level line from the oiling mouth.
• Examine the oil-lever before using to make sure the oil-level is not lower than the oil-level line.If lower than that
it should be oiled without delay(This pump uses high-speed vacuum oil of HFV 32).
• Take down the gas-lling cap and connect the pumped container and the pipe should be short, sealed and there
shouldn’t drip.
• Take down the exhaust cap.Plug the power supply and swich on.And you can operate then.
• Pull out the plug after using. Remove the connecting pipes and cover the exhaust cap and the oil plug.
PRODUCT INFORMATION
6
MAINTENANCE
PRODUCT INFORMATION
6
TROUBLESHOOTING
OF NOTE
7
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
MADE IN CHINA
OF NOTE
OF NOTEINSTALLATION
PRODUCT INFORMATION
DISCLAIMER
