Xtrons TD609 Manuale utente

OWNER'S MANUAL

Car Double Din DVD Navigation Entertainment System

28 / 28

damaged.

choose stored file.

Not into the

disc

The disc is available in the

machine.

Eject the disc and put into

a new one.

Disc does not

play

Disc is scratched;

Disc is put in the opposite side；

Laser head is stained

Change a good disc; put

the disc up into the laser

and then wash the disc

and laser.

No repeat and

search function

when VCD is

working

PBC function is under working

state.

Close PBC function

System parameter

Common:

Rated voltage: DC12V (DC9.0 V～DC 16V allowed)

Grounding system: Negative polarity

Maximum current: 10A

Audio:

Maximum output power: 50W*4

Load impedance: 4Ω

Bass: ±7dB(100Hz)

Treble: ±7dB(10kHz)

DVD player:

ESP: DVD---4seconds, VCD---10seconds

SNR: 85dB(A)

Frequency characteristic: 20～20,000Hz

RCAAudio output: 1.8V max (adjustable)

RCA Vedio output: 1V p-p

Electric antenna control: 12V (500mA)

Frequency range: 87.5～108MHz

Effective sensitivity: 10dB

SNR: 60dB

THD: ﹤1%(1KHz)

Frequency response: 30-15, 000Hz

Stereo crosstalk: 35dB(1KHz)

Frequency range: 522-1620MHz

Effective sensitivity: 30dB

1/ 28

Thank you for selecting our products! Hope this user’s manual facilitate your

understanding of product operating method. Our company has the right to make

final description of the Operating Instructions of this product. Before use, please

be sure to read it carefully for safe operation and better entertainment.

Feature

1. 6.1”, 6.2”, 6.95”, 7”800*480 pixel HD digital TFT touch screen

2. Draggable and slideable menu, fast touch response

3. Radio FM1~FM3,AM1~AM2 store 30 presents, high sensitive receiving

4. DVD compact with DVD/VCD/CD/MP4/(AVI,ASF)/MP3/CD-R/CD-RW

5. SD/USB:Support MP3,MP4,AVI,Xvid1.1.0-1.2/Divx3.0-6.0/DAT/VOB/JPEG

format

6. Bluetooth, supportA2DP, Bluetooth phonebook, call history, Bluetooth music

7. Analog TV : Build IN,Support PAL-B,G, H,I,N/NTSC3.58, 4.43/SECAM-L, B/G,

D/K

8. Digital TV(Optional): ISDB, DVB-T

9. Support Ipod

10. Support external GPS

11. Real view camera input: Automatically switch to rear camera interface when

reverse the car

12. Multi UI could be changed on main interface

13. Multi language

14. Support Beep, support EQ, LOUD, SUBWOOFER

15. Night Model:Close display and enjoy music/radio/navigation in back ground,

protect you for driving at night.

16. Steering Wheel control:Realize the original wheel steel control without any

codification

Notice of use

Attention: Before installation, please carefully read all the

instructions. Car audio professional vendors’ guidance are

recommended for the installation.

This model fits automobile 12V power supply

system( ground wire should be connected). Please do

not install it directly in truck or bus with 24V power

supply, otherwise will cause machine damage.

Original disc is required. Please do not use

non-standard or inferior disc, otherwise may cause

machine malfunction or serious impact on its service

life.

2/ 28

Audio and Video knowledge

Disc types

Content

Disc size

DVD

Sound & Picture

12cm

VCD

Sound & Picture

12cm

Sound

12cm

MP3

Sound

12cm

MPEG-4

Sound & Picture

12cm

USB

Sound & Picture

12cm

Notice: This product supports VCD dis of 1.0/1.1/2.0/3.0 version

Replace of power fuse without professional instruction

is prohibited. The improper use of fuse will cause

machine damage or a fire.

Do not place the unit in moist and humid conditions to

avoid electric shock, damage and fire caused by short

circuit.

Do not touch the screen with hard objects to avoid

touch screen damage.

Attention: To avoid short circuit, please stall the car and

disconnect ACC and the connection with B+.

27 / 28

Troubleshooting

Phenomenon

Reasons

Solutions

Not operating

Fuse of machine power supply

and auto vehicle battery is burnt;

Voltage of power supply is

overloaded;

Automatic protection system

avoids fault due to illegal

operation

Change for fuse of the

correct types;

Adjust voltage;

Reset the system by

pressing the Reset key

No or low

sound

Disconncetion;

Volume setting is low volume;

Loudspeaker fault

Big deviation of volume balance

setting;

Earthing in loudspeaker

conection

Check the connection;

increase volume

Adjust the volume

balance setting to middle

place;

Keep insulation of

loudspeaker connection

Remote control

doesn’t work

Battery is out of power;

Battery is not placed correctly

Change new battery;

Reinstall battery;

Inferior quality

of sound;

Distortion of

sound

Inferior disc is prohibited;

Loudspeaker does not match

impedance of the machine

Speaker fault

Use genuine discs;

Change a matched

loudspeaker;

Check the connection of

loudspeaker.

Machine reset

by itself when it

is shut down

Connection ofACC and B+ is not

correct.

Check and reconnect

ACC and B+

No image

Connection of brake wire is not

correct;

Not braking state.

Check brake wire and

connect them corerectly;

Keep braking state after

the car is placed safely.

Unstable output

of image

DVD does not correspond with

the present system video setting;

Video signal line is not

connected correctly.

Adjust systerm video

setting;

Check and replace video

signal line.


stretching or

compressing

Incorrect ratio settings of icons

Use correct ratio settings

of icons

Weak signal

Auto antenna does not reach out

completely

LOC function is under working

state.

Adverse antenna

grounding;antenna is broken

Connect auto antenna line

correctly

Close LCC function

Break-down

during playing

Disc is stained or scratched;

Documents or records are

Clean or replace the disc;

Replace the disc or

26 / 28

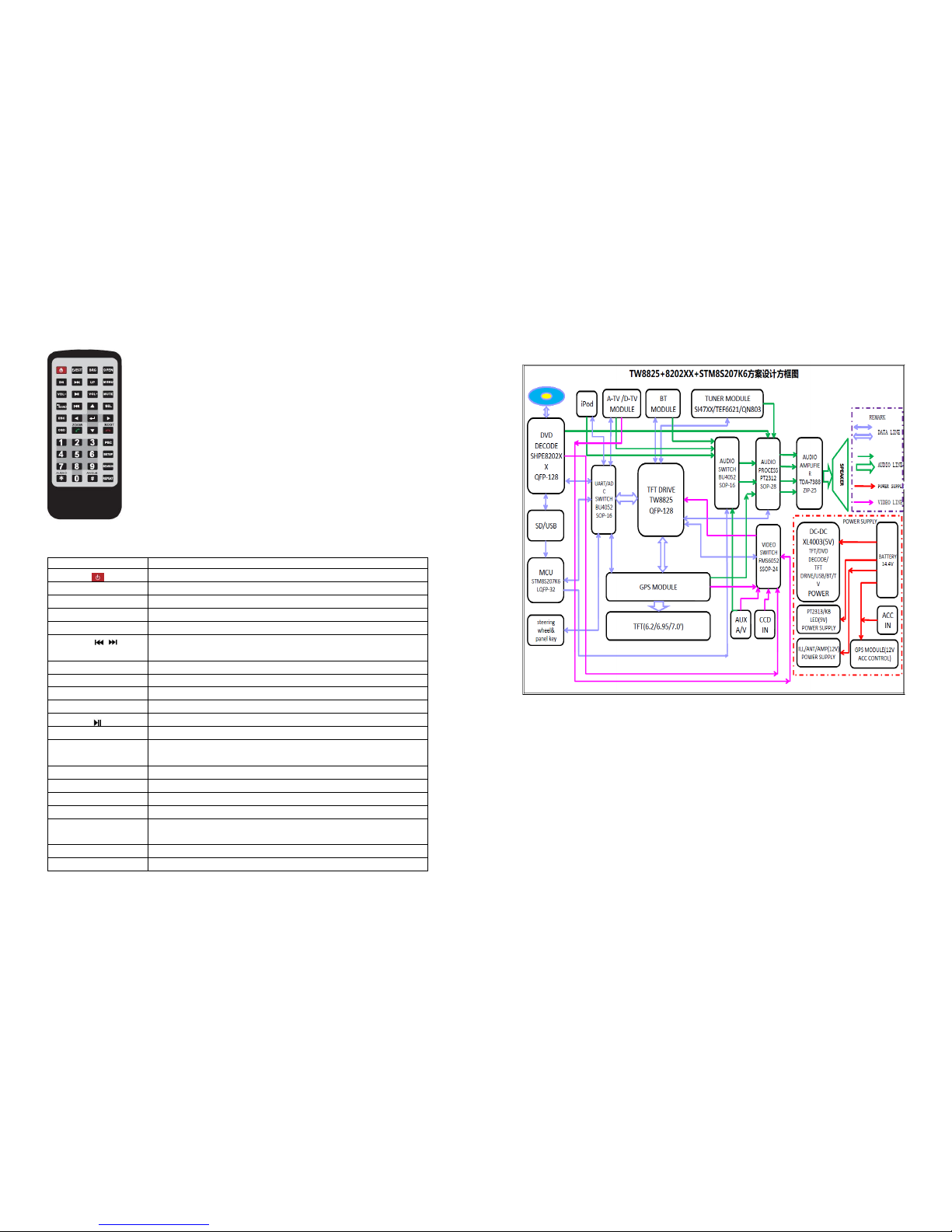

Remote control

Caution

1.Service life of the battery is about 6 months under normal

conditions.If the remote control cannot be operated

normally,battery shall be replaced in time.

2.If the remote control is out of service for a long time,the

battey shall be taken out to prevent liquid leakage that can

damage the remote controller.

3.Avoid dropping the remote controll to prevent damage.

4.Do not dismantle and cushion the battery,or put battery

into fire or place with other metal articles.

5.Place the battery of remote controller in a safe place to

prevent the children from swallowing the battery.If the child

swallows the battery by accident,please bring him/her to

see the doctor immediately.

Key name

Function

Power switch on/off key

EJECT

Key for ejecting/suctioning disc

SRC

Switch mode

OPEN

Key for opening and closing screen

ON/UP

Screen angle adjustment

Under disc mode,select previous/next section;under

radio mode,select privous/next saved radio station

VOL-/VOL+

Increase/decrease volume

Enter peimary interface of the system

MUTE

Mute key

BAND

SelectAM/FM bands,stop play under other modes

Play/pause

ZOOM

Under DVD mode,key for image zoom

ROOT

Under DVD mode,key for entering primary menu of the

disc

1.2.3.4.5.6.7.8.9.0

Numeric key

PBC

Under VCD mode,key for entering PBC menu

SETUP

Enter system setting menu

Search and play

AUDIO

Under other modes,key for switching audio sound

tracks

ANGLE

Under DVD mode,key for switching audio sound tracks

REPEAT

Repeat key

3/ 28

Schematic diagram

Function diagram

4/ 28

Instruction

1. Main interface

主界面

1: Display brightness mode adjustment, a total of five modes.

（1）Day mode, then display the output of the brightest.

（2）Evening mode, this bright display output mode darker than

day mode

（3）Night mode, the output ratio on the display mode when the

dark

（4）User mode, then the display output brightness adjustment

by the user. Detailed setup instructions, backlight brightness

adjustment instructions

（5）Off-screen mode, then the screen brightness all off, the touch

screen at any point, you can return to day mode

（6）ILL (headlights) mode, when the headlamps information

input, the screen brightness can be adjusted according to user design.

Detailed setup instructions, brightness adjustment instructions

2: Quick Setup menu button. When the user presses any

interface, quick setup menu will be displayed. See Quick Setup menu

description.

3: 、Mute control button. When the user presses the audio

output, mute on / off.

25 / 28

Hardware

AC/DC Characteristics

Item

Min

Typical

Max

unit

Work voltage

14.4

Work temperature

-20

+25

+60

℃

Standby current

<120

Memory current

ESD air

>10

ESD touch

List

The formats list for SUP8202RD decode support

type

format

Version format

Remark

Audio

MP3

MPEG 1/2/3

Don’t support MP3 PRO

WMA

WMA8/WMA9

Don’t support WMA9

Lossless,WMA9

VOICE,WMA9

Professional, DRM

CDDA

Compact disc digital

audio

AAC

AAC Low Complexity

Profile

Don’t support AAC

MainSRS/LTP

Don’t support Hight

Efficiency AAC3

MPEG1(VC

VCD1.0/1.1/2.0

SVCD

Disc

MPEG2(DV

DVD

Disc

Video

MP4

AVI/MOV/MP4/MPG/

DIVX/XVID/FLV

8202RQ_D IC 1 Q the print

with suffix Q support

DIVX3.11


JPEG

No resolution analytical

limited

24 / 28

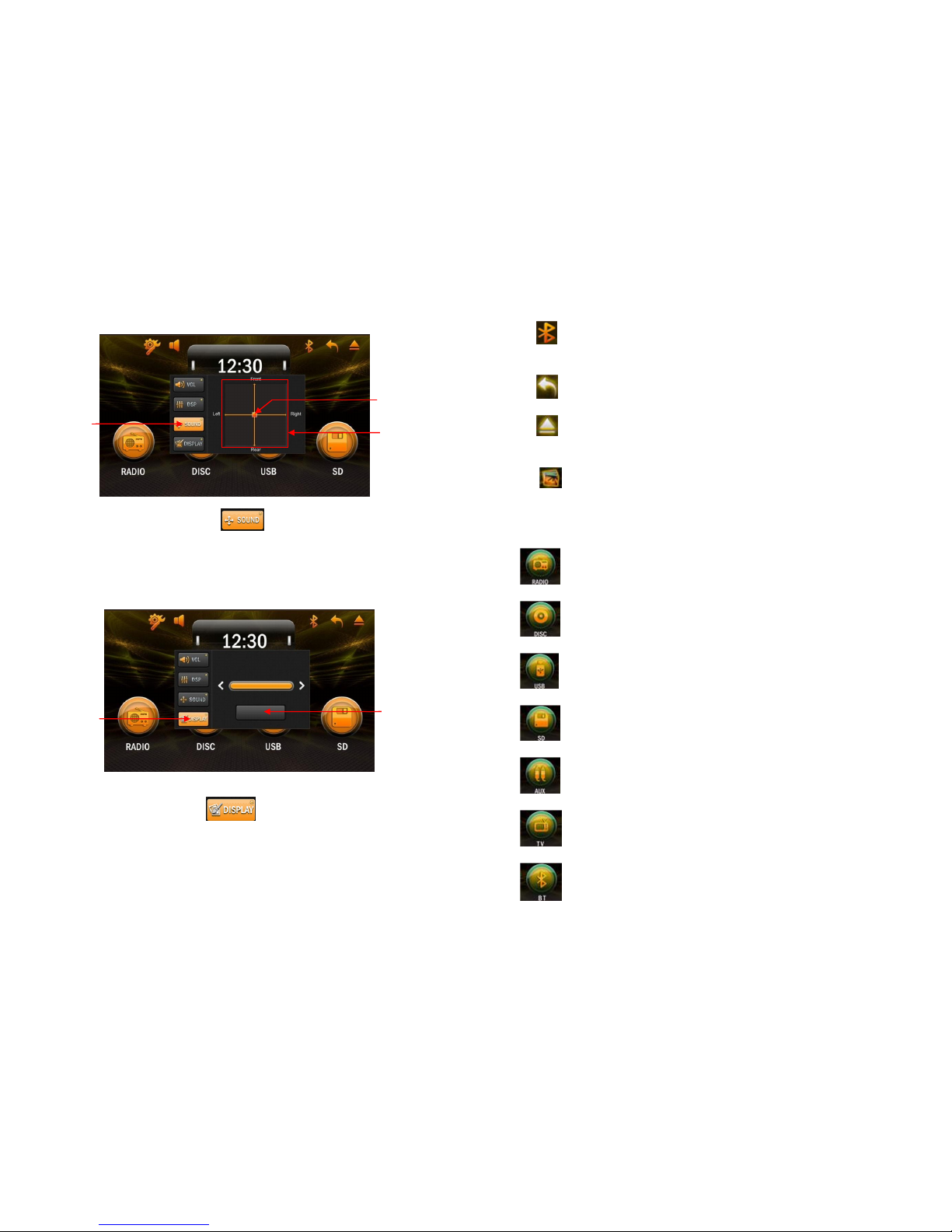

Balance shortcuts setting interface

10. Balance shortcuts setting: Click ,enter balance shortcuts interface.

11. Balance adjustment cursor: Adjust front/ rear/left/ right balance effect by

clicking or dragging the cursor in the coordinates.

12. Balance adjust coordinates: balance cursor moving area

Video display shortcuts interface

13. Video display shortcut: Click enter video display

14. Video display setting drag strip : Adjust video display value by left/right drag

the strip

15. Choose setting items: Choose the setting items (e.g., brightness, color,

contrast and resolution)

5/ 28

4: Bluetooth button. When the Bluetooth settings to connect to

the phone, this button will be displayed, press this button, it will go to

Bluetooth mode in any state

5: Return control buttons. When the user presses the return belt

run mode now

6: Disc control buttons. When the user presses, you can control

access to disc

7: the time, date, week display area.

8: Main interface style replacement keys. When the user

presses the main interface can replace several different display styles

and backgrounds.

9: User mode selection button. Users can drag and click the left and

right to select a different mode.

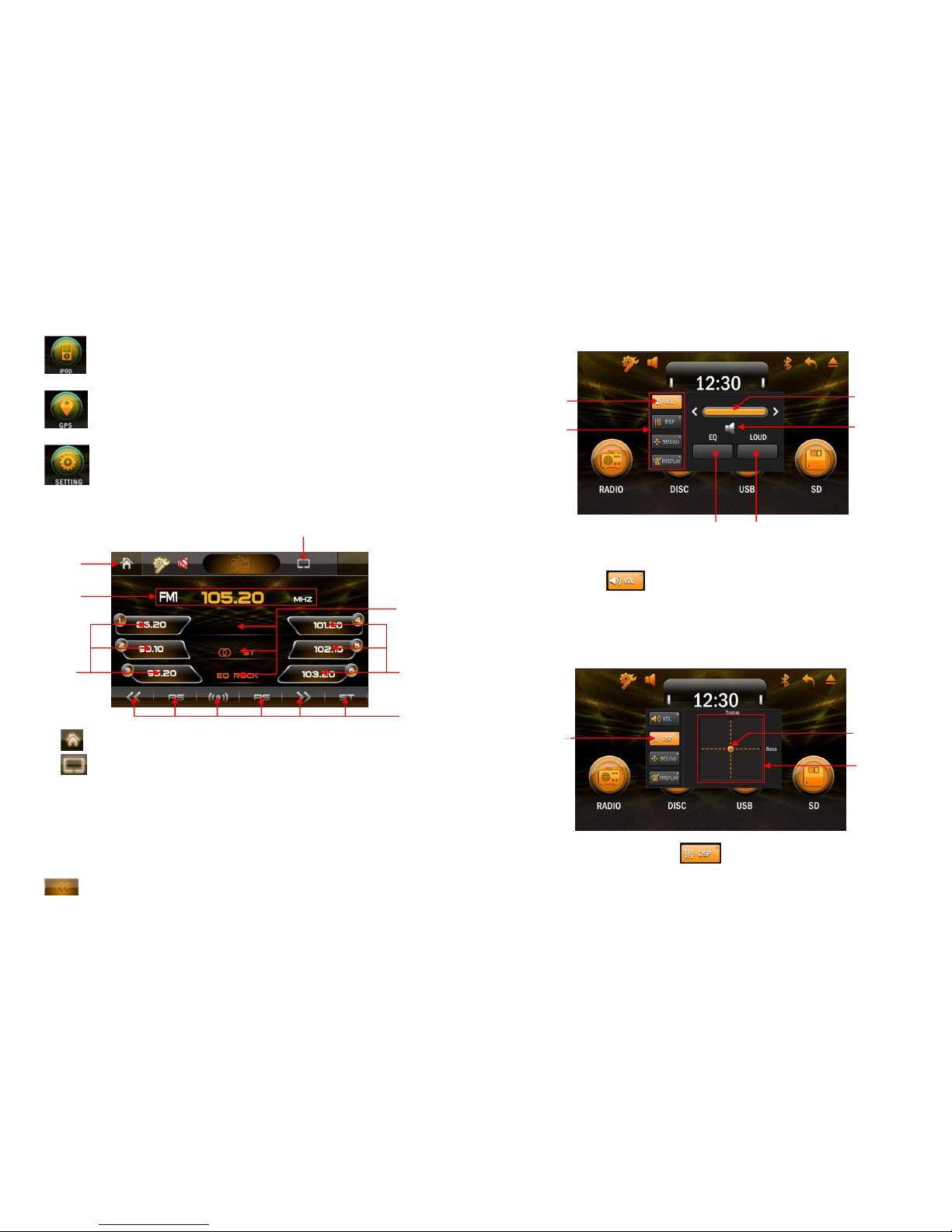

Radio mode: Click the radio after entering the user interface,

as Interface Description illustration

Disc Mode: Click the play after entering the user interface, as

Interface Description illustration

USB Mode: Click the play after entering the user interface, as

Interface Description illustration

SD Card Mode: Click the play after entering the user interface,

as Interface Description illustration

External audio and video input mode: Click into the external

audio and video input interface, as Interface Description illustration

TV mode: Click to enter the TV interface, as Interface

Description illustration

Bluetooth phone mode: Click to enter the Bluetooth interface,

6/ 28

as Interface Description illustration

IPOD Play mode: Click into the IPOD player interface, as

Interface Description illustration

GPS navigation mode: Click to enter the TV screen, as

Interface Description illustration

System Settings Mode: Click to enter the setup interface, as

Interface Description illustration

2. Radio interface

Radio interface 1

1: HOME button：Return to Main menu

2: Off-screen button：Off screen, off-screen point anywhere on

the screen display after restoration

3: : Close the audio point information display area

4: Radio frequency display memory area FM1 ~ FM6.

Click the area can be switched between different frequencies

5: the radio status display area

6: Radio control selection button. Users can drag around and click to

select different functions

Reverse Scan: After clicking the direction of decreasing

23 / 28

3. shortcuts setting

Sound shortcuts setting interface

1. Shortcut menu items: different shortcut items are available.

2. Sound shortcut : Click to enter sound shortcut setting interface

3.The volume adjustment: Adjust the volume by Left/right click or drag the

progress bar.

4. Mute: ON and Off mute

5. Sound effect Settings: set sound effect Such as pop, jazz, classical, classical

6. Loudness setting: Loud “ON”or “OFF”

Sound effect shortcuts interface

7. Sound effect shortcuts setting : Click to enter sound effect shortcuts

setting interface 8. Sound adjustment cursor: Adjust the sound effect by

clicking or dragging the cursor in the coordinates.

9. Sound adjust coordinates: sound cursor movement area.

22 / 28

Key 7: input “7”

key 8: input “8”

key 9: input “9”

Delete：Delete numbers

Confirm button: if the password is right, enter into factory setting

interface, otherwise, continue to input

62. Change password: reset a new password for factory setting

63. Change power on password: reset password for star the unit

64. The system default area changes:Set the system default region

65. The system default language:Set the system default language

66. Star LOGO change: choose the system star LOGO

67. TV function “ON”or“OFF”: “ON”or “OFF”TV function

68. APPLE “ON”or “OFF”: Open or closeApple function

69. Bluetooth “ON”or “OFF”: Open or close Bluetooth function

70. Power on password function: the owner need to input password when star

the unit at the first time.

System version information

71. System version information : Click to enter the system version

information interface

72. Show version information details

7/ 28

frequency to automatically scan, when it’s faced with station, then

stop scanning

Reverse Fine: After clicking the direction of decreasing

frequency tuning to a stepper length

Band Conversion: Click to transition to the next radio band

Forward Fine: After clicking the direction of increasing

frequency to fine-tune a step length

Forward Scan: After clicking the direction of increasing

frequency to automatically scan, when it’s faced with station, then

stop scanning

Automatic Frequency Browse: Click to scan radio stations from

the current point, encountered a station stop for 5 seconds, listen to

the radio, click on FM1 ~ FM6 save radio stations and stops scanning

Automatic frequency scanning: Click to radio stations will

come to the end for scan and save the scan to the station.

Save Frequency Browse: Click to radio frequency will be

saved for browsing, a signal will stop 5 seconds radio to listen, click

again to cancel browsing

Stereo Switch: Listening to FM, click enables stereo / mono

conversion

Far / Proximity Switch: When listening to FM, click to carry

away / short-range conversion

When the radio is not operated for 5 seconds, the radio interface

automatically hide the title and menu control (such as：Radio interface:

two illustrated). Click a blank area to return to the original display.

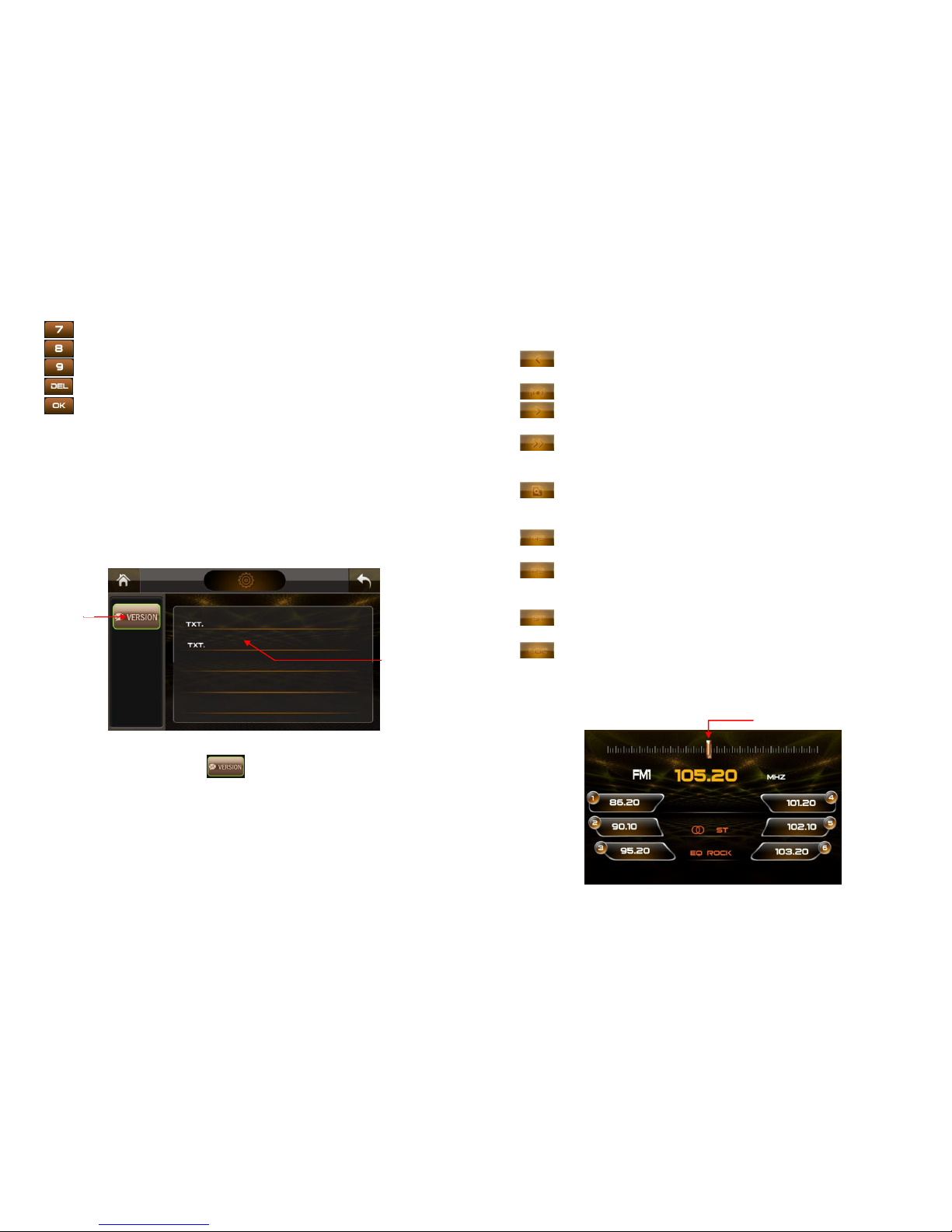

Radio 2

8/ 28

1: Radio frequency pointer. Can be dragged to a specified radio

frequency

3. To play Discs, Flash drive, SD card.

DVD play interface

1. Play operation. Users can choose different function by pulling and touch

function icons.

STOP: touch this icon to stop playing

Back forward: touch this icon to back forward, the speed can be set.

LAST Track: touch this icon to play the last track.

PLAY/PAUSE: touch this icon to play or pause.

Next Track: touch this icon to play the next track.

Fast forward: touch this icon to fast forward.

Repeat: set the repeat mode when playing tracks. Several modes are

available such as Repeat Single and Repeat All.

Random: set the random play mode.

Browse: to set the browse play mode.

Angle: To play different angle of a DVD (if available)

MENU/PBC: return to the main menu of the disc.

Sub-T: to display or switch subtitles of the video.

21 / 28

Factory setting password input interface

Factory setting interface

60. Factory setting :Click to enter factory setting interface

61. Password input buttons: input password for factory setting interface (total six

numbers, shown as "*")

key 0：input “0”.

key 1：input “1”.

key 2: input “2”

key 3: input “3”

key 4: input “4”

key 5: input “5”

key 6: input “6”

Indice

Altri manuali Xtrons Sistema di navigazione per auto

Xtrons

Xtrons TD608GT Manuale utente

Manuali Sistema di navigazione per auto popolari di altre marche

Clarion

Clarion Navigation In-Car Entertainment Manuale utente

Rosen

Rosen DP-1001 Manuale utente

Alpine

Alpine INE-W970HD Manuale utente

Skoda

Skoda AMUNDSEN+ Manuale utente

Blaupunkt

Blaupunkt TravelPilot DX-N Manuale utente

Pioneer

Pioneer MZ360500EX Manuale utente

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manuale utente

Kenwood

Kenwood DNN991HD Manuale utente

AvMap

AvMap Geosat 2C Manuale utente

Eonon

Eonon GE01B Manuale utente

Pioneer

Pioneer AVIC-Z920DAB Manuale utente

Nextar

Nextar M3-MX - Automotive GPS Receiver Manuale utente

Furrion

Furrion NV2200 Manuale utente

Mio

Mio MOOV 200-Series Manuale utente

Prestigio

Prestigio GeoVision 5150 Manuale utente

Hummer

Hummer 2006 H3 Manuale utente

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guida alla configurazione

Garmin

Garmin StreetPilot c510 Manuale utente
