USER MANUAL
Thank you for buying this XTRONS product. Please read through these instructions so you will
know how to operate this unit properly. After you have finished reading the instructions, keep
this document in a safe place for future reference.
Contents Precaution
Before installing this product
- Use this unit with a 12-volt battery and negative grounding only. Failure to do so
may result in a fire or malfunction.
Important safety information
WARNING
- Do not attempt to install or service this product by yourself. Installation or servicing
of this product by persons without training and experience in electronic equipment
and automotive accessories may be dangerous and could expose you to the risk of
electric shock, injury or other hazards.
- To avoid shorts in the electrical system, be sure to disconnect the (-) battery cable
before installation.
- Do not allow this product to come into contact with liquids. Electrical shock could
result. Also, damage to the product , smoke and overheating could result from
contact with liquids.
- If liquid or foreign matter should get inside this product, park your vehicle in a safe
place, turn the ignition switch off (ACC OFF) immediately and consult your dealer.
Do not use this product in this condition because doing so may result in a fire,
electric shock, or other failure.
- If you notice smoke, a strange noise or odor from this product, or any other
abnormal signs on the screen, turn off the power immediately and consult your
dealer. Using this product in this condition may result in permanent damage to the
system.
Precaution .........................................................................................................
Main Menu ........................................................................................................
Radio ....................................................................................................................
Play DVD .............................................................................................................
USB/SD ................................................................................................................
iPod ......................................................................................................................
AUX Input ..........................................................................................................
Bluetooth ...........................................................................................................
Screen Mirroring .............................................................................................
Navigation .........................................................................................................
Settings ...............................................................................................................
Troubleshooting .............................................................................................
2
5
7
8
9
10
10
11
14
14
15
19
- Do not disassemble or modify this product, as there are high-voltage components
inside which may cause an electric shock. Be sure to consult your dealer for internal
inspection, adjustments or repairs.
- Do not operate this product, any applications, or the rear view camera option (if
purchased) if doing so will divert your attention in any way from the safe operation
of your vehicle. Always observe safe driving rules and follow all existing traffic
regulations. If you experience difficulty in operating this product or reading the
display, park your vehicle in a safe location and apply the parking brake before
making the necessary adjustments.
- Never set the volume of this product so high that you cannot hear outside traffic
and emergency vehicles.
- To promote safety, certain functions are disabled unless the vehicle is stopped
and/or the parking brake is applied.
- Keep this manual handy as a reference for operating procedures and safety
information.
- Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair
the performance of any of the vehicle’s operating systems or safety features,
including air bags or hazard lamp buttons or (iii) impair the driver’s ability to safely
operate the vehicle.
- Please remember to fasten your seat belt at all times while operating your
vehicle. If you are ever in an accident, your injuries can be considerably more
severe if your seat belt is not properly buckled.
- Never use headphones while driving.
Before using this product , be sure to read and fully understand the following
safety information:
To ensure safe driving
- LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED
STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE
PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY
VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.
- Do not take any steps to tamper with or disable the parking brake interlock
system which is in place for your protection. Tampering with or disabling the
parking brake interlock system could result in serious injury or death.
- To avoid the risk of damage and injury and the potential violation of applicable
laws, this product is not for use with a video image that is visible to the driver.
- In some countries the viewing of video image on a display inside a vehicle even by
persons other than the driver may be illegal. Where such regulations apply, they be
obeyed.
If you attempt to watch video image while driving, the warning “Viewing of front
seat video source while driving is strictly prohibited.” will appear on the screen. To
watch video image on this display, stop the vehicle in a safe place and apply the
parking brake. Please keep the brake pedal pushed down before releasing the parking
brake.
WARNING
WARNING
Do not install this product in a vehicle that does not have an ACC wire or circuitry
available.
To avoid battery exhaustion
Be sure to run the vehicle engine while using this product. Using this product without
running the engine can drain the battery.
Main Menu
1
2
3
4
2
6
1345
78910
1. Radio
2. Navigation
3. DVD
4. Applications
1. Bluetooth
2. Game
3. AUX Input
4. TV (not supported)
5. Screen Mirroring
6. iPod
7. SD
8. Setup
9. USB1
10. USB1
Radio
1 2 3 4 5 6 7 8 13 14 15 16 17 18 19 201112109
1
3
___2
45678910
Play DVD
DVD Player
1. There are two screws on the top face of the unit to protect the disc drive
in transit. The screws need to be removed first. Otherwise it cannot accept
or play discs.
CAUTION
2. For safety reasons, video images cannot be viewed while your vehicle is
in motion. To view video images, stop in a safe place and apply the
parking brake.
1. Perform manual tuning
2. Preset channel list
3. Band (FM1, FM2, FM3, AM1 or AM2)
4. Perform seek tuning or non-stop seek tuning
5. Mono/Stereo (Works for FM bands)
6. LOC (Distant/Local seek tuning)
7. Store the current broadcast frequency
Up to 18 FM stations and 12 AM stations can be stored in memory.
8. PTY (Program Type)
9. AF (Alternative Frequencies)
10. TA (Traffic Announcement)
1. Previous file
2. Rewind
3. Pause/Play
4. Stop
5. Fast forward
6. Next file
USB1/SD Mode
USB2 Mode
(USB2 Mode)
Plug a USB storage device or insert an SD memory card, then tap USB or SD on the
main menu to enter USB or SD mode.
1 2 3 4 5 6 7
(USB1/SD Mode)
Control your iPod/iPhone directly from your car dashboard. Enjoy music playback in
superior sound quality.
You can display the video image output by the device connected to this unit.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in
motion. To view video images, stop in a safe place and apply the parking
brake.
USB/SD
7. Eject a disc
8. Next page
9. Display adjustment
Adjust the brightness , contrast, and color of the screen.
10. Viewing angle adjustment (not available)
11. Select files
12. Equalizer adjustment
Choose from Standard, Pop, Cinema, and Rock.
13. Play files in random order
14. Title
15. Menu
16. Language
17. Audio channel
Choose from Mono L, Mono R, and Stereo.
18. Zoom
Choose from 1/4,1/3,1/2, 2, 3, 4, 5, and off.
19. Repeat play
Choose from repeat the current file, repeat the list, and repeat all files.
20. Previous page
AUX Input
iPod
1. Previous file
2. Pause/Play
3. Next file
4. Eject (not available)
5. Equalizer adjustment
Choose from Standard, Pop, Soft, Cinema, Heavy Metal, Rock, Classic, Jazz, etc.
6. Repeat play
Choose from repeat the current file, repeat the current folder, repeat all files and off.
7. Random play on/off
1 2 3 4 5 6 7
1. File menu
2. Previous file
3. Pause/Play
4. Next file
5. Equalizer adjustment
Choose from Standard, Pop, Soft, Cinema, Heavy Metal, Rock, Classic, Jazz, etc.
6. Album list
7. Repeat play
Choose from repeat the current file, repeat the current folder, repeat all files and off.
12
Bluetooth
Connect your mobile phone to this unit via Bluetooth and use an external
microphone to make and receive hands-free calls.
CAUTION
For your safety, avoid talking on the phone as much as possible while driving.
＊Connect to a Bluetooth device
Connection (Bluetooth pairing)
a. The Bluetooth device must be within 1 meter of this unit. Turn on Bluetooth on
the device.
b. You can find this unit in the devices list of your Bluetooth device.
c. If your Bluetooth device supports SSP (Secure Simple Pairing), a four-digit
number password will be required. The default password is 0000.
Enter the number to make a call. You can also choose a contact from the phone
book to make a call.
1. Phone calls
2. Recent calls
3. Phone book
View recent outgoing calls, incoming calls or missed calls.
After the Bluetooth connection between your mobile phone and the unit is
established, tap on the screen. The contacts from your Bluetooth device will
be synchronized to the unit automatically.
※ Please note that the unit may not support the phone book function when
some mobile phones are not quite compatible with the unit.
4. Bluetooth music
5. Bluetooth settings
Tap PhoneLink on the menu screen to enter screen mirroring mode. When you
connect a mobile phone with compatible applications installed, you can
control the applications for the mobile phone directly from this unit.
①You can revise the Bluetooth pairing password. The default password is 0000.
Enter another four-digit number, then tap OK to set a new password.
②You can turn answer an incoming call automatically on or off.
③BT Rest
If Bluetooth pairing cannot work, please try the BT Reset.
Screen Mirroring
※ Please note that the screen mirroring function works for Android smart
phones only.
After the Bluetooth connection is established, you can play music stored in your
Bluetooth device on this unit.
※ At first, you need to operate the music playback on your Bluetooth device.
※ Please note that the unit may not support the Bluetooth music function
Then you can operate the Bluetooth music on the unit.
when some mobile phones are not quite compatible with the unit.
Navigation
Built-in navigation offers detailed, reliable route guidance information to help you
get where you want to go.
a. Insert an SD card with maps into the GPS card slot.
b. Go to Setup > Navi path, then set up the path for the navigation application.
c. Tap Navigation on the main menu screen to enter navigation mode.
1.2 Brake Set
On: Video images cannot be viewed while your vehicle is in motion.
Off: Video images can be viewed while your vehicle is in motion.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in
motion. To view video images, stop in a safe place and apply the parking
brake.
1.3 Beep
On: Sounds a beep.
Off: Does not sound a beep.
1.4 Auto Enter GPS
If you turn this on, the navigation will work automatically after the unit is
powered on.
1.5 OSD Time ON
If you turn this on, the time will be displayed on the upper right side of the
screen while you are watching DVD.
1.6 Camera Mirror
If you connect a rear view camera (sold separately) to the unit, you can turn this on
to enter mirror imaging mode for rear parking, and turn this off to enter normal
imaging mode for rear parking.
1.7 Black Time (Screen Timeout Settings)
Choose from 3 minutes, 5 minutes, 10 minutes, and cancel.
1.8 Backlight Set
Drag the slider to adjust the Day Backlight and the Night Backlight.
1.9 TCH Cali (Touch Calibration)
Tap the center of “+” on the screen, and move along with the center of “+” so as to
calibrate the screen. Tap OK to save the data and exit.
1.10 Steer Key
This allows you to use the steering wheel control of your vehicle to control the unit.
1.11 GPS Info
This displays GPS receiver information. You can set the time zone.
1. General settings
1.1 Any Key Power
On: You can turn on the unit by pressing any button on the panel next time.
Off: You can turn on the unit by pressing the power button only.
Settings
1.15 Auto Brightness
Big Light: Connect the illuminationwire to the positive pole of your vehicle
headlights. This makes the dimmer function work. The unit will dim the display
automatically when theheadlights are on.
2. Audio settings
1.16 GPS Mix
1.17 Key Light Color
This enables you to change the illumination color of the buttons to your personal
preference.
2.2 Equalizer Adjustment
You can choose from Standard, Pop, Soft, Cinema, Heavy Metal, Rock, Classic, Jazz,
etc.
3. Time settings
Set the date and time manually.
Select 12-hour format or 24-hour format.
4. GPS settings
Set up the path for the navigation application.
2.1 Fader/Balance Adjustment
You can select a listening position that you want to make as the center of the
sound effects.
Choose from Driver, Passenger, Back, and All.
1.12 Language
Set the language for the unit. Choose from English, French, German, Spanish, and
more.

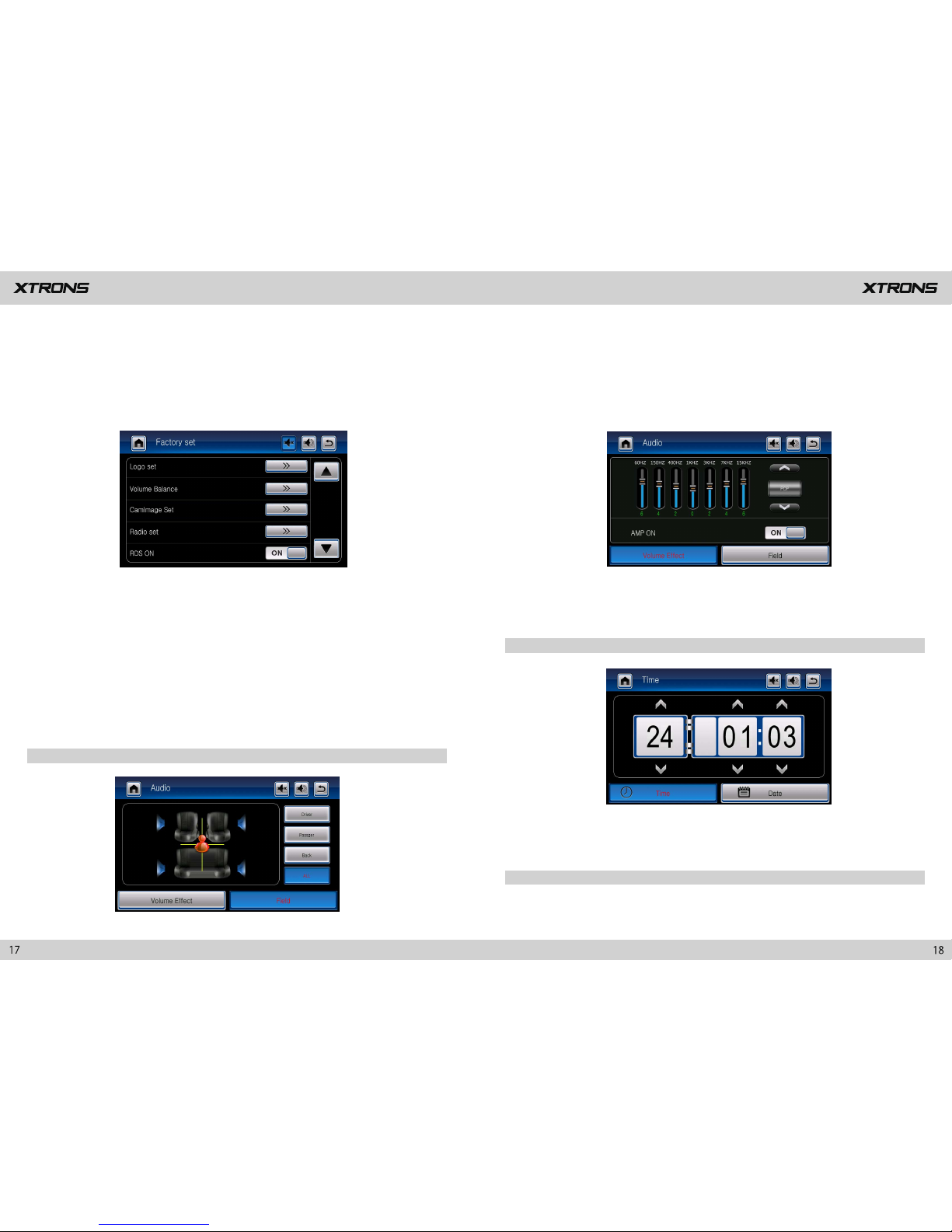

1.13 Factory Set
Enter the password 3368 to go to Factory Settings.
1.14 Version
Indice
Altri manuali Xtrons GPS
