USER MANUAL V1.0
www.globalyadea.com
FOREWORD
Dear customers:
First of all, thank you for choosing to buy "YADEA" products.
This manual introduced the knowledge and maintenance methods of electric scooter,
please read the manual carefully to understand the scooter performance, characteristics,
attention tips and maintenance knowledge, give full play to the advantages of "YADEA"
electric scooter to ensure safe driving in the best driving state.
For effective protection of this scooter ,Please be sure to use "original parts for YADEA
products". If you have any questions, please contact our authorized service station
or our company.
First maintenance time:one month after buy the scooter.
Next maintenance time:three months after last maintenance.
CONTENTS
General Notice
Precautions
Safety Notice
Parts Info
Operation Guide
Battery & charger Use and Maintenance
DOs and DON'Ts while Riding
Maintenance and Repair
Troubleshooting List
Technical Parameters
Maintenance Record
······························································································································· 3
······························································································································· 4
········································································································································· 6
·························································································································· 8
·············································································· 17
··································································································· 22
············································································································· 24
·················································································································· 29
··················································································································· 31
·················································································································· 33
······························································································································· 2
General Notice
Please read this User Manual carefully for proper operation before riding the scooter.
For your safety, please check whether the parts are in good condition according to this User
Manual before riding. Contact your dealer in time in case of any problems.
Please follow the traffic laws. Slow down on slippery roads in bad weather to allow
greater braking distance for your safety.
Please pay attention to deep water. It may cause rusting or failure of the motor,
battery or other parts if water level reaches wheel axle.
Do not dismantle the scooter on your own. Please contact your dealer for replacement
or purchase of original parts.
Do not lend your scooter to those who can’t operate a scooter for others' safety
and preventing unnecessary damage to your scooter.
Please keep this User Manual properly.
Precautions
Rider and Passenger
Z3 is not designed for a ride of more than 2 persons. Riding Conditions
Z3 is not designed for off-road use.
This User Manual should be deemed as a permanent document of Z3. If this scooter is transferred
to others, this User Manual should also be handed over to the new owner.
Reproduction or reprint of any part of this User Manual is strictly prohibited.
Warning: Failure to follow the instructions herein may lead to serious casualties.
Attention: Failure to follow the instructions herein may lead to personal injury or scooter damage.
2 3
Safety Notice
Using a safety helmet and protective goggles is strongly advised.
You are advised to take proper training or exercise before using on open roads.
Please follow the Operation Guide to fully understand how to properly operate the scooter.
It should be noted that the braking distance in bad weather will be much longer.
Please avoid braking on paint markers, manhole covers and oil stains to prevent slipping.
Pay extra attention when riding through railway crossings, junctions, tunnels, and bridges.
Slow down if road conditions are unclear.
Do not use high beam indiscriminately. Continuous use of high beam may disturb the vision
of the drivers and pedestrians.
Do not use mobile phones or other electronic devices which may draw your attention while riding.
Do not change the lane without signaling. Changing the lane at will is one of the major causes for accidents.
When you need to change the lane, remember to switch on the Turn Signal Indicator first. Always
check the vehicles approaching from behind before changing the lane.
4 5
Parts Info
Dimming switch
Speedometer Headlight Seat cushion
Rear carrier
Motor
Tire
Front shock absorber
Front wheel
Rear-view mirror
Front brake handle
Throttle
Power switch
Rear brake handle
Left grip
Horn button
Steering light switch
6 7
Operation Guide
Dashboard Display Info
Operation Guide
Power lock switch indication
High beam
Under voltage indicator
Power indicator
Speed Total mileage
Turning signal indicator Safely start indicator Push and rotate anticlockwise
To lock the handle bar
OFF
ON
89
PUSH
I
G
N
I
T
I
O
N
Operation Guide
Dashboard Display Info
Operation Guide

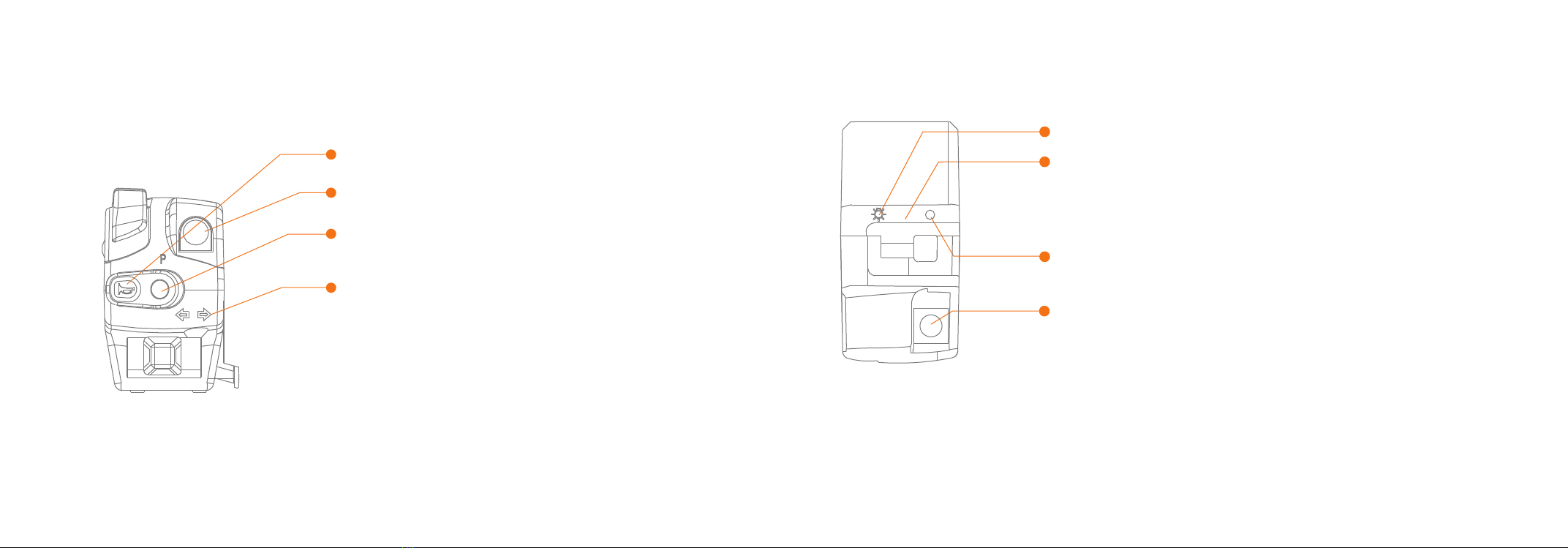

Horn logo
Headlight switch symbol
Light control headlight switch
Light off
Shift switch
10 11
Double flash switch
P gear switch
Turning light symbol
Turn left to turn on the left turning light
Turn right to turn on the right turning light
Stop in the middle is turn off the turning light
Turn left to turn on the headlight manually,
with the headlight switch in the middle,
and turn right to turn off the light.
POWER
AUTO
The operation mode of starting the protection function (P gear) is as follows:
Unlock the P gear: Turn on the power lock and press the P-gear switch.
When the display interface of the instrument changes from the " P" to the " GO" ,
the P gear is unlocked and the whole scooter can ride at this time.
Locking of P gear: when the P gear is unlocked and the scooter is not riding,
press the P gear switch again and the P gear will be locked; Or if the motor stops
rotating for more than 120 seconds after riding, the p gear will be locked automatically.
After the P gear is locked, the instrument display interface will change to the " P", and
the whole scooter will not be able to ride at this time. If you want to ride the scooter,
you need to press P gear again.
12 13
Overtaking switch
Overtaking symbol
High beam symbol
Dipped headlight symbol
Double flash symbol
Press the upper side to turn on the high beam
Press the lower side to turn on the dipped headlight
Operation Guide
Battery carrying
Operation Guide
Open seat cushion
14 15
Open the seat cushion
and press the button
The footplate bounced off,
exposing the underlying battery.
Open seat cushion
1. The seat cushion lock at the left rear of the decoration
boards. Rotate to the right to open the seat cushion.
2.Lift the rear of the seat cushion to open it,
and press it lightly to lock it.
3.There is a storage space inside the seat box for you
to place raincoats and some other goods
Turn the blue knob counterclockwise
as shown in the figure,
unplug the plug, and then the
battery can be carried out.
Operation Guide Battery&Charger Use and Maintenance
1. When the scooter is completely stopped, the turning light switch turns off and the key is turned to the OFF position.
2. When parking, people stand on the left side and flat ground to step on the pedal lever of the main support,
step down with force and lift up with right hand. When you leave the scooter, in order to prevent the scooter be stolen,
please be sure to lock the anti-theft lock and take away the key.
Instructions for use of battery and charger
1. Charging and maintenance of batteries
This scooter uses maintenance-free lithium battery, the operating environment temperature is 0℃~+45℃,
too low will reduce its effective capacity, too high will affect its service life.Therefore, in winter or cold areas,
it is normal when the continuous distance after one charge is reduced. When the temperature rises above 20℃,
its function will resume naturally. The battery is an important component to protect the good performance of the scooter.
Please pay attention to proper protection. Please do not use the electric energy to the minimum allowable voltage every
time you ride. When the undervoltage indicator flashes, you must charge the battery.It is best to form the habit of charging
after riding every day, which is of great benefit to the battery life.
1. Turn the power switch to the ON position, whether all kinds of lights are on, whether all switches are working,
whether the horn is ringing, and whether the gate switch is normal.
2. If there is no difference, lay down the main bracket to make the rear wheel touches the ground.
3. After seated correctly, turn on the power lock and press the p switch. when the display interface of the
instrument jumps from the " p" screen to the " GO" screen, the p is unlocked and the whole vehicle can ride at this time.
When braking, It is recommended to brake the rear wheel before the front wheel, The effect is the best.
1. After returning the throttle quickly, hold the brake handle tightly.
2. The best way is to brake slowly and then tighten it.
3. Do not brake sharply or turn sharply. Emergency braking and sharp steering are the main factors causing sideslip
or rollover, which are extremely dangerous.
Locating
Start the scooter
Use of brake
16 17
