Yakima EASY-OFF Manuale utente
6100002998-Rev2 1/8
• Please read instructions carefully before installation.
• Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.
• Place these instructions in the vehicle’s glove box after installation is complete.
FIRST TIME INSTALLATION
®
QUICK RELEASE AWNING BRACKETS
AWNING SOLD SEPARATELY
EASY-OFF
8
3
6
1
4
2
7
5
ITEM COMPONENT QTY ITEM COMPONENT QTY
1. Awning Bracket Assembly x1 5. Awning Bracket Assembly
(with Lock Cavity)
x1
2. M6 Nut x4 6. M8 Nut x2
3. M6 Washer x4 7. M8 Washer x2
4. M6 Bolt x4 8. M8 Bolt x2
KIT CONTENTS
• For two channel awnings go to
Page 2
• Tape Measure
• Spanner 10 mm / 13 mm
TOOLS REQUIRED:
Note number of channels at rear of awning:
• For one channel awnings go to
Page 5
6100002998-Rev2 2/8
LO
GO

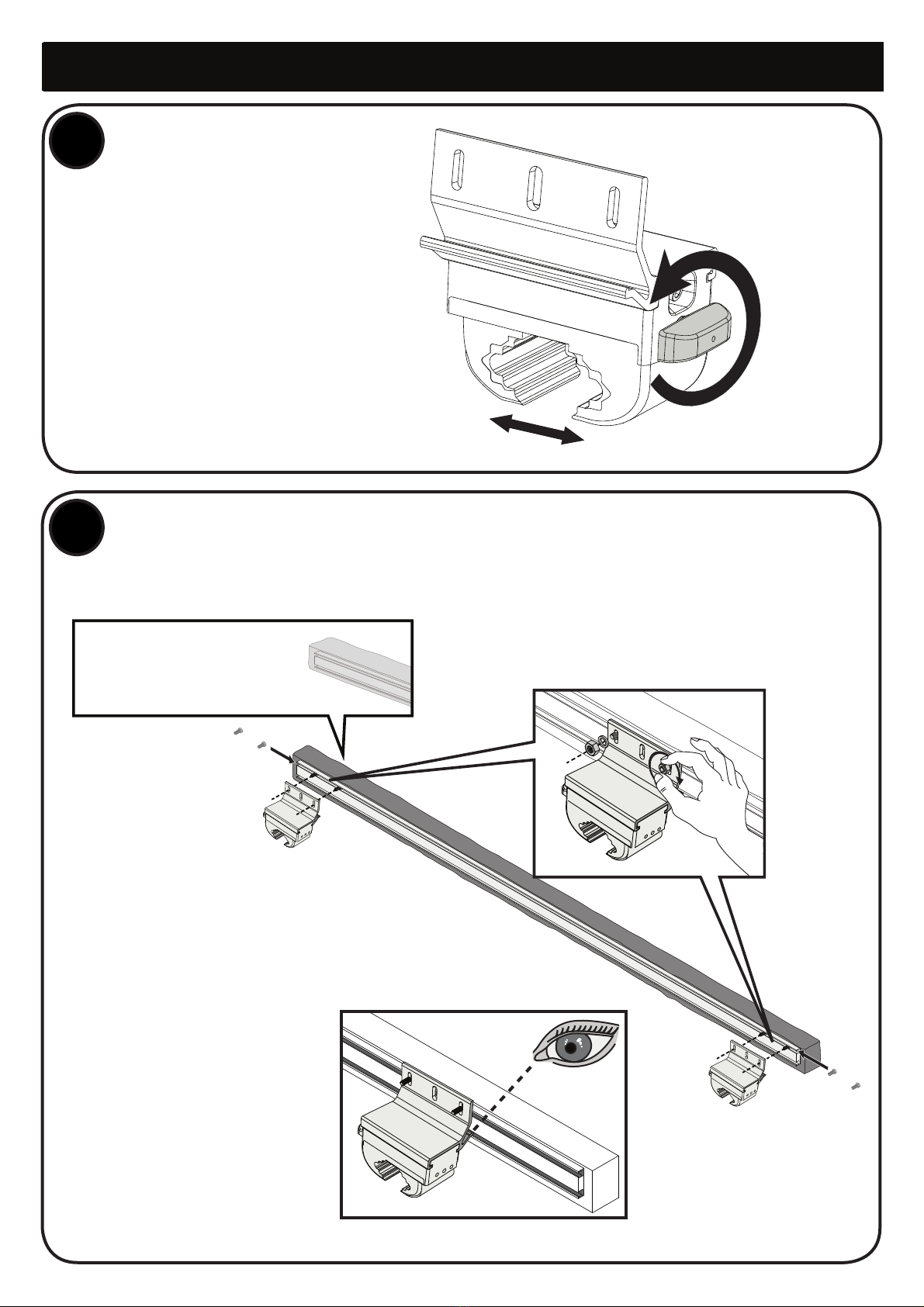

ASSEMBLY INSTRUCTIONS: AWNINGS WITH TWO CHANNELS
x2
x2
INSTALL BRACKETS ONTO AWNING
2
OPEN CLAMPS
Rotate Tightening Knob on
Bracket in an anti-clockwise
direction to open Clamp Jaws
fully.
1
x2
x2
If Using M6 Hardware
Insert two M6 Bolts into each
end of the upper channel.
Attach a Bracket to each pair
of Bolts ensuring the rib of the
Bracket sits within the bottom
channel and Bolts sit through
the outermost Bracket holes.
Thread an M6 Washer and
M6 Nut onto each Bolt before
tightening loosely by hand.
x2
x2
x4
x4
The hardware used to secure the Brackets to the awning will depend on the width of the
upper channel.
In most cases, the M6 hardware provided in the kit will be suficient. However, wider
channels may require the use of the M8 Nuts, Bolts and Washers supplied.
Be sure awning is oriented
correctly with the logo
right side up in relation to
the clamps.
6100002998-Rev2 3/8
X
==
X
3
Minimum crossbar spread is 61 cm (24”)
x2
x2
If Using M8 Hardware
Insert an M8 Bolt into each end of the upper channel.
Place a Bracket over each Bolt ensuring shaft runs
through the largest Bracket hole in the centre.
Ensure rib of Bracket sits within the bottom channel of
the awning.
Thread an M8 Washer and M8 Nut onto each Bolt
before tightening loosely by hand.
x2
x2
x2
x2
POSITION BRACKETS FOR
INSTALLATION
Measure the distance between your
crossbars, then set the distance between
the Brackets, and space them equidistant
from the ends.
6100002998-Rev2 4/8
4
4INSTALL AWNING ON VEHICLE
With the assistance of a friend, carefully place the awning onto your vehicle ensuring
both Clamps are seated evenly over the crossbars. If necessary, ine tune the position
of the Brackets and re-measure the awning overhang on each end to ensure awning
remains balanced over the bars.
Clamp must be seated correctly
on crossbars, to avoid awning
movement.
SECURE AWNING
A. Turn Tightening Knob clockwise to securely close Clamp Jaws around bars.
B. Fully tighten all Bolts on both Brackets (10 mm Spanner for M6/ 13 mm Spanner for
M8 hardware).
C. Fully tighten the silder bolt on each clamp.
5
5.25 +/-0.25 Nm
x2
x2
A
5.0 +0.5/-0.0 Nm
x2 (M8)
x2 (M8)
x4 (M6)
x4 (M6)
BC
5.0 +0.5/-0.0 Nm
x2
x2
6100002998-Rev2 5/8
ASSEMBLY INSTRUCTIONS: AWNINGS WITH ONE CHANNEL
6CHECK INSTALLATION IS SECURE
Check awning is securely in place with no front
to back or side to side movement evident. If
movement is detected, return to previous step. If you have purchased
lock cores, install them
according to your lock
core instructions.
Yakima #8007202
OPEN CLAMPS
Rotate Tightening Knob on
Bracket in an anti-clockwise
direction to open Clamp Jaws
fully.
1
x2
x2
6100002998-Rev2 6/8
LO
GO
x2
x2
INSTALL BRACKETS ONTO AWNING
Insert an M8 Bolt into each end of the awning channel.
Place a Bracket over each Bolt ensuring shaft runs through the largest Bracket hole in
the centre.
Note that the rib of the Bracket should sit below awning.
Thread an M8 Washer and M8 Nut onto each Bolt before tightening loosely by hand.
2
x2
x2
x2
x2
Be sure awning is
oriented correctly with
the logo right side up in
relation to the clamps.
POSITION BRACKETS FOR INSTALLATION
Measure the distance between your crossbars,
then set the distance between the Brackets, and
space them equidistant from the ends.
X
==
X
3
Minimum crossbar spread is 61 cm (24”)
6100002998-Rev2 7/8
x2
x2
4INSTALL AWNING ON VEHICLE
With the assistance of a friend, carefully place the awning onto your vehicle ensuring both
Clamps are seated evenly over the crossbars. If necessary, ine tune the position of the
Brackets and re-measure the awning overhang on each end to ensure awning remains
balanced over the bars.
Clamp must be seated correctly
on crossbars, to avoid awning
movement.
SECURE AWNING
A. Turn Tightening Knob clockwise to securely close Clamp Jaws around bars.
B. Fully tighten Bolts on both Brackets using a 13 mm Spanner.
C. Fully tighten the silder bolt on each clamp.
5
5.25 +/-0.25 Nm
x2
x2
A
5.0 +0.5/-0.0 Nm
BC
5.0 +0.5/-0.0 Nm
x2
x2
6100002998-Rev2 8/8
www.yakima.com.au
YAKIMA PRODUCTS,
INC.
4101 Kruse Way
Lake Oswego, OR
97035-2541
USA
888 925 4621
YAKIMA AUSTRALIA PTY.
LTD
17 Hinkler Court
Brendale, QLD 4500
Australia
1800 143 548
2
Rotate Tightening Knob on Bracket
in an anti-clockwise direction to
unlock/open Clamp Jaws fully.
1Remove awning.
REMOVAL
6CHECK INSTALLATION IS SECURE
Check awning is securely in place with no front
to back or side to side movement evident. If
movement is detected, return to previous step.
If you have purchased
lock cores, install them
according to your lock
core instructions.
Yakima #8007202
