Yakima PR3041 Manuale utente
PR3041
Kayak Stand
EN Fitting Instructions for Basic Carrier

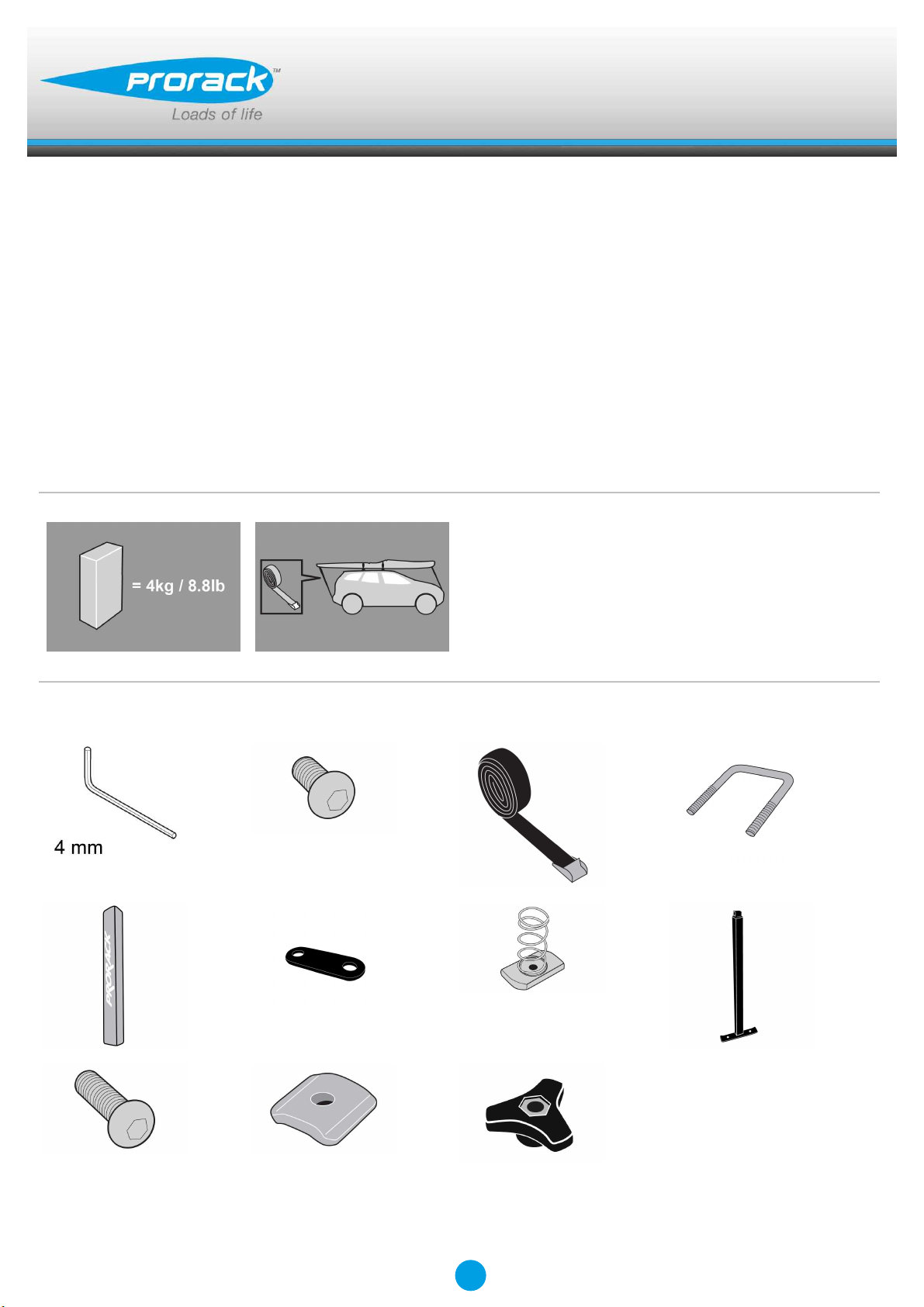

x 1 x 4 x 2 x 4
x 2 x 4 x 4 x 2
x 4 x 4 x 8
Revision No: 3C 1
Kayak Stand EN
PR3041
First Time Installation

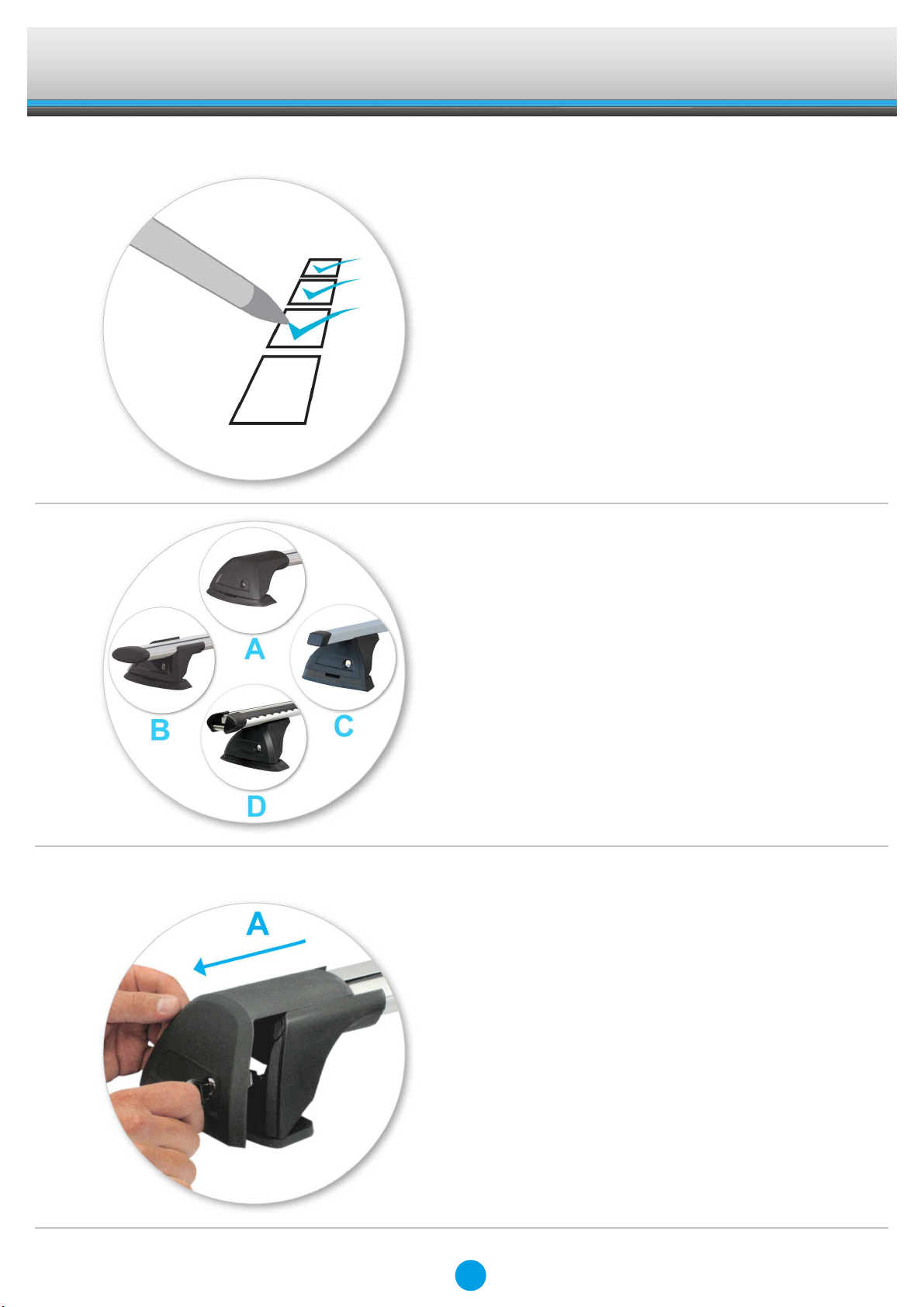

●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
For type A and B crossbars only.
●For type A, remove cover with keys.
2
Kayak Stand EN
PR3041

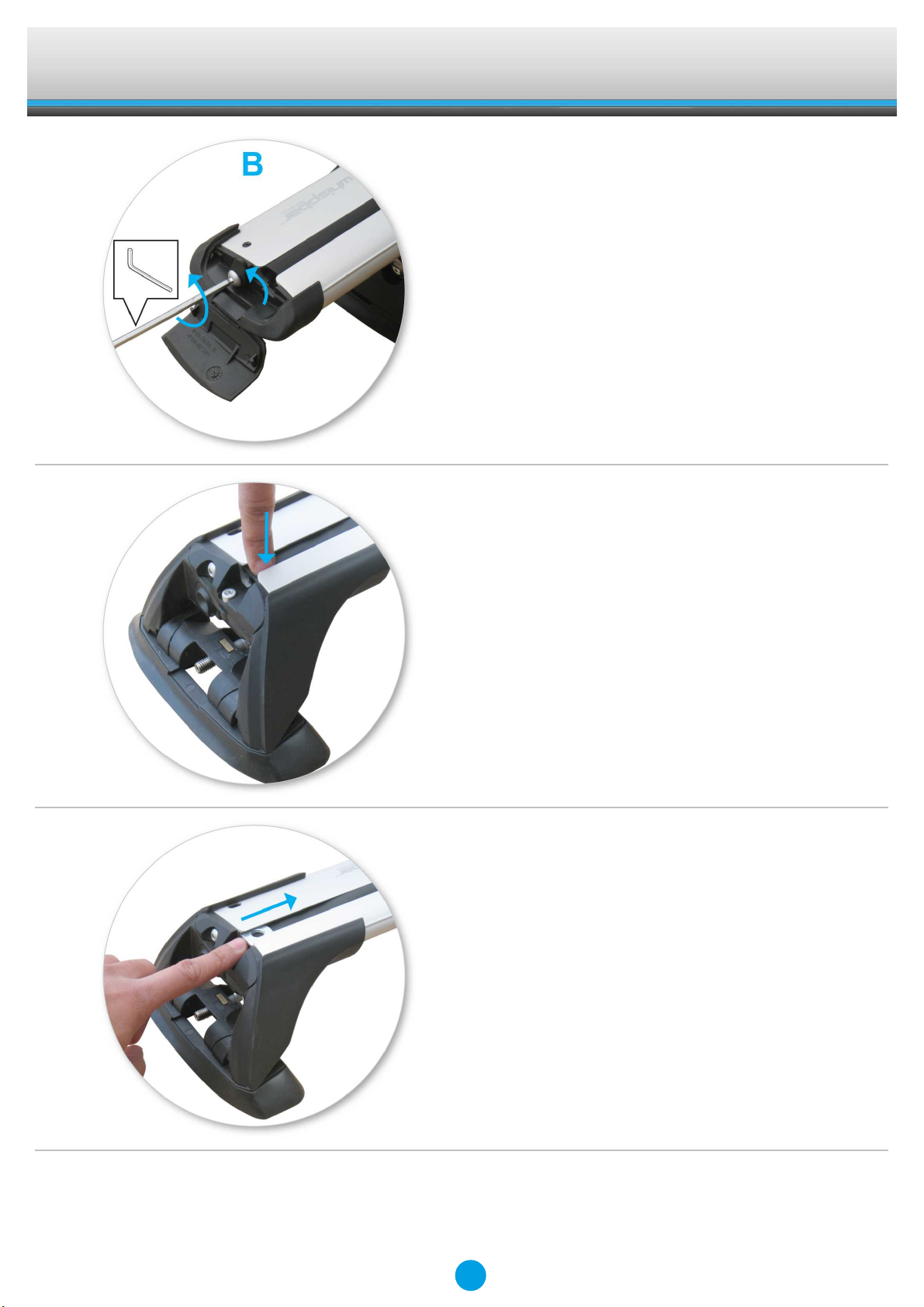

●For type B, unfasten security screw with an
Hex Key and lift the accessory tab up.
●Push down rubber infill.
●Slide square nut along channel.
●Position where you want the accessory to
be.
3
Kayak Stand EN
PR3041

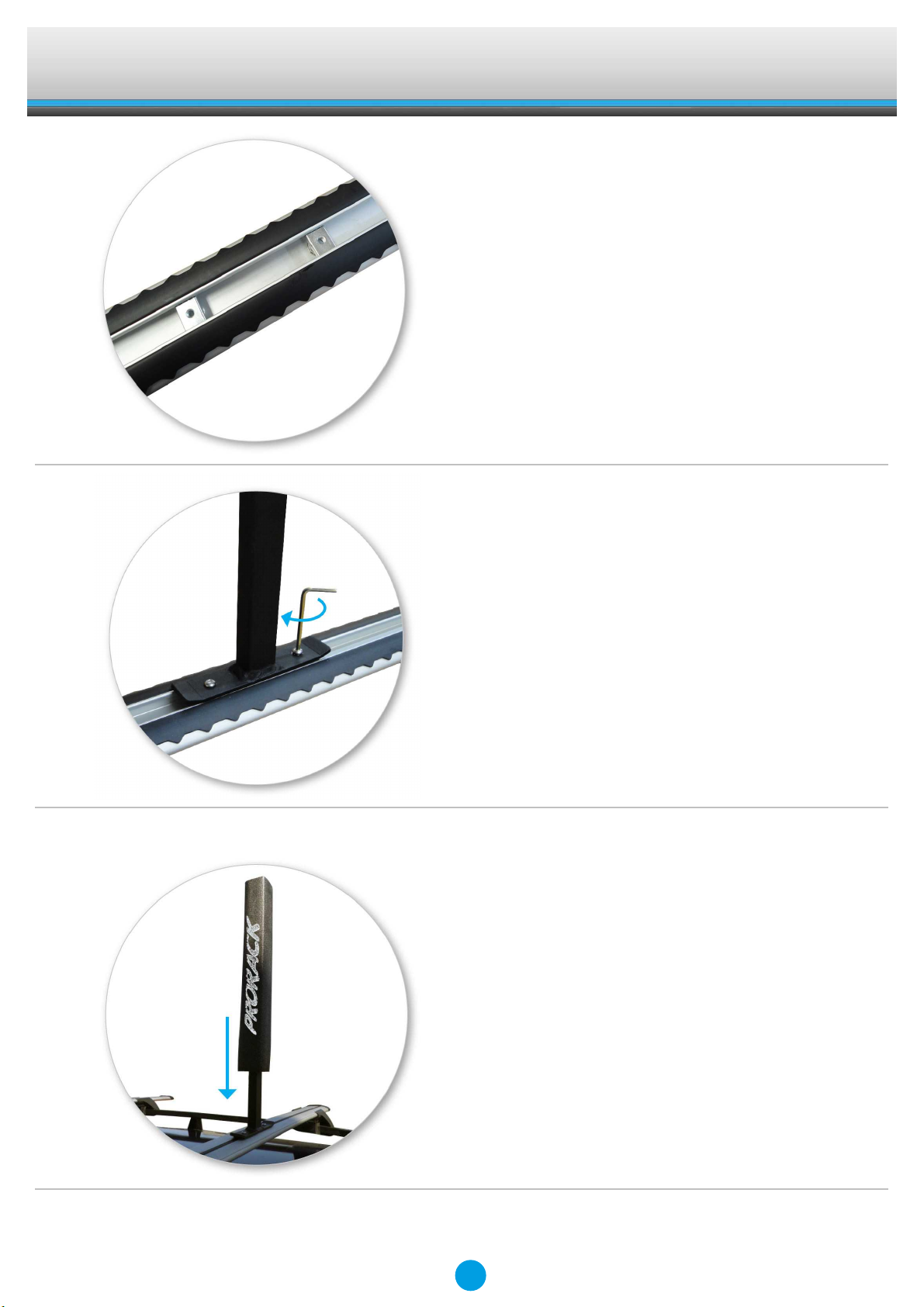

●Repeat for all four positions.
●Position kayak stand over square nuts.
●Attach kayak stand to square nuts using
capscrews. Tighten capscrews using hex
key.
●NOTE: Use shorter capscrews.
●Repeat for both holders.
For type C crossbars only.

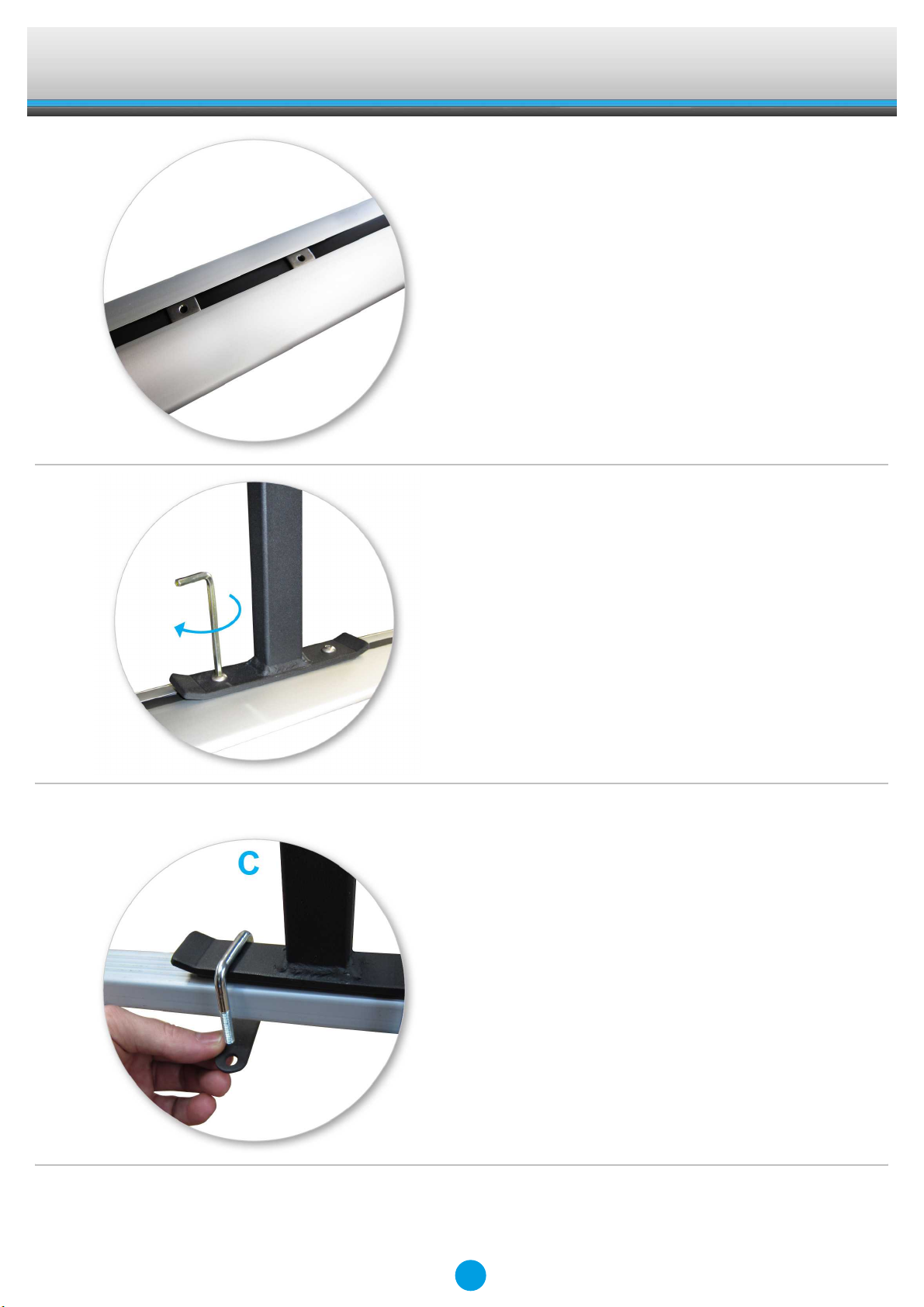

●Place U-bolt over base of kayak stand, as
shown.
●Fit U-bolt plate.
4
Kayak Stand EN
PR3041

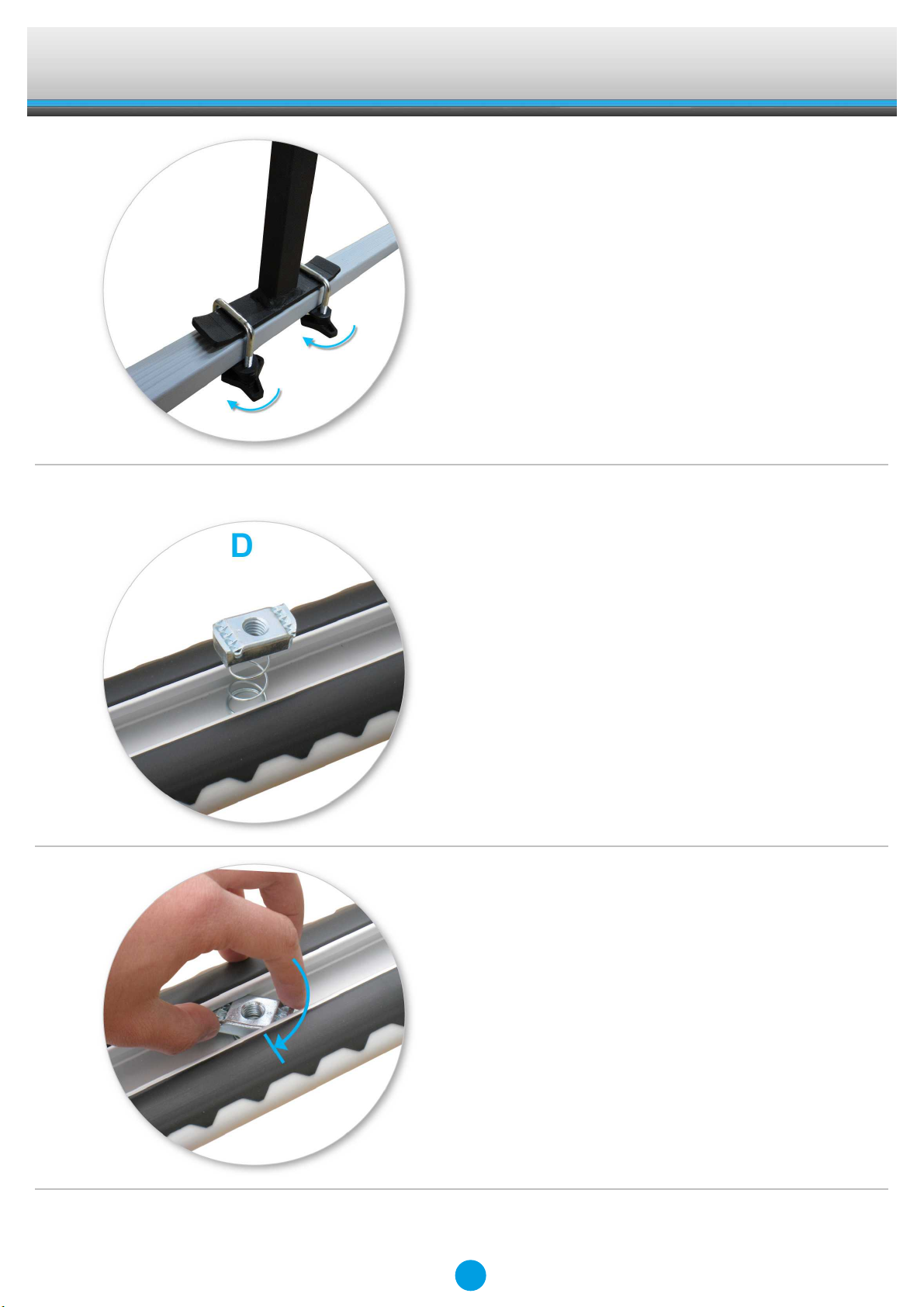

●Secure evenly with knobs.
●Repeat for both holders.
For type D and Tradesman crossbars only.
●Place spring nut into crossbar channel.
●Position where you want the accessory to
be.
●Push down and twist spring nut to lock into
place.
5
Kayak Stand EN
PR3041
●Repeat for all four positions.
●Position kayak stand over square nuts.
●Attach kayak stand to square nuts using
capscrews. Tighten capscrews using hex
key.
●NOTE: Use longer capscrews.
●Repeat for both holders.
All Crossbars:
●Place sleeve over stand as shown.
6
Kayak Stand EN
PR3041

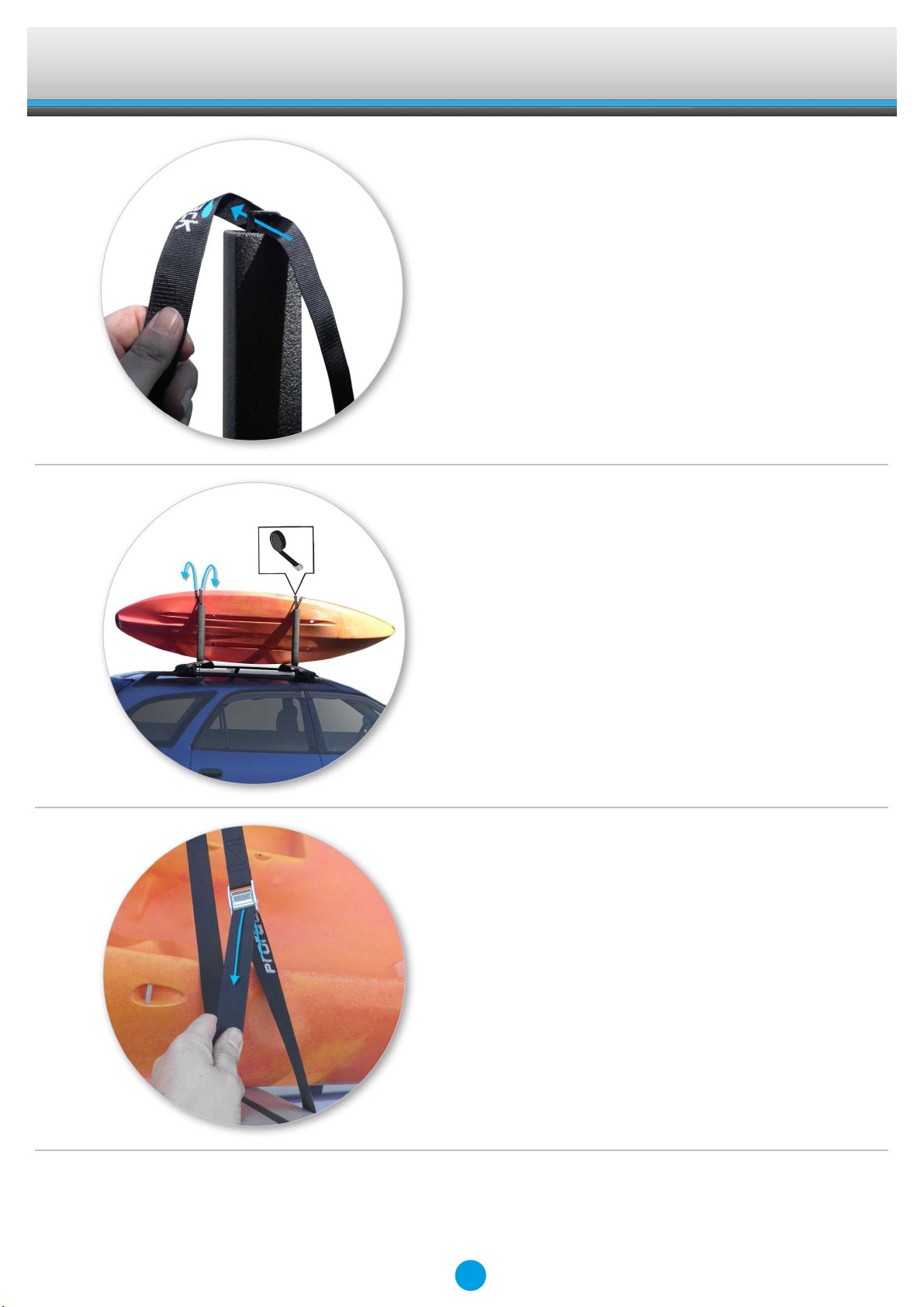

●Thread tiedown through hoop at top of
kayak stand.
●Place hull of kayak on bars, resting against
stand upright.
●Place both ends of the camlock strap over
the front of the kayak.
●Put end of strap under crossbar and back
up through camlock buckle.
Pull down to tighten.
●Repeat for both holders.
7
Kayak Stand EN
PR3041

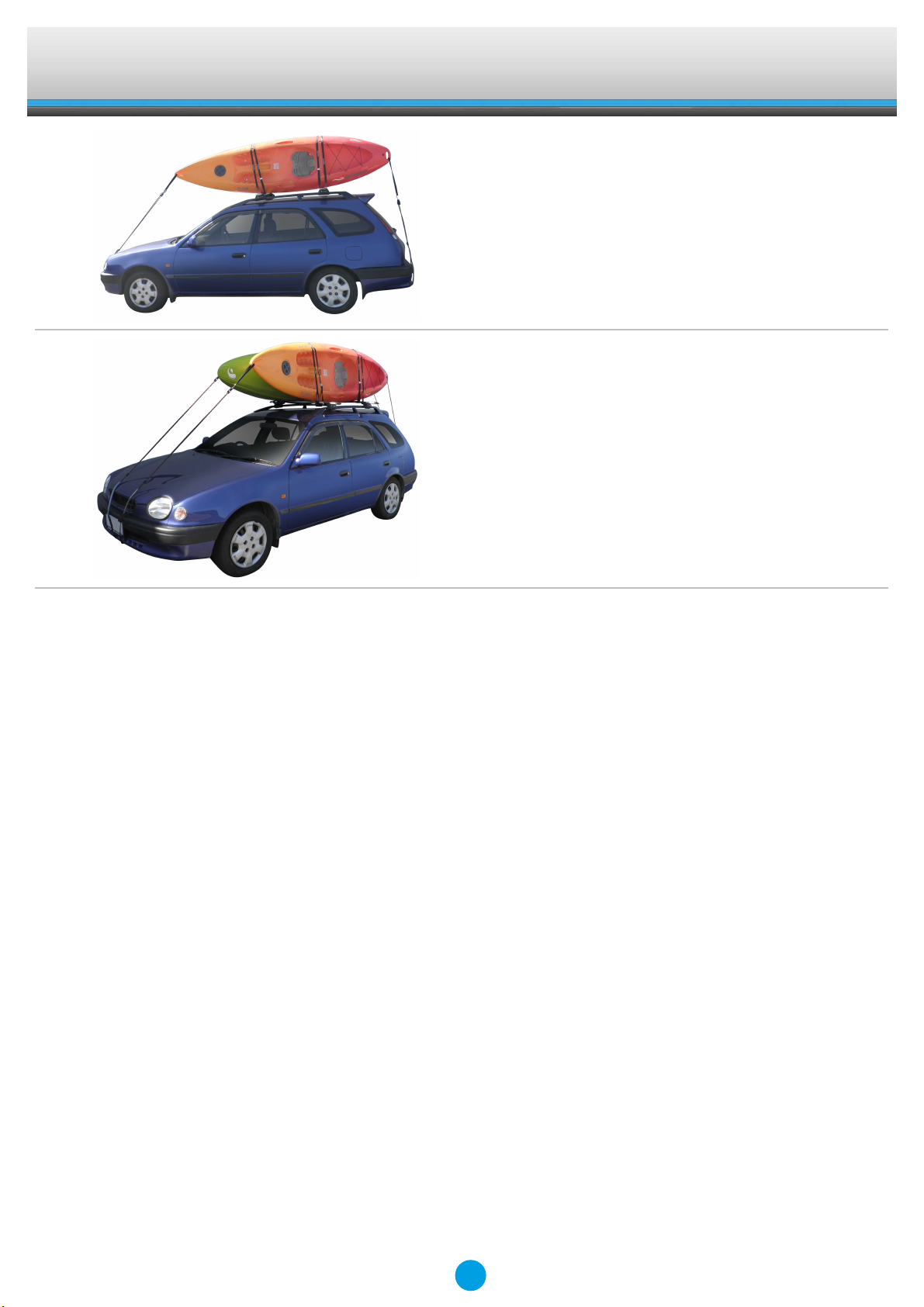

●Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
●A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds,
changing of direction, and braking
performance. Avoid rapid acceleration and
deceleration. Drive carefully.
●The purchase of an additional camlock set
(PR3036) will enable a second kayak to be
strapped to the kayak stand.
●NOTE: Tie downs necessary to secure
kayaks front and rear, are sold separately.
8
Kayak Stand EN
PR3041
Maintenance
●Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
●Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
●Set crossbars a minimum distance of
700mm (27 1/2") apart where no other
distance is specified in the fitting
instructions. This is especially important
when carrying long loads.
●Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
●Some glass/panoramic roofs and radio
antennae may not be able to be used when
the product is fitted.
●Do not modify this product.
●Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the
fitting instructions.
●Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
●Objects with pointed ends (e.g. ski poles)
should be carried with the pointed ends to
the rear of the vehicle.
●Remove all loose or removable objects
from the load prior to loading.
●Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
●Note that the total height of the vehicle
increases when upright loads are carried.
●Products should be locked during transport
if they have locks fitted.
●Check and replace worn out or defective
parts.
●Keep the product clean and maintained.
●Never drive into a car wash with the roof
rack system fitted.
●Lubricate locks and adjusting screws at
regular intervals.
9
Kayak Stand EN
PR3041
●Remove the products from the vehicle
when not in use. Make sure all loose parts
are stored safely.
●Yakima Australia Pty Ltd
17 Hinkler Court
Brendale QLD 4500
AUSTRALIA
www.whispbar.com
www.whispbar.com.au
www.whispbar.co.nz
www.whispbar.co.uk
www.whispbar.co.za
www.whispbar.eu
www.whispbar.ca
10
