Yamakawa MR-200 Manuale utente

Table of Contents

Introduction.........................................................................................................2

Safety information.....................................................................................3

Precautions................................................................................................5

In the Package.....................................................................................................6

Specifications......................................................................................................7

Knowing Your Portable MP3 Player..................................................................8

Name of parts............................................................................................8

Inserting battery........................................................................................9

Turn on MP3 player................................................................................10

Turn off MP3 player................................................................................10

Multiple Language Support.......................................................................10

PC Connection...................................................................................................11

Operating Controls...........................................................................................15

Operating in music mode...........................................................................15

Operating in radio mode............................................................................17

Operating in voice mode..........................................................................19

Detailed Controls..............................................................................................21

Switching modes.........................................................................................21

Playing music or voice files......................................................................21

Music recording in voice mode.................................................................22

Voice recording in voice mode..................................................................23

Radio recording in radio mode..................................................................23

Menu Settings....................................................................................................24

Menu settings in Music mode....................................................................24

Menu setting in Radio mode.....................................................................26

Menu setting in Voice mode......................................................................29

System Settings..................................................................................................30

Troubleshooting.................................................................................................32

Company Contacts............................................................................................34

Introduction

Thank you for purchasing Yamakawa MR-200 portable MP3 recorder and

player!

With this MP3 player you can enjoy digital music in a more convenient way.

You can directly encode your music from any audio source and record your

voice into voice format, all of this WITHOUT the use of a computer. You can

also transfer songs you enjoy from your computer to your player. With its

one-touch voice-recording feature you can record lectures, interviews or

meetings in good quality.

The MP3 player is compact in size, light in weight and highly functional. Begin

to enjoy the various features of your player by following this user manual.

To familiarize yourself with your player, here are some function highlights:

· Expandable MMC/SD card slot (support 32MB, 64MB, 128MB)

· Direct line-in encoding to MP3 or voice format

· MP3, WMA, ADPCM playback

· 30 FM radio preset channels (Enhanced Feature!)

· FM recording function

· Voice recording from built-in microphone

· Voice messages recording in MP3 or voice format

· Supports ID3 tagging

· Firmware upgrades available

· A-B looping support

· 5 equalizers

· Sleep preset

You must be aware that distribution of MP3 files without the permission from

the content owner is against the copyright laws. Yamakawa Digital

Entertainment and its associating companies will not be liable against such

actions.

Safety information

The user manual or instruction manual for an intentional or unintentional

radiator shall caution the user that changes or modifcations not expressly by the

party responsible for compliance could void the user’s authority to operate the

equipment.

Modifications not authorized by the manufacturer may void users authority to

operate this device.

This equipment has been tested and found to comply with limits for class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction, may

cause harmful interference to radio communications. However, there are no

guarantees that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

●Reorient or relocate the receiving antenna

●Increase the separation between the equipment and receiver

●Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

●Consult the dealer or an experienced radio / TV technician for help.

Keep in mind, modifications not authorized by the manufacturer may

void users authority to operate this device.

If the product suddenly has no response or power off, it may be caused by

electrostatic discharge. If this circumstance, please follow the procedures

below for recovery:

●Switch off the unit, if the unit has no response

●Turn on the unit again

Precautions

Do not abuse your MP3 pl ayer

by usi ng ext r eme f or c e.

Avoi d keepi ng or

uni t i n pl aces w

i c f i el d, di r ect s

posur e f or ext ended

Keep t he uni t away f r om

hi gh humidity. Do not open t he MP

sowill damage t h

Use a soft towel to clean

t he sur f ace of your pl ayer . Keep t he pl ayer aw

Remove the battery from the

pl ayer when you ar e not usi ng t he MP3 pl ayer .

Thi s i s t o avoi d needl ess bat t er y wear .

oper at i ng t he

i t h st r ong magnet

unl i ght , or heat ex

per i ods of t i me.

3 pl ayer , as doi ng

e uni t .

ay f r omchemicals.

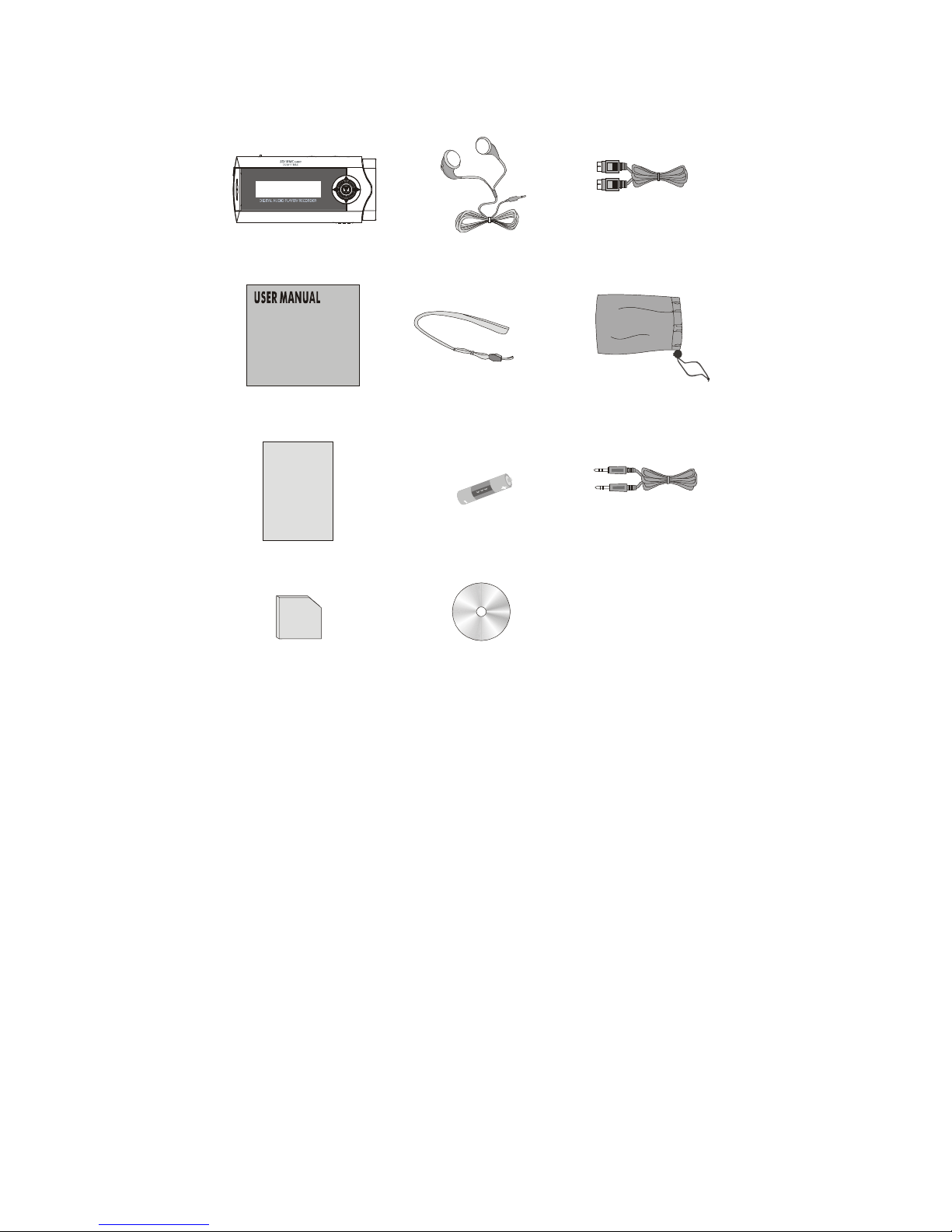

In the Package

Mai n Uni t St er eo Ear phone

Us e r Manual Ne c k St r i n g

War r ant y Car d ( Optional) Bat t e r y

MMC/ SD Ca r d ( Opt i onal ) CD- Ro m ( Opt i onal )

Mini USBCa b l e

Ca r r y i n g Po u c h

Li ne- i n Cabl e

Specifications

Size (HxWxD) 88x41x15mm

Net Weight 42g (without battery)

Internal Flash Memory 128MB o

256MB or 512MB

Power Supply 1x AAA alkaline battery

PC Interface USB

Radio Function FM with auto scan and 30 preset channels

Digital Music Format

Playback

Record

MP3, WMA, all bit rates including VBR

In MP3, ADPCM format

Digital Voice Format ADPCM (32kbps)

Built-in Microphone Electric condenser microphone

Signal to Noise Ratio >90dB

Frequency Range 20Hz - 20kHz

Battery Life 12+ hours

Support External Memory SD/ MMC Memory Card

Equalizer Jazz, Rock, Classic, Pop, User Default

Play Mode Normal, Repeat one, Repeat all, Random,

Repeat random

Knowing your Portable MP3 Player

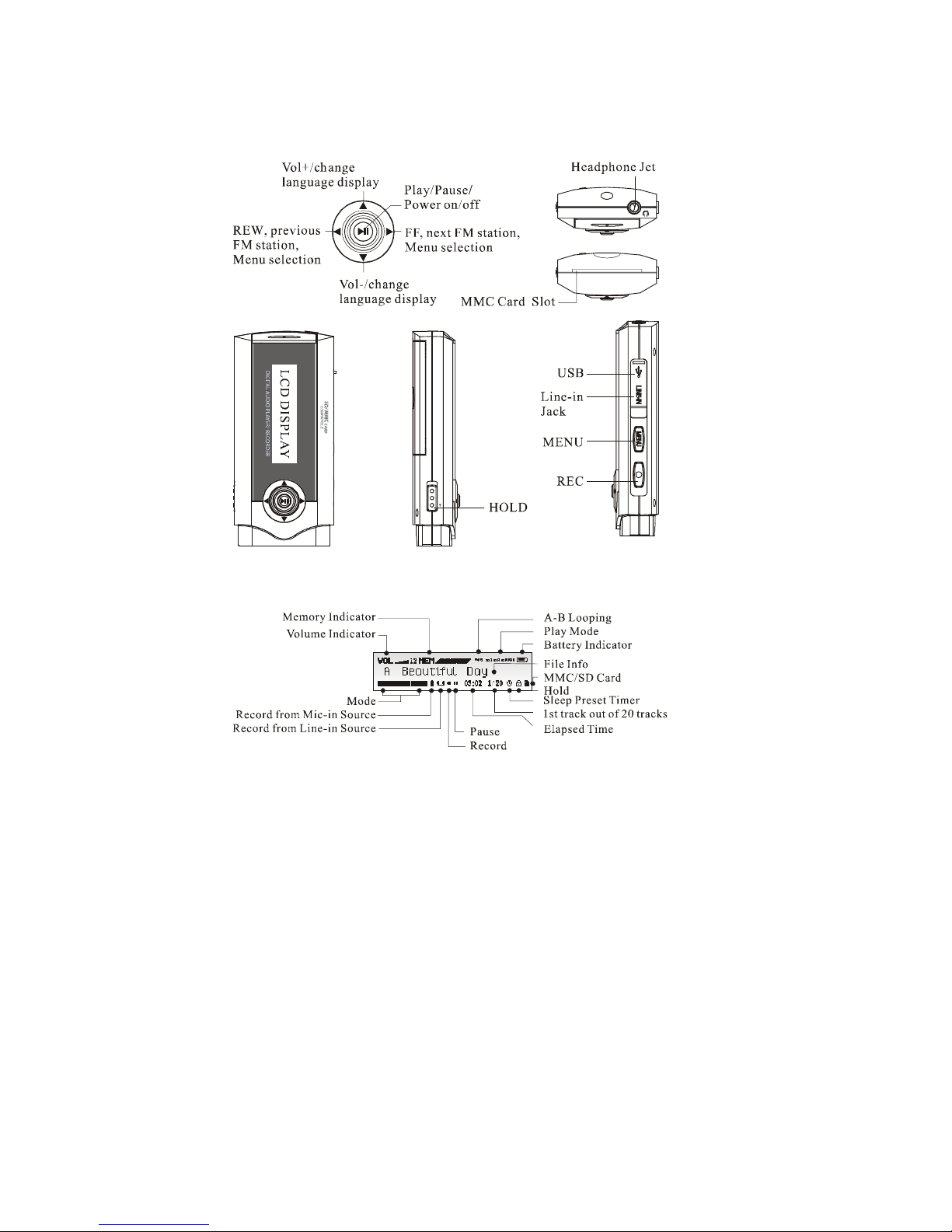

Name of parts

LCD: Display Window

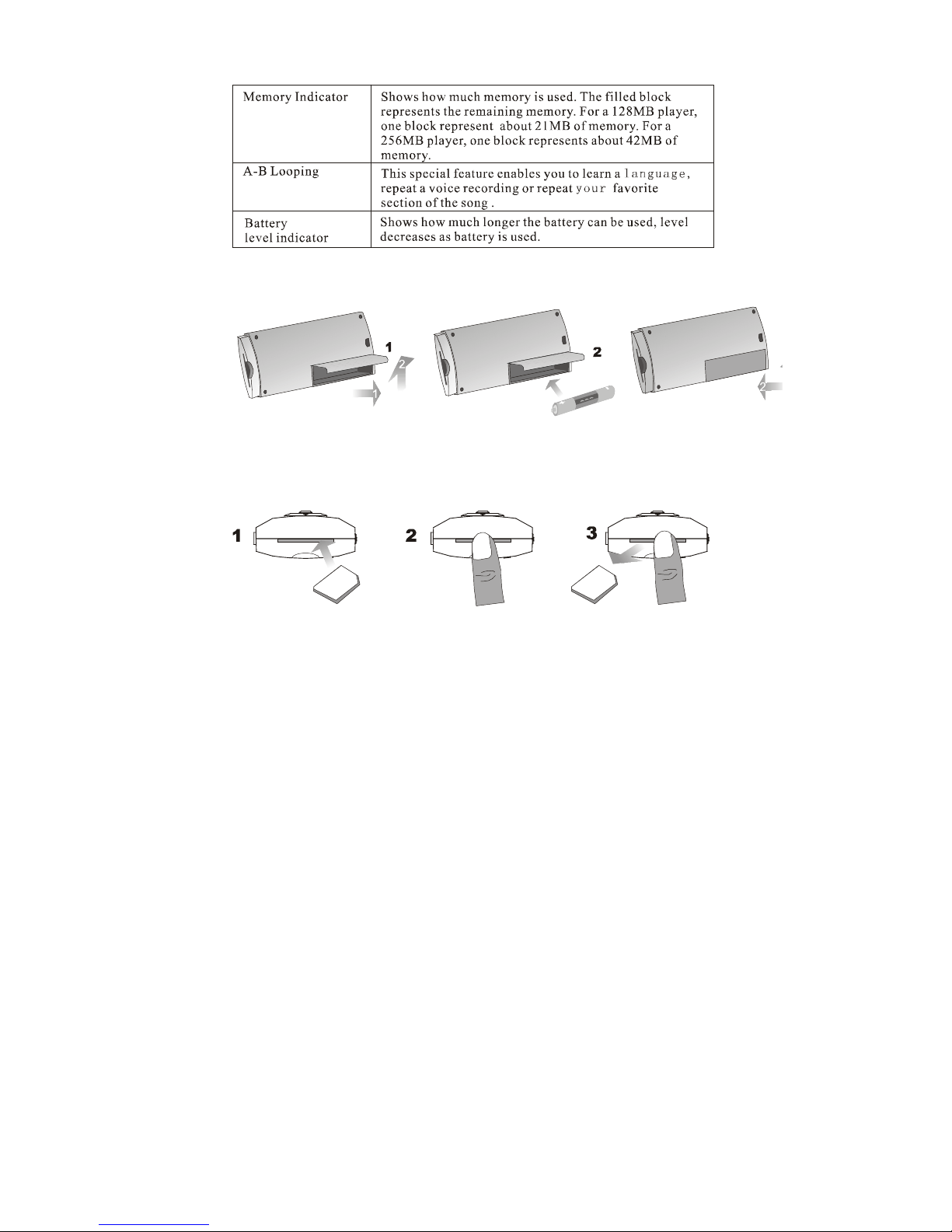

Inserting battery

penthebatterydoor

accordingtothisdirectionPutthebatteryintothecom

partm

ent.

ayattentiontothepolarity.

lose

thebatterydoo

Inserting MMC/SD card

Insert the MMC/SDcard i n a

cor r ect direct i on, youwill see an

arrowin the card ri ght hand corner.

Press once so t hat the card is i nsert

completelyinthe socket, you will see

the cardicon i n t he LCD.

To r el

one t

come o

ease t he car d, pr ess

o t he c ar d and i t wi l l

ut d i r ec t l y .

Remarks :

1. Make sure the card is facing the correct direction when inserting into

the slot.

2. When inserting the card, make sure the logo of the MMC/SD card is

facing upwards.

3. There is a locking device on the SD card. You cannot format, delete or

download any files when the SD card is locked.

Turn on MP3 player

Press and hold

Make sure the HOLD button is switched off. If not, “LOCKED” will

be displayed.

Turn off MP3 player

Press and hold (except when your player is connected to a PC)

Multiple Language Support

When the player is in stop mode, pressing the Vol+ and Vol- buttons will

change the song name display language. By using these buttons will convert

the song titles through a series of different languages listed below:

Western European Languages - (ISO8859)

Korean (Hangeul, KS)

Japanese (Hiragana, Katakana and Kanzi, shift JIS)

Traditional Chinese (Big 5)

Simplified Chinese (GB)

PC Connection

This is a mass storage device. No driver installation is required except

Windows 98. The driver is not required for Windows 2000/XP or Mac. For

Window 98 users, please download the driver from www.yamakawa.de

Locate the downloaded driver file (setup.exe) on your hard drive and double

click the driver file (setup.exe). Follow on-screen prompts to complete the

driver installation process.

(For Window 98 users, you can use the Window 98 driver CD if you retailer

bundled it in the package)

Mac OS 8/9 may or may not require driver installation.

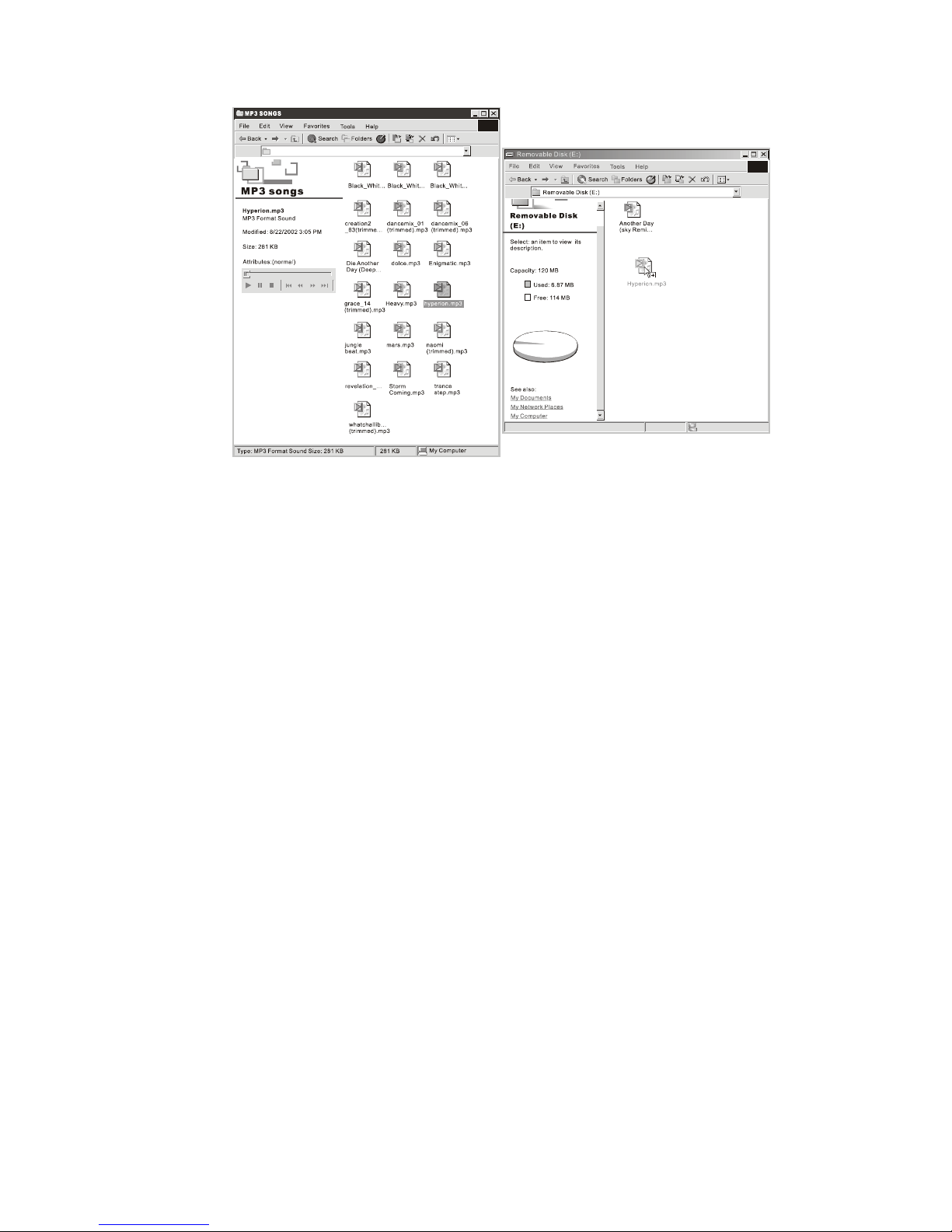

Transfer files from PC to player:

1. Switch on the player and connect it securely to the PC with the USB cable.

2. Double click on “My Computer” on the desktop of windows, there will be

an additional drive created.

3. If the player is connected to your PC, you will see “USB Connected” on the

player’s screen.

4. To download music files to your MP3 player, simply drag the files from the

Windows File Explorer and drop them to the newly opened drive. You can

also upload files from the player to the PC by doing the reverse.

CAUTION:

ONLY UNPLUG THE USB CABLE WHEN ALL DOWNLOAD

PROCEDURES ARE COMPLETED.

Do not unplug the USB cable when the LCD is still displaying “USB writing”

as doing so may corrupt the files stored in the player and you will need to

re-format the MP3 player. If the player encounters abnormal interruption

during recording such as battery removal, you may also need to re-format it

Add on functions:

1. The MP3 player can also be used as an external drive for storage of

non-music files.

2. The MP3 player is compatiable with Music Match. You can directly

rip your audio CDs to WMA or MP3 format using Music Match

software and directly download to the player.

* Our MP3 player does not support WAV files downloaded or created by user.

It only supports WAV files recording direct from the MP3 player.
