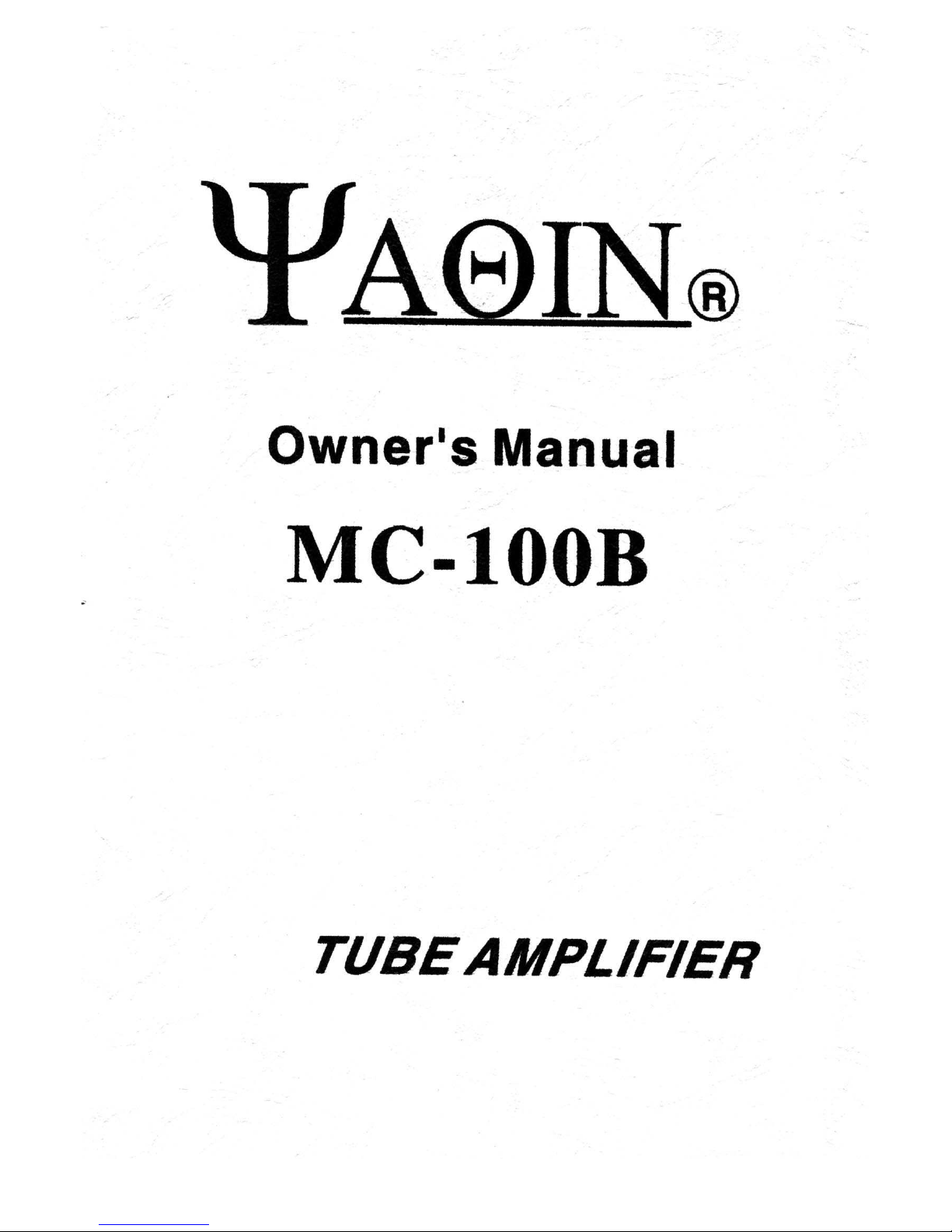

YAQIN MC-100B Manuale utente
www.webb-butiken.com
www.webb-butiken.com
www.webb-butiken.com
www.webb-butiken.com
www.webb-butiken.com
www.webb-butiken.com
www.webb-butiken.com
www.webb-butiken.com
CLASS-A - YAQIN MC-100B Integrated Amp ifier
•Awesome and powerful 65 watt per channel dual mono power amp. Two separate
amps with two separate power supplies on one chassis.
•Beautiful styling with bright copper lacquered chassis and huge potted transformers
with curved aluminum tube cage
•Front panel inputs to bypass internal preamp so you can use your own preamp or
source directly to power amps
•Switchable from 65 watts ltra linear to 32 watts pure triode mode
•Very powerful amplifier that will drive any speaker with authority. Great frequency
extension and bass control.
Data
Input Power......................................................................110V-240V AVAILABLE
Output Power ultra-linear (8 ohm)...................................................... 2x 65W RMS
Output Power triode state (8 ohm)..................................................... 2x 45W RMS
Valve / Tubes................................................................. KT88x4 6SN7x4 12AX7x2
Frequency ..........................................................20Hz~100KHz (-1dB,10w/8 ohm)
Signal/Noise Ratio....................................................................>80dB "A Weight"
Harmonic Distortion ................................................................. <0.5%(1KHz60W)
Input Impedance................................................................................... 20Kohm
FRONT INP T Level ...................................................0.3V Power 0.6V (Selectable)
Power Consumption ...................................................................................300W
Load impedance ........................................................................... 8ohm or 4ohm
Signal Inputs Level................................................................................. >300mv
Input Jack ............................................................................................4 groups
Size Dimension..................................................W 370mm x H 200mm x D 480mm
Colour....................................................... Gold Body / Green metalic transformers
Weight...................................................................................................... 29kg
Packing Includes All Tubes, 1.5m Power Cord & Hex Key
