Yard force LT G33A Manuale utente
READ & UNDERSTAND
INSTRUCTION MANUAL
Save all warnings and instructions for future reference.
40V CORDLESS LINE TRIMMER
Original Instructions
LT G33A & LT G33W
Hotline: 1300 418 640
Monday/Friday: 9.00am to 4.30pm
Saturday: 9.00am to 3.00pm
Email: [email protected]
Description of Product Parts 01
Technical Specications 03
Intended Use 03
Safety Information 04
Assembly 16
Adjustment 17
Operation 18
Storing and Maintenance 25
Troubleshooting 26
Warranty 27
LT G33A & LT G33W Original Instruction
CONTENT
1
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
Fig 1
Fig 2
26

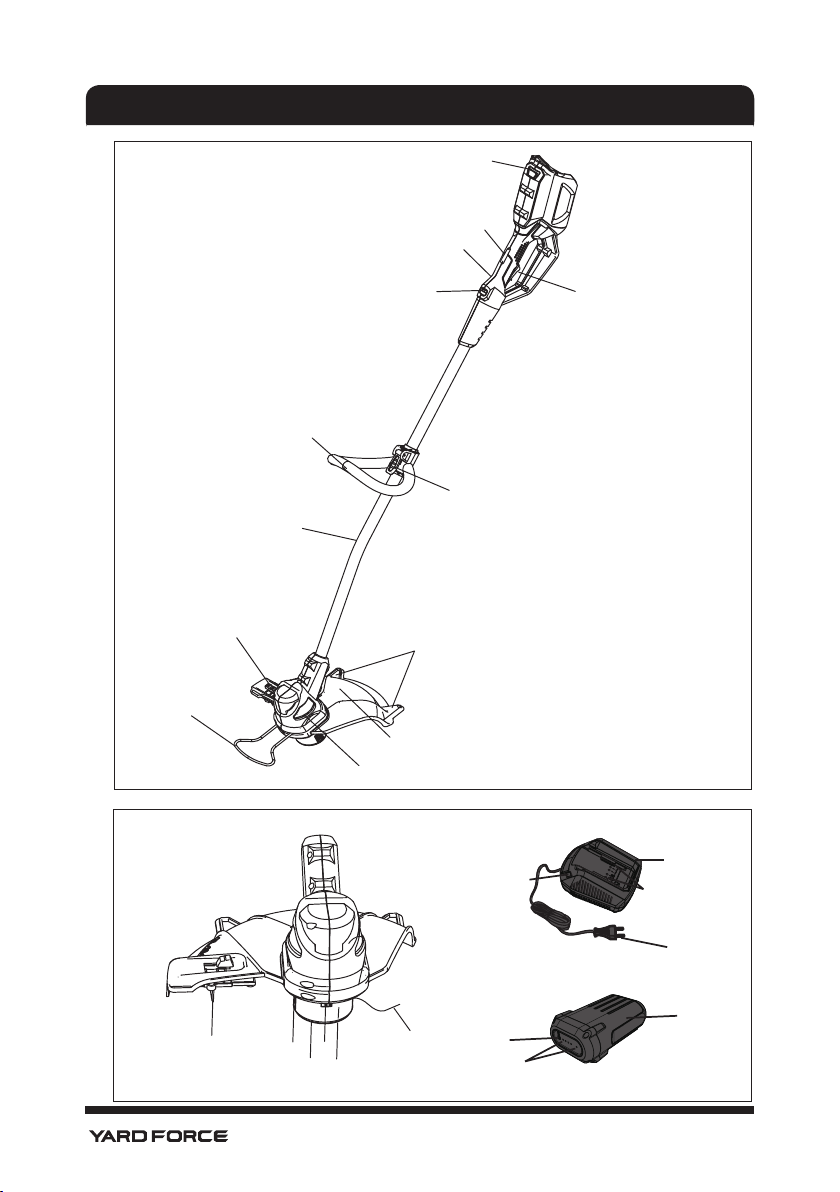

DESCRIPTION OF PRODUCT PARTS
2
Parts List
As shown in Fig 1&2
1. Safety button
2. ON/OFF trigger switch
3. Main handle
4. Dual Speed selector
5. Auxiliary handle
6. Quick -action clamp lever
7. Connecting rod
8. Safety guard
9. Engine Unit
10. Cutting width select knob
11. Flower protection
12. Battery pack release button
13. Supports
Check the delivery parts (Fig 3)
Battery and battery charger are sold seperately.
Carefully remove the machine from its packaging and check as the following parts are
complete:
A. Grass trimmer (including additional handle)
B. Safety guard
C. Flower protection
D. Charger (sold with AL G40A only)
E. Battery pack (sold with AL GC2A only)
F. Manual
WARNING! If any parts are damaged or missing, do not operate this tool until the
missing parts are replaced. Failure to heed this warning could result in serious
personal injury.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
14. Trimmer Blade
15. Spool cover
16. Line release button
17. Cutting line
18. Ribs for releasing spool cover
19. Line spool (invisible in this illustration )
20. Battery pack (sold with AL GC2A only)
21. Power indicator button
22. Power indicator
23. Green /Red LED
24. Charger (sold with AL G40A only)
25. Electric contacts
26. Plug
Fig 3 A
B
CDE
F
DESCRIPTION OF PRODUCT PARTS
3
Model LT G33A & LT G33W
Nominal voltage of machine/battery 40V
No load speed 8000-12000min-1
Cutting width 300/330 mm
Cutting line dia. Ø1.6mm
Net weight 5.7kg
Guaranteed sound power level 96 dB(A)
Battery pack Model AL G40A
Battery capacity 4.0Ah
Battery charging time Max. 2.0hr
Battery charger Model AL GC2A
Input 220-240V AC,
50/60Hz 100W
Output 40V d.c. 2A
Protection class II
The sound values have been determined according to noise test code given in EN 786, using
the basic standards EN ISO 11201 and EN ISO 3744.
The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures
are necessary.
The product is intended for cutting weed, grass or similar soft vegetation in areas that are hard
to reach, e.g. under bushes, on slopes and edges. It may not be used to work on unusual
thick, dry or wet grass, e.g. pasture grass, or to shred leaves.
For safety reasons it is essential to read the entire instruction manual before rst operation
and to observe all the instructions therein.
This product is intended for private domestic use only, not for any commercial trade use. It
must not be used for any purposes other than those described.
TECHNICAL SPECIFICATIONS
INTENDED USE
4
IMPORTANT
Please read these instructions fully before assembling and
operating.

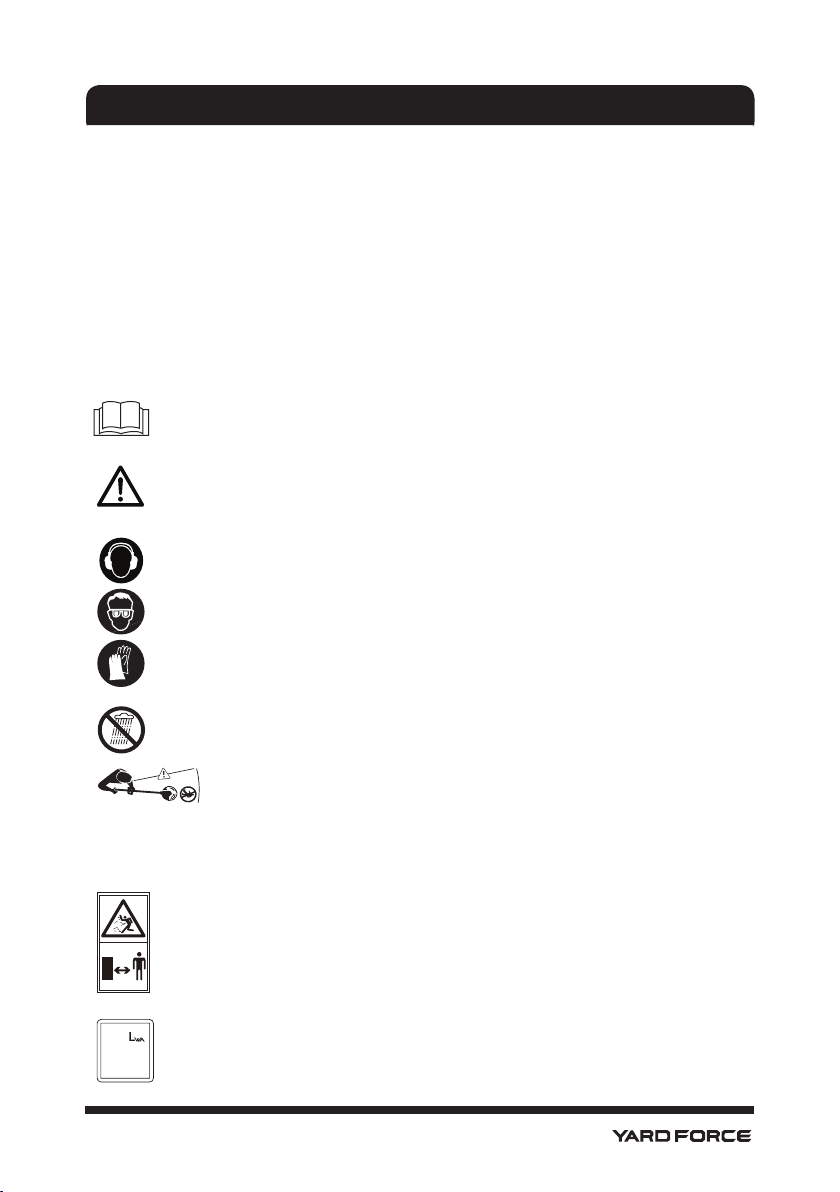

Description of symbols
Symbols are used in this manual to attract your attention to possible risks. The safety sym-
bols and the explications which accompany them must be perfectly understood. The warning
themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding
accidents.
Warning symbols on the machine
Before any use, refer to the corresponding paragraph in the present manual.
This symbol, before a safety comment, indicates a precaution, a warning or a dan-
ger. Ignoring this warning can lead to an accident for yourself or for others. To limit
the risk of injury, re, or electrocution always apply the recommendations indicated.
Wear ear protection,
Wear eye protection
Wear protective gloves
Do not expose and operate the tool in rain.
Beware of thrown or ying objects to bystanders. Keep bystanders a safe distance
away from the machine.
Objects thrown by the product could hit the user or other by standers. Always en-
sure that other people and pets remain at a safe distance from the product when it
is in operation.
In general, children must not come near the area where the product is.
Guaranteed sound power level value in 96dB.
0
6
3
o
SAFETY INFORMATION
96
5
Warning Symbols on the charger
Warning!
Before any use, refer to the corresponding paragraph in the present manual.
The charger is for indoor use only.
Double insulation.
Australian Regulatory Compliance Mark.
Warning Symbols on the battery pack
Batteries contain Li-ion, waste batteries should be sorted for eco-friendly. Do not
dispose of waste batteries as unsorted municipal waste.
Do not throw into water.
Do not litter to re.
Do not subject the battery to strong sunlight over long periods and do not leave it
on a heater(max.45oC).
Take batteries to an old battery collection point where they will be recycled in an
environ-mentally friendly manner.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check your Local Authority or retailer for recycling
advice.
Australian Regulatory Compliance Mark.
SAFETY INFORMATION
6
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instruc-
tions. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future refer-
ence.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-oper-
ated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable liq-
uids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose con-
trol.
Electrical safety
1. Power tool plugs must match the outlet. Never modi-
fy the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodied
plug sand matching outlets will reduce risk of electric
shock.
2. Avoid body contact with earthed or grounded sur-
faces, such as pipes, radiators, ranges and refrigera-
tors. There is an increased risk of electric shock if
your body is earthed or grounded.
SAFETY INFORMATION
7
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for carry-
ing, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a residual current device (RCD) pro-
tected supply. Use of an RCD reduces the risk of
electric shock
NOTE: The term “residual current device(RCD)” may
be replaced by the term “ground fault circuit interrupt-
er (GFCI)” or “earth leakage circuit breaker(ELCB)”
Personal safety
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use
a power tool while you are tired or under the inu-
ence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
2. Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection
SAFETY INFORMATION
