YETI ARC
OWNER’S MANUAL
ARC | OWNER’S MANUAL
2
TABLE OF CONTENTS
OVERVIEW 03
FRAME FEATURES 04
ARC GEOMETRY 05
FRAME STANDARDS 06
MAINTENANCE 07
FRAME ASSEMBLY 08
DROPPER POST INSERTION GUIDE 10
EXPLODED VIEW 11
REBUILD KITS 13
FREQUENTLY ASKED QUESTIONS 14
LIFETIME WARRANTY 15
CONTACT INFORMATION 15
ARC | OWNER’S MANUAL
3

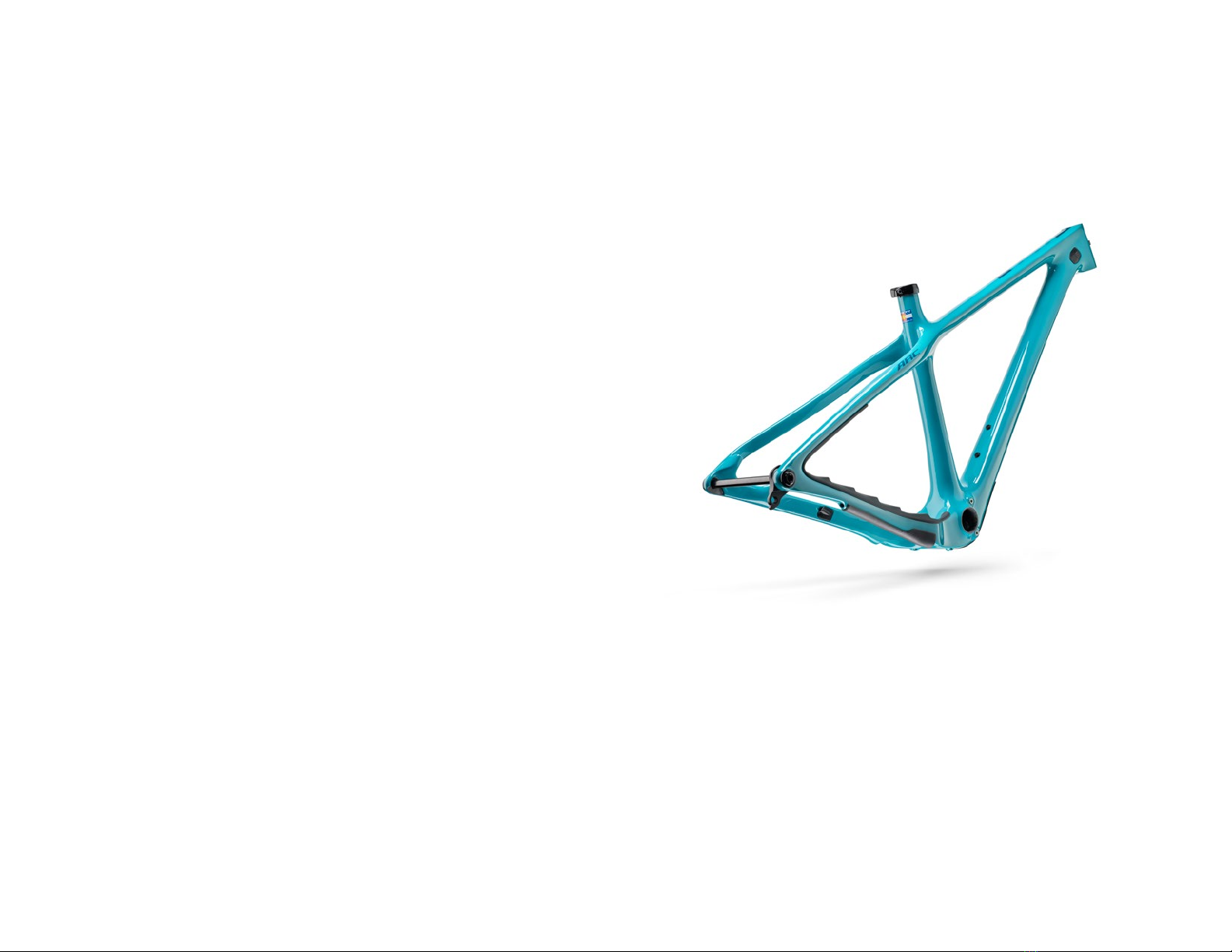

CONGRATULATIONS ON YOUR
PURCHASE OF A NEW YETI.
We are condent your new bicycle will exceed your expectations for value, performance,
and ride quality. Each frameset and component has been custom specied and designed
to enhance your riding experience. Whether you are a beginner cyclist, or a seasoned pro,
your Yeti bicycle will provide endless hours of two-wheeled fun.
This model specic manual is designed to be used in conjunction with the general Yeti
Owner’s Manual and the manuals supplied by the suspension manufacturers. If you did
not receive the Yeti Owner’s Manual or the manual provided by the suspension manufacturer,
download the materials off the Internet, or contact your local dealer. Bicycling can be
a hazardous activity even under the best of circumstances. Proper maintenance of your
bicycle is your responsibility and when done properly helps reduce the risk of injury and
damage to your bicycle.
This manual outlines basic setup and maintenance recommendations of your new Yeti.
It is impossible to anticipate every situation or condition that may occur during the assembly,
setup, and maintenance of your bicycle, Yeti recommends that all service and repairs be
performed by your local authorized Yeti Dealer.
This manual contains many “Warnings” and “Cautions” concerning the consequences
of failure to maintain or inspect your bicycle. The word “Warning” indicates a potentially
hazardous situation in which, if not avoided, could result in serious injury or death.
The word “Caution” indicates a potentially hazardous situation in which, if not avoided
may result in minor injuries or damage to your bicycle or a component of your bicycle.
Be sure to read and understand all of the Warnings and Cautions listed in the manual.
WARNING: Make sure you review and understand the warnings, instructions, and content of this
manual and accompanying manuals for your bicycle.
WARNING: Technological advances have made bicycles and bicycle components more complex
and the pace of innovation is increasing. It is impossible for this manual or the accompanying
manuals to provide all the information required to properly repair and/or maintain your bicycle.
In order to help minimize the chances of an injury, it is critical for you to have work performed
by an authorized Yeti retailer.
ARC | OWNER’S MANUAL
4
THE LOWDOWN ON THE
ARC AND ITS FEATURES.
1 MODERN GEO TO ELEVATE HOW HARDTAILS CAN BE RIDDEN
Cutting-edge, high modulus carbon is hand laid to create our Turq Series frames.
That same stiffness and efciency can also be found in our Carbon Series frame sets.
2 HIGH MODULUS CARBON FIBER MAIN FRAME
The ARC does away with the front derailleur mount, making it a 1x drive specic frame.
3 INTEGRATED 2-BOLT ISCG-05 MOUNTS
2-bolt ISCG-05 chain guide mounts are there for you in case you need extra drivetrain
security for rowdy sections.
4 INTEGRATED 41MM / 52MM TAPERED HEADTUBE
Designed around 130mm of travel, the ARC comes with the latest Fox Racing Shox 34
front fork.
5 CUSTOM DOWN TUBE PROTECTOR AND RIBBED CHAIN GUARDS TO DECREASE CHAIN
SLAP NOISE
Custom seatstay, chainstay and down tube guards keep the ride quiet while protecting
the frame.
6 RATTLE-FREE CABLE PORT ASSEMBLY SECURES CABLES AND HOSES TO PROVIDE
A SILENT RIDE
The ARC is designed with rattle-free cable ports and internally molded cable routing
tubes keeping the bike quiet and clean looking while reducing cable rub and overall
maintenance.
7 INTERNALLY MOLDED CARBON TUBES FOR HASSLE-FREE CABLE ROUTING AND A QUIET BIKE
Congurable routing ports that provide a clean look to your frame when you ditch the
cables and go wireless.
8 INTEGRATED AXLE AND UNIVERSAL DERAILLEUR HANGER SYSTEM
Dedicated 12 x 148 Boost dropouts with SRAM’s universal derailleur hanger provide
strength, stiffness and easy hanger and wheel installation.
9 DUAL WATERBOTTLE MOUNTING LOCATIONS
10 UNINTERRUPTED SEAT TUBE FOR COMPATIBILITY WITH WITH LONGER TRAVEL DROPPER POSTS
FRAME FEATURES
ARC | OWNER’S MANUAL
5
GEOMETRY ARC
FIT
SMALL 5’1” (155 CM) – 5’7” (170 CM)
MEDIUM 5'5" (165 CM) – 5'11" (180 CM)
LARGE 5'10" (178 CM) – 6'3" (191 CM)
X-LARGE 6’1” (185 CM) – 6’7” (200 CM)
B
M
A
D
N
F
G
H
I
O
P
L
J
C
K
E
ASEAT TUBE LENGTH 380 410 450 495
BEFF. TOP TUBE LENGTH 577 604 626 653
CHEAD TUBE ANGLE˚ 67.0 67.0 67.0 67.0
DEFF. SEAT TUBE ANGLE˚ 76.0 76.0 76.0 76.0
EACTUAL SEAT TUBE ANGLE˚ 75.0 75.0 75.0 75.0
FCHAINSTAY LENGTH 433 433 433 433
GWHEELBASE 1143 1172 1194 1223
HESTIMATED BB HEIGHT 310 310 310 310
ISTANDOVER 723 722 720 720
JHEAD TUBE LENGTH 95 103 110 120
KFORK (AXLE TO CROWN) 544 544 544 544
LFORK (OFFSET) 44 44 44 44
MSTACK 632 639 645 654
NREACH 420 445 465 490
OFRONT CENTER 710 739 761 790
PVERTICAL FORK TRAVEL 120 120 120 120
130MM FORK SM MD LG XL
ARC | OWNER’S MANUAL
6
REAR TRAVEL 0MM
WHEEL SIZE 29”
FRAME SIZE SM, MD, LG, XL
BOTTOM BRACKET PF92
REAR WHEEL 148MM X 12MM (BOOST)
SEATPOST 31.6MM
CHAINLINE 55MM
HEADSET INTEGRATED 41MM/52MM TAPERED
REAR BRAKE POST MOUNT 160MM
MIN/MAX CHAINRING 28T MIN/34T MAX
MIN MAX REAR ROTOR 160MM MIN/180MM MAX
AXLE SPEC 174MM M12X1
FRAME STANDARDS
ARC | OWNER’S MANUAL
7
KEEP YOUR YETI FRESH AND CLEAN
MAINTENANCE OVERVIEW
Following these guidelines will help maintain the performance of your bicycle and prevent
more serious problems from arising. It is important to remember that service intervals can
vary depending on climate, trail conditions and riding frequency. Servicing your bike requires
special knowledge and tools. If you are unsure about working on your own bicycle, contact
your authorized Yeti Dealer for more information on general bicycle maintenance.
TORQUE
Yeti strongly recommends using a torque wrench when assembling your frame. Torque
specications for individual parts on the ARC are listed below, as well as in the step by step
assembly instructions later in the manual. For general bicycle maintenance please consult the
torque specications of the component you are adjusting.
SCHEDULE
BEFORE
EACH RIDE
MONTHLY
3 MONTHS
ANNUALLY
Clean and lube chain •
Check tire pressure •
Clean bike of mud and debris •
Check brake function •
Ensure all cable ends are covered with crimped cable end caps •
Check rims for deformations or cracks •
Check for loose bolts and tighten, if necessary •
Check headset and tighten/loosen, if necessary •
Check / replace brake pads •
Check tires for wear •
Check spoke tension, retention, if necessary •
Check chain for wear, replace if necessary •
Complete tune-up performed by an authorized Yeti Dealer •
KEY TORQUE SPECS
PART # DESCRIPTION TORQUE (Nm)
300030010 SHCS, M5 X 0.8, 16L 4-5
300030177 SCREW, FH, M4 X 0.7, 25L 2-3
300030174 SCREW, FH, M4 X 0.7, 15L 3
300030173 SCREW, FH, M4 X 0.7, 10L 2-3
300060080 SRAM UNIVERSAL HANGER 25
ARC | OWNER’S MANUAL
8
FRAME ASSEMBLY
TOOLS NEEDED
• 2.5mm allen key
• 4mm allen key
• 8mm allen key
• Torque wrench
• Grease
01
Grease 4x H20 Bolts (2.2) and install with
washers (2.1) to frame downtube.
Torque: 4-5 Nm
02
Place a Head Tube Cable Port Cover (2.11) into
each recess behind the head tube.
03
Place a Double Port Clamp (2.12) into the
nondrive side cover and a Single Port Clamp
(2.11) into the drive-side cover. Secure with M4
x 25L screws. Tighten until snug. Hardware can
be torqued to 2-3 Nm after housing installation.
04
Assemble a Lower Port Clamp (2.15) to the
Down Tube Port Cover (2.14) using a Flat Head
M4 x 16L screw. Hardware can be torqued to
2-3 Nm after housing installation.
YETI TIPS
Make sure your tools are in good condition.
A worn allen key can round the hex on a
bolt not allowing for proper torque.
Torque settings are listed throughout the
instructions and on page 7 of this manual.
It is important to prep all bolt threads.
The instructions denote whether to use a
Loctite compound or grease. Reference
Exploded View for assembly part locations
listed in parentheses.
WARNING: Service on Yeti bicycles requires
special knowledge and tools. Yeti Cycles
recommends that all service and repairs be
performed by an authorized Yeti Dealer.
ARC | OWNER’S MANUAL
9
07
Install Universal Hanger (2.4) into frame. Do not
use grease. Note that hanger cap bolt is reverse
threaded.
Torque: 25 Nm
08
Note that different Port Clamps may be used for
different congurations of shifter and dropper
seatpost.
An extra single-port and blank cover are
provided depending on your needs.
FRAME ASSEMBLY IS COMPLETE
06
Install the Chainstay Cable Port Cover (2.7) to
the non-drive side chainstay port and secure
with Flat Head M4 x 10L. Hardware can be
torqued to 2-3 Nm after housing installation.
05
Install the Down Tube Port Cover (2.14) into the
frame with a Flat Head M4 x 16L screw (2.16).
Torque: 3 Nm
ARC | OWNER’S MANUAL
10
DROPPER POST INSERTION GUIDE
Droppers are an essential tool for the modern mountain bike but proper clearance checks
are required before heading out for your rst ride.
The key checks are as follows:
Ensure your dropper is short enough to t into the seat tube without interfering with the
frames structure but you are still able to achieve your desired BB-Saddle measurement.
See the max insertion depth chart to conrm this distance for wired and wireless posts.
Always perform a nal check to ensure your post is installed to at least the minimum
insertion line.
We strive to spec out dropper lengths to provide the maximum drop for the highest
percentage of our riders. There is a wide range of saddle heights for every frame size.
There is a possibility saddle height could fall outside of this range. A small percentage
of customers might nd they require a shorter or longer post given their saddle height.
If you have any questions, please contact Yeti or your local bike shop.
*Subtract 34mm for a cabled dropper to accommodate housing bend angle.
MAX INSERTION WIRELESS DROPPER (MM)*
FRAME SIZE
SMALL 355.6
MEDIUM 385.3
LARGE 425.4
X-LARGE 470.4
