Yetter 5000-025C Manuale utente

5000 SERIES STALK DEVASTATOR

CORN STALK ROLLER

*PATENTED*

5000-025C, 5000-026C, 5000-027C, 5000-028C, 5000-034B

John Deere Model Corn Heads (606C, 643, 693, 706C, C6R, 608C,

843, 893, 708C, C8R, 612C, 612FC Folding, 712C, 1243, 1293,

C12F, C12R, 616C, 716C, C16F, & C16R)

OWNER’S MANUAL

PART IDENTIFICATION

2565-785_Rev_F –6/2021

YETTER MANUFACTURING CO.

Founded 1930

Colchester, IL 62326

Toll free: (800)447-5777.

Fax: (309)776-3222

Website: yetterco.com

E-mail: info@yetterco.com

Table of Contents

Foreword.....................................................................................................3

Warranty......................................................................................................3

Safety Information .................................................................................4 - 6

Pictorial Part List ...................................................................................7 - 9

Bolt Torque & Tools Required .................................................................10

Assembly Instructions ......................................................................11 - 36

5000-025C....................................................................................11 –15

5000-026C....................................................................................16 –20

5000-027C....................................................................................21 –25

5000-028C....................................................................................26 –31

5000-034B...................................................................................3 32 –36

Operation / Maintenance / Lock Up .........................................................37

Part Identification ............................................................................. 38 –47

Troubleshooting .......................................................................................50

FOREWORD

You’ve just joined an exclusive but rapidly

growing club.

For our part, we want to welcome you to the

group and thank you for buying a Yetter product.

We hope your new Yetter products will help you

achieve both goals-increase your productivity and

increase your efficiency so that you may generate

more profit.

This operator’s manual has been designed into

four major sections: Foreword, Safety

Precautions, Installation Instructions and Parts

Breakdown.

This SAFETY ALERT SYMBOL

indicates important safety messages in

the manual. When you see this

symbol, be alert to the possibility of

PERSONAL INJURY and carefully

read the message that follows.

The word NOTE is used to convey information

that is out of context with the manual text. It

contains special information such as

specifications, techniques and reference

information of a supplementary nature.

The word IMPORTANT is used in the text when

immediate damage will occur to the machine due

to improper technique or operation.

Important will apply to the same information as

specified by note only of an immediate and

urgent nature.

It is the responsibility of the user to read the

operator’s manual and comply with the safe and

correct operating procedure and to lubricate and

maintain the product according to the

maintenance schedule in the operator’s manual.

The user is responsible for inspecting his

machine and for having parts repaired or

replaced when continued use of the product

would cause damage or excessive wear to the

other parts.

It is the user’s responsibility to deliver his

machine to the Yetter dealer who sold him the

product for service or replacement of defective

parts, which are covered by the warranty policy.

If you are unable to understand or follow the

instructions provided in this publication, consult

your local Yetter dealer or contact:

YETTER MANUFACTURING CO.

309/776-4111

800/447-5777

309/776-3222 (FAX)

Website: www.yetterco.com

E-mail: info@yetterco.com

WARRANTY

Yetter Manufacturing warrants all products manufactured and sold by it against defects in material.

This warranty being expressly limited to replacement at the factory of such parts or products as shall

appear to be defective after inspection. This warranty does not obligate the Company to bear cost

of labor in replacement of parts. It is the policy of the Company to make improvements without

incurring obligations to add them to any unit already sold. No warranty is made or authorized to be

made, other than herein set forth. This warranty is in effect for one year after purchase.

DEALER: ________________________________________

Yetter Manufacturing warrants its own products only and cannot be responsible for damages

to equipment on which mounted.

BE ALERT!

YOUR SAFETY IS INVOLVED

WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY

PRECAUTIONS. IT MEANS “ATTENTION – BE ALERT!”

It is your responsibility as an owner, operator, or supervision to know and

instruct everyone using this machine at the time of initial assignment and at

least annually thereafter, of the proper operation, precautions, and work

hazards which exist in the operation of the machine in accordance with

OSHA regulations.

Safety Is No Accident

The following safety instructions, combined with common sense, will

save your equipment from needless damage and the operator from

unnecessary exposure to personal hazard. Pay special attention to

the caution notes in the text. Review this manual at least once a year

with all operators.

1. Read and understand the operator’s manual before operating this machine.

Failure to do so is considered a misuse of the equipment.

2. Make sure equipment is secure before operating.

3. Always keep children away from equipment when operating.

4. Make sure everyone that is not directly involved with the operation is out of the

work area before beginning operation.

5. Make sure all safety devices, shields, and guards are in place and functional

before beginning operation

6. Shut off all power to adjust, service, or clean.

7. Keep hands, feet, and clothing away from moving parts. It is a good idea to

remove all jewelry before operating.

8. Inspect the machine periodically during operation for signs of excessive wear,

loose fasteners, and unusual noises.

PLEASE READ, VERY IMPORTANT

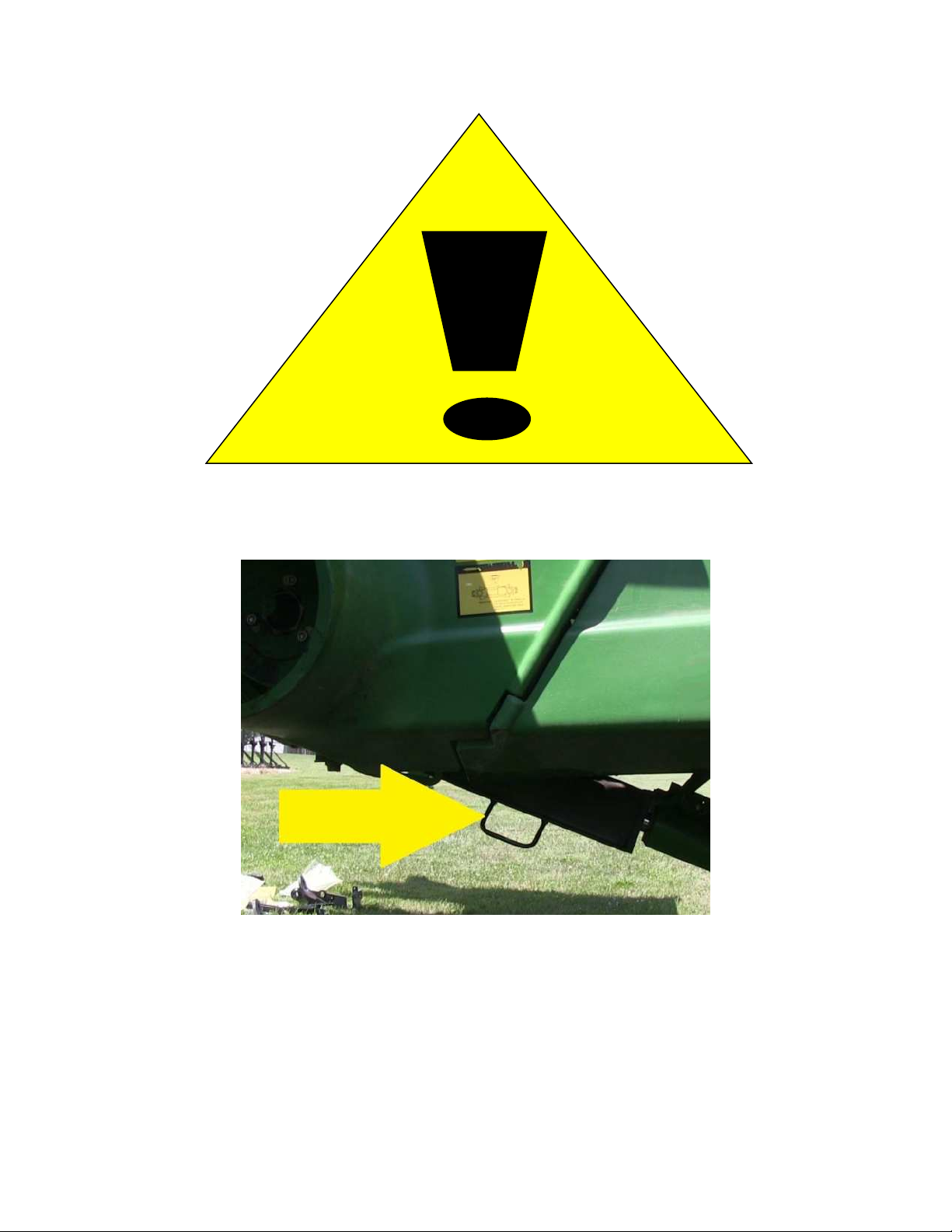

SECURE CORN HEADER AGAINST UNWANTED LOWERING BY

APPLYING THE LOCKING MECHANISM ON THE HYDRAULIC CYLINDERS!

1. Attach head to combine, lock head to combine

2. Raise the head off the ground and engage safety stop on the feeder house cylinder.

3. Apply combine parking brake, turn off combine engine, and remove the key

4. Wear personal protective equipment during installation: steel toe footwear, safety

glasses, & gloves

FOLLOW ALL INSTRUCTIONS GIVEN BY THE COMBINE

MANUFACTURER

PLEASE READ, VERY IMPORTANT

Subject to the size and weight of the corn header, one

or two additional hydraulic cylinders may be required.

The combine manufacturer generally keeps

corresponding kits readily available for dealers.

Subject to the design of the corn header and the

carrying capacity of different combines, the steering

axle may require the fitting of additional weights and

the rear tires be filled with ballast.

FOLLOW ALL INSTRUCTIONS GIVEN BY THE COMBINE

MANUFACTURER

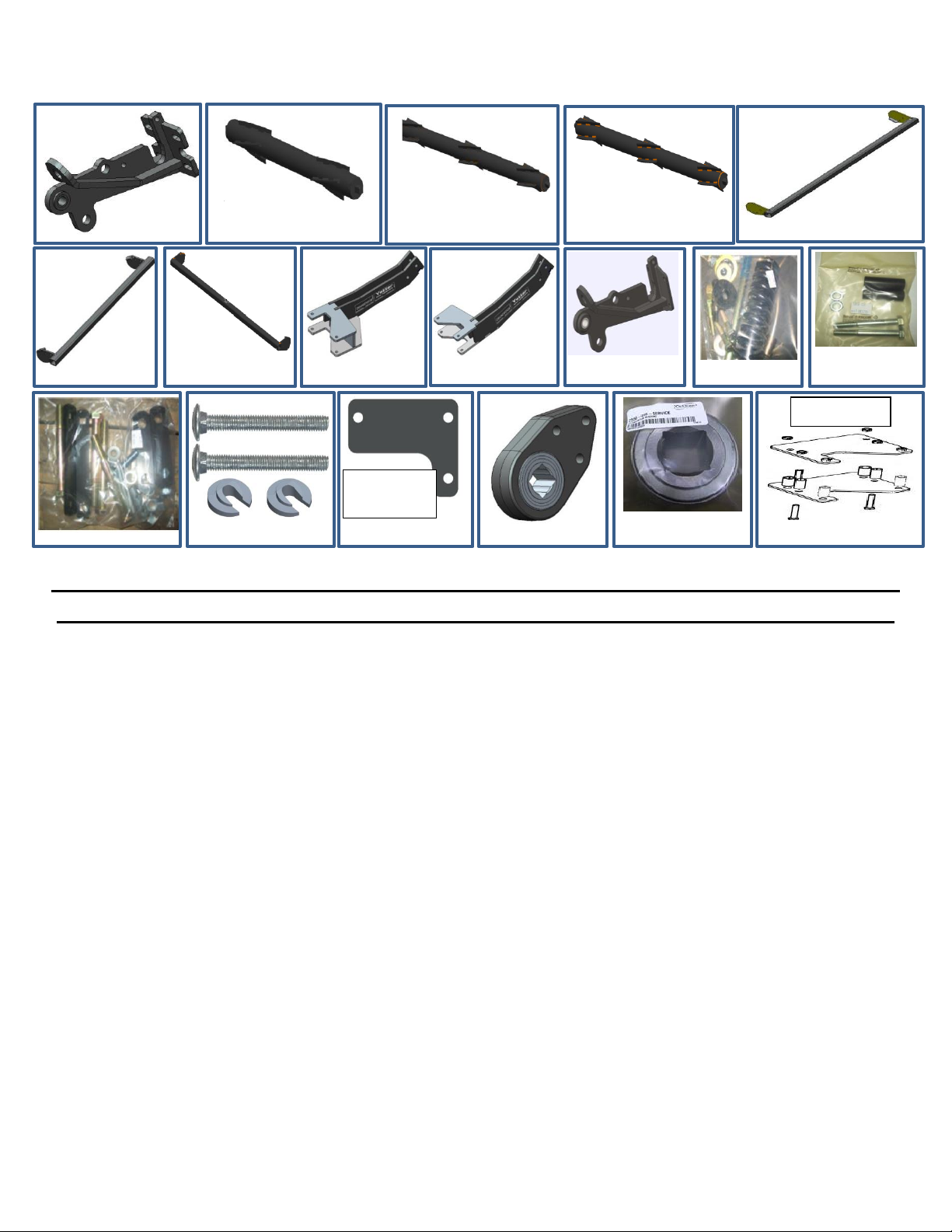

PICTORIAL PART LIST

BEFORE INSTALLATION BEGINS, PLEASE CHECK THAT ALL PARTS WERE

RECEIVED BY GOING THROUGH THE CRATE AND SORTING THE PARTS!!!

5000-025C –JD 606C, 643, 693, 706C, C6R & Wheel tracks only for 612C, 712, 1243, 1293, C12F/R, 616C, 716 &

C16F/R Part List 4) 5000-136, 4) 5000-138, 4) 5000-139, 1) 5000-165, 4) 5000-202, 2) 5000-256, 2) 5000-259, 2)

5000-272, 2) 5000-275A, 4) 5000-355

5000-026C –JD 608C, 708C, 843, 893, & C8R Part List –6) 5000-136, 6) 5000-138, 6) 5000-139, 1) 5000-165, 6)

5000-202, 1) 5000-203B, 1) 5000-255, 3) 5000-256, 3) 5000-259, 2) 5000-272, 2) 5000-275A, 2) 5000-301, 6) 5000-

355

5000-027C –JD 612C, 712C, 1243, 1293, & C12R Part List –8) 5000-136, 8) 5000-138, 8) 5000-139, 1) 5000-

165, 8) 5000-202, 4) 5000-256, 4) 5000-259, 4) 5000-272, 4) 5000-275A, 2) 5000-301, 8) 5000-355

5000-028C –JD 616C, 716C, C16R, & C16F Part List –12) 5000-136, 12) 5000-138, 12) 5000-139, 1) 5000-165,

12) 5000-202, 2) 5000-203B, 2) 5000-255, 6) 5000-256, 6) 5000-259, 4) 5000-272, 4) 5000-275A, 12) 5000-355

5000-034B –JD 612FC, 712FC, & C12F Folding Part List –8) 5000-136, 8) 5000-138, 8) 5000-139, 1) 5000-

141, 1) 5000-165, 4) 5000-202, 6) 5000-256, 2) 5000-259, 4) 5000-263, 4) 5000-272, 4) 5000-275A, 8) 5000-355

5000-080 –5” Extension Kit Parts List (Optional) –2) 2502-363 –½” X 4 ½” GR 5 Bolts, 2) 2502-365 –½”-13 X

3 ¾” GR 5 Bolts, 6) 2520-357 –½” Lock Nuts, 2) 5000-378 Spacer Bushings, 2) 5000-393 5” Extension Plates, &

2) 5000-394 Short Spacers

5000-082 –2” Lift Kit Parts List (Optional) –2) 5000-408 Extender Plate, 1) 5000-409 Connector Pin

5000-083 –6 Row Devastator Lock Up Kit (Optional) –1) 5000-161Hardware Bag, 1) 5000-430 Lock Pin

5000-084 –8/12 Row Devastator Lock Up Kit (Optional) –1) 5000-162 Hardware Bag, 2) 5000-430 Lock Pin

5000-202

5000-203B -48”

5000-211B -76”

5000-254 – 80”

5000-255- 52”

5000-256 (LH)

5000-259 (RH)

5000-355

5000-136

5000-301

2550-059

5000-139

5000-138

5000-080

OPTIONAL

ONLY USED ON

893 & 1293

5000-141

5000-263

5000-272 – 72”

5000-275A- 75”

PICTORIAL PART LIST

5000-136 Hardware Bag

 2502-325 - 5/8-11 X 3 HHCS GR 5 ZP – QTY 1

2502-353 – ½-13 x 2 ½, HHCS, GR8, ZP – QTY 3 

 2510-121 - 5/8 DIA. SHLDR, 2-1/4 L SHLDR, ½-13 QTY 1

2520-357 - 1/2-13 LOCK HEX NUT, GR A, ZP – QTY 3 

 2520-364 - 1/2-13 HEX LOCKNUT, JAM, GR 2 – QTY 1

2520-459 - 5/8-11 LOCK HEX NUT, GR 5, ZP – QTY 1 

 2520-515 - 3/4-10 LOCK HEX NUT, GR A, ZP – QTY 1

2526-449 - 5/8FLATWASHER1/4+- .010 THK, ZP – QTY 2 

 2550-709 - 1/2 WIRE 2-1/2 OD X 1-1/2 ID X 7-1/4 COMP SPRING – QTY 1

2570-126 - 3/4 X 10 EYEBOLT, ZP – QTY 1 

 2975-302 - 2975 SPRING BUSHING, PAINTED – QTY 1

5000-318 - PIVOT BUSHING – QTY 1 

 5000-322 - SHIM WASHER ZP – QTY 1

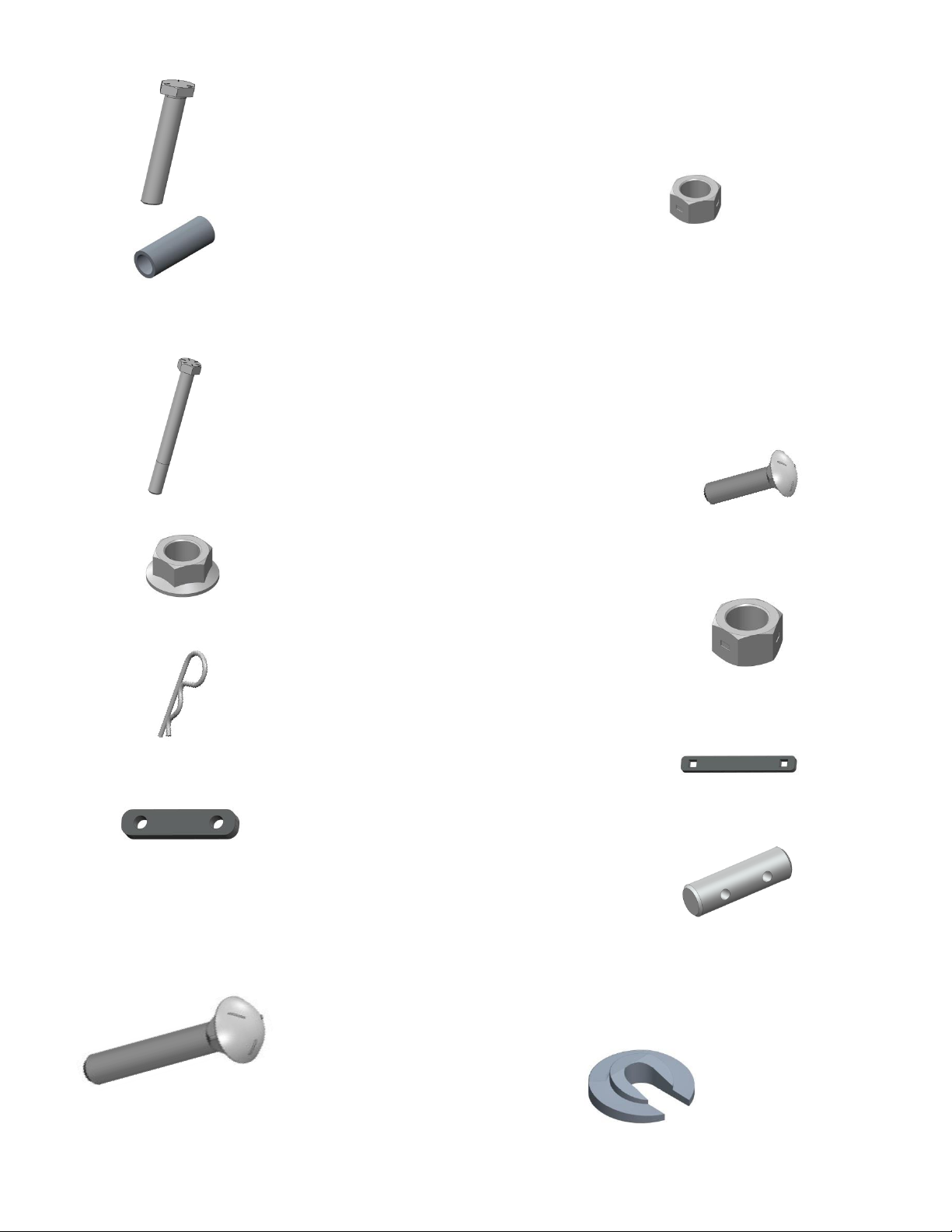

PICTORIAL PART LIST

5000-138 Hardware Bag

5000-139 Hardware Bag

5000-141 Hardware Bag

 2502-365 - 1/2-13 X 3-3/4 HHCS GR5 YD – QTY 2

2520-357 - 1/2-13 LOCK HEX NUT, GR A, ZP – QTY 2 

 5000-378 - SPACER BUSHING – QTY 2

 2502-352 - 5/8-11 X 6 HHCS GRADE 8 ZP – QTY 4

2505-345 - 1/2-13 X 2 CAR BLT GR5 ZP – QTY 2 

 2520-361 - 1/2-13FLANGE WHZLCK HXNT, GR 5, ZP - QTY 2

 2570-465 - 7 GA. HAIRPIN COTTER ZP – QTY 2

2520-459 - 5/8-11 LOCK HEX NUT, GR A, ZP – QTY 4 

5000-309 - SUPPORT STRAP – QTY 2 

 5000-319 - MOUNT STRAP 3“ – QTY 2

5000-323 - LOCK UP PIN ZP – QTY 1 

 2505-414 – 5/8 – 11 X 6 CARRIAGE BOLT, GR 5 ZP – QTY 2

5000-402 – WEDGE – QTY 2 

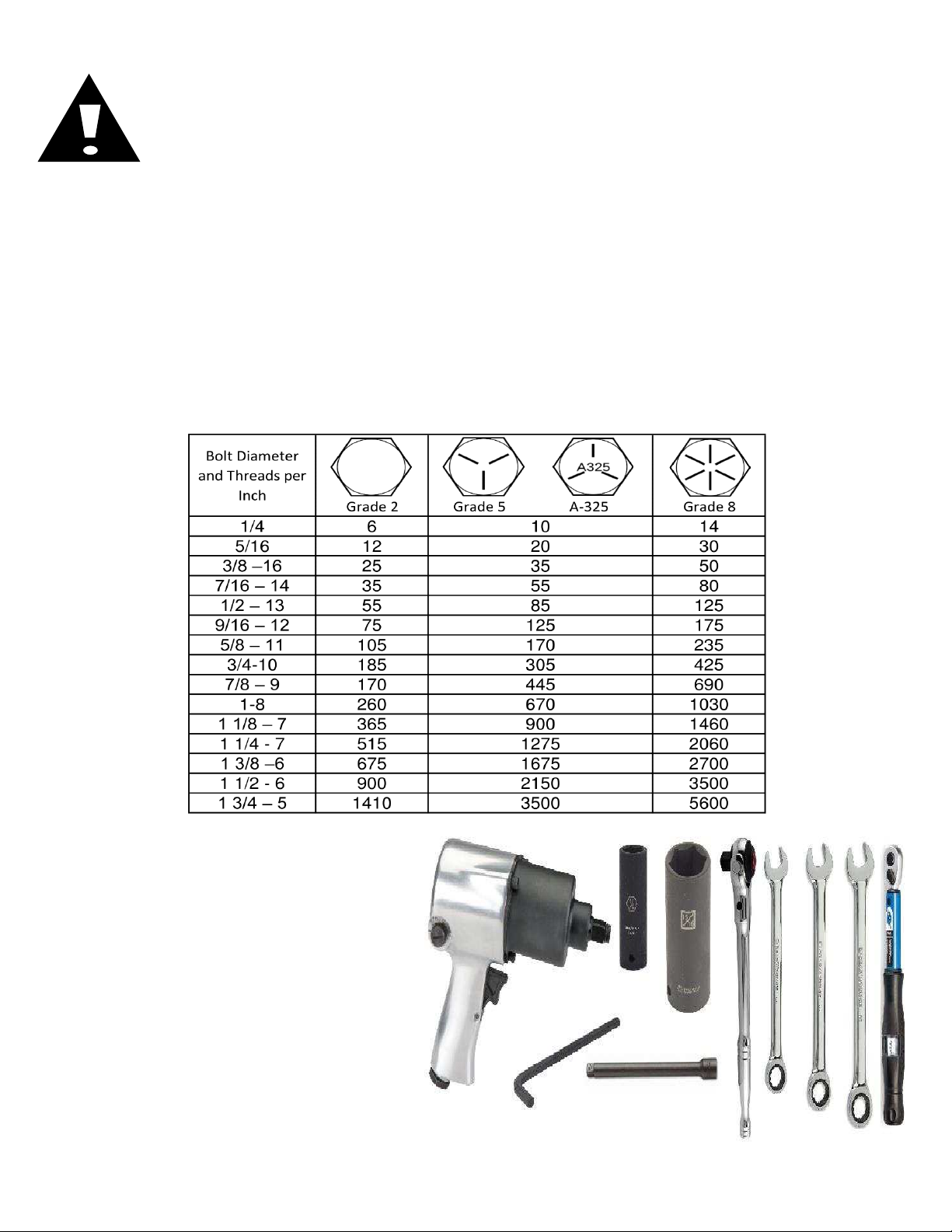

BOLT TORQUE

Important: Over-tightening hardware can cause just as much damage as under-tightening.

Tightening hardware beyond the recommended range can reduce its shock load capacity.

All hardware on the 5000 Devastator is either Grade 5 or Grade 8, unless otherwise noted. Grade 5 cap

screws are marked with three radial lines on the head. Grade 8 cap screws are marked with six radial

lines on the head. If hardware must be replaced, be sure to replace it with hardware of equal size,

strength and thread type. Refer to the torque values chart when tightening hardware.

The chart below is a guide for proper torque. Use it unless a specified torque is called out elsewhere in

the manual.

Torque is the force applied to the end of the handle or cheater bar, times the length of the handle or bar.

Use a torque wrench wherever possible

The following table shows torque in ft.-lbs. for coarse thread hardware.

INSTALLATION TOOLS REQUIRED:

- Pneumatic or electric impact driver

- ¾ & 15/16 size sockets

- 10” impact driver extension

- Ratchet

- ¾, 15/16, & 1 1/8 size wrenches

- 5/16 Allen Wrench

- Torque Wrench

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Yetter Attrezzature agricole

Yetter

Yetter 25 AVENGER COULTER Manuale utente

Yetter

Yetter 2967-081 Manuale utente

Yetter

Yetter 3400 Series Manuale utente

Yetter

Yetter 5000-022B Manuale utente

Yetter

Yetter MAVERICK HR PLUS 2984 Series Manuale di programmazione

Yetter

Yetter 5000-022 Lexion C512-30/Capello Manuale utente

Yetter

Yetter V.T.A. 2982-001 Manuale utente

Yetter

Yetter 5000 SERIES Manuale utente

Yetter

Yetter 500 Series Manuale utente

Yetter

Yetter 2967-180B Manuale utente

Yetter

Yetter TITAN 2967-008A Manuale utente

Yetter

Yetter 5000 SERIES Manuale utente

Yetter

Yetter Systems One Seed Jet II Manuale utente

Yetter

Yetter 2966-020A Manuale utente

Yetter

Yetter 5000 SERIES Manuale utente

Yetter

Yetter 2967-002B Manuale utente

Yetter

Yetter Systems One Seed Jet II Manuale utente

Yetter

Yetter 6010 Planter Unit Manuale utente

Yetter

Yetter MAXIMIZER Manuale utente

Yetter

Yetter NARROW ROW Manuale utente

Yetter

Yetter 2999 Manuale di istruzioni

Yetter

Yetter 2967-035A Manuale utente

Yetter

Yetter TITAN 2967-033A Manuale utente

Yetter

Yetter Nutrient Pro 4000 Series Manuale utente

Manuali Attrezzature agricole popolari di altre marche

GSi

GSi PNEG-2314 Manuale utente

Checchi & Magli

Checchi & Magli TEXDRIVE Manuale utente

Amazone

Amazone Cenius 4003-2TX Manuale utente

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manuale utente

Cima

Cima BLITZ Istruzioni operative e di manutenzione

Amazone

Amazone CombiDisc 3000 Istruzioni per l'installazione

HE-VA

HE-VA Disc-Roller XL Contour Manuale utente

AGT

AGT AGT-SSFM Manuale utente

Milestone

Milestone 72-84 Manuale utente

KUHN

KUHN Hector 3000 Manuale utente

Krone

Krone X-Disc 6200 Manuale utente

Eliet

Eliet DZC450 Manuale utente

Taarup

Taarup BIO+ B4000 Manuale utente

Garland

Garland SHAKER 310 DPG Manuale utente

stable comfort

stable comfort StableWall System Manuale utente

Raven

Raven AccuBoom Manuale utente

International

International 710 Manuale utente

Ashland

Ashland HDW-3217-14 Manuale utente
