Connecting the Adapters
Connecting the Adapter is a relatively simple process. First, connect one
Adapter to the TV or set-top box, the broadband modem or router, and the
coaxial network to establish the Internet signal. Then, additional Adapters can
be installed throughout the home or office at any location Ethernet Internet
access is needed, and an available coaxial port is available.
Connecting the First Adapter
The first Adapter must be connected to the TV or set-top box, the broad band
modem or router, and the coaxial network. This Adapter takes the Internet signal
from the modem/router and delivers it to the coaxial network, while keeping the
TV/set-top box connected.

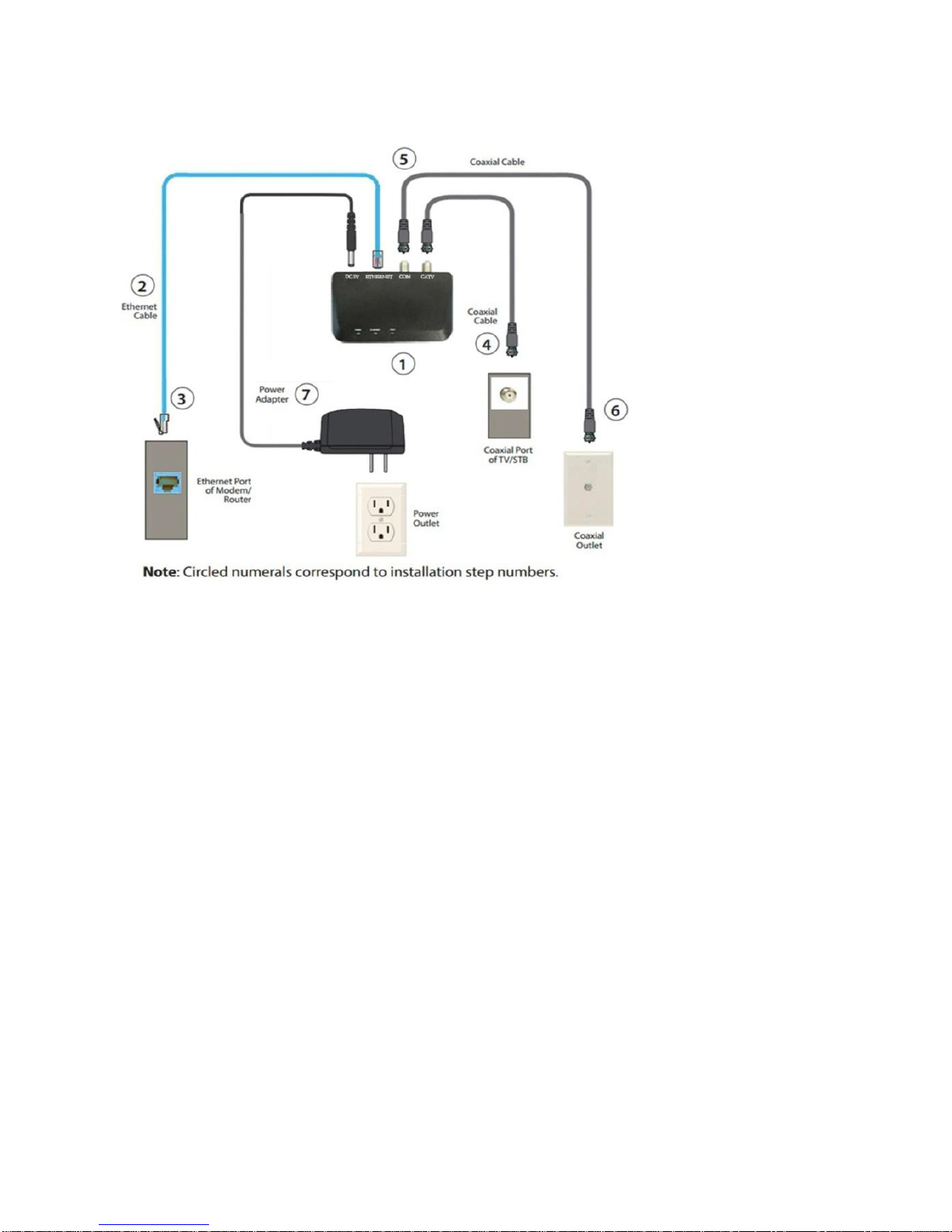

Toconnect the first Adapter:
1.
Remove the end of the coaxial cable connected to the TV or set-top box
from its coaxial wall port.
2.
Connect the end of the coaxial cable removed in step 1 to the CATV coaxial
port on the side of the Adapter
3.
Connect another coaxial cable into the coaxial wall port left
unconnected in step 1.
4
