CONTENTS
1
INTRODUCTION
The YoLink Smart Lock M1, is a stand-alone electronic keypad deadbolt replace-
ment with smart phone remote features when paired with a YoLink Smart HUB
(sold separately) using the YoLink smart phone app. YoLink uses the newest in
communication network technology, connecting YoLink compatible smart
devices over longer distances while using less power.
DISCLAIMER & WARNING 2
DISCLAIMER:
• Carefully read instructions in their entirety before installing.
• Always use proper safety measures during the install of this product.
• Always have traditional keys on hand in case of electronic failure.
• Back Module (B) needs to be protected from weather.
WARNING
• Only use brand new, popular brand, alkaline non rechargeable AA batteries.
• Remove batteries from product when storing for extended periods of time.
• Do NOT use rechargeable batteries (Li-On, nickel blends, rechargeable
alkaline, or other).
• Do NOT use non-rechargeable zinc blend batteries.
• Do NOT mix old and new batteries.
• Do NOT puncture or damage batteries. Leakage can cause harm on skin
contact; toxic if ingested.
• Do not dispose of batteries in fire as they may explode. Please follow your
local battery disposal procedure.
3
GETTING STARTED
A.
B.
D.
G.
C.
E.
F.F1 F2
F3
REQUIRED TOOLS FOR INSTALL
• Phillips screwdriver
• x4 AA Batteries (Please read Warnings pg.2)
PARTS LIST
A. Front Module
B. Back Module
C. Strike Plate
D. Mounting Plate
E. Extendable Latch
F. Screws
G. Keys
4

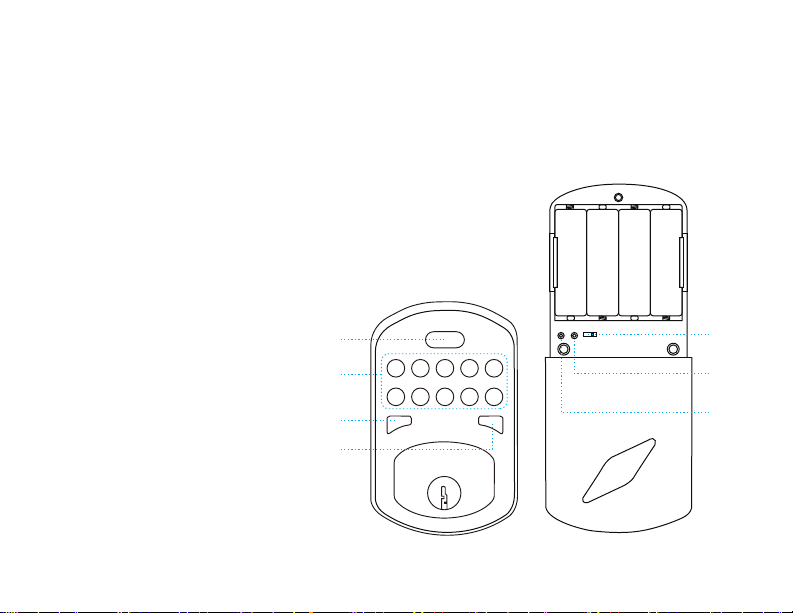

HARDWARE FUNCTIONS
C S 1 2 5
1
2
3
4
6
7
Hardware Interface
1. Doorbell: Sends notification to YoLink App.
2. 0~9 Keypad: Enter passcode.
3. Unlock Button: Press after entring passcode.
4. Lock Button: Locks door.
5. 1~2 Switch: Set for left/right handed installation.
6. Set Button: Use to set local passcode.
7. Factory Reset: Press and hold for 20 sec to
factory reset lock.
5
LED Status Indicators
The LED backlighting on your lock can indicate basic information
regarding lock status. Refer to diagram below:
Keypad
Blue Backlight
Low light visibility.
Lock Button
Red- Single Blink
Door Locked.
Red- Multi Blink
Factory Reset.
Unlock Button
Green- Single Blink
Door Unlocked.
Green- Multi Blink
Connecting to cloud.
6
Other Hardware Features
3 Unlocking/Locking Methods:
• Traditional Key (2 Included).
• Using Keypad to enter local, managed and visitor passcodes.
• Remotely using YoLink App (YoLink HUB needed, sold separately).
Scramble PIN code: Enter random digits BEFORE, AFTER, or IN THE MIDDLE
of correct PIN code.
Security Keypad Freeze: If PIN code is incorrectly entered more than 5 times,
keypad will freeze for 5 minutes and lock with begin beeping continuously.
Low Battery Indicator: When batteries are low, the lock will beep multiple
times when a function is executed.
7

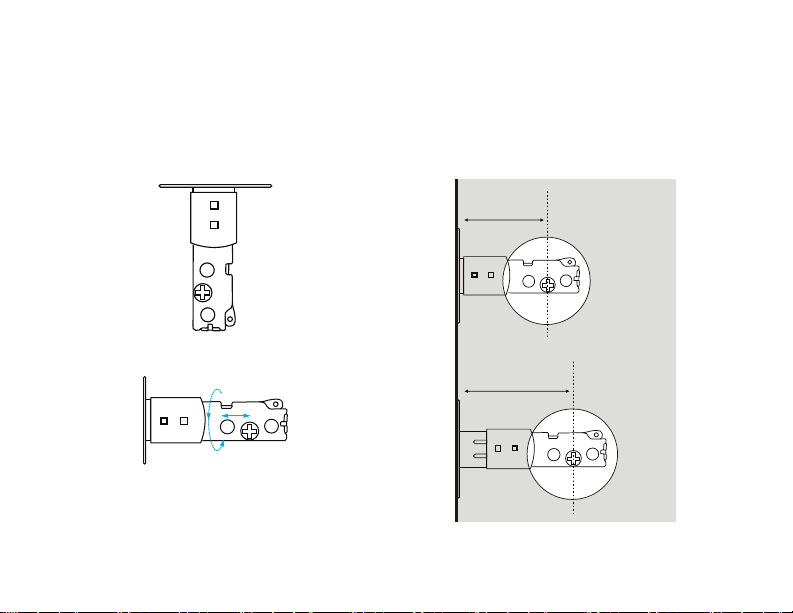

Step 1: Adjust Latch Backset
INSTALLATION
60mm(23/8′′)
70mm(23/4′′)
E.
Latch adjustable depending on door backset.
• Twist buckle, extend/retract, twist back.
Altri manuali per Smart Lock M1
