TECHNICAL GUIDE
UP TO 98%
MODULATING (ECM MOTOR)
GAS-FIRED RESIDENTIAL
MULTI-POSITION GAS FURNACES
MODELS: YP9C
NATURAL GAS
60 - 120 MBH INPUT
Due to continuous product improvement,
specifications are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional efficiency rating information can
be found at www.gamanet.org.
EFFICIENCY
RATING
CERTIFIED
ISO 9001
Certified Quality
Management System
410821-YTG-B-1008
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
These compact units employ induced combustion, reliable hot
surface ignition and high heat transfer aluminized tubular heat
exchangers. The units are factory shipped for installation in
upflow or horizontal applications and may be converted for
downflow applications.
These furnaces are designed for residential installation in a
basement, closet, alcove, attic, recreation room or garage and
are also ideal for commercial applications. All units are factory
assembled, wired and tested to assure safe dependable and
economical installation and operation.
These units are Category IV listed and may be vented either
through side wall or roof applications using approved plastic
combustion air and venr piping.
WARRANTY
Lifetime limited warranty on both heat exchangers to the origi-
nal purchaser; a 20-year limited warranty from original installa-
tion date to subsequent purchaser.
10-year warranty on the heat exchanger in commercial applica-
tions.
5-year limited parts warranty.
FEATURES
• Modulating heating operation includes:
- Modulating gas valve, inducer and circulating blower
- Modulating operation from 100% to 35% input in 100%
increments with nearly constant temperature rise.
• Easily applied in upflow, horizontal left or right, or downflow
installation with minimal conversion necessary.
• Compact, easy to install, ideal height 33" tall cabinet.
• ECM variable speed drive for cooling SEER enhancement,
improved comfort with optional airflow delay profiles, and
continuous fan options for IAQ performance.
• Easy access to controls to connect power/control wiring.
• Built-in, high level self diagnostics with fault code display.
• Low unit amp requirement for easy replacement application.
• All models are convertable to use propane (LP) gas.
• Electronic Hot Surface Ignition saves fuel cost with
increased dependability and reliability.
• 100% shut off main gas valve for extra safety.
• 24V, 40 VA control transformer and blower relay supplied for
add-on cooling.
• Hi-tech tubular aluminized steel primary heat exchanger with
stainless steel tube/aluminum fin secondary heat exchanger
for outstanding efficiency.
• Solid removable bottom panel allows easy conversion.
• Airflow leakage less than 1% of nominal airflow for
ductblaster conditions.
• No knockouts to deal with, making installation easier.
• Movable duct connector flanges for application flexibility.
• Quiet inducer operation, burner, and blower operation.
• Inducer rotates for easy conversion of venting options.
• Fully supported blower assembly for easy access and
removal of blower.
• External air filters used for maximum flexibility in meeting
customers IAQ needs.
• Insulated blower compartment for thermal and acoustic
performance.
• 1/4 turn knobs provided for easy independent door removal.
• Internal condensate trap design (patent pending) provides
condensate management options, easy visual operation
check, and is self priming to prevent nuisance problems.
410821-YTG-B-1008
2Johnson Controls Unitary Products
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.

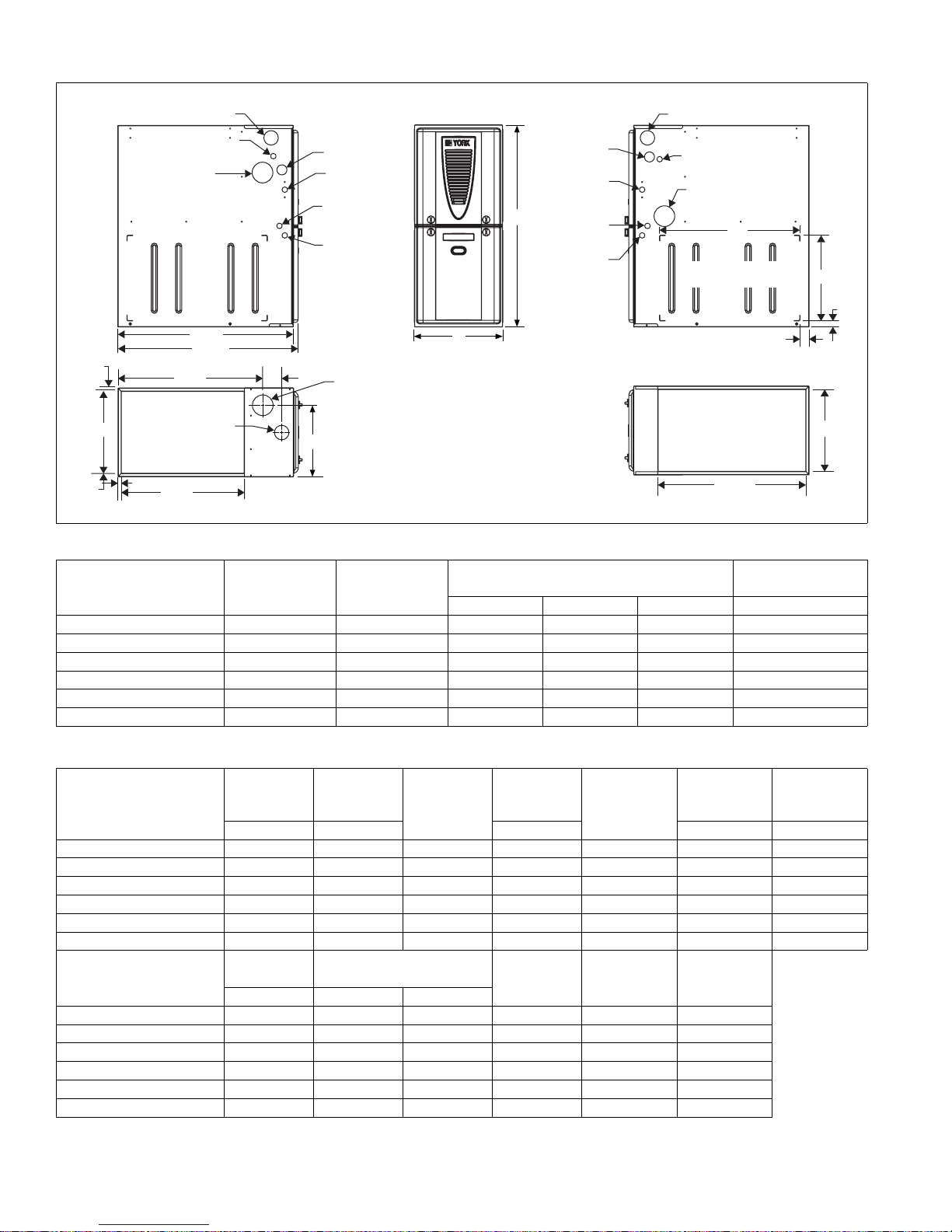

FRONT
LEFT SIDE
Combustion Air Inlet
Condensate Drain
(Downflow)
Thermostat
Wiring
28.5”
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Thermostat
Wiring
RIGHT SIDE
Condensate Drain
(Downflow)
14”
1”
1.5”
23”
Combustion Air Inlet
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Optional Return Air
Cutout (Either side)
30.25”
A
33”
C
SUPPLY END
.56”
.56”
20”
B
3”
23.8”
.56”
Combustion
Air Inlet
RETURN END
B
24.25”
2” Vent
Connection
Outlet
2” Vent
Connection
Outlet 2” Vent
Connection
Outlet
Cabinet and Duct Dimensions
Models Nominal
CFM (m3/min) Cabinet
Size Cabinet Dimensions (Inches) Approximate
Operating Weights
A B C Lbs
YP9C060B12MP11 1200 B 17 1/2 16 3/8 13 1/4 122
YP9C080B12MP11 1200 B 17 1/2 16 3/8 14 3/4 126
YP9C080C16MP11 1600 C 21 19 7/8 16 1/2 136
YP9C100C16MP11 1600 C 21 19 7/8 18 1/4 142
YP9C100C20MP11 2000 C 21 19 7/8 18 1/4 145
YP9C120D20MP11 2000 D 24 1/2 23 3/8 21 3/4 156
Ratings & Physical / Electrical Data
Models Input
Max/Min Output
Max/Min AFUE
%
Nominal
Airflow Total
Unit
Amps
Air Temp.
Rise Max
Input
Air Temp.
Rise Min
Input
MBH MBH CFM °F °F
YP9C060B12MP11 60/21 58/20 97.5 1200 7.0 40-70 20-50
YP9C080B12MP11 80/28 77/27 97.5 1200 7.5 40-70 20-50
YP9C080C16MP11 80/28 78/27 97.7 1600 10.0 40-70 20-50
YP9C100C16MP11 100/35 97/34 97.7 1600 10.0 40-70 20-50
YP9C100C20MP11 100/35 97/34 97.7 2000 12.0 45-75 25-55
YP9C120D20MP11 120/42 116/40 98.0 2000 12.0 45-75 25-55
Models Max. Outlet
Air Temp Blower Blower
Wheel
Size
Max
Over-Current
Protect
Min. wire Size
(awg) @ 75 ft
one way
°F HP Amps
YP9C060B12MP11 170 1/2 4.8 11 x 8 15 14
YP9C080B12MP11 175 1/2 4.8 11 x 8 15 14
YP9C080C16MP11 175 3/4 7.5 11 x 10 15 14
YP9C100C16MP11 175 3/4 7.5 11 x 10 15 14
YP9C100C20MP11 180 1 14.5 11 x 11 20 12
YP9C120D20MP11 180 1 14.5 11 x 11 20 12
410821-YTG-B-1008
Johnson Controls Unitary Products 3
FILTER PERFORMANCE
The airflow capacity data published in the “Blower Perfor-
mance” table represents blower performance WITHOUT filters.
All applications of these furnaces require the use of field
installed air filters. All filter media and mounting hardware or
provisions must be field installed external to the furnace cabi-
net. DO NOT attempt to install any filters inside the furnace.
NOTE: Single side return above 1800 CFM is approved as long
as the filter velocity does not exceed filter manufacturer’s rec-
ommendation and a transition is used to allow use of a 20 x 25
filter.
NOTES:
1. Air velocity through throwaway type filters may not exceed 300 feet per
minute (91.4 m/min). All velocities over this require the use of high velocity
filters.
2. Do not exceed 1800 CFM using a single side return and a 16x25 filter. For
CFM greater than 1800, youmay use two side returns or one side and the
bottom or one return with a transition to allow use of a 20x25 filter.
All furnaces approved for alcove and attic installation.
ACCESSORIES
PROPANE (LP) CONVERSION KIT -
1NP0680 - All Models
This accessory conversion kit may be used to convert natural
gas (N) units for propane (LP) operation.
CONCENTRIC VENT TERMINATION -
S1-1CT0302 (2")
S1-1CT0303 (3")
For use through rooftop, sidewall. Allows combustion air to
enter and exhaust to exit through single common hole. Elimi-
nates unslightly elbows for a cleaner installation.
SIDEWALL VENT TERMINATION KIT -
S1-1HT0901 (3")
S1-1HT0902 (2")
For use on sidewall, two-pipe installations only. Provide a more
attractive termination for locations where the terminal is visable
on the side of the home.
CONDENSATE NEUTRALIZER KIT - 1NK0301
Neutralizer cartridge has a 1/2" plastic tube fittings for installa-
tion in the drain line. Calcium carbonate refill media is also
available from the Source 1 Parts (p/n 026-30228-000).
SIDE RETURN FILTER RACKS -
1SR0200 - All Models
1SR0402 - All Models
1SF0101 - All Models
BOTTOM RETURN FILTER RACKS -
1BR0517 or 1BR0617 - For 17-1/2” cabinets
1BR0521 or 1BR0621 - For 21” cabinets
1BR0524 or 1BR0624 - For 24-1/2” cabinets
1BR05xx series are galvanized steel filter racks. 1BR06xx are
pre-painted steel filter racks to match the appearance of the fur-
nace cabinet.
COMBUSTIBLE FLOOR BASE KIT -
For installation of these furnaces in downflow applications
directly onto combustible flooring material, These kits are
required to prevent potential overheating situations. These kits
are also required in any applications where the furnace in
installed in a downflow configuration without an evaporator coil,
where the combustible floor base kit provides access for com-
bustible airflow.
1CB0517 - For 17-1/2” cabinets
1CB0521 - For 21” cabinets
1CB0524 - For 24-1/2” cabinets
EAC TRANSITION KITS -
For installation of EAC accessories with these furnaces to pro-
vide easy transition of return airflow through the EAC to get the
proper sealing and reduced airflow leakage.
1TK1001 - For all models using side return
1TK1017 - For 17-1/2” cabinets using bottom return
1TK1021 - For 21” cabinets using bottom return
1TK1024 - For 24-1/2” cabinets using bottom return
HIGH ALTITUDE - No high altitude kits are required.
ROOM THERMOSTATS - A wide selection of compatible ther-
mosets are available to provide optimum performance and fea-
tures for any installation.
1H/1C, manual change-over electronic non-programmable ther-
mostat.
1H/1C, auto/manual changeover, electronic programmable,
deluxe 7-day, thermostat.
1H/1C, auto/manual changeover, electronic programmable.
* For the most current accessory information, refer to the price
book or consult factory.
Recommended Filter Sizes
CFM Cabinet
Size Side
(in) Bottom
(in)
1200 B 16 x 25 16 x 25
1600 C 16 x 25 20 x 25
2000 D (2) 16 x 25 22 x 25
Unit Clearances to Combustibles
Application Upflow Downflow Horizontal
Top 1" 0" 0"
Vent 0" 0" 0"
Rear 0" 0" 0"
Side 0" 0" 1"
Front1
1.Line contact only permitted between lines formed by the intersection of the
rear panel and side panel (top in horizontal position) of the furnace jacket
and building joists, studs or framing.
0" 0" 0"
Floor Combustible Combustible2
2. For combustible floors only when used with special sub-base.
Combustible
Closet Yes Yes Yes
Line Contact No No Yes
Subject to change without notice. Printed in U.S.A. 410821-YTG-B-1008
Copyright © 2008 by Johnson Controls, Inc. All rights reserved. Supersedes: 410821-YTG-A-0708
Johnson Controls Unitary Products
5005 York Drive
Norman, OK 73069
All CFM’s are shown at 0.5” w.c. external static pressure.These units have variable speed motors that automatically adjust to provide constant CFM from 0.0”
to 0.6” w.c. static pressure. From 0.6” to 1.0” static pressure, CFM is reduced by 2% per 0.1” increase in static. Operation on duct systems with greater than
1.0” w.c. external static pressure is not recommended.
NOTE: At some settings, LOW COOL airflow may be lower that what is required to operate an airflow switch on certain models of electronic air cleaners. Con-
sult the instructions for the electronic air cleaner for further details.
Blower Performance CFM - Any Position
High / Low Speed Cooling CFM
060B12 080B12 Jumper Settings
Hi Cool Lo Cool Hi Cool Lo Cool COOL Jumper ADJ Jumper
1305 850 1290 840 H B
1100 715 1090 710 MH B
1065 690 1015 660 H A
1000 650 1000 650 MH A
960 625 960 625 H C
760 495 760 495 ML B
900 585 900 585 MH C
660 430 660 430 L B
690 450 680 445 ML A
600 400 600 400 L A
620 400 620 400 ML C
550 400 540 400 L C
High / Low Speed Cooling CFM
080C16 100C16 Jumper Settings
Hi Cool Lo Cool Hi Cool Lo Cool COOL Jumper ADJ Jumper
1670 1085 1655 1075 H B
1295 840 1275 820 MH B
1385 900 1345 875 H A
1175 765 1160 755 MH A
1245 810 1210 785 H C
995 645 1000 650 ML B
1055 685 1045 680 MH C
935 605 955 620 L B
905 590 910 590 ML A
850 550 870 565 L A
815 530 815 530 ML C
765 500 785 510 L C
High / Low Speed Cooling CFM
100C20 120D20 Jumper Settings
Hi Cool Lo Cool Hi Cool Lo Cool COOL Jumper ADJ Jumper
2215 1440 2180 1415 H B
1765 1145 1760 1140 MH B
1820 1180 1800 1170 H A
1605 1040 1595 1035 MH A
1635 1060 1620 1050 H C
1270 825 1255 815 ML B
1445 940 1435 935 MH C
1055 685 1050 680 L B
1155 750 1160 755 ML A
960 620 960 615 L A
1040 675 1035 670 ML C
860 560 840 545 L C
Altri manuali per YP9C Series
1
Indice
Altri manuali York Forno
York
York TM8V C Series Manuale utente
York
York PS9A12N040UP11 Guida rapida
York
York GY8S Manuale
York
York TM9Y120D20MP11 Guida rapida
York
York P2MP Series Manuale utente
York
York Affinity PC9 Manuale
York
York TG8S Guida rapida
York
York PV9A12N040UP11 Guida rapida
York
York GY9 Guida rapida
York
York TM9M Guida rapida
York
York P*DU-"V" Manuale
York
York AFFINITY PS8*UH Guida rapida
York
York TP9C Series Manuale utente
York
York TM8T Guida rapida
York
York P*XU/G9D-UP Manuale utente
York
York P3DN Guida
York
York TM9V080B12MP11 Guida rapida
York
York TG9S Guida rapida
York
York G8C Series Manuale utente
York
York PV9 Series Guida rapida
