Ypsilon MARYNE Manuale utente
User manual | Manuale d’uso
MARYNE
GOLD
E-SCOOTER
Index
English
Italiano
01
32
01
User manual
Thank you for choosing this product.
For information, technical support and assistance, contact your dealer or visit the
website www.urbanchicemobility.it
English
02
Index
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Safety instructions
Quick guide
Contents of the package
Product overview
Command information / Control panel
Assembly and set-up
Folding and carrying
Battery charging
Brakes
Autonomy
Storage and cleaning
General warnings
Learning to ride the scooter
Battery (Warnings)
Responsibility
Daily maintenance and care
Technical data sheet
Troubleshooting
Error code table
03
1. Safety instructions
Please read the following instructions carefully before using the scooter. Keep this manual for future
reference or new users.
• The company will not assume any liability arising from misuse of the product or non-compliance
both with regard to road regulations and the instructions in this manual.
• This electric scooter is not a toy. Use it responsibly, with care and respect for others.
• Check local current regulations on the use of these products before riding it, and complywith local
traffic regulations. Ride responsibly and pay attention to persons and obstacles to avoid accidents.
• Always use the recommended clothing: non-slip gloves, knee and elbow pads andwear a helmet.
• When holding the handlebars at the correct height, the person riding this scooter must be able to
place both feet on the ground easily.
• When stopping or parking yourvehicle, be sure to do so on a flat and safe surface
• The maximum load capacity for the scooter is 100 kg.
• This scooter may not be used by more than one person at a time.
• Misuse of the scooter or non-compliance with the instructions provided in this manual may cause
serious injury.
• To resolve any technical problems, contact theTechnical Assistance Service through your dealer.
• Do not attempt to disassemble or repair the scooter yourself.
• Do not leave the battery near fire or heat sources.
• Avoid using used, defective and/or non-original batteries.
• Do not sit on the scooter both while riding it or when it is parked.
• If the user who is going to use the scooter is not familiarwith this type ofvehicle, they should be
instructed on the basics of riding by an adult before using it for the first time.Training should cover
the following topics:
1. Acceleration
2. Deceleration
3. Braking
4. Basic riding principles
04
2. Quick guide
• Before using the scooter for the first time, fully charge the battery.
• Press the power button for a few seconds to start it.
• Check the battery indicator: if the battery is dead, charge it before use.The electric scooter is a
device that needs to be charged periodically to be able towork.
• Place the scooter on a flat surface
• Place your hands on the handlebars. Step onto the footrest with one foot and use the other to give
yourself a gentle push and accelerate.
• When the scooter begins to move, place both feet on the footrest and press the accelerator.
• To steer the scooter, tiltyour body in the direction of travelwhen turning and slowly turn the
handlebar.
• To stop the scooter, release the accelerator and press the electronic brake or lever on the left side
of the handlebar.
• To get off, stop the scooter completely first.Trying to get off a moving scooter may result in injuries.
• When riding at night or in dark places, press the power button once to turn on the lights,wear a
reflective vest.
For your own safety, wear a helmet and knee pads to protect yourself against falls and injuries
while learning to ride the electric scooter.
The rider assumes all responsibility for any injury suffered when not wearing a helmet or other
protective gear.
The accelerator is activated once the speed of travel exceeds 3 km/h.
For safety reasons, the scooter is initially set up to avoid standing starts.
IMPORTANT
05
3. Contents of the package
no.1 Battery charger
no. 3 Allen key
The electric scooter is mostly supplied assembled inside packaging. A little assembly is required
before riding. All the parts and tools are included.
06

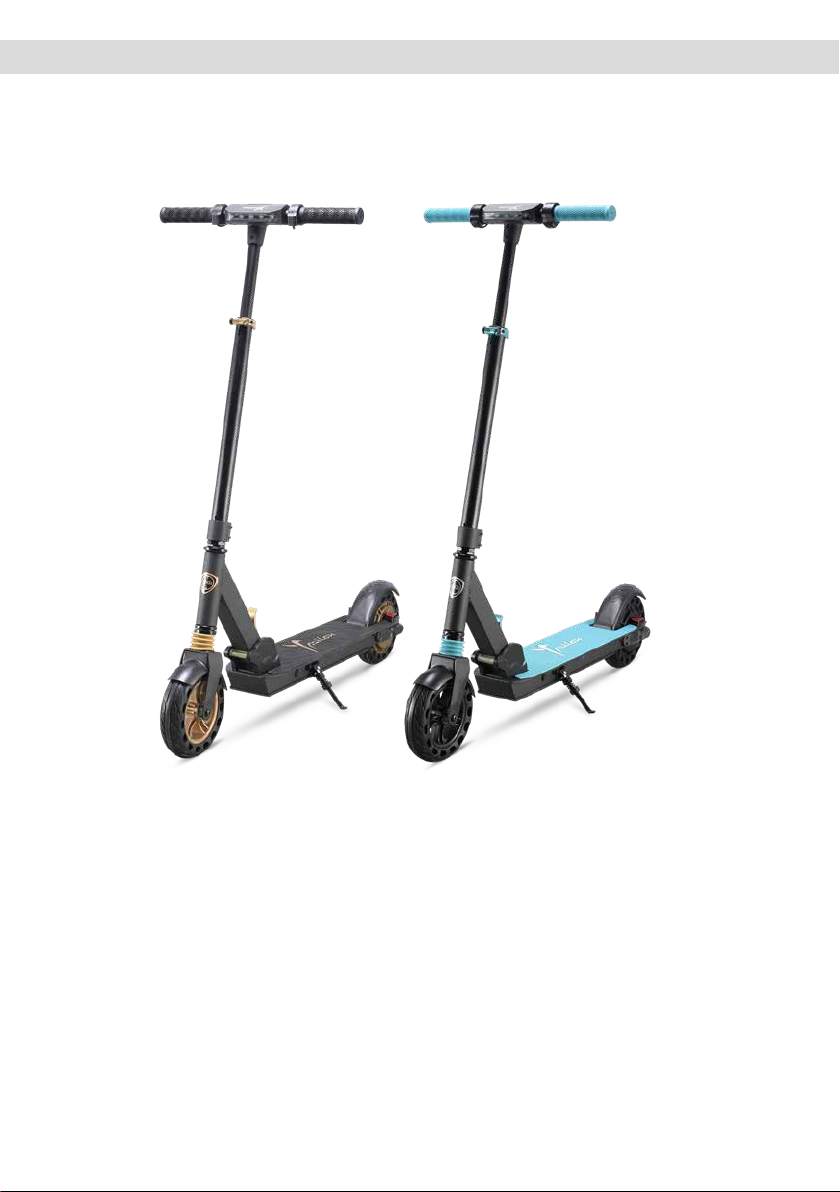

4. Product overview
handlebar height adjustment
rear light
electronic brake
mudguard /
pedal brake
drive wheel
footrest
kickstand
charging port
front wheel
folding system
electronic brake lever
display
accelerator lever
front light
suspension
07
5. Command information / Control panel
1
A
3
5
4
2
A. ON/OFF and functions button.
1. Speedometer: Displays the current speed of the scooter.
2. PAS: Zero Start active.
3. Lights: Indicates that the lights are on.
4. Cruise control: Indicates that theCruise control is active
5. Speed Mode: white “S”: 6Km/h (eco) - orange“S”: 20Km/h (standard) - red “S”: 25Km/h (sports mode)
6. Anomaly signal:Thewrench icon indicates that the scooter has identified an electrical problem.
7. Motor temperature: Indicates that the motor is overheating.
8. Brake: Indicates that the brake isworking.
9. Battery level indicator: The battery level is indicated by 5 bars, each representing approximately
20% of the battery.
6
7
8
9
When the battery level is low, stop riding it, turn off the electric scooter and fully recharge it before
riding again.
IMPORTANT
08
Information on the controls:
• ON/OFF and functions button press and hold for approximately 5 seconds to turn the electric
scooter on/off.
• Cruise Control: Keep the electric scooter at a constant speed (> 6KM/H) and press and hold the
accelerator lever (right) for 6 seconds. An acoustic signal/warning light will signal that “Cruise
Control” is active, so itwill no longer be necessary to hold the accelerator lever down.
Press the accelerator lever or the brake lever again to deactivate it.To activate/deactivate
the Cruise Control function, press button A 4 times.
• Speed mode: press button (A) once to switch from one mode to another.
• Lights: press button (A) twice consecutively to turn on/off the front light and press once to switch
from one mode to another.
• Speedometer unit: press button (A) three consecutive times to switch the unit of measurement
between km/h or mph.
• Zero start function:To activate/deactivate it, press button A 5 times.
electronic brake lever accelerator leverON/OFF and functions
button (A)
