USER MANUAL

8/16 CHANNELS

DIGITAL VIDEO RECORDER

INSTRUCTION MANUAL

To obtain the best performance and ensure device function correctly, please read this

instruction manual carefully and completely.

INSTRUCTION MANUAL

To obtain the best performance and ensure device function correctly, please read this instruction manual

carefully and completely.

FCC Compliance

USER-INSTALLER CAUTION: YOUR AUTHORITY TO OPERATE THIS FCC VERIFIED EQUIPMENT

COULD BE VOIDED IF YOU MAKE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY

THE PARTY RESPONSIBLE FOR COMPLIANCE TO PART 15 OF THE FCC RULES.

NOTE: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A

CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE

DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN

THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES,

USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO

RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL

INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE

AT HIS OWN EXPENSE.

THIS CLASS A DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN

INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

WARNINGS, CAUTIONS & COPYRIGHT

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR

MISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert

the user to the presence of insinuated "dangerous voltage" within the products enclosure

that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral rhombus is intended to alert the user to the

presence of important operating and maintenance (servicing) instruction in the literature

accompanying the product.

USERS OF THE SYSTEM ARE RESPONSIBLE FOR CHECKING AND COMPLYING WITH ALL FEDERAL,

STATE, AND LOCAL LAWS AND STATUTES COIPCERNING THE MONITORING AND RECORDING OF

VIDEO AND AUDIO SIGNALS. ULTRAK SHALL NOT BE HELD RESPONSIBLE FOR THE USE OF THIS

SYSTEM IN VIOLATION OF CURRENT LAWS AND STATUTES.

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED TO THEIR

RESPECTIVE COMPANIES.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

TABLE OF CONTENTS

WARNINGS, CAUTIONS & COPYRIGHT......................................................................... 2

TABLE OF CONTENTS..................................................................................................... 3

1 INTRODUCTION......................................................................................................... 4

1.1 FEATURE........................................................................................................... 4

1.2 SPECIFICATION................................................................................................ 4

2 HARDWARE OVERVIEW........................................................................................... 5

2.1 FRONT PANEL................................................................................................... 5

2.2 BACK PANEL..................................................................................................... 6

3 SYSTEM CONNECTION............................................................................................ 7

3.1 CAMERA & MONITOR LOOPING...................................................................... 7

3.2 EXTERAL ALARM.............................................................................................. 8

3.3 IR REMOTE CONTROL..................................................................................... 9

3.4 RS-232/485 CONTROLLER............................................................................... 10

3.5 PTZ (PAN, TILT AND ZOOM) CAMERA & JOYSTICK CONTROLLER............. 11

3.6 VGA OUTPUT..................................................................................................... 13

3.7 NETWORK......................................................................................................... 13

4 SYSTEM SETUP......................................................................................................... 14

4.1 SETUP MENU DIAGRAM.................................................................................. 14

4.2 LIVE VIEWING................................................................................................... 15

4.3 SYSTEM SETUP................................................................................................ 16

4.4 CAMERA SETUP................................................................................................ 17

4.5 MOTION SETUP................................................................................................ 17

4.6 RECORD SETUP............................................................................................... 18

4.7 ALARM SETUP.................................................................................................. 20

4.8 EVENT LIST....................................................................................................... 21

4.9 HDD MANAGEMENT......................................................................................... 22

4.10 NETWORK SETUP............................................................................................ 23

4.11 FIRMWARE UPDATE......................................................................................... 24

4.12 CDRW BACKUP................................................................................................ 25

4.13 LOAD DEFAULT................................................................................................. 25

5 DVR PLAYBACK & USB BACKUP.............................................................................. 26

5.1 PLAY TIME SEARCH......................................................................................... 26

5.2 EVENT LIST SEARCH....................................................................................... 26

5.3 LIVE VIDEO DURING PLAYBACK..................................................................... 26

5.4 USB BACKUP..................................................................................................... 27

6 BACKUP PLAYBACK.................................................................................................. 28

6.1 MAIN SCREEN SETTING.................................................................................. 28

6.2 CDRW / HDD BACKUP PLAYBACK.................................................................. 29

6.3 USB & LOCAL BACKUP FILE PLAYBACK........................................................ 30

6.4 BACKUP FILE TO AVI........................................................................................ 32

6.5 LOCAL BACKUP................................................................................................ 32

7 NETWORK VIEWING & PLAYBACK…………………………………………………….. 33

7.1 SETUP IP ADDRESS ON PC SITE………………………………………………... 33

7.2 OPTIONAL MICROSOFT INTERNET EXPLORER SETTING…………………. 34

7.3 LOGIN…............................................................................................................. 36

7.4 LIVE VIEWING…............................................................................................... 37

7.5 PLAYBACK…..................................................................................................... 38

7.6 CONFIGURE….................................................................................................. 39

APPENDIX A: RECORDING TIME LAPSE........................................................................ 45

APPENDIX B: POWER COMSUMPTION TABLE.............................................................. 46

APPENDIX C: HDD / USB COMPATIBLE LIST….............................................................. 46

V 2.40 19/MAY/2006

a11633RFMK09

1 INTRODUCTION

1.1 FEATURE

zEASY OPERATION, SETTING CAN BE EASILY MODIFIED ON SCREEN DISPLAY.

zMULTI-SPEED RECORDING SELECTION ON NORMAL OR ALARM RECORDING

MODE UP TO 120/100 (NTSC / PAL) PICTURES PRE SECOND.

zSHUTTLE FOR FAST/SLOW VIEWING, JOG DIAL FOR PICTURE BY PICTURE

PLAYBACK.

zBUILD-IN IR & RS-232/485 PORT READY FOR REMOTE CONTROL &

SUB-CONTROL PANELS ADD ON IN THE FUTURE.

zSUPPORT CDRW, USB & NETWORK BACKUP.

1.2 SPECIFICATION

IMAGE SYSTEM NTSC PAL

RESOLUTION-LIVE 720×480 720×576

VIDEO INPUT BNC × 8 / BNC x16

VIDEO LOOPING BNC × 8 / BNC x16

VIDEO OUTPUT BNC × 1

SPOT OUTPUT BNC × 1

AUDIO INPUT RCA × 1

AUDIO OUTPUT RCA × 1

STORAGE MEDIA MAX 2 IDE HARD DISKS ( ONE REMOVABLE )

IMAGE FORMAT M-JPEG

RECORDING RATE 720 x 240 up to 60 PPS

320 x 240 up to 120 PPS

720 x 288 up to 50 PPS

320 x 288 up to 100 PPS

RECORDING MODE MANUAL / ALARM / SCHEDULE

PLAYBACK SPEED FAST FORWARD ×2 ×4 ×6 ×8 ×16 x32

FAST BACKWARD ×2 ×4 ×6 ×8 ×16

PICTURE BY PICTURE PLAYBACK

TITLE 6 CHARACTERS FOR EACH CAMERA

OSD & SETUP TITLE / TIME / DATE / SETUP MENU

ALARM INPUT ×9 / x16 N.O. OR N.C. PROGRAMMABLE

RELAY OUTPUT N.O. OR N.C. PROGRAMMABLE CONTACT ×1

RS-232 & RS-485 PORT YES

PTZ CONTROL YES

ETHERNET YES

IR REMOTE CONTROL YES

BACKUP USB, CDRW & NETWORK

VGA OUTPUT OPTION

PASSWORD CONTROL ONE FOR SYSTEM, ONE FOR HDD FORMAT

KEY LOCK YES

POWER INPUT AC 100-240V INPUT ( 47-63 HZ )

DIMENSIONS MM 430(W) × 91(H) × 380(D)

RACK MOUNTABLE EIA 19” 2U STANDARD MOUNTING RACK

2 HARDWARE OVERVIEW

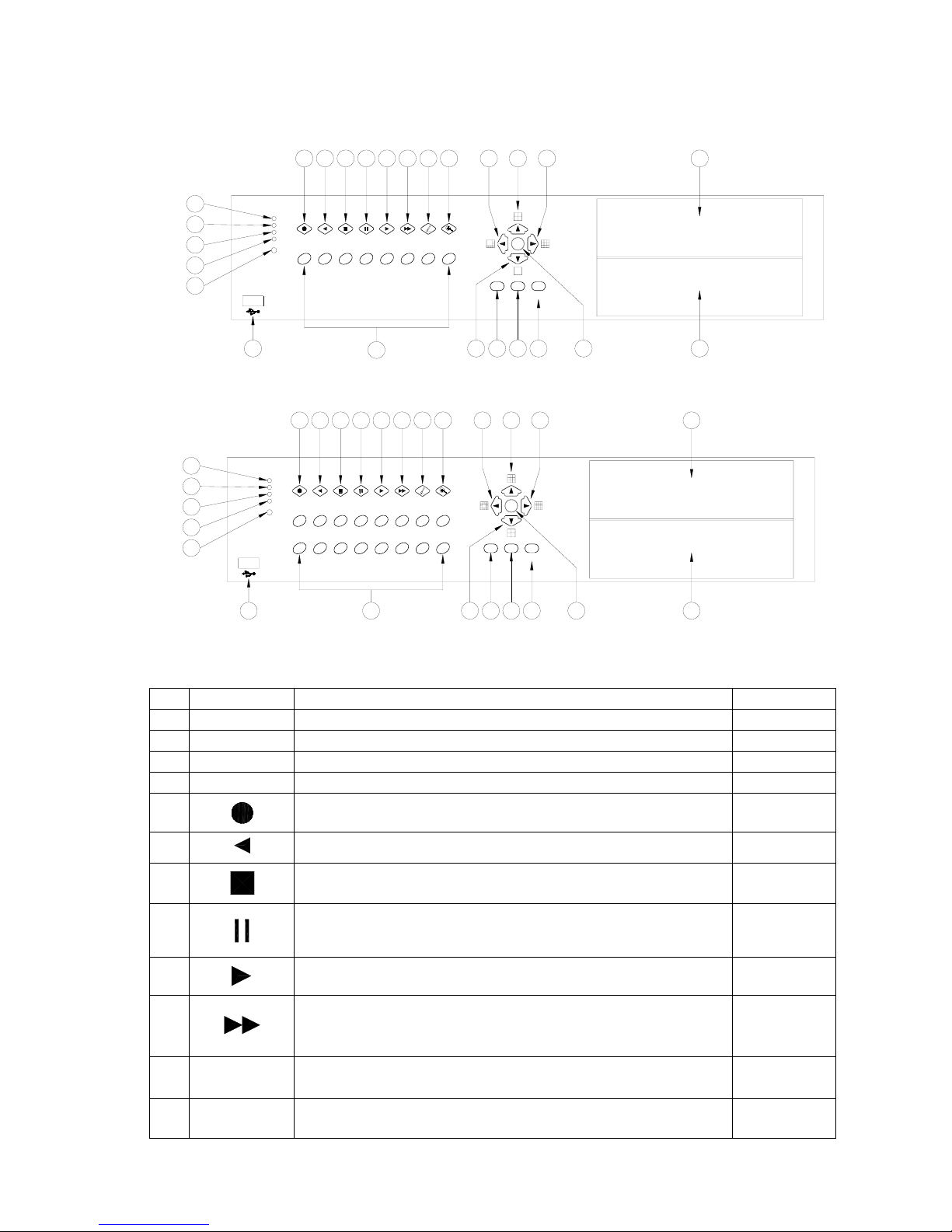

2.1 FRONT PANEL

PLAY

H.D.D

REC

STOP

REC

2 3

REW

PLAY

F.Fwd

SELAUTO

COPY

ENTER

12111098765

Mark ZOOM

Water

2019 21

15 16 17

14 18

PAUSE

POWER

Front Panel of 8-ch DVR

Mark

STOP

REC REW PLAY F.Fwd

PLAY

H.D.D

REC

9 101112

1234

1513 14 16

56 87

SELAUTO

COPY

ENTER

12111098765

13 2019 21

15 16 17

14 18

POWER

ZOOM

Water

PAUSE

Front Panel of 16-ch DVR

DVR OPERATION

NO. LABEL OPERATION PTZ

1 POWER Power LED

2 REC Recording LED

3 PLAY Play LED

4 H.D.D H.D.D LED

5 Press REC to start recording. Press again to stop.

6 Press the Rew button to play video backward. Zoom out

7 Press Stop to stop playback

8 Press Pause to pause video playback

9 Press the Play button to play video forward. Zoom in

Press F. Fwd to play video forward at high speed.

Press the button again the speed will be change

circulative from ×2,×4,×6,x8,x16 to the highest ×32.

11 Water Mark During playback press Water Mark to enable this mark.

12 ZOOM During live viewing mode support 2x zoom in function.

a11633RFMK09

13 1-9 / 1-16 Press the button to display full screen.

14 ▼

Move downward or decrease the number.

Select full/quad formats at 8/16-ch DVR model. Down

15 ◄

Move leftward or decrease the number

Select 8/13 camera formats at 8/16-ch DVR model. Left

16 ▲

Move upward or increase the number.

Select quad/9 camera formats at 8/16-ch DVR model. Up

17 ►

Move rightward or increase the number

Select 9/16 camera formats at 8/16-ch DVR model. Right

18 MENU Press MENU to go into or exit main menu PTZ setup

19 AUTO Press AUTO to switch channel by channel automatically.Auto Scan

20 SEL

Press this button to select the different assembled o

camera formats.

Enter or exit

PTZ mode

21 ENTER/

COPY

Press ENTER button to make choose or move curso

forward or make confirm in MENU system. / Backup

video or picture to USB or CDRW.

Home

22 CDRW Slot for CDRW.

23 HDD Location of installation for removable HDD.

24 USB connector

25 O IR Sensor for remote control

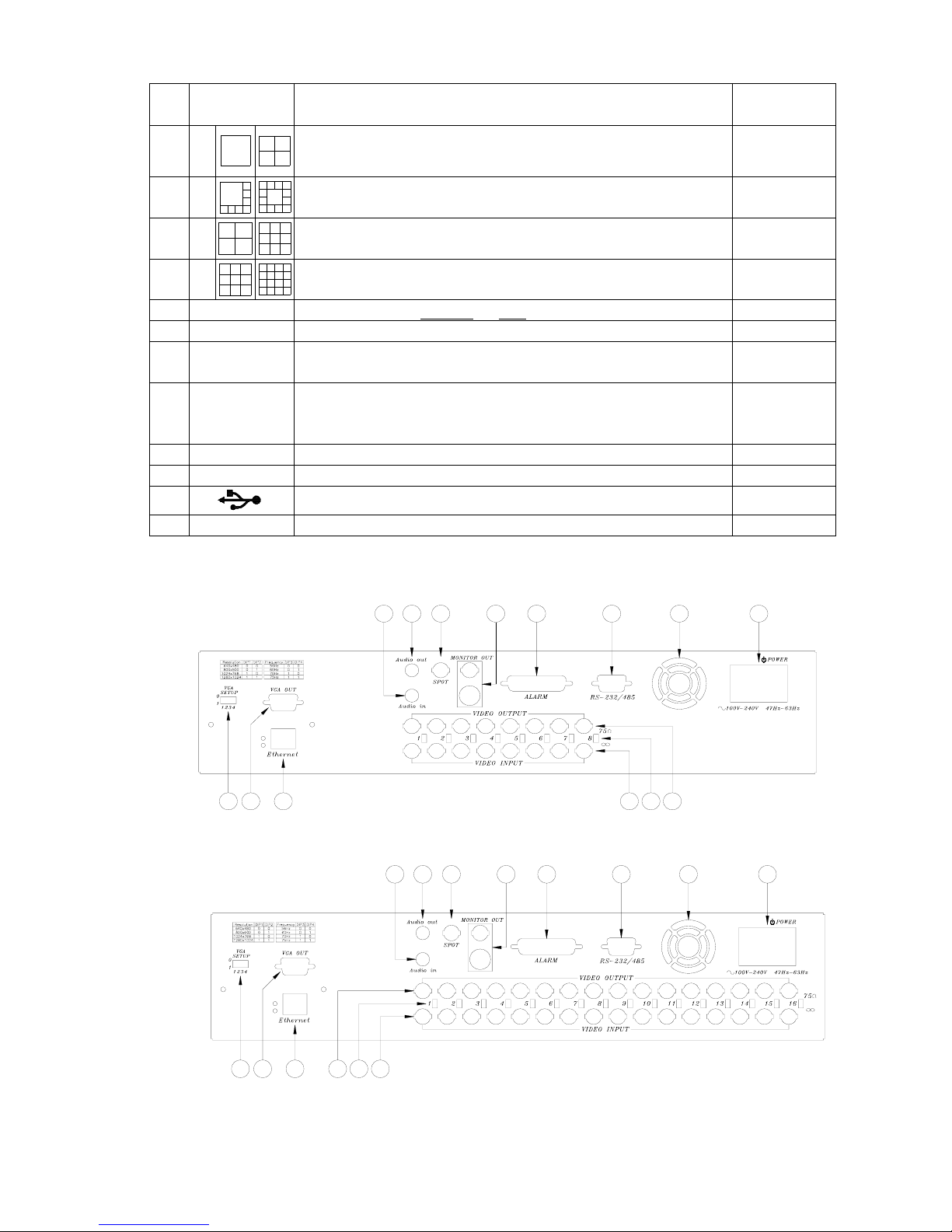

2.2 BACK PANEL

7654 98 10 11

1214 13

213

Back panel of 8-ch DVR

13 1412

11108 9456 7

31 2

Back panel of 16-ch DVR

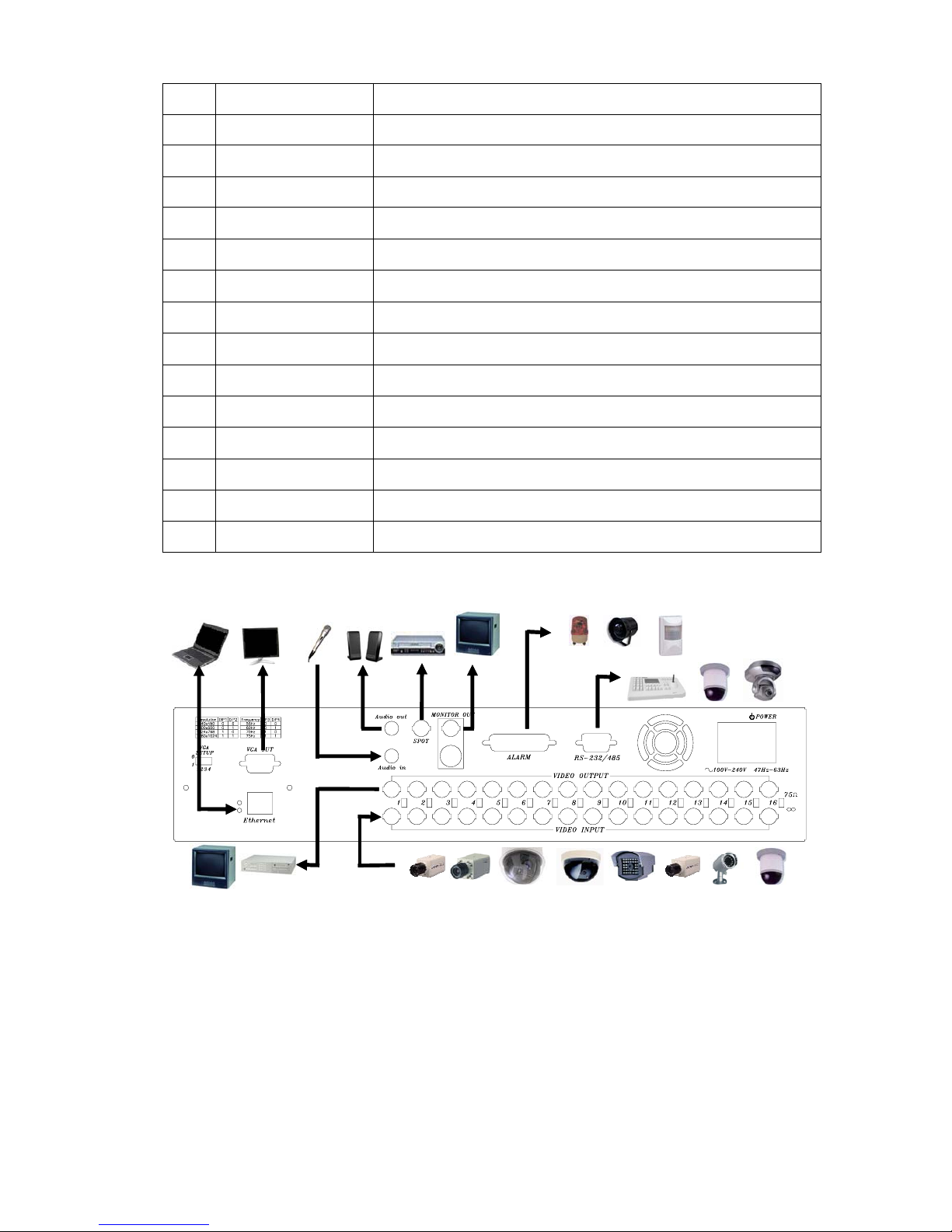

NO. LABEL OPERATION

1 VGA SETUP DIP Setting Resolution & Frequency

2 VGA D-SUB OUT Connect to CRT or LCD monitor.

3 ETHERNET RJ-45 connector for networking.

4 AUDIO IN Audio input for 1 channel

5 AUDIO OUT Audio output for 1 channel

6 SPOT SPOT Video output

7 MONITOR OUT Video output with BNC & Y/C signal Din connector.

8 ALARM 25 pin D-Sub connector. Alarm input connector.

9 RS-232 / RS-485 9 pin D-Sub connector. For external control of unit.

10 FAN Cooling fan.

11 POWER Power switcher: AC100V~AC240V / 47-63Hz input.

12 Video output Video output with BNC connector.

13 75 ohm Switch between 75 ohm and high resistance.

14 Video input Video input with BNC connector.

3 SYSTEM CONNECTION

3.1 CAMERA & MONITOR LOOPING

75 Ω: If camera looping to other devices or channels and video single are instable,

please switch to this position.

∞: In case of camera input over bright that please switches to this position.

Here recommend link cameras by sequence to avoid unexpected image broken,

from CH1, CH2, CH3, CH4…….

3.2 EXTERAL ALARM

There are three types of alarms that the system can be configured to handle. They

are Motion detection Alarm, External Alarm and Video Loss Alarm.

Motion detection Alarm and External Alarm:

When motion detection or External Alarm was triggered, there are 5 possible

actions will be taken.

a. Changes recording speed as alarm recording speed.

b. Monitor will display corresponding full screen alarm channel, it will switch

automatic mode to manual mode if buttons pressing activity occurred in 5 seconds.

c. Relays can be activated by motion detection or external alarm when turning

on.

d. External alarm will be recorded in the event list. Motion detection can be set

to yes or no.

e. The camera title will be transformed into color of yellow when motion is

happening, “ALARM” text will show up when external alarm is triggered.

Video Loss Alarm:

The default setting of Video Loss alarm is enabled and cannot be changed.

Although buzzer action can be disabled, an ALM record will still be added to the

Event List that indicates the precise time of video loss.

25 PIN D-Sub connector is used for external alarm input. It will accept TTL/CMOS

type trigger signals where the 8ch & 16ch DVR alarm inputs will be set by signal

polarity. It also accepts contact type devices. For example, N.O. relay input, the

Alarm Polarity should set to LOW in the ALARM SETUP menu. For N.C. relay

input, the Alarm Polarity should set to HIGH in the ALARM SETUP menu.

Connector pins 1-16 are for TTL/CMOS compatible alarm signals or for connect

one side of the contact type devices. Connector pins 20-21 are for input signal

grounding or the remaining side of the contact type devices.

The alarm hold input accept TTL/COMS alarm signal as well as contract device.

The connector pin 22 connected to Alarm Reset. The Alarm Reset signal return

connects to ground pin (pin 20-21).

Alarm output is Relay Type, Pin 23 is Normal Close and Pin 25 is Normal Open.

These outputs can be used to control external devices.

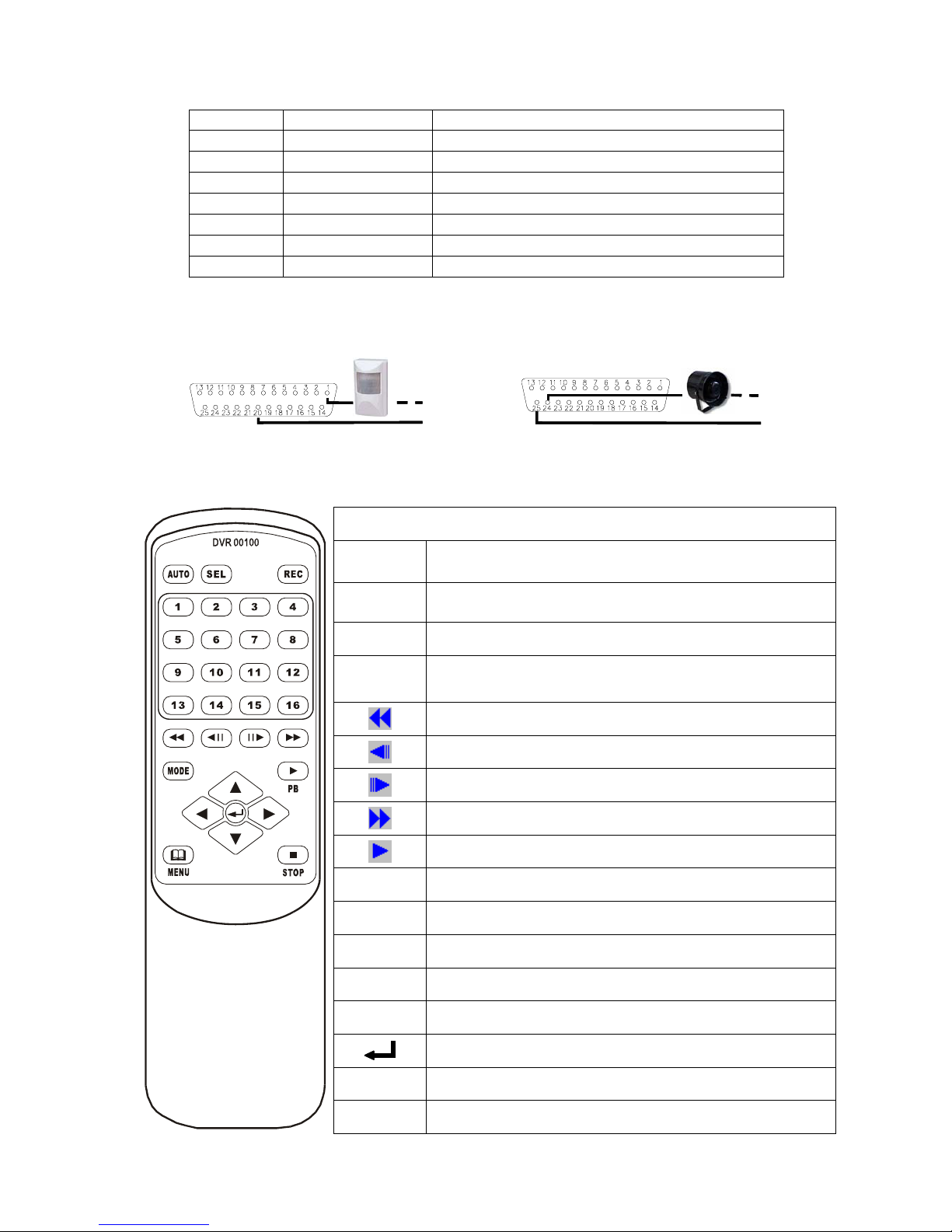

D-SUB25 PIN DEFINE

1-9, (1-16) Alarm 1-Alarm 9 (16) Camera alarm input

10-19, (17-19) N/A

20, 21 GND (connecting to ground)

22 Alarm Reset

23 Alarm output, N.C.

24 Relay COM

25 Alarm output, N.O.

EXAMPLE 1: Connect with PIR (Passive Infrared) device from ALARM1 INPUT.

EXAMPLE 2: A Normal off (Normal Open) alarm siren at Alarm Output.

EX1 EX2

3.3 IR REMOTE CONTROL

ITEM

AUTO Press AUTO to switch channel by channel

automatically.

SEL Press this button to select the different assembled

of camera formats.

.REC Press REC to start recording & again to stop.

1-8/1-16 Press the button to select the channel for full

screen.

Fast backward

Picture by picture backward play

Picture by picture forward play

Fast forward

Play video forward

MODE Change screen format

▲Move upward or increase.

►Move right or increase.

▼Move downward or decrease.

◄Move left or decrease.

To enter item or make choose.

MENU To into or exit main menu

STOP Stop the playback

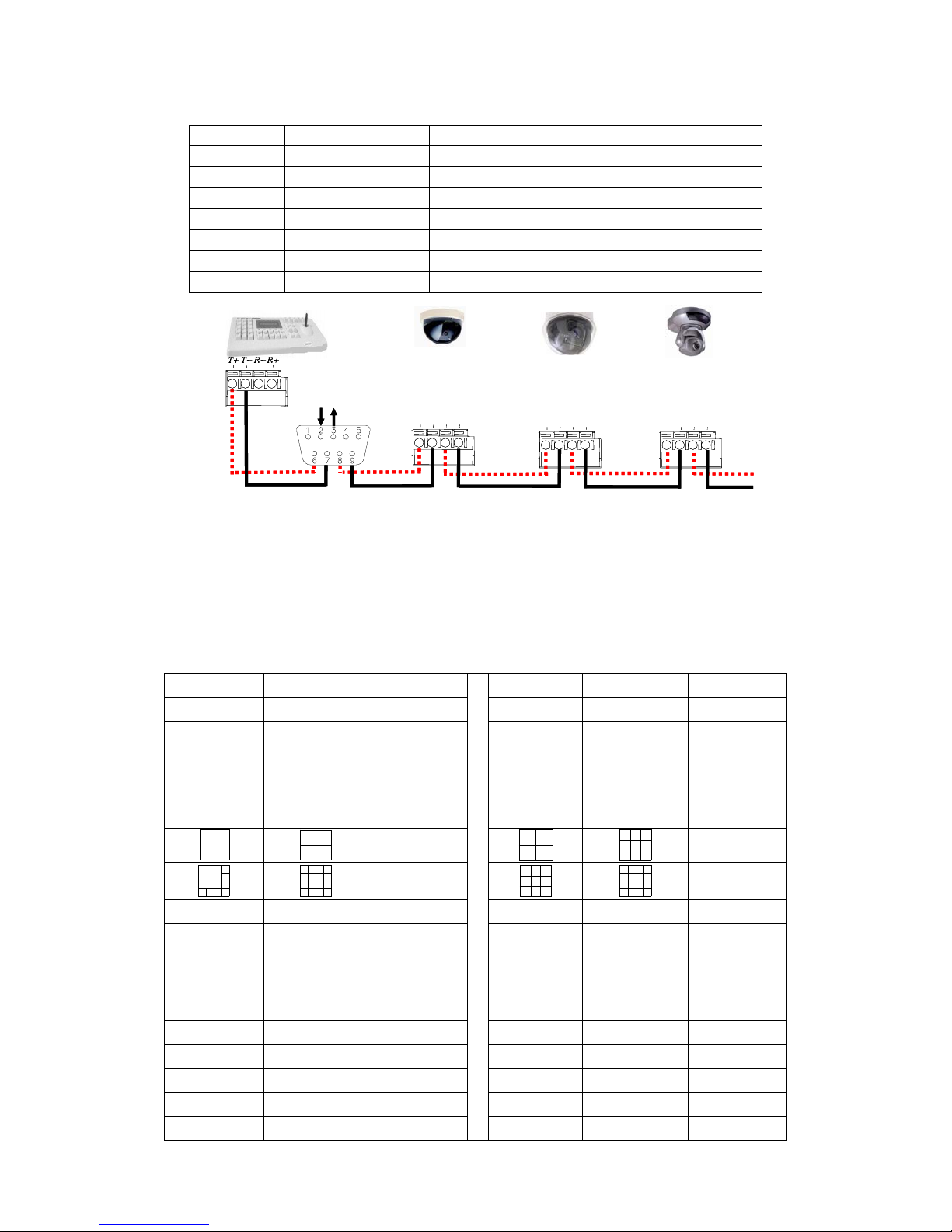

3.4 RS-232/485 CONTROLLER

0 1 0 1 A B A B

D0+ D0- D1+ D1-

Dome Cam 1

CH 1

ID 1

Dome Cam 2

CH 2

ID 2

Dome Cam 3

CH 3

ID 3

RXD TXD

0 1 0 10 1 0 1 A B A BA B A B

D0+ D0- D1+ D1-D0+ D0- D1+ D1-

Dome Cam 1

CH 1

ID 1

Dome Cam 2

CH 2

ID 2

Dome Cam 3

CH 3

ID 3

RXD TXD

Data format

Data: 1 Byte / Parity: None / Start bit: 1 / Baud: 9600

Totally 3 bytes in data frame:

1. Byte=0x10 :Broadcasting DVR

Byte=0x80+ID Number :Remote Control DVR (ID number range: 5~21)

2. Byte=Refer to below table :Command for each key string

3. Byte=First byte plus Second byte :Command for confirm checksum

8-ch DVR 16-ch DVR Command 8-ch DVR 16-ch DVR Command

F.Rew F.Rew 0x38 Rew Rew 0x3a


Rew


Rew 0x3b STOP STOP 0x3c


Fwd


Fwd 0x3d PLAY PLAY 0x39

F.Fwd F.Fwd 0x3e

0x32 0x31

0x33 0x34

ENTER ENTER 0x35 AUTO AUTO 0x37

SEL SEL 0x36

1 1 0x11 2 2 0x12

3 3 0x13 4 4 0x14

5 5 0x15 6 6 0x16

7 7 0x17 8 8 0x18

9 9 0x19 10 0x1a

11 0x1b 12 0x1c

13 0x1d 14 0x1e

15 0x1f 16 0x30

PIN DEFINE

RS-232 2 RXD

3 TXD

5 GND

RS-485 6 RXDA R+

7 RXDB R-

8 TXDZ T+

9 TXDY T-

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Yudor Registratore digitale

Yudor

Yudor YDS-1621HF Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
