62587

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the

back of the manual (or month and year of purchase if product has no number). Keep this manual and the

receipt in a safe and dry place for future reference. 22f

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 62587

IMPORTANT SAFETY INFORMATION

Assembly Precautions

1. Assemble only according to these instructions.

Improper assembly can create hazards.

2. Wear ANSI-approved safety goggles and

heavy-duty work gloves during assembly.

3. Keep assembly area clean and well lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the

influence of alcohol, drugs or medication.

6. Weight capacity and other product capabilities apply

to properly and completely assembled product only.

7. Assemble on a flat, level, hard and smooth surface

capable of safely supporting loaded Cart.

Use Precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT, STAND OR CLIMB ON THIS ITEM.

2. This product is not a toy nor a toy chest.

Do not allow children to play with or near this item.

3. Do not exceed weight capacities,

evenly distributed from bottom up.

Be aware of dynamic loading!

Sudden load movement may briefly create

excess load causing product failure.

4. Use only on a flat, level, hard and smooth surface

capable of safely supporting a fully loaded Cart.

Do not roll Cart over concrete seams

or other rough/uneven surfaces.

5. Do not lift using handle(s).

Do not lift while loaded.

6. Lock Swivel Casters after moving.

7. Do not mount on truck bed or

any other moving object.

8. Use as intended only.

9. Inspect before every use;

do not use if parts are loose or damaged.

10. Maintain product labels and nameplates.

These carry important safety information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

SAVE THESE INSTRUCTIONS.

Specifications

Capacity 450 lb

Tray Depth 3-1/2"

Wheels 5" Rubber Casters

Dimensions 39" L x 24" W x 31-1/2" H

Page 3For technical questions, please call 1-888-866-5797.Item 62587

Assembly Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Note: For additional information regarding the parts listed in the following pages, refer to the Assembly Diagram

near the end of this manual. 10mm, 14mm and 17mm sockets and/or wrenches are required for assembly.

Unwrap and separate all parts on a clear work area.

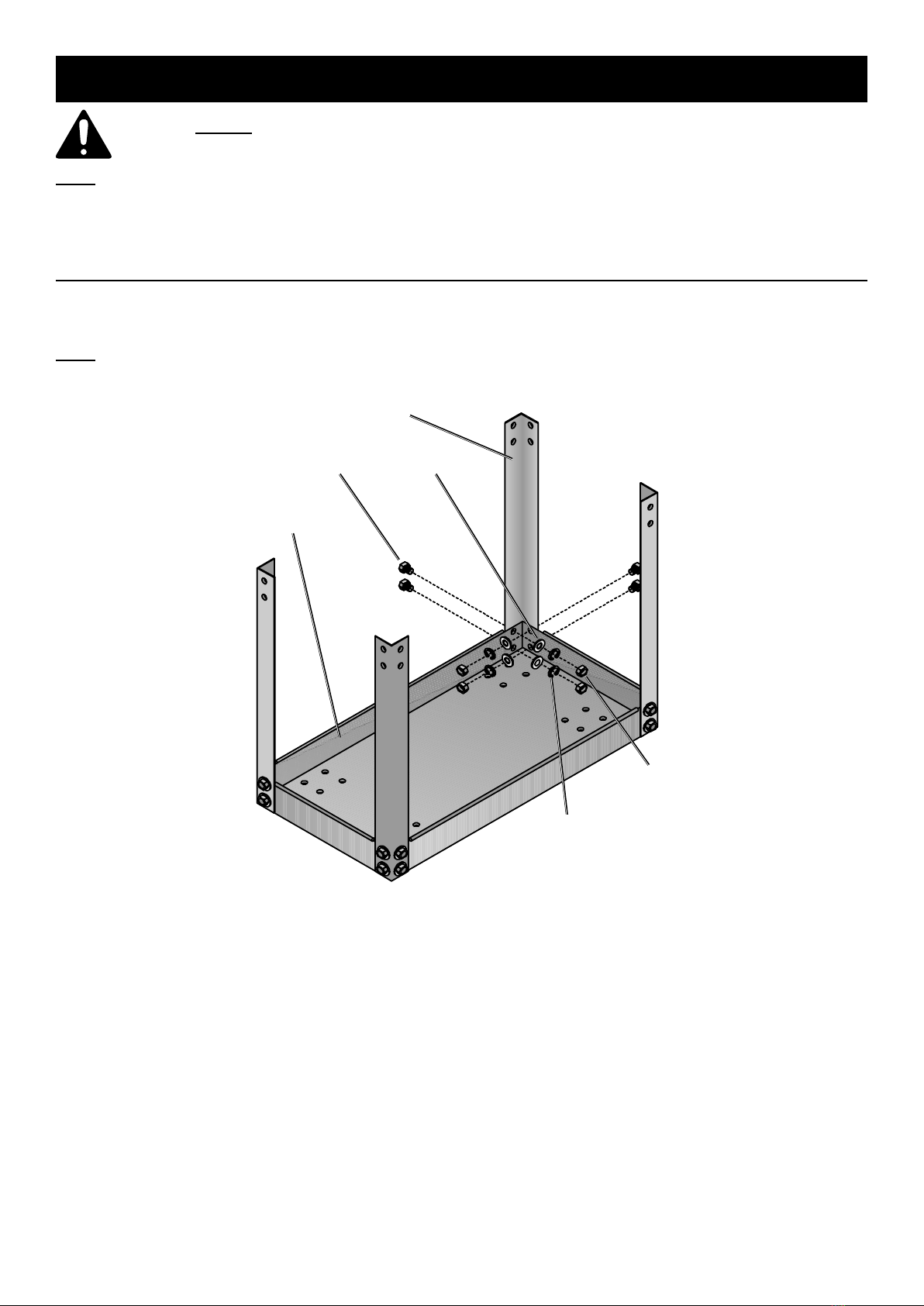

Attaching Posts to Bottom Tray

Lay the Bottom Tray (12) (the tray with four sets of four holes on the bottom) on the floor and attach the Posts

(15) to the outside corners of the tray using sixteen Bolts (2), Washers (5), Lock Washers (6), and Nuts (7).

Note: It is best to leave all nuts and bolts loose until assembly is finished, then tighten

all fasteners. This will make it easier to install and align all components.

Bottom Tray

(12)

Post (15)

Bolt (2) Washer (5)

Lock Washer

(6)

Nut (7)

Page 4 For technical questions, please call 1-888-866-5797. Item 62587

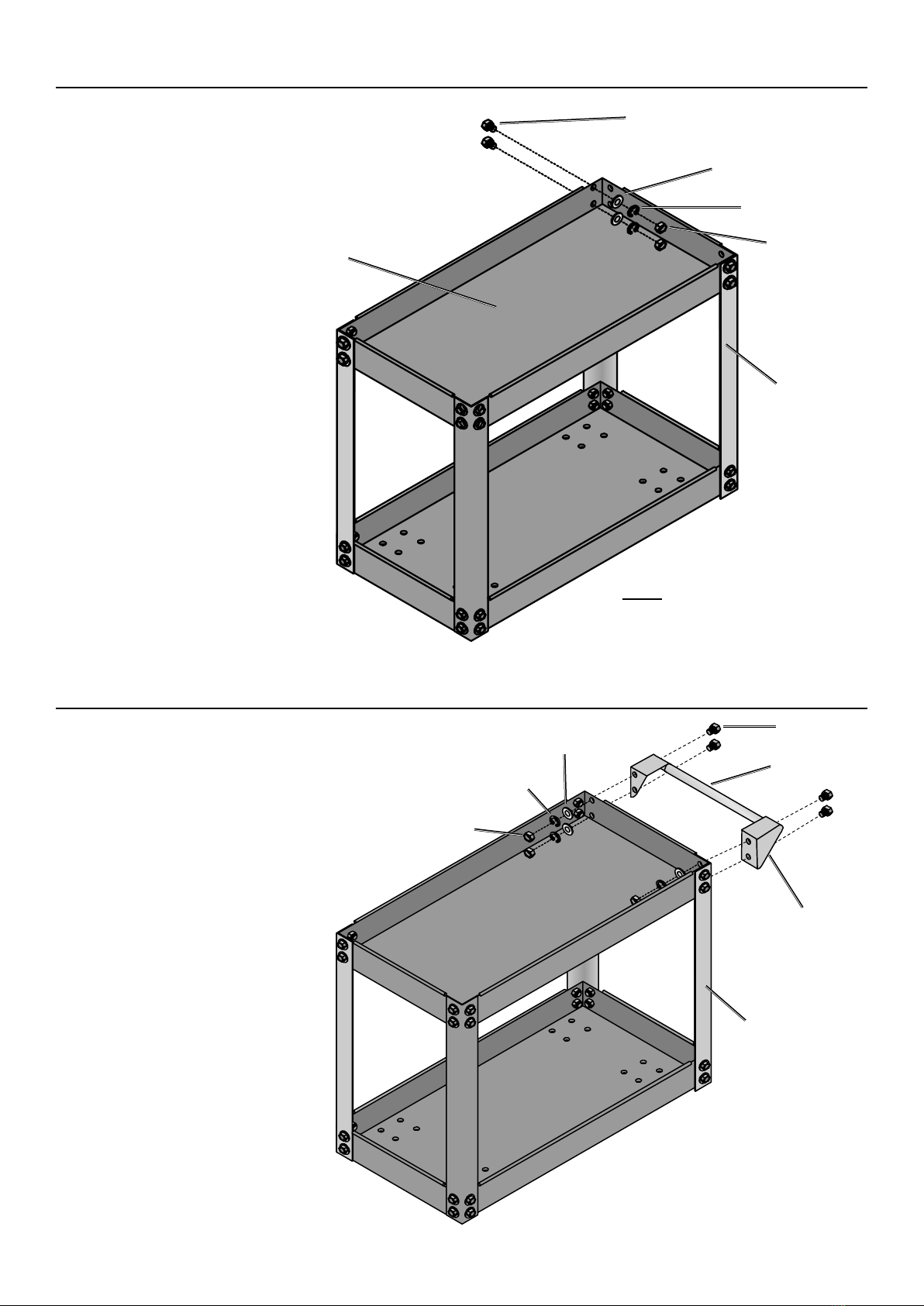

Attaching Top Tray

Attach Top Tray (4) to the other end of the legs using

twelve Bolts (2), Washers (5), Lock Washers (6), and

Nuts (7). (Four holes on one end of the top tray are

reserved for attaching the Handle in the next step.)

Top Tray (4)

Bolt (2)

Washer (5)

Post (15)

Lock Washer (6)

Nut (7)

Note: For ease of assembly,

set the Cart on its side and

work on two legs at a time.

Attaching Handle

Assemble the Handle Brackets (3) onto ends

of Handle (1) and attach Handle to end of

Posts (15) using the Bolts (2), Washers (5),

Lock Washers (6), and Nuts (7).

Bolt (2)

Washer (5)

Handle Bracket (3)

Post (15)

Lock Washer (6)

Nut (7)

Handle (1)

Page 5For technical questions, please call 1-888-866-5797.Item 62587

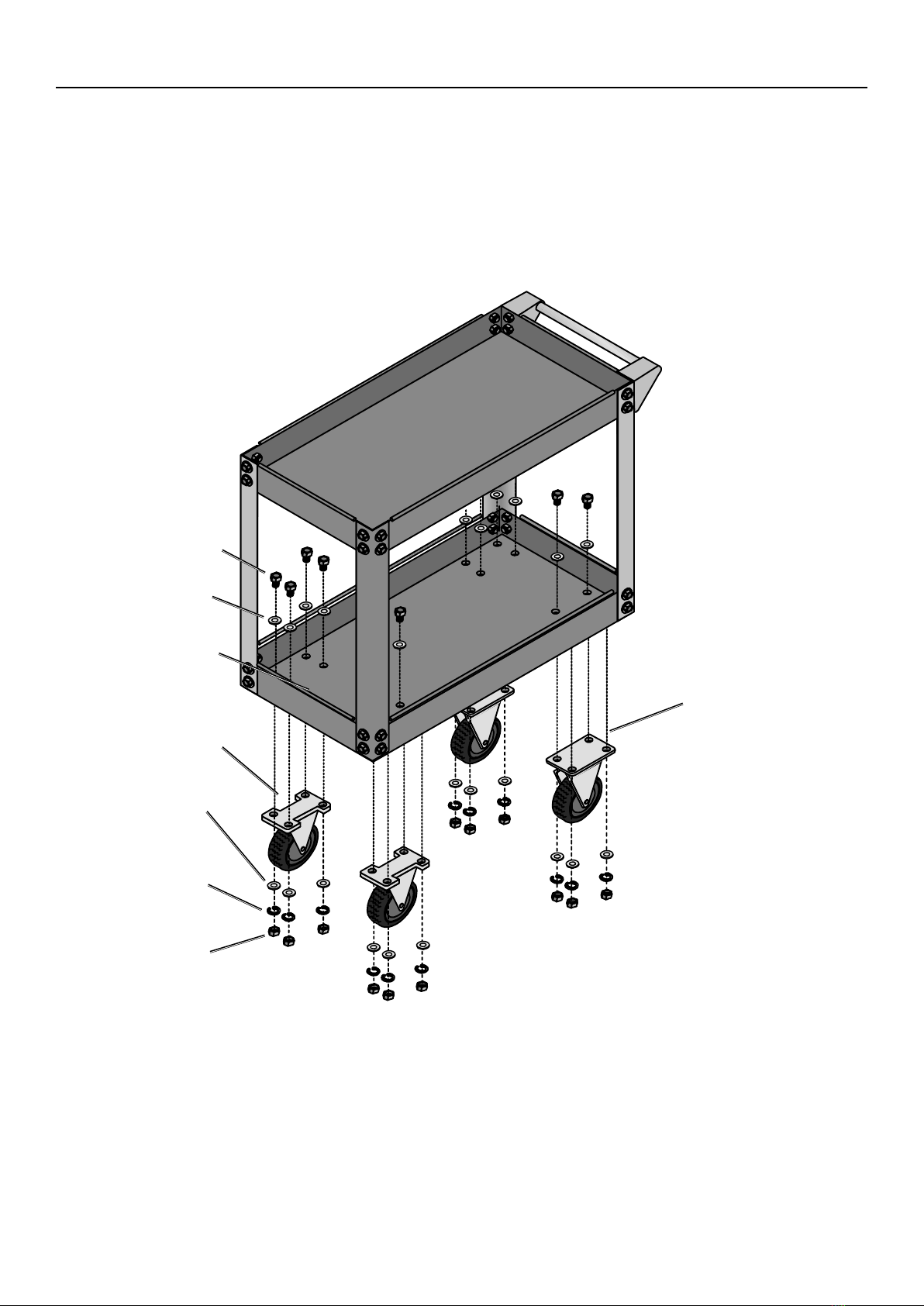

Attaching Casters

1. Decide on which end of the cart to mount the

pair of Rigid Casters (11) and pair of Swivel

Casters (14). For example, mounting the Fixed

Casters on the Handle end of the Cart will make

a push cart like those in a grocery store.

2. Attach each Fixed Caster to one end of the

Bottom Tray using four Bolts (8), Washers

(10), Lock Washers (9) and Nuts (13).

3. Attach each Swivel Caster to the remaining

end of the Bottom Tray using the remaining

Bolts (8), Lock Washers (9) and Nuts (13).

4. Make sure all fasteners are tight.

Bolt (8)

Rigid Caster (11)

Lock Washer (6)

Nut (7)

Bottom Tray (12)

Swivel Caster (14)

Washer (5)

Page 6 For technical questions, please call 1-888-866-5797. Item 62587

Operation Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document

including all text under subheadings therein before set up or use of this product.

1. Fill Cart evenly, from bottom to top.

Do not exceed weight capacities.

2. Close all Drawers and lock them.

3. Unlock Swivel Casters.

4. Roll Cart to a flat, level, hard and smooth

surface capable of safely supporting a fully

loaded Cart. Do not roll Cart over concrete

seams or other rough/uneven surfaces.

5. Lock Swivel Casters.

Maintenance and Servicing

Procedures not specifically explained in this manual must

be performed only by a qualified technician.

TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:

Do not use damaged equipment. If any part becomes damaged,

have the problem corrected before further use.

1. PERIODICALLY, inspect the general

condition of the Cart. Check for:

• loose hardware,

• misalignment or binding of moving parts,

• caster swivel function and movement,

• cracked or broken parts,

• any other condition that may

affect its safe operation.

2. Wipe external surfaces of the Cart with clean cloth.

Page 7For technical questions, please call 1-888-866-5797.Item 62587

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

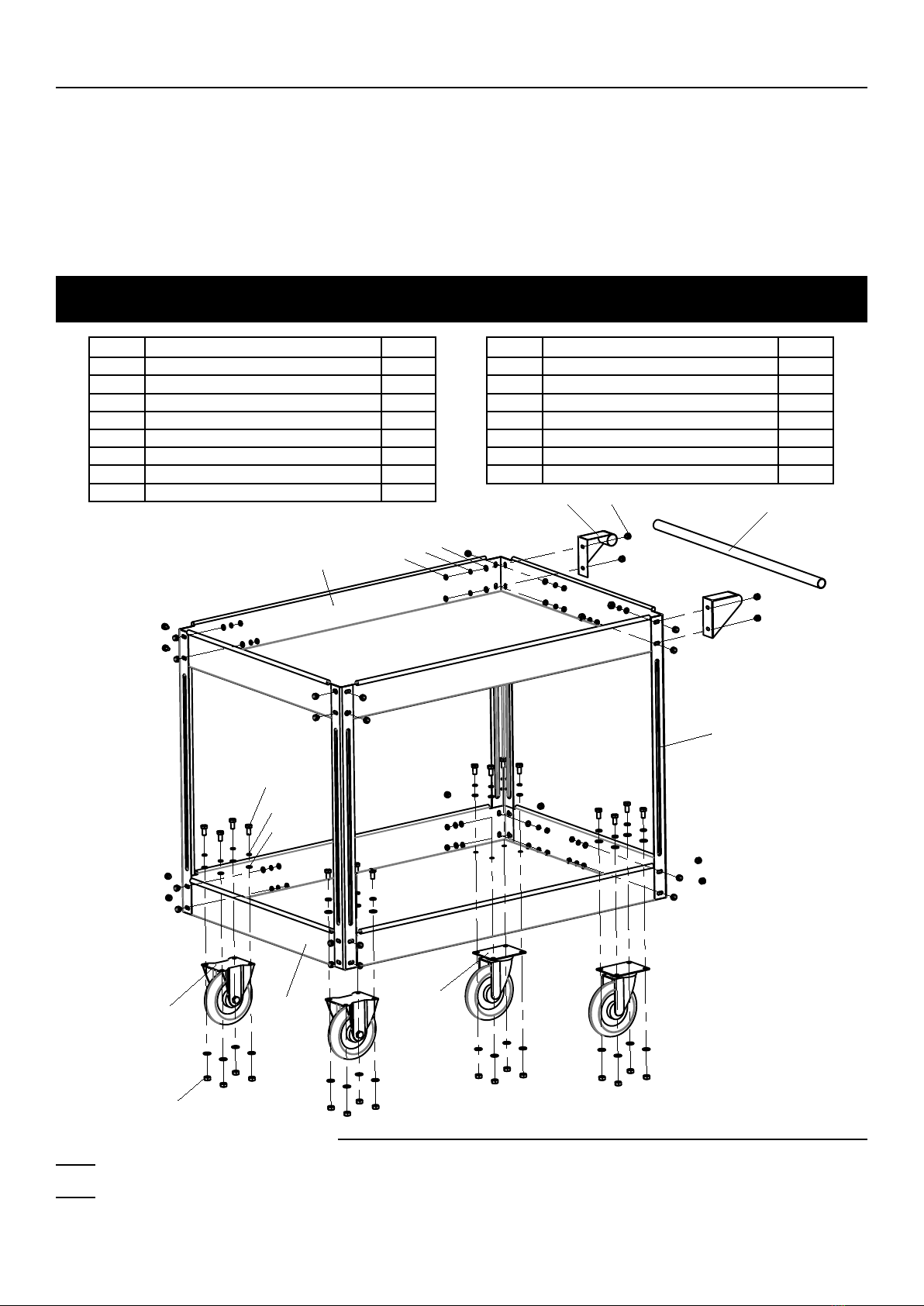

Parts List and Assembly Diagram

Part Description Qty

1 Handle 1

2 Bolt 32

3 Handle Bracket 2

4Top Tray 1

5 Washer 32

6 Lock Washer 32

7 Nut 32

8 Bolt 16

Part Description Qty

9 Lock Washer 16

10 Washer 32

11 Rigid Caster 2

12 Bottom Tray 1

13 Nut 16

14 Swivel Caster 2

15 Post 4

Record Product’s Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only, and are not available

individually as replacement parts. Specify UPC 193175485090 when ordering parts.

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges

prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may

elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
