YURAKU YM19APR Manuale utente

OUTPUT Size: 150x210mm (WxH) A5 SIZE

Pantone Black UPrint color:

19"

User's Manual

19" LCD Monitor

YM19APR

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color

monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide proper protection against harmful interference to a

residential installation. This monitor generates, uses, and can radiate radio

frequency energy. Harmful interference to radio communication may be led

as a result if it‘s not properly installed and used. However, there is no

guarantee that interference will not occur in a particular installation. If this

monitor does cause serious interference to radio or television reception,

resetting the monitor may determine it. Moreover, users are encouraged to

correct interference by doing one or more of the following:

 Reorient or relocate the receiving antenna.

 Move the monitor and the receiver further away from each other.

 Connect the monitor into an outlet on a circuit different from that to

which the receiver is connected.

 Consult your local dealer or an qualified technician.

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded

power supply cord and the provided shielded video interface cable with

bonded ferrite cores. Also, any unauthorized changes or modifications to

this monitor would void the user‘s authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be

used to meet the emission level limits.

English

glish

Content

English

glish

Safety Precautions.............................................................................1

First Setup .........................................................................................2

Quick Installation................................................................................2

Front View of the Product ..................................................................3

Rear View of the Product ...................................................................3

Using On Screen Display (OSD) Functions .......................................4

Supporting Timing Modes ..................................................................7

Technical Information.........................................................................8

Care and Maintenance.......................................................................9

Troubleshooting .................................................................................9

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user’s

safety comes first. However, improper use or installation may result danger

to the monitor as well as to the user. Carefully go over the following

WARNINGS before installation and keep this guide handy.

WARNINGS:

 This monitor should be operated only at the correct power sources

indicated on the label on the rear end of the monitor. If you’re unsure of

the power supply in your residence, consult your local dealer or power

company.

 Do not try to repair the monitor yourself as it contains no

user-serviceable parts. The monitor should only be repaired by a

qualified technician.

 Do not remove the monitor cabinet. There is high-voltage parts inside

that may cause electric shock to human bodies, even when the power

cord is disconnected .

 Stop using the monitor if the cabinet is damaged. Have it checked by a

service technician.

 Put your monitor only in a clean, dry environment. Unplug the monitor

immediately if gets wet and consult your service technician.

 Always unplug the monitor before cleaning it. Clean the cabinet with a

clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not

directly onto the glass screen.

 Keep the monitor away from magnetic objects, motors, TV sets, and

transformer.

 Do not place heavy objects on the cable or power cord.

 For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed

near the equipment and shall be easily accessible.

English

glish

First Setup

Congratulation for purchasing this monitor of high performance!

This monitor comes with the following accessories :

 VGA cable(D-Sub 15 PIN).

 Power cable.

 Audio cable.

 User guide.

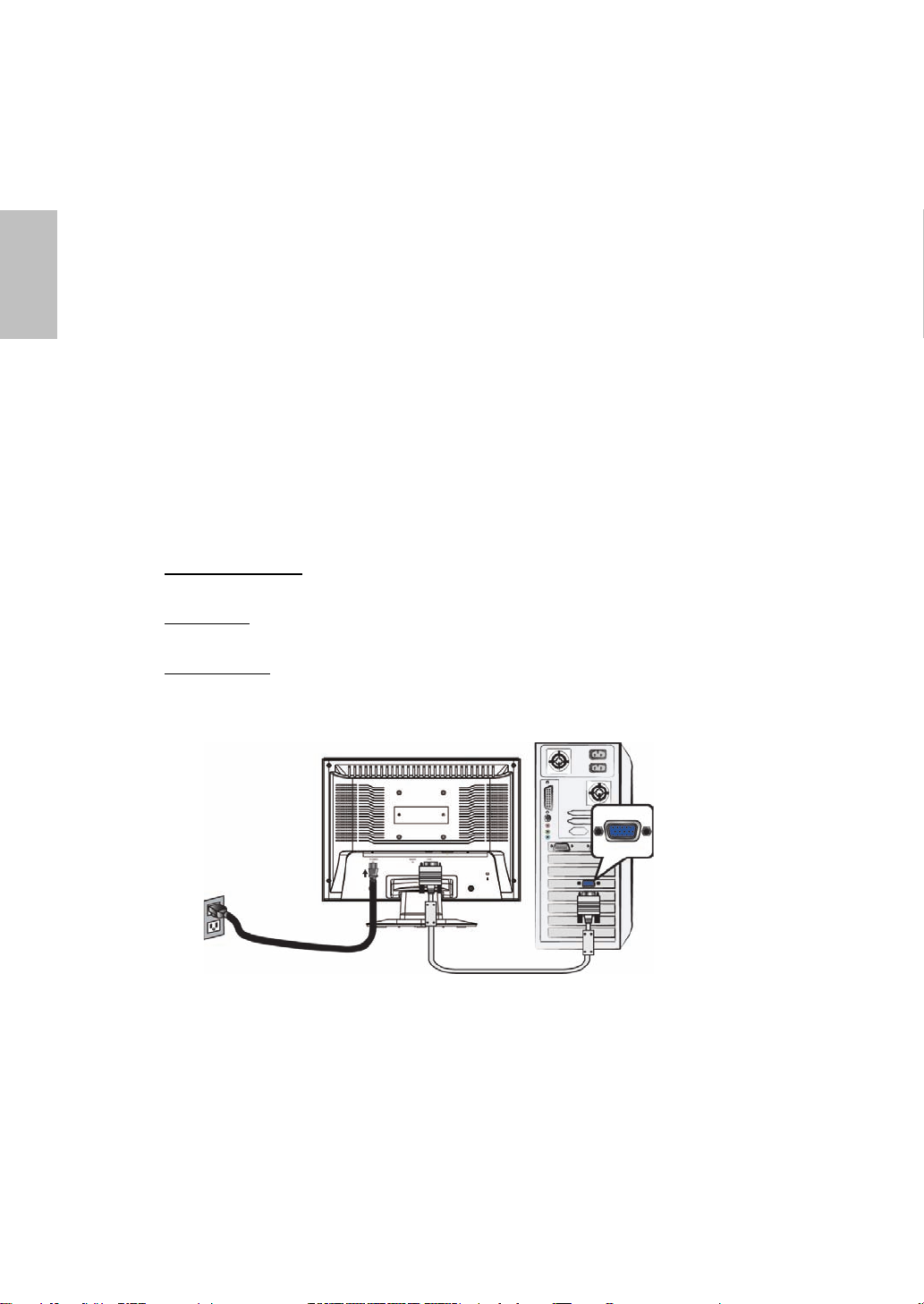

Quick Installation

1. Connect video cable (D-Sub cable)

2. Connect power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

3. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

4. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1280 x 1024 @ 60 Hz

Resolution Right-click on the Windows desktop > Properties > Settings >

“Desktop Area”. Set the resolution.

Refresh Rate (vertical frequency) See your graphic card’s user guide for

instructions.

Example:

Power cable D-Sub cable

English

glish

Make sure both monitor and computer are powered OFF. Connect the video

cable (D-Sub cable) to the computer, then to the monitor.

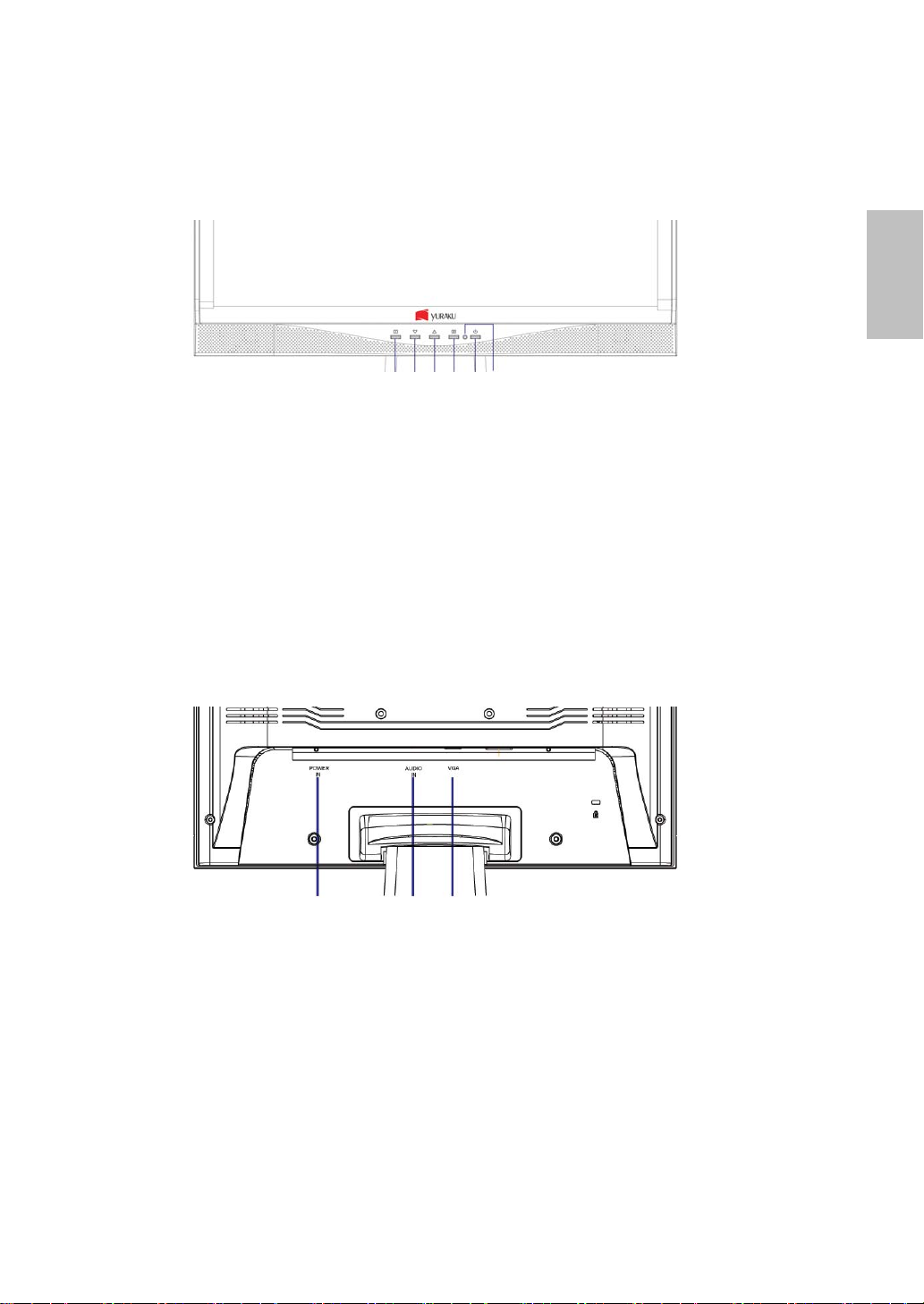

Front View of the Product

➊ OSD TURN ON/OFF ➍ CONFIRMSELECTION

➋ SCROLL DOWN/DECREASE ➎ POWER ON/OFF

➌ SCROLL UP/INCREASE

Rear View of the Product

➐ POWER INPUT ➒ VGA CABLE (D-SUB 15 PIN)

➑ AUDIO INPUT

English

glish

➒

➐

➑

➊

➋➌➍ ➎

➏ POWER INDICATOR

➏

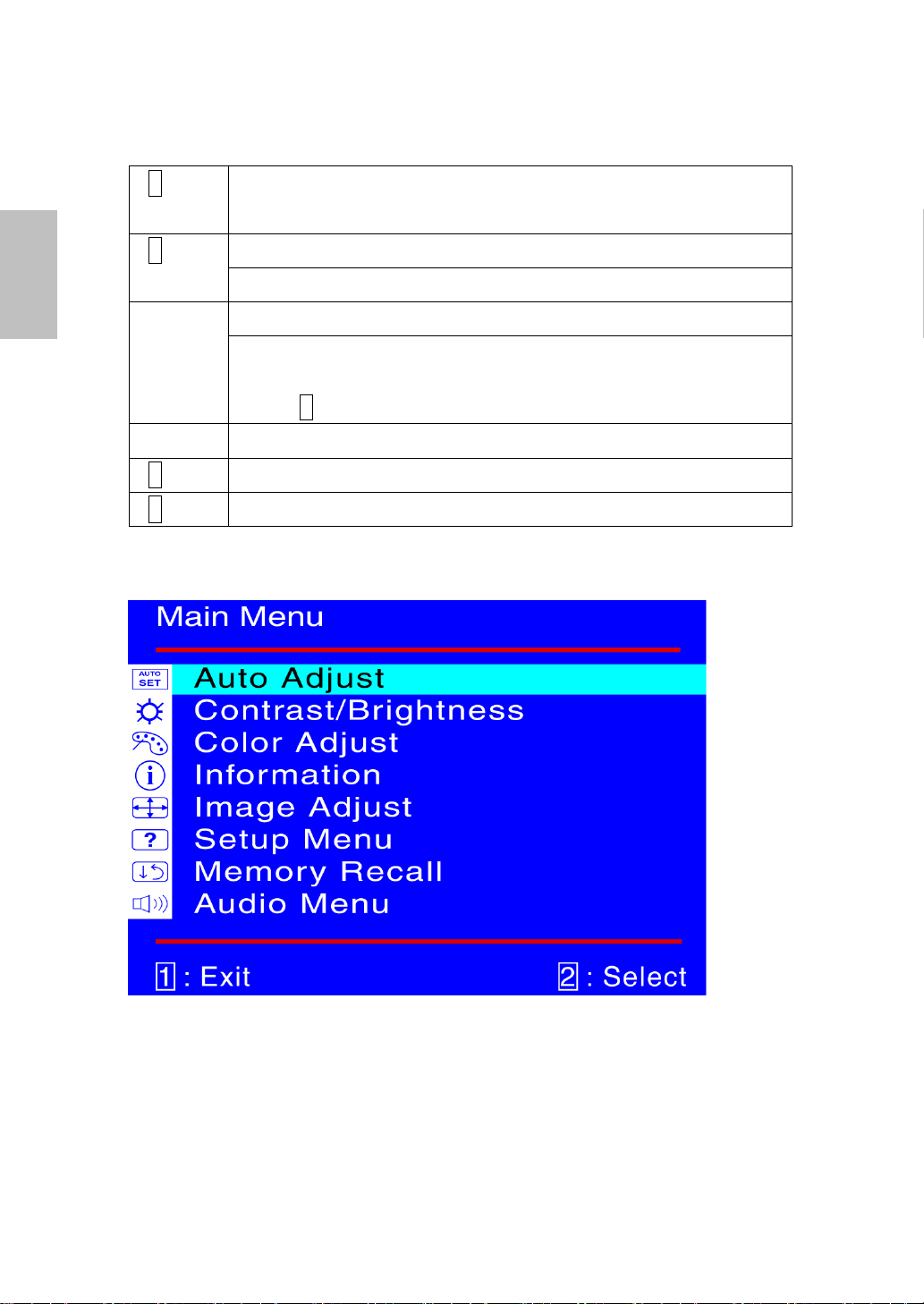

Using On Screen Display (OSD) Functions

1Display main menu.

Exit from OSD menu.

Auto adjust the image when not in main menu.2

Confirm the selection.

Select the desired item when in OSD menu.Vor W

When not in OSD menu, it is to immediately activate Contrast/

Brightness. It should be change to Contrast/ Brightness by pressing

button 2.

▼+ ▲Recall both of Contrast and Brightness

1 + ▼Power Lock (when not in OSD menu)

1 + ▲OSD Lock (when not in OSD menu )

Main Menu

English

glish

Short Cuts Function from the button(s)

Auto Adjust : To auto adjust Horizontal Position, Vertical Position, Phase

(Fine Tune) and Clock (H. Size) of the screen.

Contrast : To adjust the foreground white level of screen image.

V:increase contrast, W: decrease contrast.

Brightness : To adjust the luminance of the video.

V: increase brightness, W:decrease brightness.

Color Adjust : To select the color for improving brightness and color

saturation between 9300K, 6500K, 5400K, and User Color.

9300K : Adds blue to screen image for cooler white.

6500K : Adds red to screen image for warmer white and richer red.

5400K : Adds green to screen image for a darker color.

User Color : Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press Wor Vbutton to adjust selected color.

Information : To display the information, regarding the current input signal

coming from the graphic card in your computer.

Note: See your graphic card user guide for more information about

changing the resolution and refresh rate.

Image Adjust : To manually adjust the Horizontal/ Vertical position, H.Size,

Fine Tune and Sharpness.

H./V. Position : To adjust the horizontal and vertical position of the video.

H. Position : V:move screen to the right, W:move screen to the left.

V. Position : V: move screen up, W:move screen down.

H. Size : To adjust the width of the screen image.

W:decrease the width of screen image, V:increase the width of screen

image.

Fine Tune : To adjust the delay time of data and clock .

Press Wor Vto adjust to your preference.

English

glish

Sharpness : To adjust the clarity of a non-WXGA (1440x900) signal with

Wor Vbutton.

Setup Menu : To set up Language Select, Resolution Notice, OSD Position,

and OSD Time Out .

Language Select : To allow users to choose from available languages.

Resolution Notice : Resolution Notice is to remind you set the best quality

for the image.

 Choose “Enable” : Every 30 seconds, it will show a window “ For best

picture quality change resolution to 1440 x 900” to remind you set the

best quality for the image.

 Choose “Disable” : It will not show a window to remind you set the best

quality for the image if the resolution is lower than 1440 x 900.

OSD Position : Press 2 button to select between horizontal and vertical

OSD Position adjustment.

Horizontal OSD Position : To horizontally adjust the OSD position.

V:move OSD to the right, W:move OSD to the left.

Vertical OSD Position : To vertically adjust the OSD position.

V: move OSD up, W:move OSD down.

OSD Time Out : To automatically turn off On Screen Display(OSD)after a

preset period of time.

Memory Recall : To recall factory settings for Video & Audio controls.

Press button 2 to select the Memory Recall menu option.

Audio Menu : To adjust the audio functions.

Volume :To adjust the volume of speaker output.

Mute :To turn the Mute ON/OFF.

English

glish

Supporting Timing Modes

English

glish

VGA 720 x 400 @ 70Hz

VGA 640 x 480 @ 60Hz

MAC 640 x 480 @ 67Hz

VESA 640 x 480 @ 75Hz

VESA 800 x 600 @ 56Hz

VESA 800 x 600 @ 60Hz

VESA 800 x 600 @ 72Hz

VESA 800 x 600 @ 75Hz

MAC 832 x 624 @ 75Hz

VESA 848 x 480 @ 60Hz

VESA 1024 x 768 @ 60Hz

VESA 1024 x 768 @ 70Hz

VESA 1024 x 768 @ 75Hz

VESA 1152 x 864 @ 75Hz

VESA 1280 x 720 @ 60Hz

VESA 1280 x 960 @ 60Hz

VESA 1280 x 768 @ 60Hz

VESA 1280 x 768 @ 75Hz

VESA 1280 x 1024 @ 60Hz

VESA 1280 x 1024 @ 75Hz

VESA 1360 x 768 @ 60Hz

VESA 1440 x 900 @ 60Hz

VESA 1440 x 900 @ 75Hz

Warning : Do not set the graphic card in your computer to exceed these maximum

refresh rates. Doing so may result in permanent damage to your monitor.
