Z Microsystems 19 Manuale utente

Command

Console

Doc# 27-0023UM Rev 1.0 Issued 09/04

REGISTRATION

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR

MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED AS PLUG WITH AN EXTENSION

CORD RECEPTACLE OR OTHER OUTLETS UNLESS ALL THREE PRONGS CAN BE FULLY

INSERTED

CAUTION

RISK OF ELECTRIC SHOCK - DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR

BACK OF UNIT). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALI-

FIED PERSONNEL.

This symbol warns the user that insulated voltage within the unit may have sufﬁcient

magnitude to cause electric shock. Therefore, it is dangerous to make any kind of con-

tact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and

maintenance of this unit has been included. Therefore it should be read carefully in

order to avoid any problems.

Command

Console

1. Use the power and

video cables supplied

with the product to help

prevent interference

with radio and television

reception. The use of

cables and adapters may

cause interference with

electronic equipment in

the vicinity of this unit.

2. Changes or modi-

ﬁcations not ex-

pressly approved by Z

Microsystems could void

user’s warranty.

Doc# 27-0023UM Rev 1.0 Issued 09/04

TABLE OF CONTENTS

SECTION PAGE

Introduction ........................................................................................................................4

About This Manual ....................................................................................................4

Safety Precautions....................................................................................................4

Product Description ..................................................................................................5

Installation Instructions.......................................................................................................6

Shipment Contents ...................................................................................................6

Tools Required..........................................................................................................6

Preparations..............................................................................................................6

Slide Removal ...........................................................................................................7

Install Slides..............................................................................................................7

Install Command Console ........................................................................................9

Test and Adjust Install...............................................................................................9

Final Adjustments ...................................................................................................10

Setup Keyboard and Mouse ................................................................................... 11

Closing Monitor ....................................................................................................... 12

Cable Connections .................................................................................................13

Power Up ................................................................................................................13

Operations.......................................................................................................................14

Display Panel Controls ...........................................................................................14

Display Panel Setup................................................................................................15

Onscreen Menus.....................................................................................................16

SoftMenus...............................................................................................................24

Maintenance ...................................................................................................................34

Troubleshooting ..............................................................................................................35

No Main Display Image...........................................................................................35

No Picture-in-Picture Option Appears on Main Menu............................................36

No Picture-in-Picture Display Image ......................................................................36

Display Image Has Vertical Bars ............................................................................37

Display Image Appears Fuzzy ................................................................................37

Replacements .................................................................................................................38

Speciﬁcations..................................................................................................................39

Schematcis...................................................................................................................... 41

Appendix .........................................................................................................................44

Warranties ..............................................................................................................44

Customer Support...................................................................................................50

Customer Feedback................................................................................................ 51

Command Console Serial Control ICD ..................................................................52

Doc# 27-0023UM Rev 1.0 Issued 09/04

INTRODUCTION

ABOUT MANUAL

SAFETY PRECAUTIONS

DANGER:

To avoid shock hazard:

Do not remove the covers around the

Command Console

Do not connect or disconnect the

Command Console during an

electrical storm.

e power cord plug must be connected

to a properly wired and grounded

power outlet.

Any equipment to which the

Command Console will be attached

must also be connected to properly

wired and grounded power outlets.

•

This Manual is also available on the Z Microsystems website (www.zmicro.com). We

recommend you read this manual carefully and follow the instructions in the Installation

chapter for veriﬁcation of system functions and control settings.

Doc# 27-0023UM Rev 1.0 Issued 09/04

INTRODUCTION

PRODUCT DESCRIPTION

The Command Console provides a liquid

crystal display, a desk work surface and

storage for any size keyboard and mouse

in a 3.5” high (2U) standard 19” rack or

transit case.

Specially designed locks on each side of

the Command Console hold the compact

folded unit securely in place during stor-

age.

Release of the two Z-Locks on the front

sides of the Console allow it to slide out

and the LCD display to quickly swing up

into a reading position.

By lifting up the desktop, the keyboard and

mouse can be easily removed and set on

top.

The lightweight and durable aluminum

construction provides exceptional strength

in ﬁeld applications.

The high quality LCD screen provides full

color and features up to 1280 x 1024 pixel

resolution.

It can be easily adjusted to various verti-

cal-viewing angles. The display works

effectively with any workstation.

An electrostatically-applied and baked-on

ﬁnish is used for extreme durability for

shipboard, airborne, ﬁeld deployments,

and industrial or lab applications where

weight and size are very critical.

With up to two Picture-in-Picture capabil-

ity, a zoom feature and softmenus to allow

for remote administration, the Command

Console 19” is a 2U powerhouse.

Doc# 27-0023UM Rev 1.0 Issued 09/04

INSTALLATION

NOTE: For the fastest and easiest

installation of the Command

Console, follow these steps

in the sequence they are

presented.

Ensure all of the following parts are in-

cluded in the package received from Z Mi-

crosystems. Verify all parts have not been

damaged during shipment. If any of the

parts are missing or damaged, immediately

contact Z Microsystems Customer Service

at 858-657-1000.

• Command Console unit attached to the

mounting plate

• Hardware kit

• Manual

• Power Supply Cable

• Video Signal Cable

• Serial I/O Cable

• CD of SoftMenu software

SHIPMENT CONTENTS

Remember to save the unit’s original

shipping materials. It may be necessary to

move the unit at a later date.

TOOLS REQUIRED PRECAUTIONS

• Required Tools and Equipment

• Flathead screwdriver with about 10”

shaft.

• Phillips screwdriver with about 10”

shaft.

In preparation to install the Command Con-

sole, take the following precautionary step:

Turn off the electrical power to your com-

puter.

DANGER: To avoid shock

hazard:

• Do not remove the covers around the

Command Console.

• Do not connect or disconnect the

Command Console during an electrical

storm.

• e power cord plug must be connected

to a properly wired and grounded power

outlet.

• Any equipment to which the Command

Console will be attached must also be

connected to properly wired and grounded

power outlets.

Doc# 27-0023UM Rev 1.0 Issued 09/04

INSTALLATION

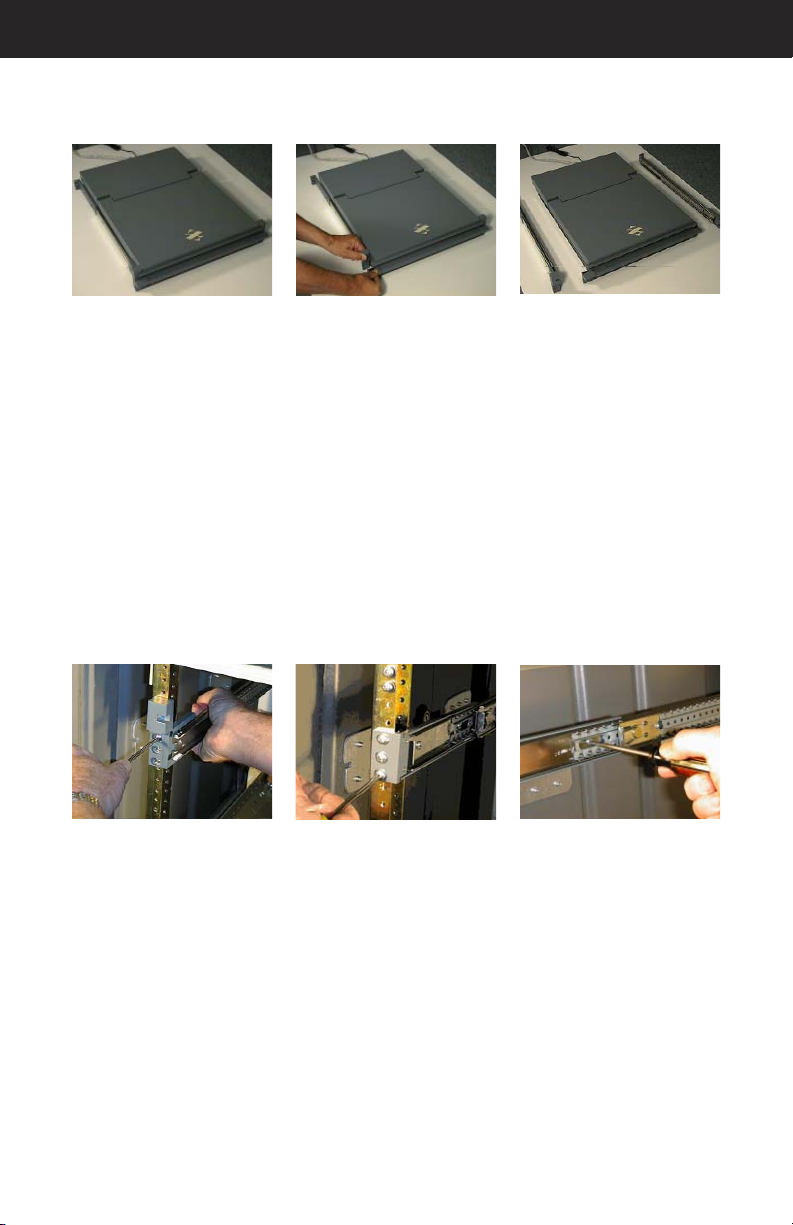

SLIDE REMOVAL

With the Console sitting

on a workbench with the

front facing towards you,

press down to release the

Z-Locks on each side of the

front of the Console to slide

the side rails back.

The slide rail will reach a

stop about half way back.

This is a safety stop to

prevent the Console from

sliding out too far while

mounted to the rack.

Simultaneously press in

the safety catches on each

slide rail and slide the side

rails all the way off the back

of the Console.

On the front of the cabinet

frame, use three Phillips

screws on each side to

secure the right and left

Z-Lock mounts.

DO NOT tighten these

screws to allow for adjust-

ment of the Console within

the cabinet frame.

On the rear of the cabinet

frame, use three Phillips

screws to loosely secure

the right and left rear slide

mount to the cabinet frame.

DO NOT tighten these

screws fully at this time.

INSTALL THE SLIDES IN THE CABINET FRAME

The slides should now

be separated from the

Console.

Each slide unit includes

the slide rail, with the front

Z-lock mount and the rear

mount.

On the slide rails, using a

slot screwdriver, loosen

off the slide extension rail

screw. Repeat on each

side.

Doc# 27-0023UM Rev 1.0 Issued 09/04

APPENDIX

INSTALLATION

Go back on the rear of the

cabinet frame, and fully

tighten the three Phillips

screws holding the slide

extension rail to the cabinet

frame.

Make sure you hold the

slide mounts hard against

the rack rail.

Doc# 27-0023UM Rev 1.0 Issued 09/04

APPENDIX

INSTALLATION

INSTALL THE COMMAND CONSOLE IN THE SLIDES

Pull the two Console slides

out until they lock.

Hold the Console by each

side, with the front toward

you.

Feed the four cables com-

ing out of the Console back

through the cabinet frame.

Guide the Console into the

slides and slide the Con-

sole in until it stops.

Simultaneously press in

the catches on each slide

and slide the Console all

the way into the cabinet

frame.

The Console should slide

in and out easily.

Slide the Console in and

out several times.

The Console should easily

close completely.

To be sure the slide and

mount assembly are

aligned properly, slide the

Console in and out several

times.

If the Console binds during

sliding, do the following:

Because of variances in

cabinet frames, there may

need to be some adjust-

ments of the Console slide

system for best ﬁt and

movement of the Console

in and out.

TEST INSTALLATION AND MAKE ADJUSTMENTS

Doc# 27-0023UM Rev 1.0 Issued 09/04

INSTALLATION

FINAL ADJUSTMENTS OF THE COMMAND CONSOLE

Slide the Console partially

out.

Use a ﬂathead screw

driver to slightly move the

Z-Locks out away from the

Console.

Tighten all the screws on

the front Z-Lock mounts.

Slide the Console in and

out to see if it moves

smoothly.

Go back to the rear of

the rack and fully tighten

the slide extension rail

screws.

Loosen the screws on each

of the front Z-Lock mounts.

NOTE: A wrench may

be necessary to

hold the nut on

the other side.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Z Microsystems Cassetto LCD

Z Microsystems

Z Microsystems 15 Manuale utente

Manuali Cassetto LCD popolari di altre marche

Acnodes

Acnodes KD 8228 Manuale utente

Ameriwood

Ameriwood 9524328PCOM Manuale utente

Kesseböhmer

Kesseböhmer TANDEM solo Manuale utente

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Manuale utente

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Manuale utente

NTI

NTI RACKMUX-V17-N Manuale utente

Austin Hughes

Austin Hughes CyberView L120 Manuale utente

Uplift Desk

Uplift Desk STR018 Manuale utente

Acnodes

Acnodes KDC 81932 Manuale utente

Acnodes

Acnodes RK1200T Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1501 Manuale utente

Mocka

Mocka Mischa Manuale utente

GRASS

GRASS DWD XP Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1701 Manuale utente

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manuale utente

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Manuale utente

Fujitsu

Fujitsu RC25 Manuale utente

Acnodes

Acnodes RK 1000B Manuale utente
