ZALMAN GS1000 Manuale utente
www.zalman.com
English version
◈ Please read this manual thoroughly before installation.
◈ Please visit the GS1000 web page at Zalman’s website to view the GS1000
installation video.
E-mail: [email protected]
GS1000
GS1000
2
The specifications of any product may change without prior notice to improve performance
1. Cautionary Notes 3
2. Specifications
3. Components 5
. Installation Guide 8
5. Zalman’s Recommendations 18
▣Contents
3
English
The specifications of any product may change without prior notice to improve performance
GS1000
(1) Check the condition of the product and its components before installation. If
there is a problem with the product and/or its components, please contact the
retailer for replacement.
(2) Refrain from inserting ob ects into the system while it is powered ON to avoid
harm to the user and/or product.
(3) Check the manual when connecting cables to prevent short circuiting and
risk of fire.
(4) Do not block any of the air vents.
(5) Keep unit away from heat sources such as direct sunlight, as well as water, oil,
and humidity. Place the unit on a level and stable area that is well-ventilated.
(6) Do not clean any surface with chemical cleaners or solvents.
(chemicals including but not limited to: industrial brightener, wax, benzene,
alcohol, paint thinner, mosquito repellent, aromatics, lubricant, detergent etc.)
(7) If this unit needs to be transported long distances, please ensure that all Hot
Swap HDD’s are securely fastened before transport. Also, please place the
GS1000 in its original packaging for transport.
◈◈Disclaimer
Zalman Tech Co., Ltd. is not responsible for any damages due to external
causes, including but not limited to improper use, problems with electrical
power, accident, neglect, alteration, repair, improper installation, or
improper testing.
1
Cautionary Notes
GS1000
The specifications of any product may change without prior notice to improve performance
Enclosure Type Full Tower
Enclosure Dimensions 585 mm X 220 mm X 520 mm
(D W H) (18.9 x 8.7 x 17.7 )
Weight 12kg (26.4lb)
Materials Aluminum/ Plastic (ABS)/ steel (GI)
Motherboard Compatibility E-ATX / Standard ATX / microATX
PSU Compatibility Standard ATX / ATX12V
PCI/AGP Card Compatibility Full Size
5.25 External Bay x 4
5.25 Bays *2 Adaptors & Bezels included for
use of two 5.25 bays as
3.5 Internal(HDD)/External(FDD) Bays
3.5 Internal Bay x 6
3.5 Bays - Hot Swap Bay x 3(standard)
- Regular/Hot Swap Bay x 3(optional)
Top Vent : 120mm Fan Vent x 2
(1 Fan included, 1 optional)
Cooling Components (Fans) Rear Vent : 120mm Fan Vent x 1
(1 Fan included)
Bottom Vent : 120mm Fan Vent x 2
(Fans optional)
E pansion Card Slots
(Tool Free Bolts provided) 7 Slots
USB Port x 2
Front I/O Ports IEEE1394(FireWire) Port x 1
Headphones x 1
Mic x 1
Drive Bays
(Tool Free
Bay Kit
provided)
2
Specifications
5
English
The specifications of any product may change without prior notice to improve performance
GS1000

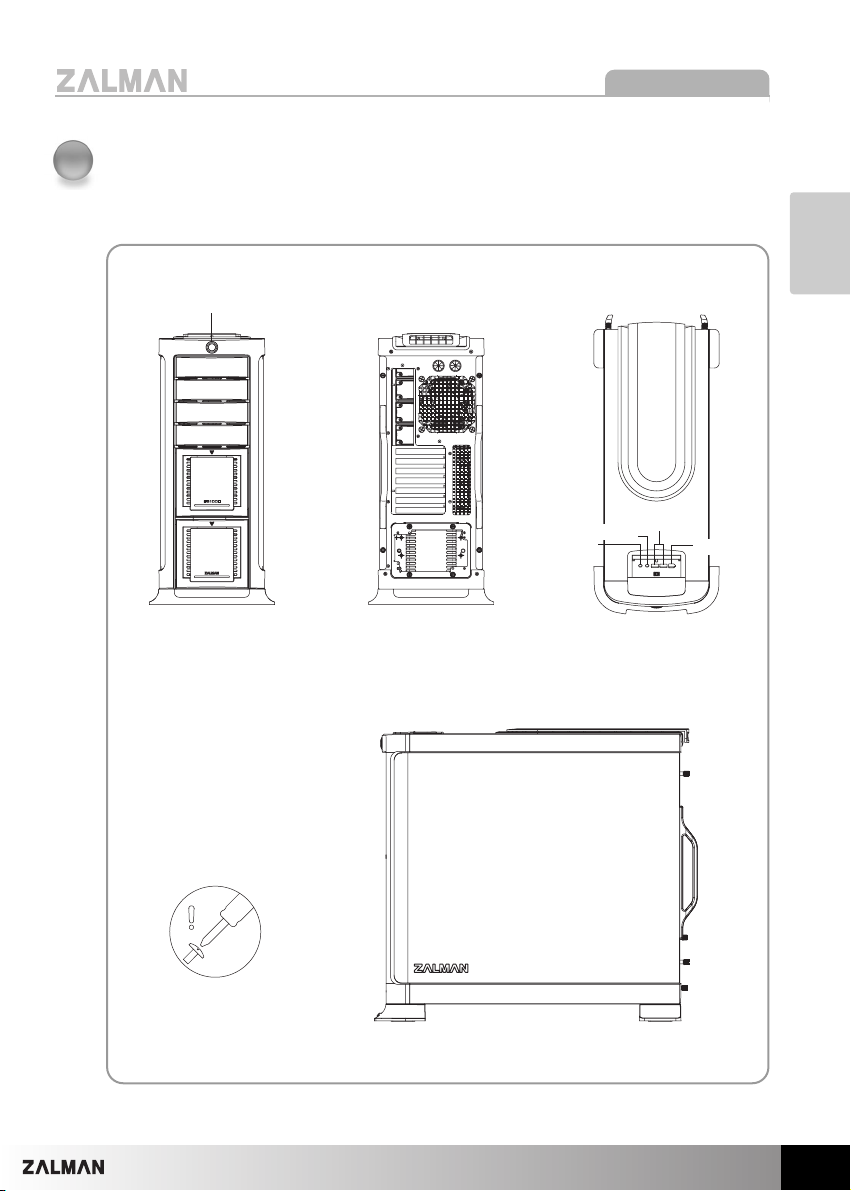

(1) GS1000
Back View Top View
Side View
Icon Description
Tools required for assembly
Front View
Headphones
POWER
Mic IEEE 1394
USB 2.0
3
Components
GS1000
6
The specifications of any product may change without prior notice to improve performance
(2) GS1000 Diagram and Parts Table
Item Part Name Qty
1 HDD Cover 2
2 HDD Tray 6
3 2 In 1 Bracket 2
4 5.25"Bay Cover 2
5 Chassis 1
6 Top Cover 1
Item Part Name Qty
7 Aluminum Door 2
8 PSU Bracket 1
9 PSU Fan Bracket 1
10 Rear Foot 1
11 Front Foot 1
7
English
The specifications of any product may change without prior notice to improve performance
GS1000
(3) Included GS1000 Parts
Diagram Part
Specification
Qty Description
Foot
(FRONT/REAR)
CPU
12V Extension
Cable
M/B Stand Off
HDD
Screws
PSU
Screws
ODD, M/B
Screws
Foot Fixing
Screws
FDD Cover
For Power
Cable
(8PIN)
PH #6-32*6
(Silver)
PHM
#6-32*12
(Black)
PHM
#6-32*6
(Silver)
PWH M3*6
(Black)
PWH M3*12
(Black)
ABS
M/B Power Extension
Cables
Use with microATX
M/Bs
HDD fixing bolt
PSU Screws
M/B Screw
ODD Screws
Foot Screws
For FDD Installation
ABS+Spray
(matches case
color)
Enclosure Support1
1
20
12
24
8
4
1
Cable Tie ABS I/O Cable Routing10
GS1000
8
The specifications of any product may change without prior notice to improve performance
(1) Installation of the Front & Rear Feet
(2) Removal of the Side Panels
Front Foot
Rear Foot
PWH M3*12
4
Installation Guide
9
English
The specifications of any product may change without prior notice to improve performance
GS1000
(3) Installation of the Power Supply
1) PSU Bracket Removal
2) PSU Bracket Installation
#6-32*6
TYPE
TYPE
TYPE
TYPE
GS1000
10
The specifications of any product may change without prior notice to improve performance
(4) Installation of the M/B and Add-On Card(s)
1) M/B Installation
2) Graphic Card Installation
micro ATX motherboards
Server motherboards
#6-32*6
