Cautionary Notes

1) Please read this manual thoroughly prior to installation.

2) Before installing, check the components and condition of the

product, and if any problem is found, contact the retailer.

3) Avoid inserting objects or hands into the system while it is in

operation to prevent product damage and injuries.

4) Check the manual when connecting cables. Incorrect connections

may cause short circuits leading to 󰘰re hazards.

5) Do not block the Front Intake Vent or the Rear Exhaust Vent.

6) Keep this unit away from heat sources, direct sunlight, water,

oil, and humid environments, and place the unit on a flat, stable,

vibration-free, and well-ventilated area.

7) Do not clean the product surface with chemicals or wet cloth.

(chemicals: industrial brightener, wax, benzene, alcohol, paint

thinner, mosquito repellent, aromatics, lubricant, detergent etc.)

8) Please wear gloves while handling this product to prevent injuries.

9) Product design and speci󰘰cations may be revised to improve quality

and performance.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to

external causes, including but not limited to, improper use, problems

with electrical power, accident, neglect, alteration, repair, improper

installation, or improper testing.

GS1200

Product Details

(1) Speci󰘰cations

(2) Product Information

Front Top Side (left)

Models GS1200

Type Full Tower

Dimensions (W×H×D) 260 × 570 × 640㎜ (10.2” × 22.4” × 25.1”)

Weight 12.4㎏ (27.3 lb)

Materials Aluminum, Plastic, Steel

Color Black

Motherboards Compatibility Standard ATX / m-ATX / E-ATX

Power Supply Compatibility Standard ATX / ATX12V

PCI/AGP Card Compatibility Full Size, 350 mm (13.7")

Drive Bays

5.25" External Bay x 4

3.5" External Bay x 1, Internal Bay x 6

5.25"/3.5"/2.5"

1 (3in-1)

Hot-swap 3.5" Support Hot-swap x 4 (HDD Docking x 1)

Expansion Card Slots 7 Solots

I/O Ports

Headphones x 1, Mic x 1, USB 2.0 x 3 , e-SATA x 1 , USB 3.0 x 1

Cooling

Components

Front 92mm Fan Vent x 2(2 Fans included)

Top 200mm Fan Vent x 1 (1 Fan included)

Rear 120mm Fan Vent x 1 (1 Fan included)

Side 200mm Fan Vent x 1 (1 Fan included)

Bottom 120mm Fan Vent x 2 (Fans optional )

Eng

GS1200

(3) Top Panel I/O Ports and HDD Docking Station

USB 3.0

HDD LED

Power LED

Power Button

Mic

Headphones

Reset Button

USB 2.0

e-SATA

USB

RESET MIC HEADPHONE POWER

USB USBe-SATA USB

HDD Docking Station

GS1200

# Part Name Units

①HDD Tray 6

②HDD Tray Cover 2

③Front Cover 1

④Stand (front) 1

⑤Stand (rear) 1

⑥PSU Support 1

⑦PSU Bracket 1

# Part Name Units

⑧Side Cover (right) 1

⑨Side Cover (left) 1

⑩Top Cover 1

⑪Chassis 1

⑫ 5.25” Bay Cover 3

⑬Adapter Tray 1

(4) Exploded View

①

②

③

④

⑤

⑥

⑦

⑧

⑩

⑪

⑫

⑬

⑨

Eng

GS1200

User’s Manual × 1

Stand (front ×1, rear ×1)

Stand-O󰘯 × 11 A Bolt(#6-32*12mm) × 12

[HDD]

B Bolt(#6-32*6mm) × 24

[M/B, PSU]

C Bolt(M3*12mm) × 4

[Stand]

D Bolt(M3*6mm) × 4

[SSD]

Cable Tie × 10

CPU 12V Extension Cable × 1

Main Unit

(5) Parts

GS1200

Installation

(1) Stand Assembly

(2) Side Cover Removal

C Bolt

Eng

GS1200

Tip

▶ Type A (PSU independent cooling)

If the PSU’s fan points downwards, the PSU’s cooling performance is

enhanced.

▶ Type B (Case Air Circulation Type)

If the PSU’s fan points inwards, the PSU’s cooling performance is

enhanced.

※ When using the case in a dusty environment, use Type B.

(3) PSU Installation

Type A Type B

B Bolt

GS1200

(4) Motherboard Installation

ATX Board m - ATX Board

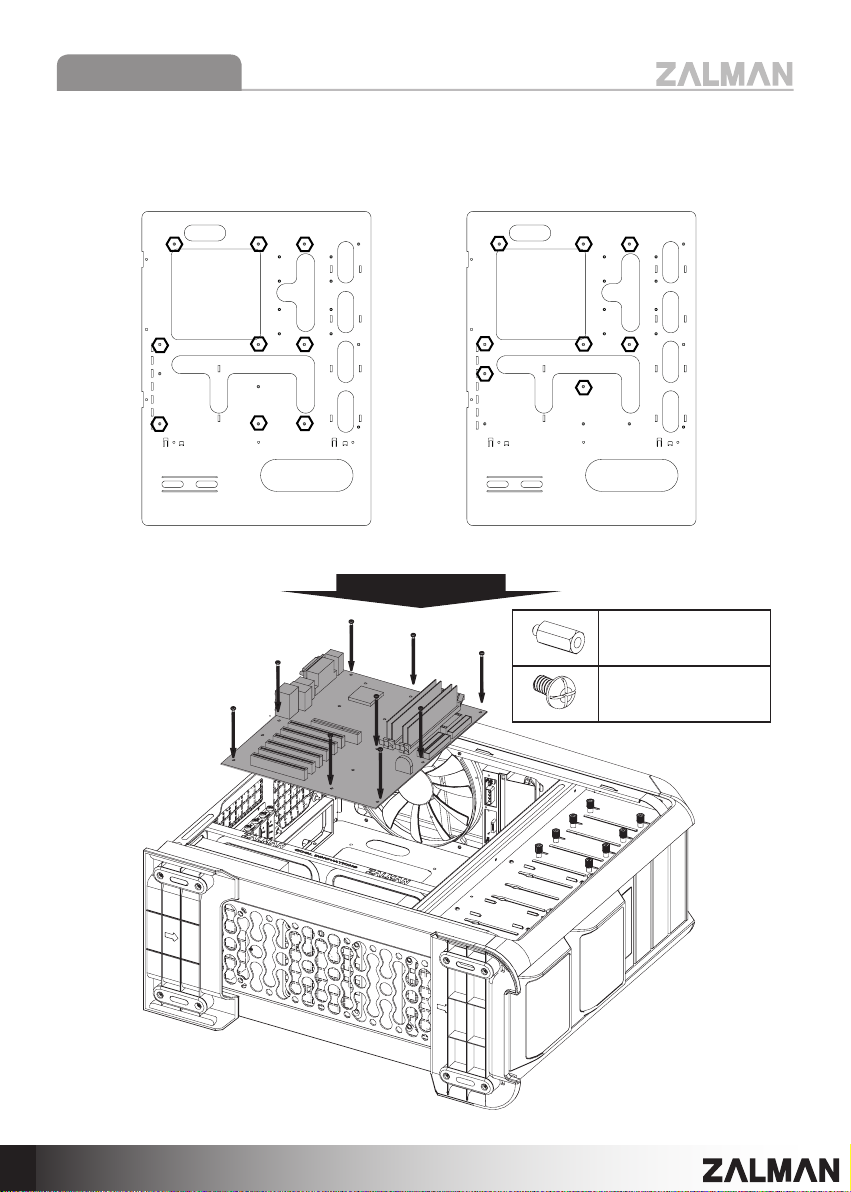

Please refer to the diagrams below for additional Stand O󰘯 positions (based

on motherboard type).

Stand-O󰘯

B Bolt
