ZALMAN RESERATOR1 V2 Guida rapida

RESERATOR 1 V2

English Version

Visit our website (www.zalman.co.kr) and watch the RESERATOR 1 V2

installation ideo for an installation o er iew.

※Please read this manual thoroughly before installation.

※The specifications of this product and its components may change without prior notice to impro e the performance thereof.

www.zalman.co.kr www.zalmanusa.com

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

1. Make sure that the power source’s output oltage and frequency are compatible with

the power input requirements of the water pump before installing(Input oltage and

frequency of the water pump are shown on the box and sink co er).

2. Do not place in dusty or humid conditions, under direct sunlight, or near a heat source

such as a room heater.

3. Do not drop or subject to excessi e force.

4. CPU socket compatibility must be checked.

5. Familiarize yourself with this manual.

6. Do not mix any contaminant with the coolant when filling, for it may cause product failure.

7. Check for leaks on water block before the installation.

Installation Notes

1. Use a power strip with a power switch, and connect both PC and Reserator 1 V2 to

the power strip to allow simultaneous power ON/OFF switching.

2. Always turn on the water pump first before using the system.

3. If the coolant isn’t circulating or the pump is making a strange noise, turn the PC OFF

immediately.

4. Do not place any objects on the product.

5. Install on a flat surface with no ibration or slant, and do not tilt or lay horizontally.

6. Use distilled water for coolant, regularly check the amount of coolant, and replenish

as needed.

7. If a leak is found, turn off the system immediately and examine the problem before

using the system again.

8. If the system will not be used for an extended period of time, turn the Water Pump OFF.

9. When mo ing the system, separate the reserator from the PC case before mo ing.

10. Do not let any air bubbles form in the Water Block and tubes during operation.

11. Always check that the water pump is functioning properly.

Operational Notes

Zalman Tech Co., Ltd. is not responsible for any damages due to external causes,

including but not limited to, improper use, problems with electrical power, accident,

neglect, alteration, repair, improper installation, or improper testing.

isclaimer

Installation and Operational Notes

English

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

The Reserator 1 V2 incorporates Zalman’s HCET(High Capacity Extrusion Technique)

technology, high efficiency cooling technology, and optimal heat dissipation design for

exceptional cooling performance e en through natural con ection cooling .

The Reserator 1 V2 is a fanless water cooling system that unites the functions of a

reser oir, radiator, and water pump into one system for easy operation. It is anodized

and comes with a custom coolant to pre ent corrosion. The new CPU Water Block

(ZM-WB4 Gold), VGA Water Block(ZM-GWB3), and the optional Northbridge Water

Block(ZM-NWB1) and VGA RAM Water Block (ZM-RWB1) enable the setup of a

complete Water Cooling System with excellent performance.

Installation and Operational Notes

1. Features

2. Specifications

3. Installation O er iew

4. Standard Components & Optional Components

5. Installation Guide

6. Pump Replacement and External Water Pump Installation

7. Zalman Noise Pre ention System

Table of Contents

1. Features

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

1. 1 Reserator (Reservoir + Radiator + Water Pump)

“Reserator” is a compound word deri ed from ‘Reser oir’ and

‘Radiator’ - it acts as a reser oir while radiating heat. This product

works well with natural con ection and integrates a water pump

inside for con enience.

1. 2 CPU Water Block (ZM-WB Gold)

The CPU Water Block incorporates a pure copper base for excellent

heat transfer, and has gold plating to pre ent corrosion. It supports

Pentium 4 Socket 775/478 CPU and AMD Socket 754/939/940 CPU,

and is designed to be light weight and easy to install.

1. 3 VGA Water Block (ZM-GWB3)

The VGA Water Block incorporates a light weight pure aluminum base

for high cooling performance, and is anodized and coated to pre ent

corrosion. It also incorporates re ol ing fittings that pro ide freedom in

direction when connecting them with the tubes, which further allows

simple installation.

1. Northbridge Water Block (ZM-NWB1, Optional)

This anodized, pure aluminum block is built for high performance cooling, and is

designed for compatibility with a wide ariety of northbridge chipsets.

1. 5 VGA RAM Water Block (ZM-RWB1, Optional)

This anodized, pure aluminum RAM Water Block is built for high

performance cooling, and is compatible with Geforce 7800/7900 and ATI

X1800/X1900 in need of VGA RAM cooling. It pro ides easy installation.

1. 6 Anti-Corrosion Coolant (ZM-G200)

This coolant contains a high quality anti-corrosion agent for arious

materials including copper, aluminum, and plastic, that pre ents

corrosion for long term operation.

1. 7 Flow Indicator

This component is connected in-line with the circulation tube for

checking the circulation of the coolant. When the coolant is acti ely

circulating, the cap inside the flow indicator shakes rapidly, pro iding

easy indication of the circulation status.

1. 8 Quick Coupling

The Fittings incorporate al es that pre ent leaks when disconnecting

the PVC Tubes allowing quick, con enient separation and reassembly of

the Reserator for transport and coolant replacement.

English

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

2. 1 Reserator (Reservoir+Radiator+Water pump)

1) Dissipation Area : 1.274㎡

2) Weight : 6.5 kg

3) Dimensions : 150(L) x 150(W) x 592(H) mm

4) Material : Anodized Pure Aluminum

5) Max Coolant Capacity : 2.5ℓ

6) Integrated Water Pump : 5 W, Qmax 300 ℓ/h

(A type : 230V-50Hz, B type : 120V-60Hz, C type : 220V-60Hz, D type : 110V-60Hz)

7) Maximum Lift : 0.5 m

2. 2 CPU Water Block (ZM-WB Gold)

1) Weight : 135 g

2) Material : Polycarbonate Co er, Gold Plated Pure Copper Base

3) Dimensions : 63(L) x 63(W) x 16.5(H) mm

4) Compatibility : Intel Pentium 4 (Socket 775/478), AMD Sempron / AMD64 (Athlon

64/Athlon 64 FX/Opteron) (Socket 754/939/940)

2. 3 VGA Water Block (ZM-GWB3)

1) Weight : 100 g

2) Material : Anodized Pure Aluminum

3) Dimensions : 60.4(L) x 60.4(W) x 30(H) mm

4) Compatibility : Graphics cards with heatsink mounting holes

2. Northbridge Water Block (ZM-NWB1, Optional)

1) Weight : 48 g

2) Material : Anodized Pure Aluminum

3) Dimensions : 43(L) x 43(W) x 30(H) mm

2. 5 VGA RAM Water Block (ZM-RWB1, Optional)

1) Weight : 120 g

2) Material : Anodized Pure Aluminum

3) Dimensions : 19(L) x 122(W) x 12(H) mm

2. 6 Anti-Corrosion Coolant(ZM-G200)

1) Material : Propylene Glycol & Anti-Corrosion Agent

2) Volume : 500

mℓ

3) Freezing Point : -9 ℃

4) Exchange Cycle : 1 year

2. Specifications

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

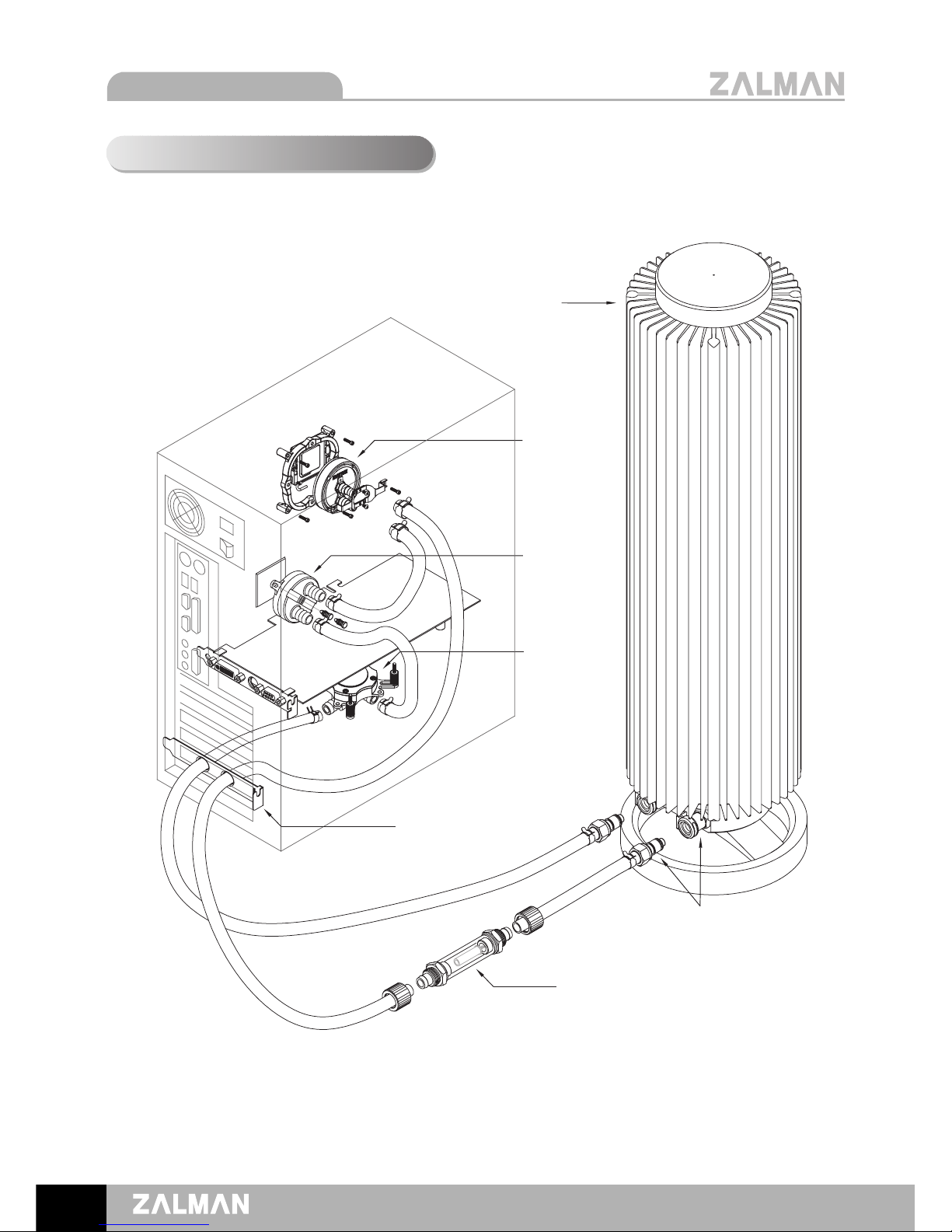

3. Installation Overview

Reserator

CPU Water

Block

(ZM-WB4

Gold)

VGA Water

Block

(ZM-GWB3)

I/O Bracket

Flow Indicator

Quick Coupling

Northbridge

Water Block

(ZM-NWB1,

Optional)

English

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

4. Components

. 1 Reserator 1 Unit

. 2

CPU Water Block(ZM-WB Gold) 1SET

Please refer to the separately pro ided

manual for the ZM-WB4 Gold.

3 VGA Water Block (ZM-GWB3) 1SET

Please refer to the separately pro ided

manual for the ZM-GWB3.

. 5 Coolant (ZM-G200) 1EA

. 6 PVC Tube m

. 7 I/O Bracket 1EA

. 8

Quick Coupling Insert 2EA

. 9 Tube Clamp 2EA

. 10 Spare Parts

. Flow Indicator 1EA

Sealing Bolt 1EA Cable Fitting 1EA

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

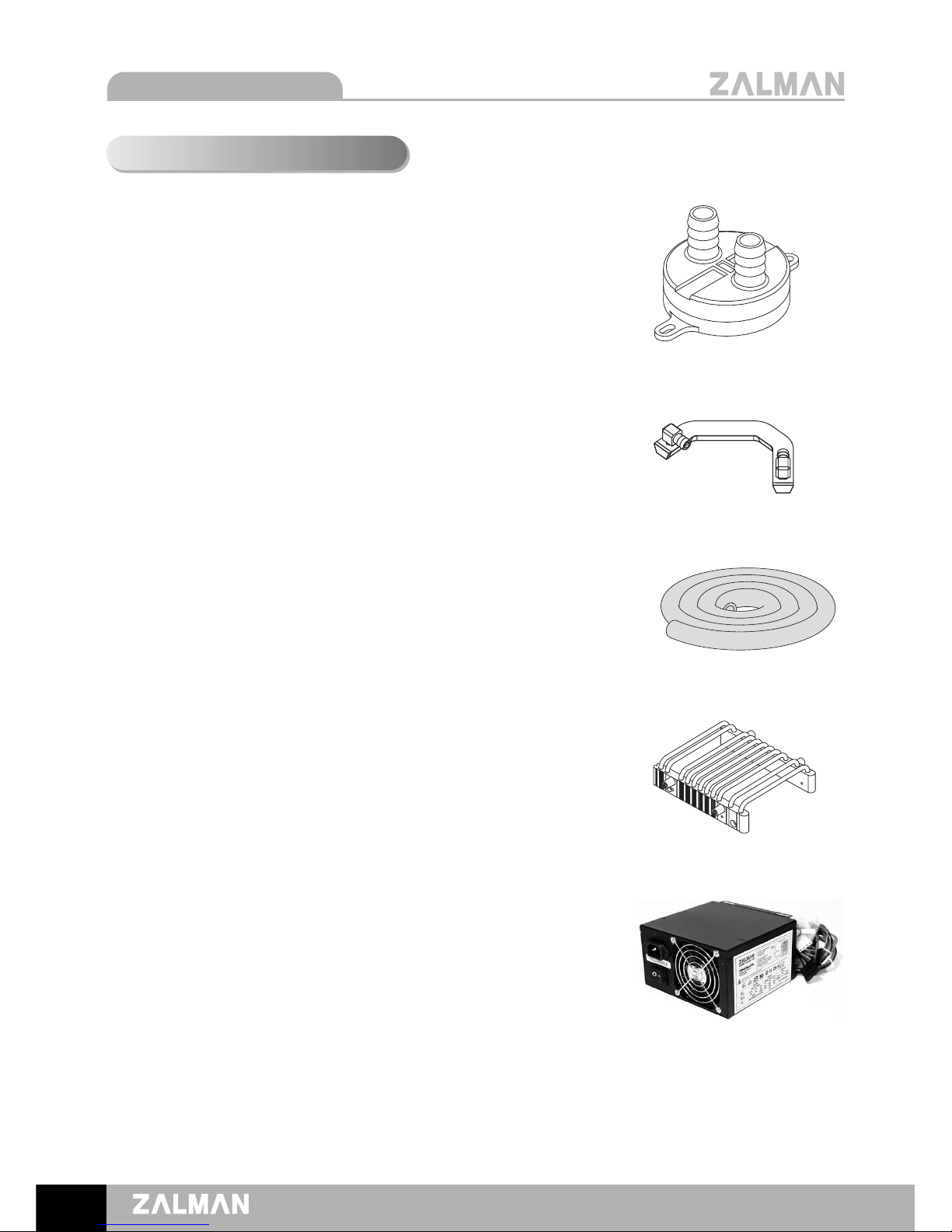

Optional Components

●●

Power Supply

By implementing heat-sensor circuitry that controls the

fan’s speed in relation to the temperature within the

power supply, noise is significantly reduced, making this

component suitable for noiseless systems.

●●

Northbridge Water Block (ZM-NWB1)

This anodized, pure aluminum block is built for high

performance cooling, and is designed for Motherboard

compatibility with a wide ariety of northbridge chipsets.

●●

VGA RAM Water Block (ZM-RWB1)

This VGA RAM Water Block is compatible with GeForce

7800/7900 and ATI X1800/X1900 in need of VGA RAM

cooling.

●●

Heatpipe HDD Cooler

This component cools the heat generated from the hard

disk dri e and reduces the ibration that is passed onto

the computer’s enclosure.

●●

PVC Tube

If the standard PVC tube is found to be short or you need

to use the tube on another system, additional tubes can

be purchased separately (12 x 8 mm).

English

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

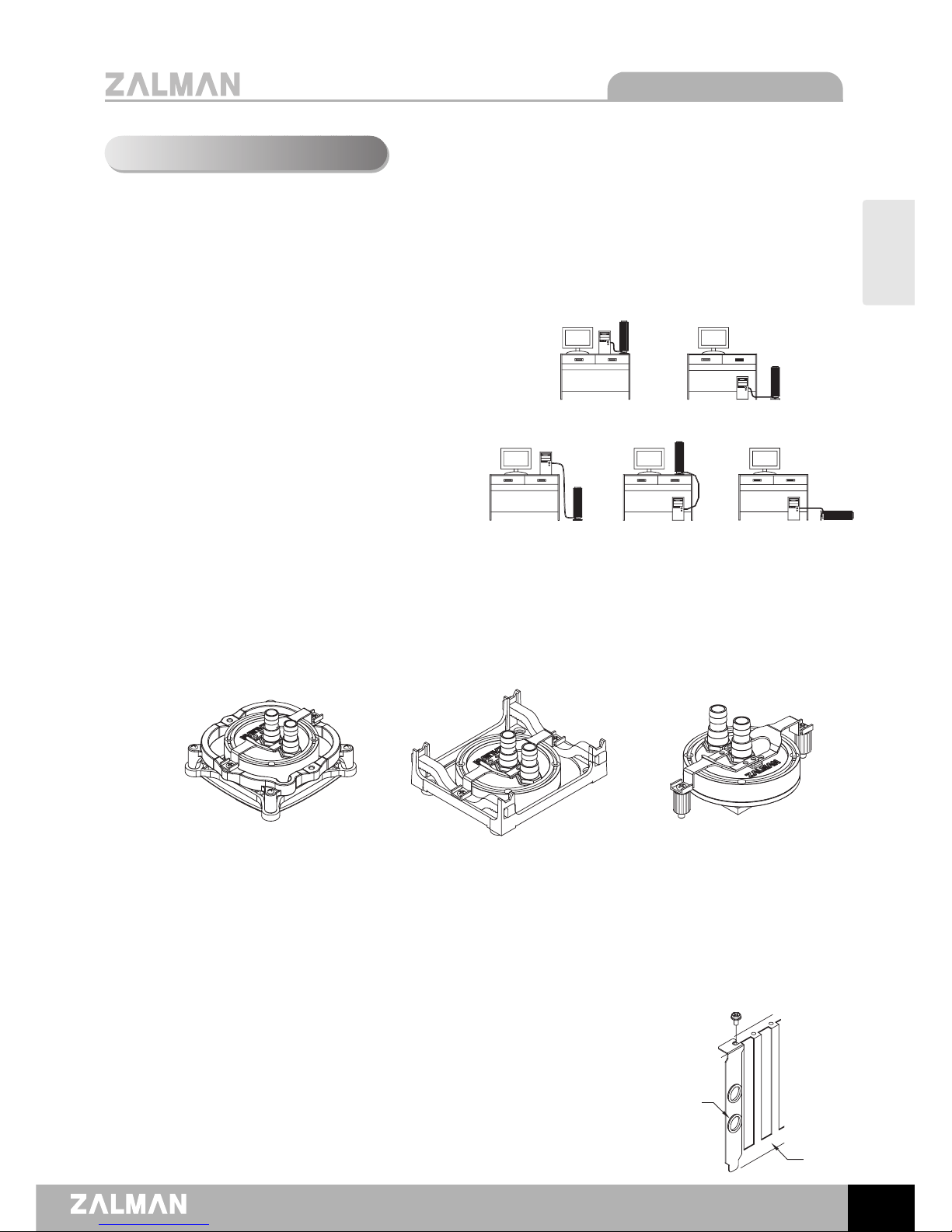

5. Installation Guide

5. 1 Check for Leaks

Before installing the product on a PC, check each Water Block and the Reserator for leaks.

5. 2 Determine the Placement of the Reserator

The Reserator’s placement should be

determined in relation to the position

of the PC. Place it upright next to or

slightly abo e the PC. Note that if the

Reserator is placed lower than the PC,

the PVC tube’s internal air pressure

may pre ent proper initial operation.

5. 3 Install the CPU Water Block (ZM-WB Gold)

1) Refer to the manual included with the ZM-WB4 Gold for installation instructions.

2) If physical interference occurs while installing the Water Block, stop the installation.

5. Install the VGA Water Block (ZM-GWB3)

1) Refer to the manual included with the ZM-GWB3 for installation instructions.

5. 5 Install the I/O Bracket

1) As shown in the diagram, install the I/O bracket on

a PCI slot on the computer case.

※

I/O Bracket should be installed at the lowest

possible slot.

((OO))((OO))

((XX))((XX))((XX))

I/O Bracket

PCI Slot

Intel Pentium 4

Socket 775 CPU

Intel Pentium 4

Socket 478 CPU

AMD Sempron/AMD 64

Socket 754/939/940 CPU

RESERATOR 1 V2

※

The specifications of any product may change without prior notice to improve performance.

5. 6 Connect the CPU Water Block

and the VGA Water Block

1) As shown in the diagram, connect the

two water blocks with a PVC tube.

5. 7 Connect the VGA Water Block with Reserator’s Base IN

1) As shown in the diagram, connect one end of the PVC Tube to the VGA Water Block

Fitting and fasten with a Tube Clamp.

2) Pull out the PVC Tube through the I/O Bracket hole on the computer case.

3) Connect a Quick Coupling Insert to the other end of the PVC Tube and clamp with a

Tube Clamp.

4) Plug the Quick Coupling into the Reserator’s Base IN fitting.

5. 8 Connect the CPU Water Block with the Flow Indicator

1) As shown in the diagram, connect one end of the PVC Tube to the CPU Water Block

fitting and fasten with a Fitting Cap.

2) Pull out the PVC Tube through the tube hole on the I/O Bracket.

3) Connect the Flow Indicator on the other end of the PVC Tube.

※

The Flow Indicator should be installed in the direction as shown in the diagram.

PVC Tube

CPU Water

Block

VGA Water

Block

I/O Bracket

Quick Coupling

Insert

Base IN Quick Coupling Body

Flow Indicator

Indice

Altri manuali ZALMAN Hardware per computer

ZALMAN

ZALMAN CNPS9500 AT Manuale utente

ZALMAN

ZALMAN CNPS12X Manuale utente

ZALMAN

ZALMAN Z9 series Manuale utente

ZALMAN

ZALMAN Optima CNPS8X Manuale utente

ZALMAN

ZALMAN CNPS10X Optima (2011) Manuale utente

ZALMAN

ZALMAN CNPS9700 LED Manuale utente

ZALMAN

ZALMAN CNPS20X Manuale utente

ZALMAN

ZALMAN ZM500-ST Manuale utente

ZALMAN

ZALMAN CNPS7000C Series Manuale utente

ZALMAN

ZALMAN CNPS10X Quiet Manuale utente

ZALMAN

ZALMAN FS-V7 Manuale utente

ZALMAN

ZALMAN CNPS8700 NT Manuale utente

ZALMAN

ZALMAN ZM80C Manuale utente

ZALMAN

ZALMAN CNPS14X Manuale utente

ZALMAN

ZALMAN ZM-RWB1 Manuale utente

ZALMAN

ZALMAN CNPS9700 LED Manuale utente

ZALMAN

ZALMAN CNPS9700 LED Manuale utente

ZALMAN

ZALMAN CNPS9X OPTIMA Manuale utente

ZALMAN

ZALMAN CNPS10X Extreme Manuale utente

ZALMAN

ZALMAN ZM80C-HP Manuale utente

ZALMAN

ZALMAN CNPS5100-Al Manuale utente

ZALMAN

ZALMAN CNPS9900A LED Manuale utente

ZALMAN

ZALMAN CNPS7X Manuale utente

ZALMAN

ZALMAN CNPS7700 LED Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
