ZALMAN ZM500 Manuale utente
User's Manual
ZM500/600/700-GLX
www.ZALMAN.com
※ To ensure safe and easy installation, Please read the following precautions.
Two Forward Switching
Power Supply
Ver.130923
ZM500/600/700-GV
11
Power Supply
AC Power Cord
Four Screw Five Cable Tie
User's Manual

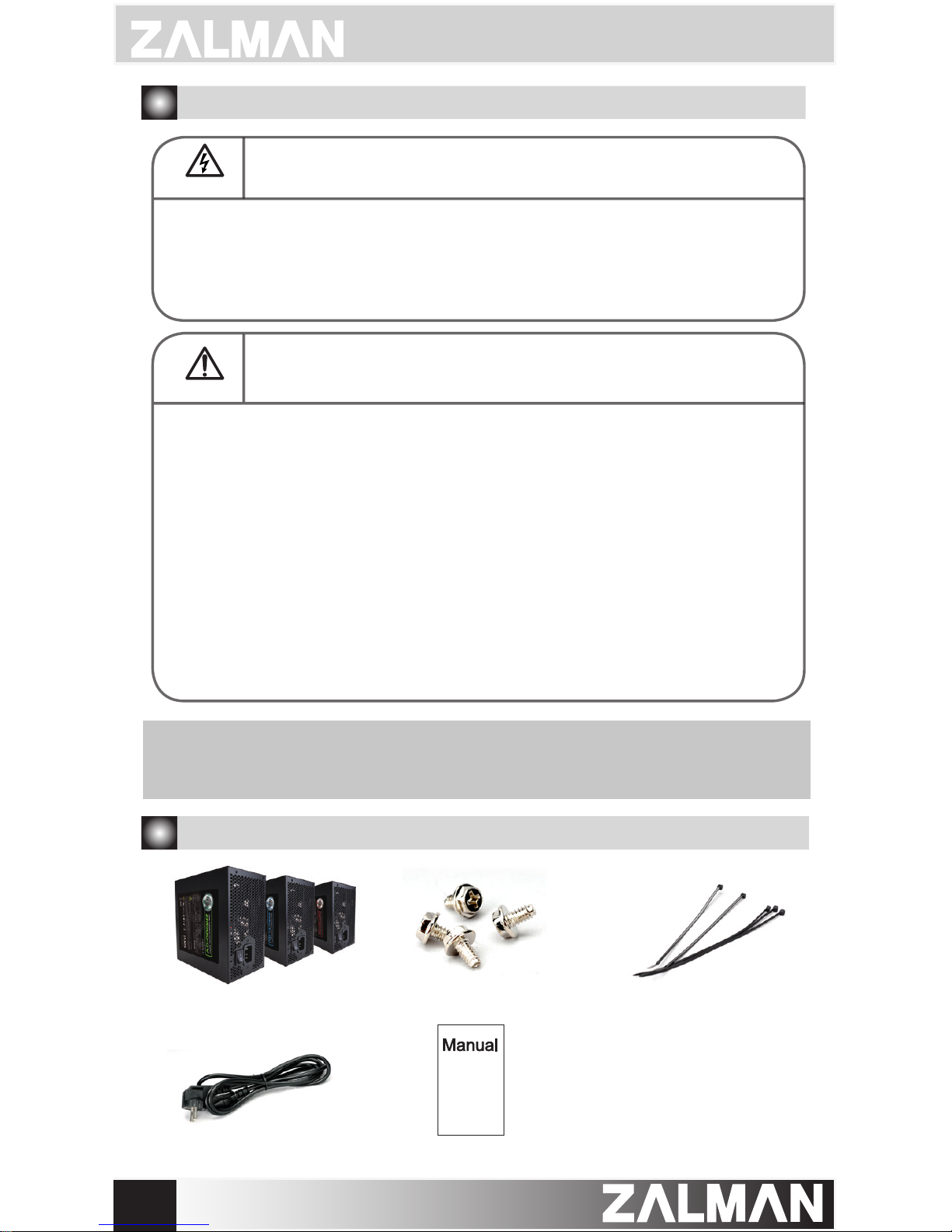

1. Warnings and Safety Precautions
2. Components
▶ Opening the cover of the product while the power cord is plugged into an outlet
may cause electrocution or critical damage to the product.
▶ Handling the power cord with wet hands may cause electrocution.
▶ Inserting ngers or metallic objects into the cooling fan may cause injury or
electrocution.
▶ Operating the product in an extremely cold or hot environment can degrade
product performance and lifespan.
▶ Exposure to liquids may cause malfunction.
▶ Operation in a humid or non-ventilated environment may reduce product lifespan.
▶ Plugging the main power connector P1 into the motherboard while the product is
connected to the AC power source may cause damage to the motherboard.
▶ Make sure that the connectors are connected to their designated locations, and
that the connectors are not oriented in the wrong direction when connecting the
DC output connectors.
▶ Please use gloves to prevent injuries during installation.
▶ Product designs and specications may be revised without prior notication to
improve quality and performance.
Neglecting the following may cause serious injury or death.
Neglecting the following may cause minor injuries, degrade product
conditions or cause malfunction.
Caution
Warning
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external
causes, including but not limited to, improper use, problems with electrical
power, accident, neglect, alteration, repair, improper installation, or
improper testing.
22

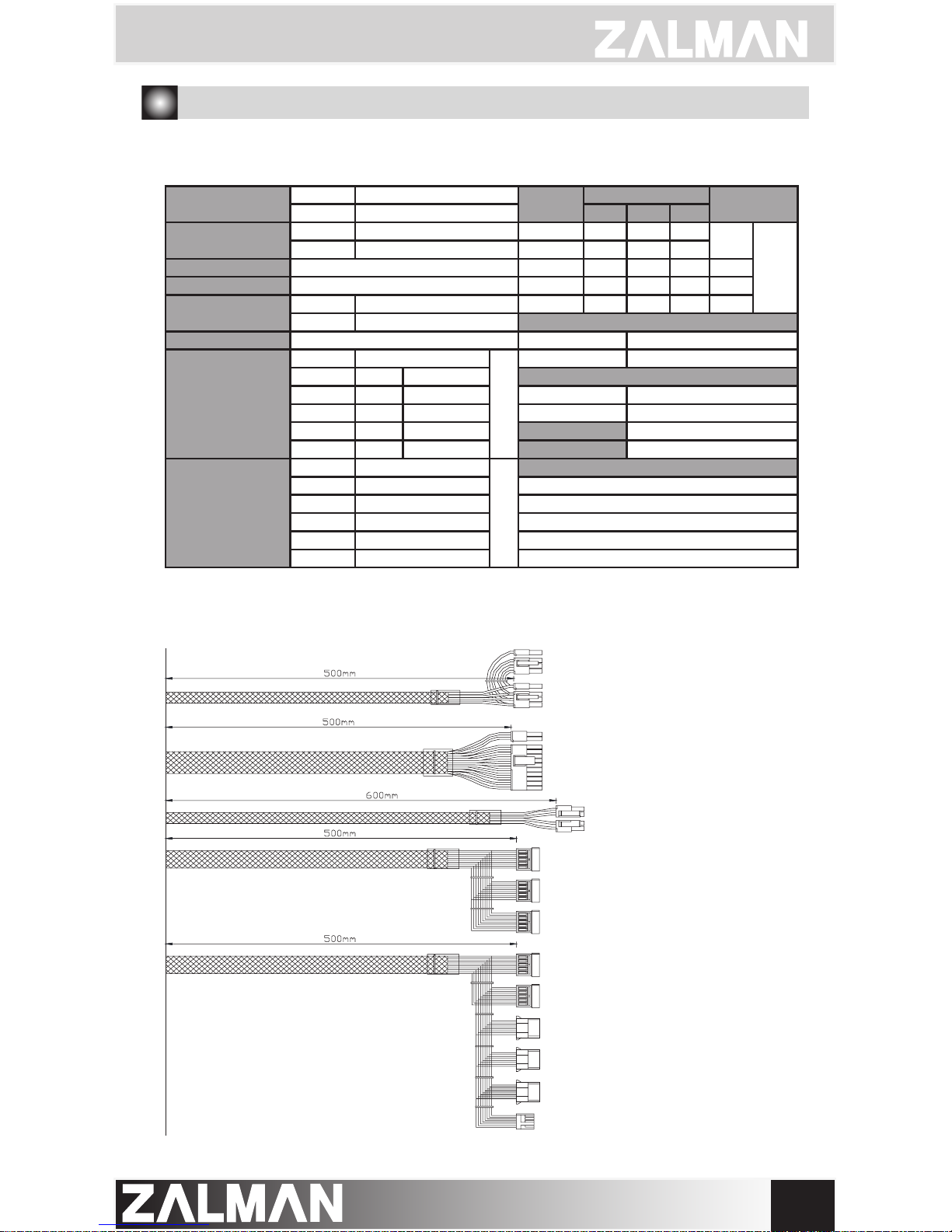

3. Specications
1) ZM500-GV Electrical & Physical Specications
2) ZM500-GV Cable Specications
AC Input Range Voltage 115~230VAC
±10% Vout
Output Load Rating Combined
Power
Frequency 50Hz ~ 60㎐
±3 Imin Imax Ipeak
AC Input Current 115VAC 8A +3.3V 0.1A 18A 110W
500W
230VAC 4A +5V 0.2A 16A
PFC Type Active PFC +12V 0.5A 38A 40A 456W
Power Factor Correction Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit
(@ Cold Start at 25℃)
115VAC - +5VSB 0.0A 2.5A 3.5A 12.5W
230VAC Max 100A Ambient Temperature
Eciency Max 88% @ 230VAC, Typical load Operation 0 ~ +35℃
DC Output Voltage
Regulation
Vout Regulation Range
At
Full
Load
Storage -20 ~ +70℃
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 140(L) * 150(W) * 86(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.01Kg
DC Output Ripple
& Noise
Vout Regulation Range
At
Full
Load
Protection Funtions
+3.3VDC 50mV Over-Current Protection (OCP)
+5VDC 50mV Over-Voltage Protection (OVP)
+12VDC 120mV Under-Voltage Protection (UVP)
-12VDC 120mV Short-Cicuit Protection (SCP)
+5VSB 50mV Over-Power Protection (OPP)
PCI Express2 Power Connector
PCI Express1 Power Connector
Mainboard Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
FDD Power Connector
CPU Power Connector
333

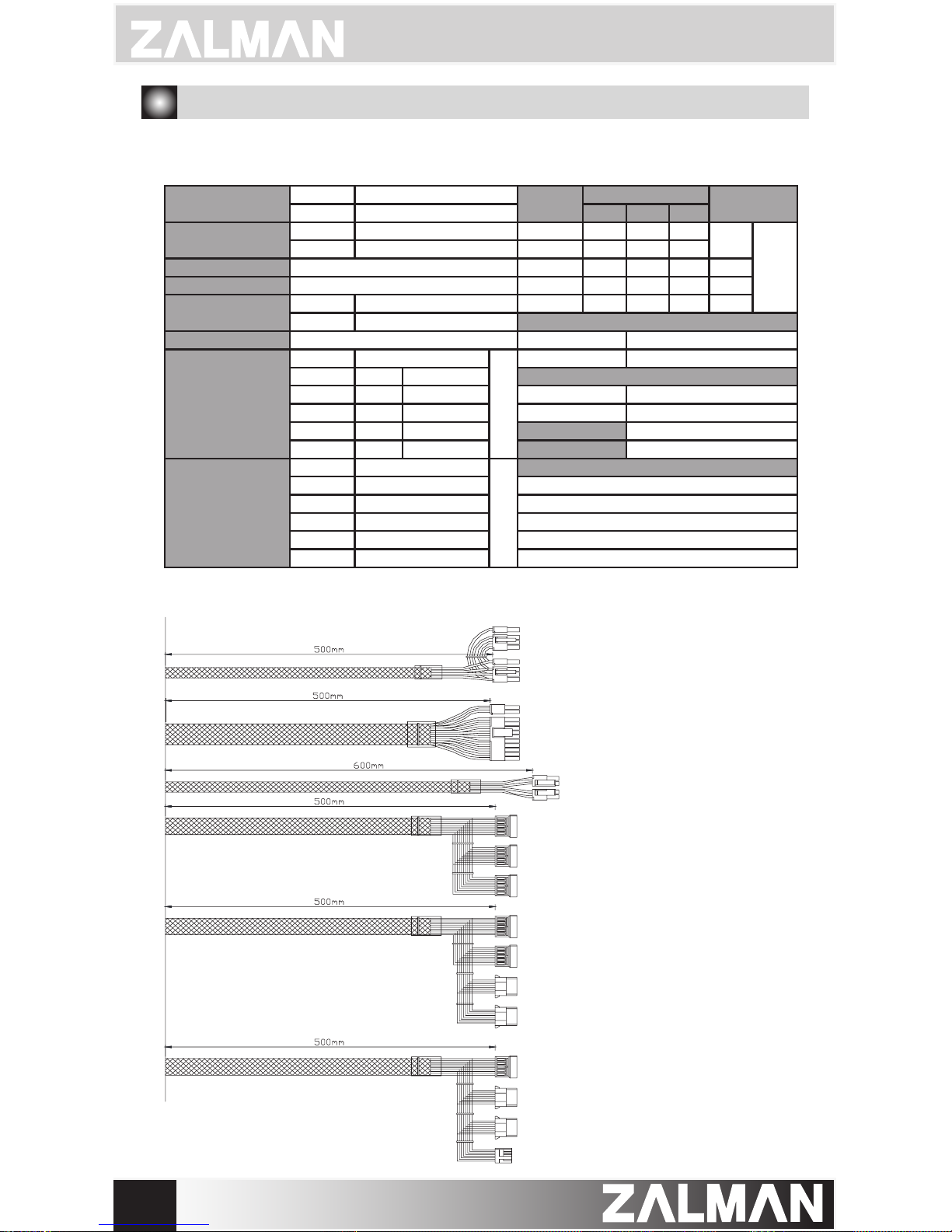

3. Specications
3) ZM600-GV Electrical & Physical Specications
4) ZM600-GV Cable Specications
AC Input Range Voltage 115~230VAC
±10% Vout
Output Load Rating Combined
Power
Frequency 50Hz ~ 60㎐
±3 Imin Imax Ipeak
AC Input Current 115VAC 9A +3.3V 0.1A 20A 120W
600W
230VAC 4.5A +5V 0.2A 17A
PFC Type Active PFC +12V 0.5A 46A 48A 552W
Power Factor Correction Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit
(@ Cold Start at 25℃)
115VAC - +5VSB 0.0A 2.5A 3.5A 12.5W
230VAC Max 100A Ambient Temperature
Eciency Max 88% @ 230VAC, Typical load Operation 0 ~ +35℃
DC Output Voltage
Regulation
Vout Regulation Range
At
Full
Load
Storage -20 ~ +70℃
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 140(L) * 150(W) * 86(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.05Kg
DC Output Ripple
& Noise
Vout Regulation Range
At
Full
Load
Protection Funtions
+3.3VDC 50mV Over-Current Protection (OCP)
+5VDC 50mV Over-Voltage Protection (OVP)
+12VDC 120mV Under-Voltage Protection (UVP)
-12VDC 120mV Short-Cicuit Protection (SCP)
+5VSB 50mV Over-Power Protection (OPP)
PCI Express2 Power Connector
PCI Express1 Power Connector
Mainboard Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
S-ATA Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
FDD Power Connector
CPU Power Connector
44

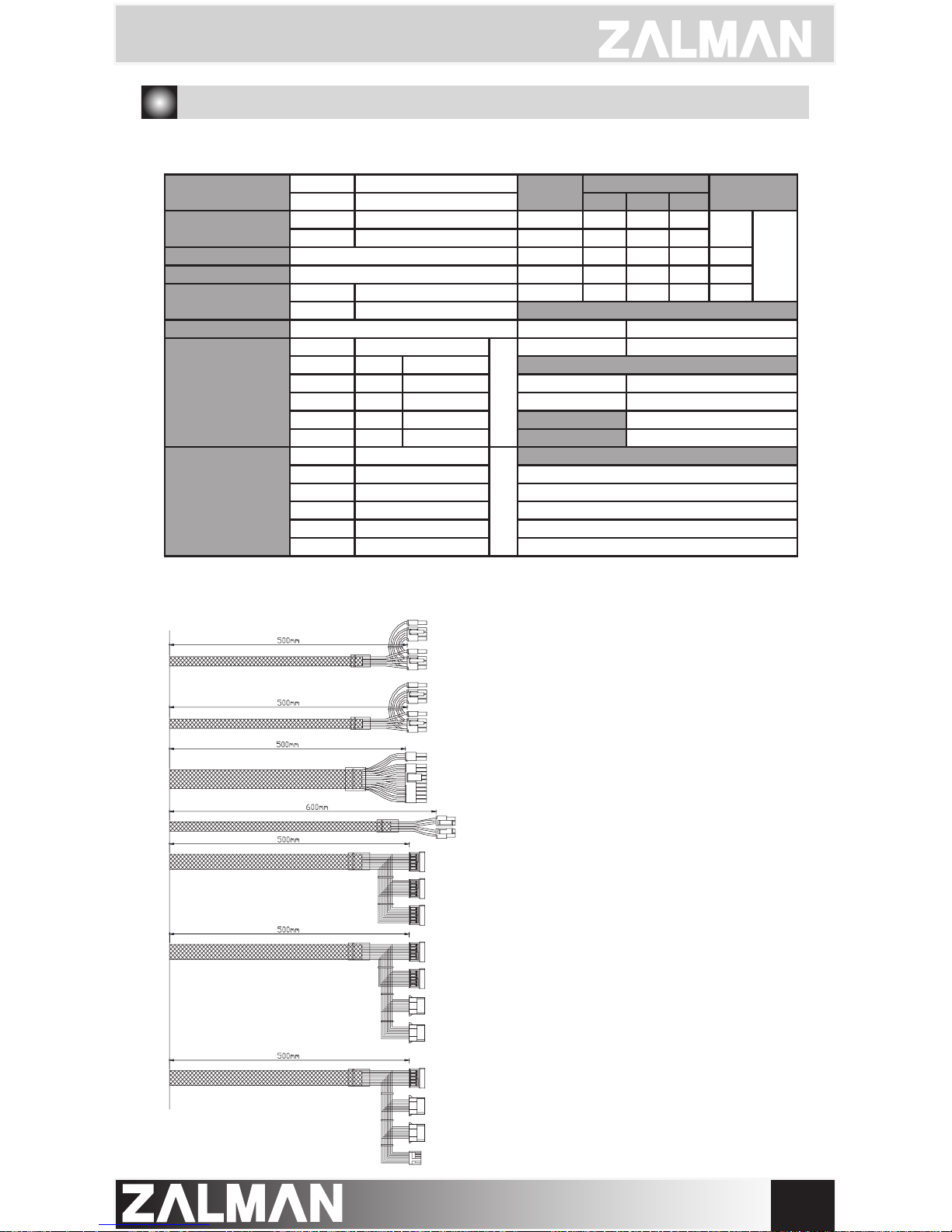

3. Specications
5) ZM700-GV Electrical & Physical Specications
6) ZM700-GV Cable Specications
AC Input Range Voltage 115~230VAC
±10% Vout
Output Load Rating Combined
Power
Frequency 50Hz ~ 60㎐
±3 Imin Imax Ipeak
AC Input Current 115VAC 10A +3.3V 0.1A 22A 130W
700W
230VAC 5A +5V 0.2A 18A
PFC Type Active PFC +12V 0.5A 54A 56A 648W
Power Factor Correction Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit
(@ Cold Start at 25℃)
115VAC - +5VSB 0.0A 2.5A 3.5A 12.5W
230VAC Max 100A Ambient Temperature
Eciency Max 88% @ 230VAC, Typical load Operation 0 ~ +35℃
DC Output Voltage
Regulation
Vout Regulation Range
At
Full
Load
Storage -20 ~ +70℃
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 140(L) * 150(W) * 86(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.2Kg
DC Output Ripple
& Noise
Vout Regulation Range
At
Full
Load
Protection Funtions
+3.3VDC 50mV Over-Current Protection (OCP)
+5VDC 50mV Over-Voltage Protection (OVP)
+12VDC 120mV Under-Voltage Protection (UVP)
-12VDC 120mV Short-Cicuit Protection (SCP)
+5VSB 50mV Over-Power Protection (OPP)
PCI Express4 Power Connector
PCI Express3 Power Connector
PCI Express2 Power Connector
PCI Express1 Power Connector
Mainboard Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
S-ATA Power Connector
ODD/HDD Power Connector
ODD/HDD Power Connector
FDD Power Connector
CPU Power Connector
5555

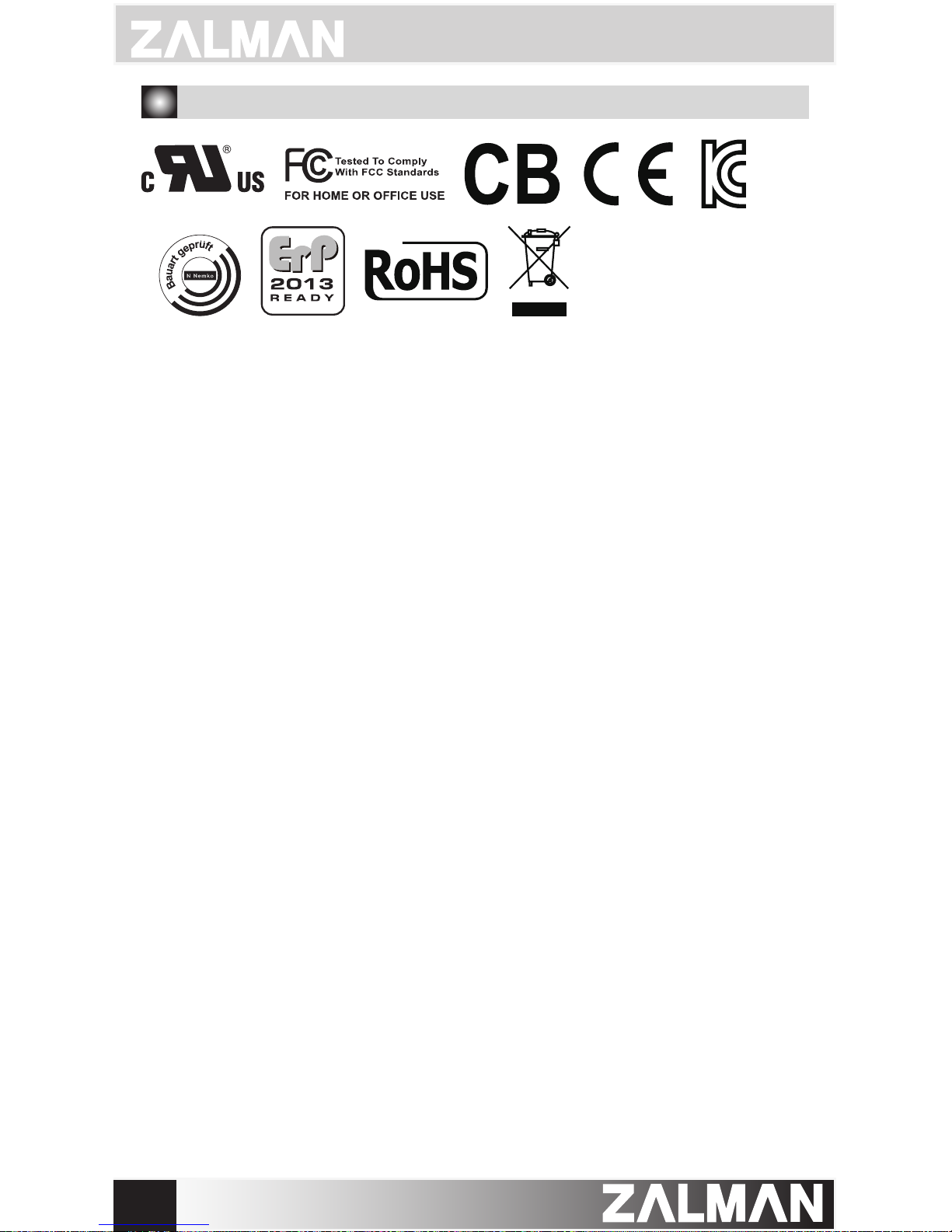

4. Certications
E198072
